Heater box resto

[moparedtn]

Thanks gents.
So, wire harness disconnected, hoses off, control cables off, three nuts off and wala?
I might be able to even handle this one.



[HD539]

Thanks gents.
So, wire harness disconnected, hoses off, control cables off, three nuts off and wala?
I might be able to even handle this one.

It did make it a lot easier having the front seat removed.



[Torkmnstr]

Yes just be mindful when removing. That heater core is nice and full and will spill rad fluid all over the carpet! Control cables are just a push lock on the door arm and slip them off. 3 firewall nuts and that’s it.



[dadsbee]

Use a wet vac or suction pump and empty the heater core before dropping the box.



[rrTor-Red]

Just make sure that heater core is good/looked at before putting it back in. Also, take PICTURES to aide in putting back together



[rrTor-Red]

Use a wet vac or suction pump and empty the heater core before dropping the box.

Another good helpful hint



[Torkmnstr]

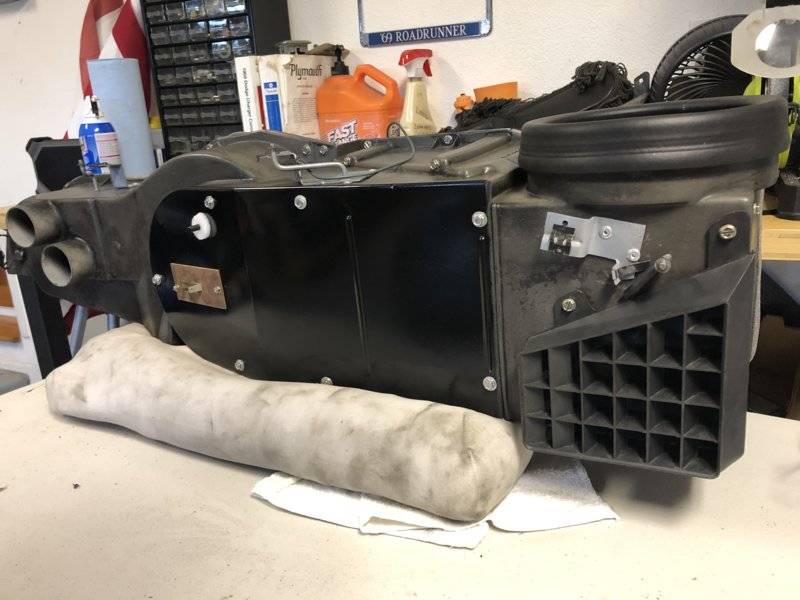

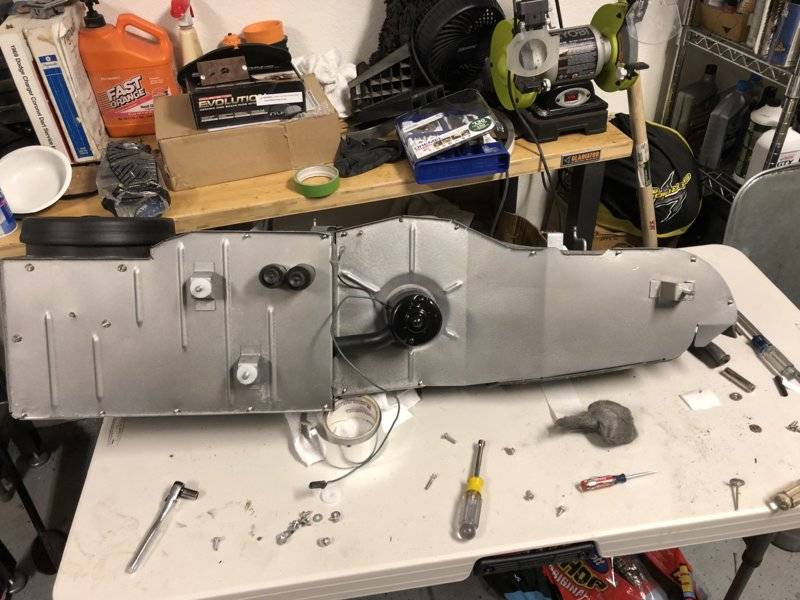

Waiting on blower motor and we are done!



[rrTor-Red]

^^^^Looks good!



[moparedtn]

^^^^Looks good!

Agreed. I'm always impressed when someone puts that kind of effort into something that, frankly, nobody
is going to see.
YOU know it's there, though.
That's the mark of someone who cares about what they're doing. Getting to be a rare thing anymore.



[Backpacker]

How did you remove all the rust from the panels and parts? Evaporust? You did a great job on cleaning it up and I would like to make mine look as clean as yours came out.



[Torkmnstr]

Thanks, Yup evaporust was the ticket. My buddy turned me onto it. I wasn’t sure how to get it done but when I got the evapo it was crazy to watch it basically melt away. Lol



[Torkmnstr]

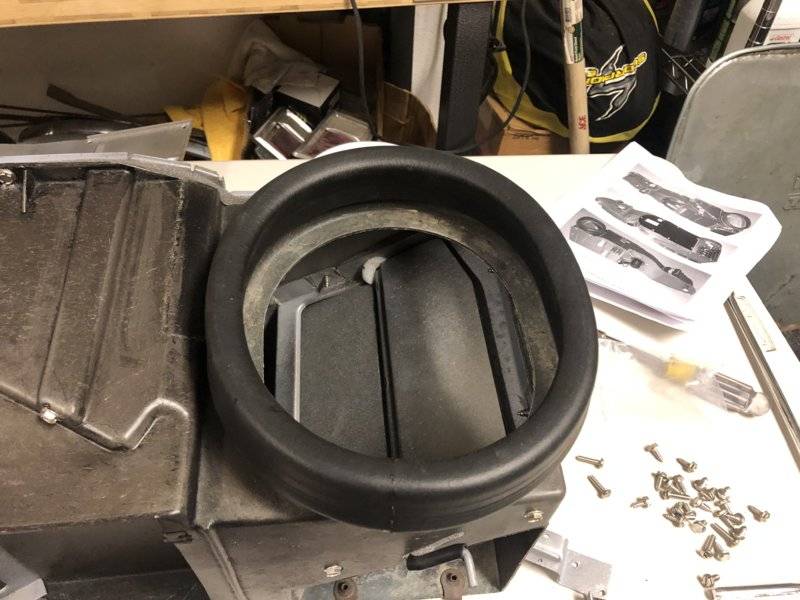

Well I was waiting on a new blower motor and the one from rock auto showed up wrong. The rubber vent tub didn’t line up. What a pisser, now I’m waiting on a used one off eBay



[Torkmnstr]

Alright we are almost done! What’s everyone done for the yellow stamp on the front? What’s the size, I know I can order one up online...



[El.Padrino]

Great work! Reminds me of my heater box resto.

@Torkmnstr could you provide me with a pic of the firewall inside with the factory insulation? Much appreciated!!

I have the REM firewall insulation pads but they are a little different to the OEM.



[Torkmnstr]

Well I bit the bullet and ordered the stamp on eBay...



[Torkmnstr]

Great work! Reminds me of my heater box resto.

@Torkmnstr could you provide me with a pic of the firewall inside with the factory insulation? Much appreciated!!

I have the REM firewall insulation pads but they are a little different to the OEM.

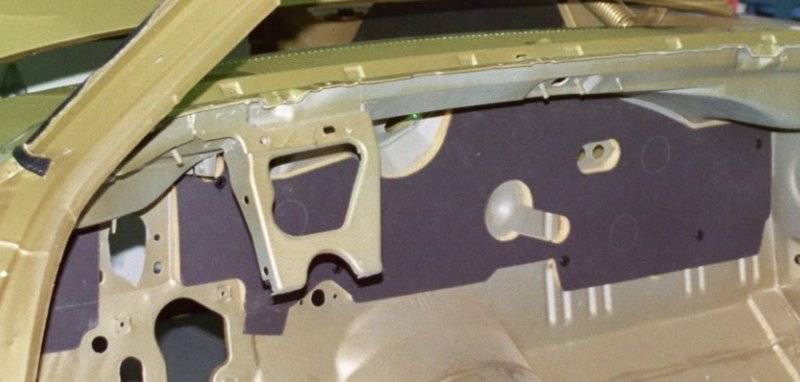

I don’t have the insulation, but the pad just goes in between the two...



[Torkmnstr]



[Backpacker]

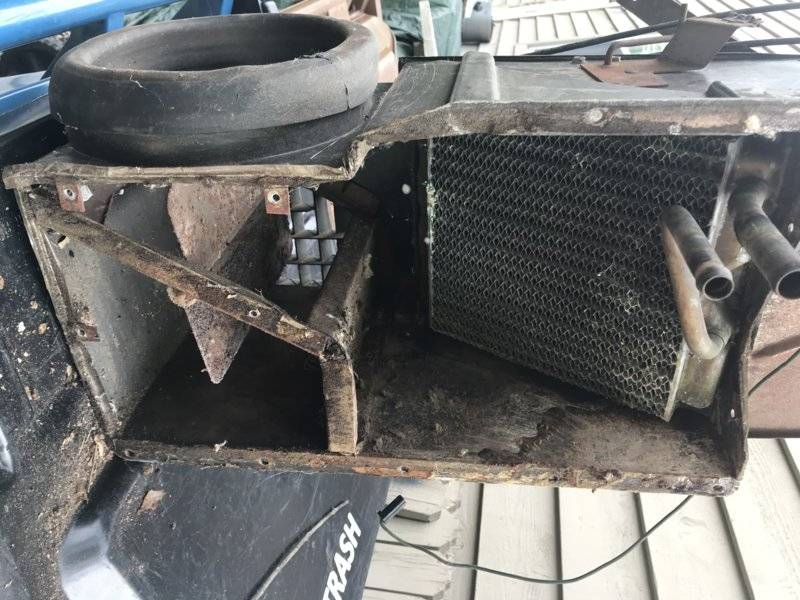

Did you paint all the parts after cleaning off the rust? If so, what paint did you use? Did yours look like this one before you started?



[snakeoil24]

They all get lots of dirt. I was thinking about putting a cabin filter inside the air intake.



[BeeKool]

They all get lots of dirt. I was thinking about putting a cabin filter inside the air intake.

Id be concerned with it restricting the incoming airflow.
