Heater Control Vacuum Switch Question?

1962 - 1965 Mopars

  1. rarefish

    rarefish Well-Known Member

    Messages:
    293
    Likes Received:
    121
    Joined:
    Jul 9, 2013
    Location:
    NY
    Local Time:
    4:20 PM

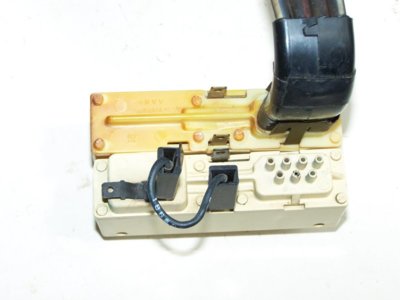

    I have these two heater vacuum switches. They are both the 4 button type, but the one on the bottom has an extra set of electrical terminals on the back side. Would this be for car with factory A/C?


  2. 62MAX

    62MAX Well-Known Member

    Messages:
    1,440
    Likes Received:
    898
    Joined:
    Jul 21, 2008
    Location:
    PA
    Local Time:
    4:20 PM

    Yes,this one.

    Picture 1018.jpg

    • Thanks! Thanks! x 1
    • rarefish

      rarefish Well-Known Member

      Messages:
      293
      Likes Received:
      121
      Joined:
      Jul 9, 2013
      Location:
      NY
      Local Time:
      4:20 PM
      Strange... The part number on that 4 electrical terminal vac switch is the same number that I have seen on the 2 electrical terminal vac switches. I have been searching the 62-65 parts books trying to find a part number for a A/C vacuum switch as I had assumed that the switch that i have with the extra electrical terminals might be for a A/C car.

    • 62MAX

      62MAX Well-Known Member

      Messages:
      1,440
      Likes Received:
      898
      Joined:
      Jul 21, 2008
      Location:
      PA
      Local Time:
      4:20 PM

      If it has five 5 spade terminals and four buttons,it is an A/C switch,the extra terminal goes to the A/C relay that powers the compressor.

      AC switch.jpg

      Last edited: Apr 28, 2018
      • Thanks! Thanks! x 1
      • ModernNostalgia

        ModernNostalgia Active Member

        Messages:
        25
        Likes Received:
        59
        Joined:
        Apr 2, 2018
        Location:
        Sunbury Ohio
        Local Time:
        4:20 PM
        On my '64 Polara with air, you don't turn the A/C on with the push-button switches; its controlled by the actual knob on the dash that controls the blower fan. It has a "heat" and "cool" direction you can turn it. I just assumed the pushbutton controls were the same for all cars! That wiring diagram above makes the system make a lot more sense.

        Last edited: May 2, 2018
