HELP ! Need measurements 66-70 B body console and 4 speed!

[Kern Dog]

Hey everyone!
I'm in the middle of a Tremec 5 speed conversion in my '70 Charger and I'm having some trouble.
I need the measurements for a STOCK 4 speed console plate.

I bought another set of console plates to modify because I read that the A/T plate can be modified to work.
I need the measurements for a stock 4 speed similar to what I measured on the photos below.

The problem I am having is that with the console in the factory location, the A/T console plate had the opening too far to the rear. I'd have to move the console forward 1 1/2" or so to be able to use the A/T top plate.
Can you help a brother out???



[1 Wild R/T]

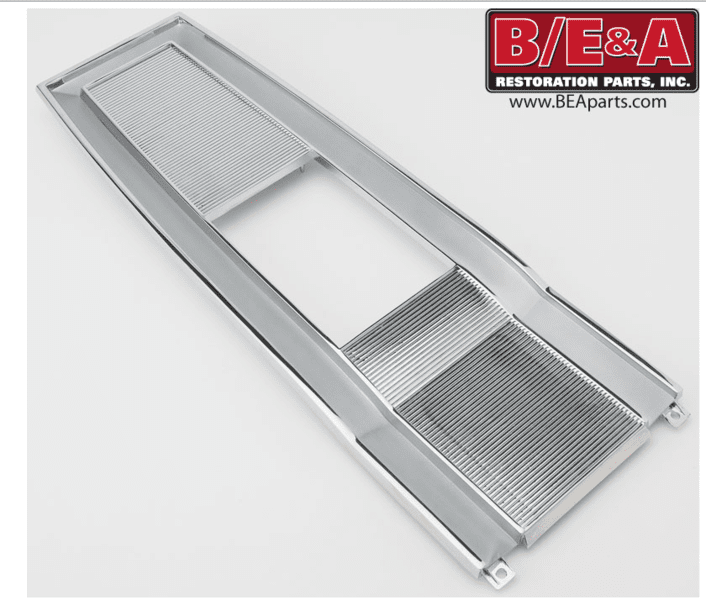

I got no measurements but this should probably give you what you need... Those lines in the casting might as well be measurements..



[Kern Dog]

That helps show that the cutout does run to that inner chrome ridge as opposed to leaving a thin section along each side.
That dip down section should be the same on all models. The section between it and the opening is much bigger than on the one I have.



[Jesse6869]

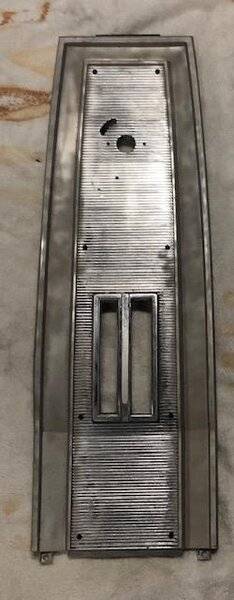

Like 1 wild r/t said i got this for u



[Jesse6869]

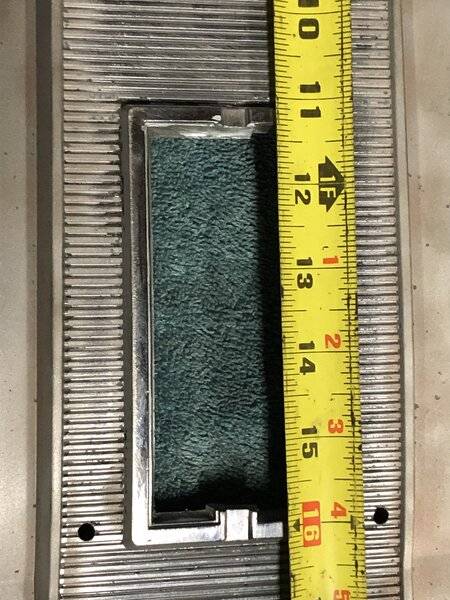

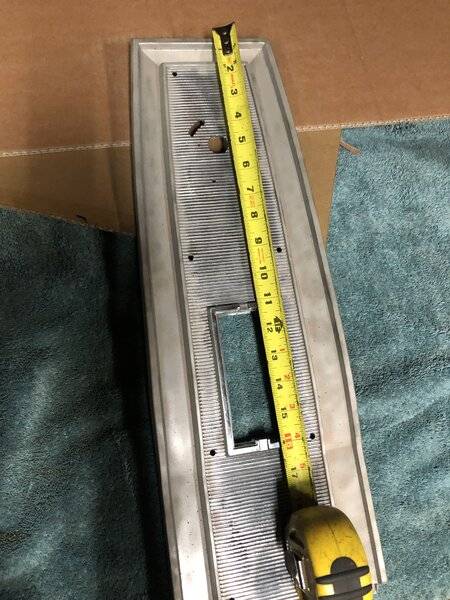

Here’s another



[pnora]

Do you have the off set shift handle adapter?



[Kern Dog]

Do you have the off set shift handle adapter?

Yeah...It isn't enough though.

Wow...THANK YOU for the pictures.

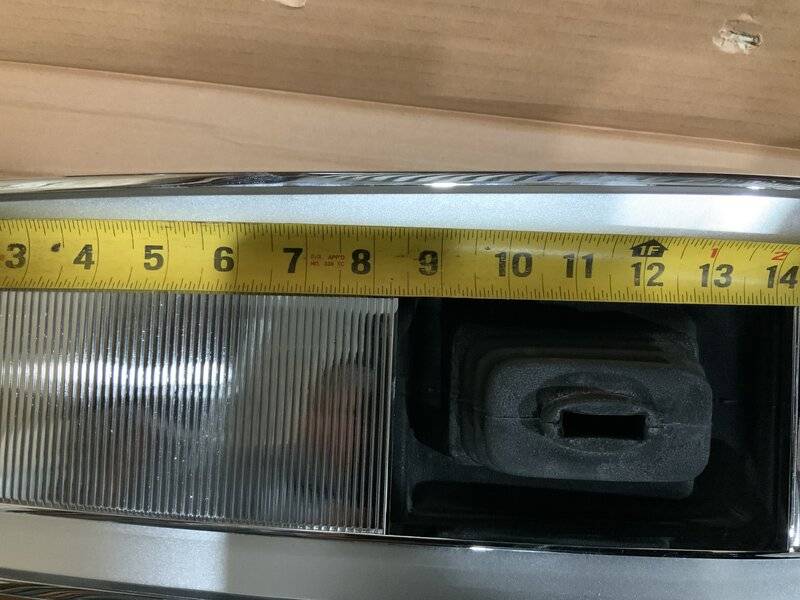

The 4 speed top edge is about 2 3/4" forward of where the A/T opening is.



[pnora]

I am in the process of putting my car together along with the auto to 5 speed conversion. I have a new 4 speed plate along with an automatic plate I can measure for you tomorrow. I can also take pictures if will help you?



[Kern Dog]

Thank you. I think that I understand now though.

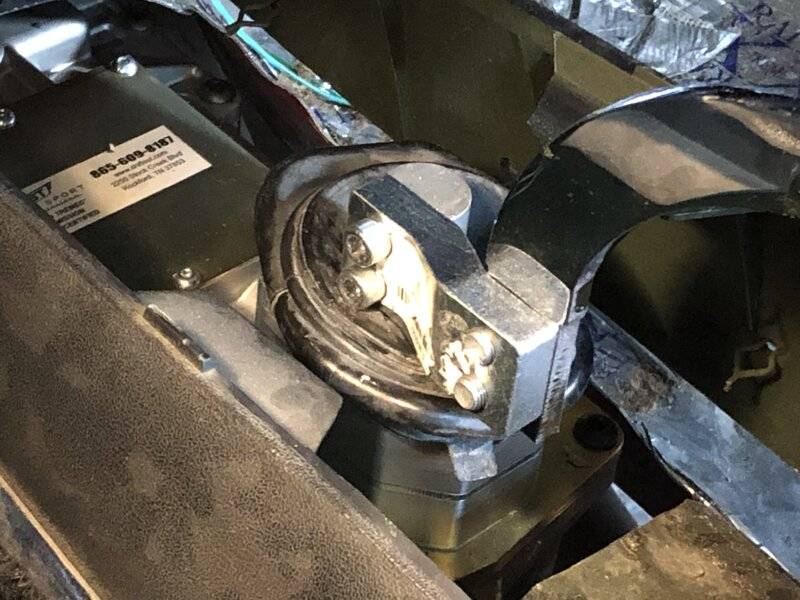

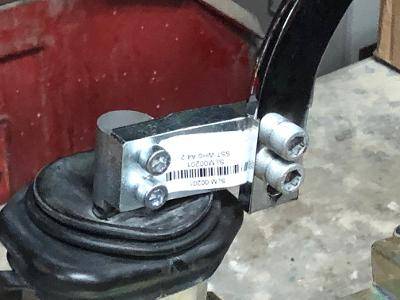

I may still be able to make this A/T plate work. The Tremec 5 speed has shorter throws and the point where the shifter attaches is higher so the opening does not have to be as big. I might be able to cut more out of the top and the sides. Also, there is some fore/aft adjustment to the placement of the console.



[69sunfireGTX]

Make a new adapter. Its not to hard to do. With little measuring it should be pretty easy for you.
