How does a 68 charger trunk lid prop open?

Exterior Body, Paint, Trim, Chrome

  1. Rck68

    Rck68 Well-Known Member

    Messages:
    143
    Likes Received:
    46
    Joined:
    Dec 9, 2019
    Location:
    Naples, Florida
    Local Time:
    12:52 PM
    Hi all,

    what is the mechanism and where can I find it, to prop open a 68 charger trunk lid?

    my trunk weighs a ton right now when I open it, because only the hinges are connected. What else is necessary, springs??
    Can’t find anything on this! Thank you for any help.

  2. Mike Szadaj

    Mike Szadaj Well-Known Member

    Messages:
    747
    Likes Received:
    1254
    Joined:
    Jan 17, 2019
    Location:
    St. Clair Shores, Mi
    Local Time:
    11:52 AM

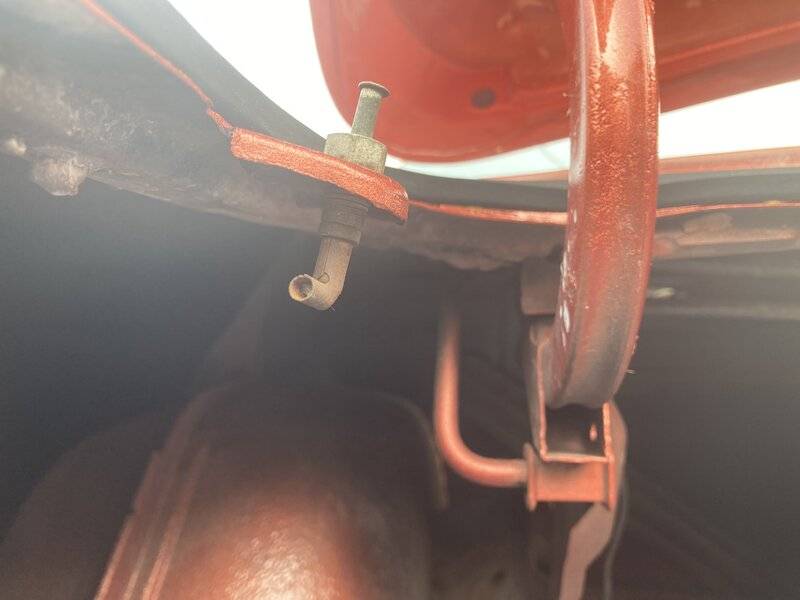

    ED64A63B-1F3C-494F-A424-7ACC302A853B.jpeg 7003C18A-16B3-4728-BEC3-FE06B816E9B2.jpeg There are two springs that look like long rods. One side of the rod is attached to the hinge and the other one goes in a slot on the opposite side of the trunk. If a wing or a luggage rack is attached to the trunk the extra slots, when used, make the springs tighter and able to hold the trunk up with the extra added weight. In the first picture I am pointing to the two rods with a wooden dowel. Each Spring has a length wider than that of the trunk opening. The pictures are from a 1968 Coronet. The rods work the same way as the torsion bars on the front suspension of your car.

    Last edited: Jul 19, 2021
    • Agree Agree x 4
    • Thanks! Thanks! x 1
    • blue69runner

      blue69runner Well-Known Member

      Messages:
      759
      Likes Received:
      845
      Joined:
      Jun 1, 2020
      Location:
      Lake Wales Fl.
      Local Time:
      12:52 PM
      Missing torsion bar's. Also the glider spools that go on the rod and slide on the hinge bars.

      • Agree Agree x 2
      • Thanks! Thanks! x 1
      • Mike Szadaj

        Mike Szadaj Well-Known Member

        Messages:
        747
        Likes Received:
        1254
        Joined:
        Jan 17, 2019
        Location:
        St. Clair Shores, Mi
        Local Time:
        11:52 AM

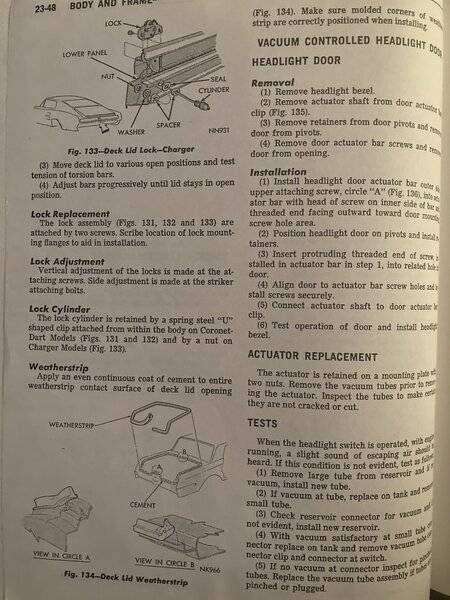

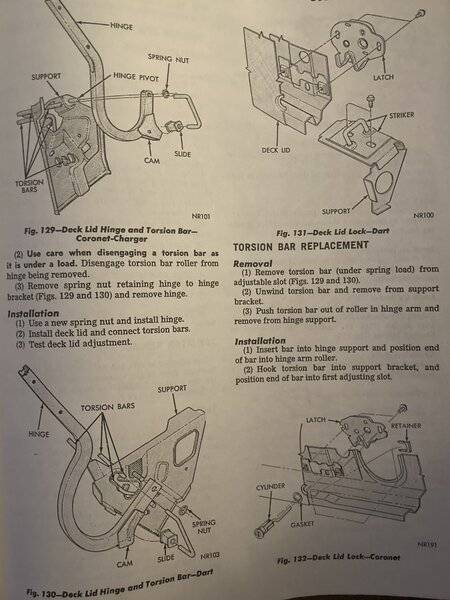

        1F7ADDE8-1BE4-4C52-803B-68EE4899A68E.jpeg 93E55F3D-0A21-4FA6-8D8E-F33B84B57E6A.jpeg Here is what the FSM has to say

        • Thanks! Thanks! x 2
        • Like Like x 1
        • Agree Agree x 1
        • blue69runner

          blue69runner Well-Known Member

          Messages:
          759
          Likes Received:
          845
          Joined:
          Jun 1, 2020
          Location:
          Lake Wales Fl.
          Local Time:
          12:52 PM
          They are a pain to put in. Maybe some one here has an easy way to get them in.

          • Agree Agree x 1
          • Rck68

            Rck68 Well-Known Member

            Messages:
            143
            Likes Received:
            46
            Joined:
            Dec 9, 2019
            Location:
            Naples, Florida
            Local Time:
            12:52 PM
          • Photon440

            Photon440 Well-Known Member

            Messages:
            11,826
            Likes Received:
            13360
            Joined:
            Mar 14, 2012
            Location:
            Surrey, B.C. Canada
            Local Time:
            9:52 AM
          • mopar4don

            mopar4don Well-Known Member

            Messages:
            948
            Likes Received:
            879
            Joined:
            Feb 4, 2012
            Location:
            Michigan
            Local Time:
            12:52 PM
            Is there an easy way?

            • Like Like x 1
            • 69hemibeep

              69hemibeep Well-Known Member

              Messages:
              417
              Likes Received:
              265
              Joined:
              Jul 31, 2008
              Location:
              AZ Desert
              Local Time:
              9:52 AM
              I have a set of bars out of a 70

              • Like Like x 1
              • Rck68

                Rck68 Well-Known Member

                Messages:
                143
                Likes Received:
                46
                Joined:
                Dec 9, 2019
                Location:
                Naples, Florida
                Local Time:
                12:52 PM
                How much?

                • Like Like x 1
                • Mike Szadaj

                  Mike Szadaj Well-Known Member

                  Messages:
                  747
                  Likes Received:
                  1254
                  Joined:
                  Jan 17, 2019
                  Location:
                  St. Clair Shores, Mi
                  Local Time:
                  11:52 AM
                  Look at the top page of the FSM. In the illustration it is referred to as a slide.

                  • Like Like x 1
                  • Thanks! Thanks! x 1
                  • Mike Szadaj

                    Mike Szadaj Well-Known Member

                    Messages:
                    747
                    Likes Received:
                    1254
                    Joined:
                    Jan 17, 2019
                    Location:
                    St. Clair Shores, Mi
                    Local Time:
                    11:52 AM

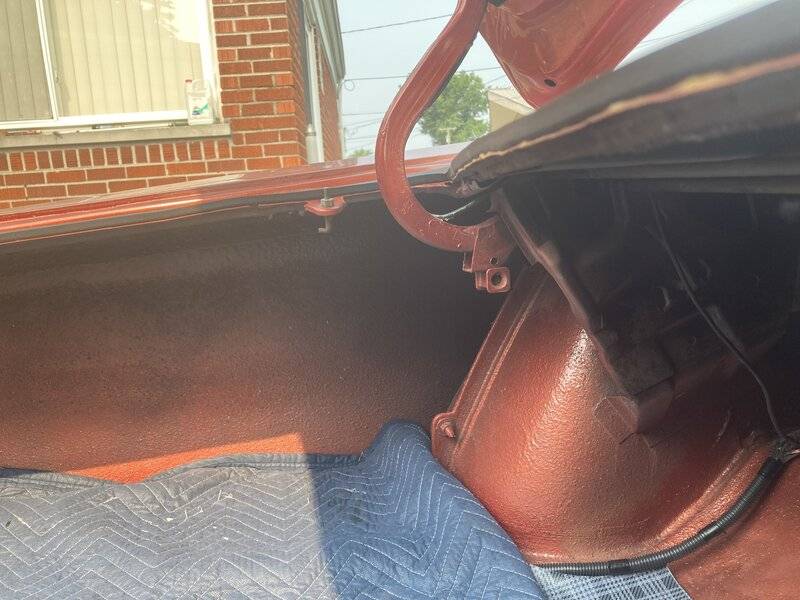

                    3C5E3B99-1C9F-4F55-9E02-51A2DCA80FC9.jpeg D7ECE78E-FF7F-4296-A756-C1BE84F3F017.jpeg Here are a couple of pictures

                    • Like Like x 1
                    • Agree Agree x 1
                    • Rck68

                      Rck68 Well-Known Member

                      Messages:
                      143
                      Likes Received:
                      46
                      Joined:
                      Dec 9, 2019
                      Location:
                      Naples, Florida
                      Local Time:
                      12:52 PM
                      • Agree Agree x 2
                      • wagonman

                        wagonman Well-Known Member

                        Messages:
                        1,457
                        Likes Received:
                        1039
                        Joined:
                        Aug 1, 2015
                        Location:
                        Deming New Mexico
                        Local Time:
                        11:52 AM
                        Correct. I have been trying to get them in my 68. A Royal PITA for a weak old Gummer like Me. I wish some one would do a video on this.

                        • Like Like x 1
                        • Thanks! Thanks! x 1
                        • Rck68

                          Rck68 Well-Known Member

                          Messages:
                          143
                          Likes Received:
                          46
                          Joined:
                          Dec 9, 2019
                          Location:
                          Naples, Florida
                          Local Time:
                          12:52 PM
                          What about the support where the torsion bar inserts, is that just the chassis or another piece?

                        • wagonman

                          wagonman Well-Known Member

                          Messages:
                          1,457
                          Likes Received:
                          1039
                          Joined:
                          Aug 1, 2015
                          Location:
                          Deming New Mexico
                          Local Time:
                          11:52 AM
                          Do you mean the welded on part to the inner wheel well and dutchman panel where the hinges attach?

                        • Rck68

                          Rck68 Well-Known Member

                          Messages:
                          143
                          Likes Received:
                          46
                          Joined:
                          Dec 9, 2019
                          Location:
                          Naples, Florida
                          Local Time:
                          12:52 PM
                          Yes I guess that’s where the torsion bars attach correct? Through the trunk hinges then into that welded in metal with the three slots.

                          • Agree Agree x 1
                          • wagonman

                            wagonman Well-Known Member

                            Messages:
                            1,457
                            Likes Received:
                            1039
                            Joined:
                            Aug 1, 2015
                            Location:
                            Deming New Mexico
                            Local Time:
                            11:52 AM
                            That is correct. Look at the diagram it is kind of fuzzy but will give you sense of how they clock in.

                            • Like Like x 1
                            • Agree Agree x 1
                            • Mike Szadaj

                              Mike Szadaj Well-Known Member

                              Messages:
                              747
                              Likes Received:
                              1254
                              Joined:
                              Jan 17, 2019
                              Location:
                              St. Clair Shores, Mi
                              Local Time:
                              11:52 AM

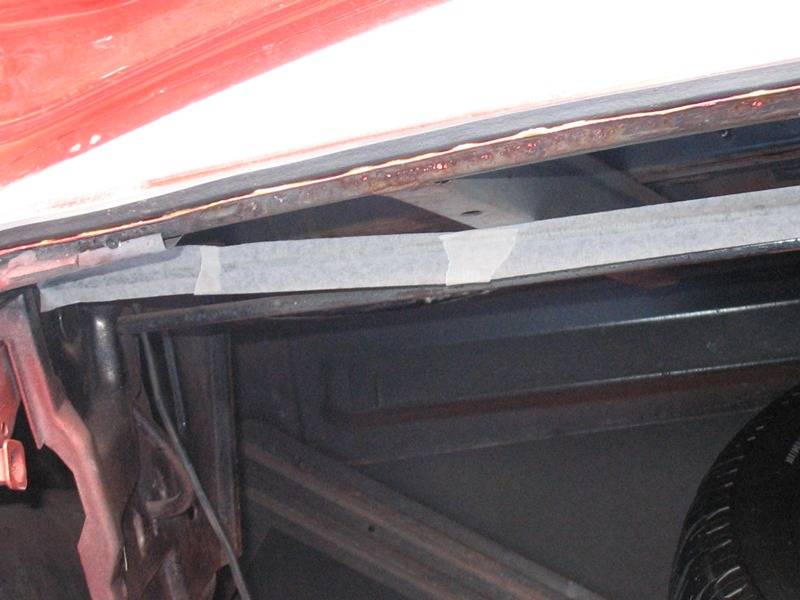

                              To make it easier to see, I put masking tape on the torsion bar that puts upward pressure on the drivers side trunk hinge.

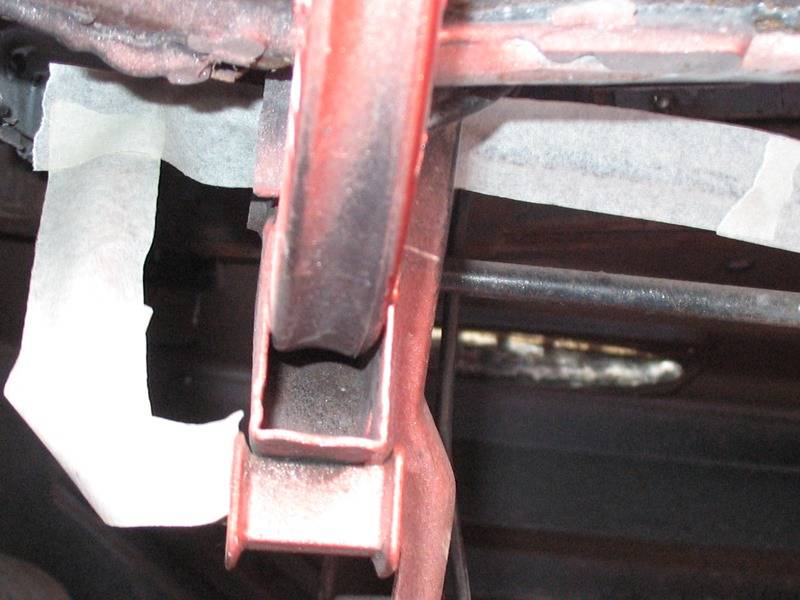

                              The first picture shows the end of the torsion bar going onto the slider, then passing through the hinge support bracket.
                              The second shows the route it takes to the other side of the trunk.

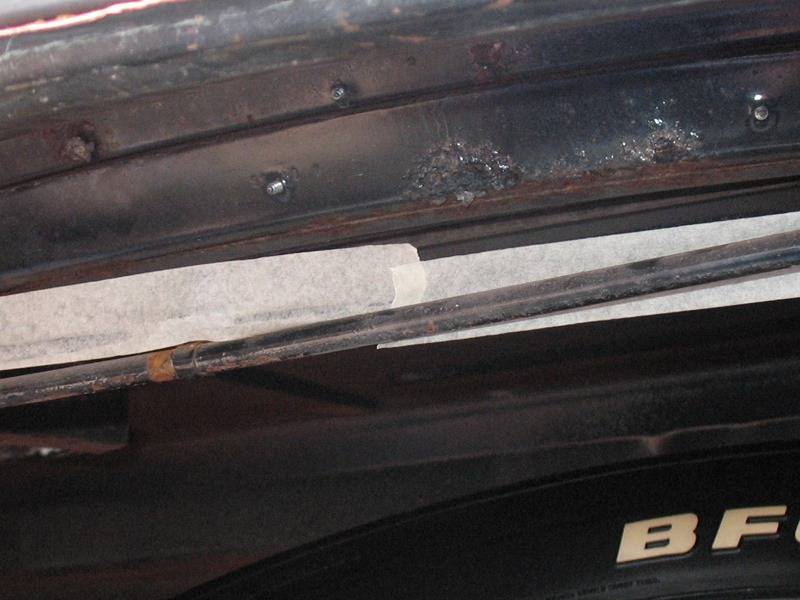

                              The third shows how the two torsion bars criss-cross at the middle of the trunk.

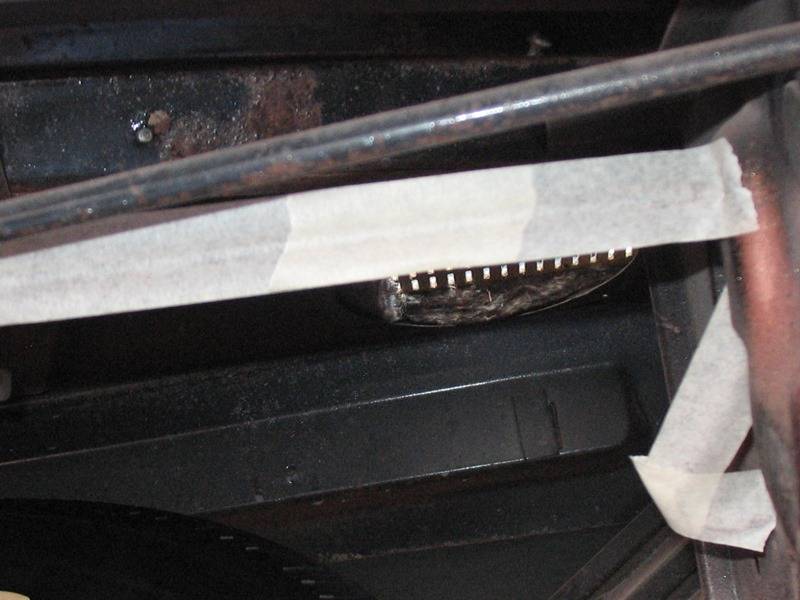

                              The fourth shows the torsion bar partially going behind the passenger side hinge support bracket, coming back out, and going into the first adjustment slot.

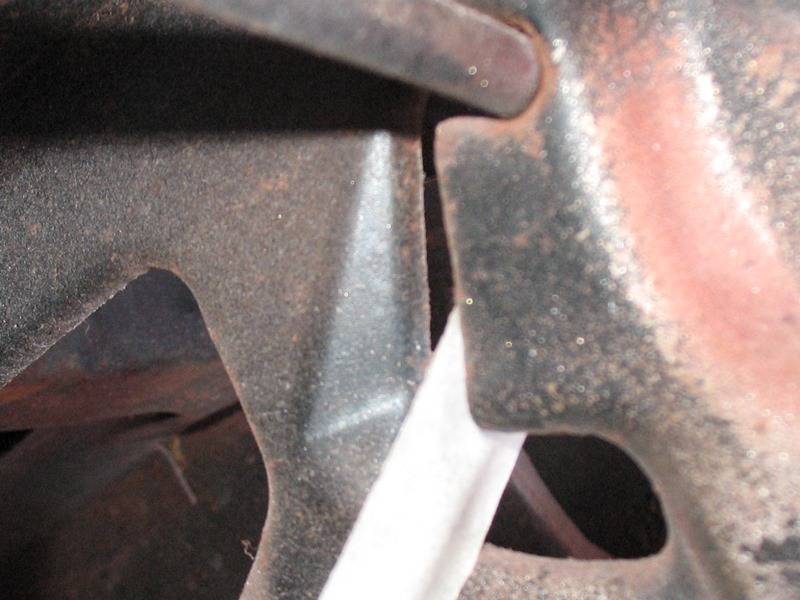

                              The fifth shows a close up of that. The tape has been taken off of the rod, which is at the top of the photo.
                              The other torsion bar is opposite symmetrical in shape and installation. t1.jpg t2.jpg t3.jpg t4.jpg t5.jpg

                              • Like Like x 1
                              • Agree Agree x 1
                              1. This site uses cookies to help personalise content, tailor your experience and to keep you logged in if you register.
                                By continuing to use this site, you are consenting to our use of cookies.
