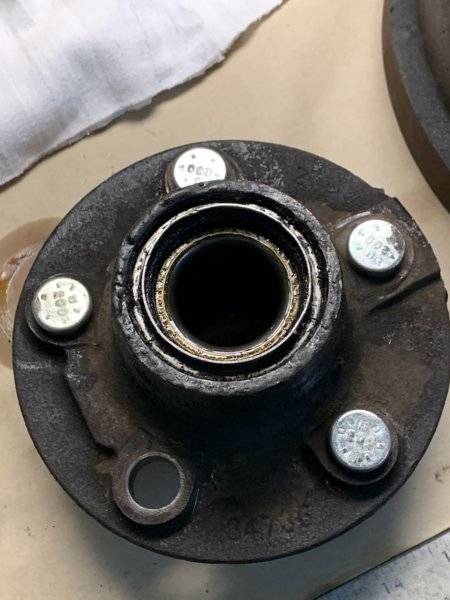

    What a challenge over something that should not be this hard! LOL! I need to replace one lug stud in the front hub assembly on my 65 Belvedere that the previous owner had cross threaded and total screwed up. It just spun and spun due to the serrations being destroyed.

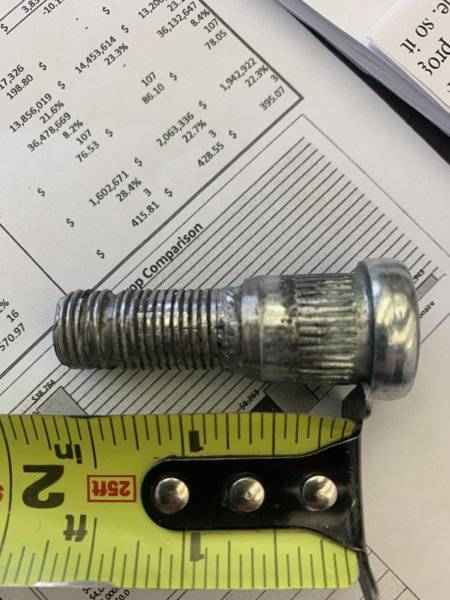

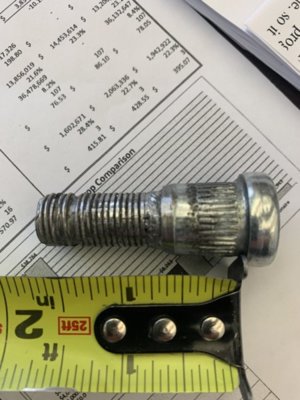

    One lousy stud that I just cant find! See attached photos and some dimensions in inches as follows:

    Shoulder appears to be .650 length
    Total length 1.96
    Under Head 1.7250
    Thread 1.075
    Knurl 6.375

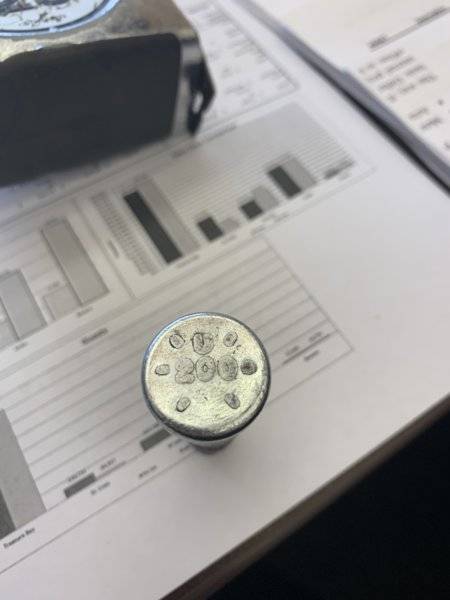

    Stamped U 200 on top of stud head which is .800

    About as close as I can get since the knurl is totally gone due to the stripping.

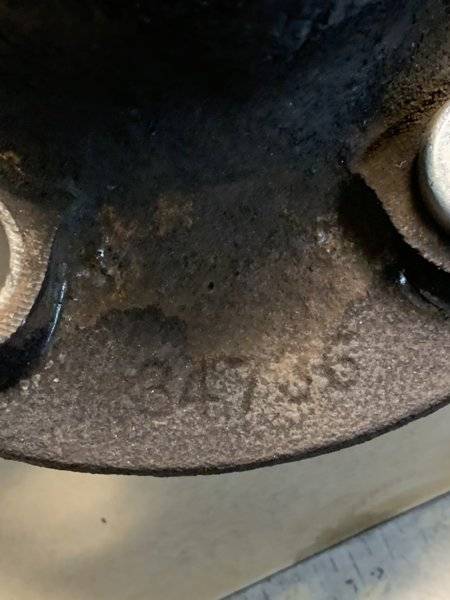

    Does anyone know of a replacement? Hub assembly has part number 34736?

    Maybe someone has a spare hub they don't need?

    IMG-0648.jpg IMG-0646.jpg IMG-0650.jpg IMG-0649.jpg

  2. JPrusinows

    JPrusinows Well-Known Member

    Messages:
    116
    Likes Received:
    121
    Joined:
    Jun 23, 2014
    Location:
    Biloxi, MS
    Local Time:
    1:52 PM
    Thank you in advance by the way! Jeff

  3. PRND21

    PRND21 FBBO Gold Member FBBO Gold Member

    Messages:
    2,359
    Likes Received:
    3376
    Joined:
    Aug 16, 2016
    Location:
    Central Indiana
    Local Time:
    2:52 PM
    Right hand thread?

  4. vintage chromoly

    vintage chromoly FBBO Gold Member FBBO Gold Member

    Messages:
    1,644
    Likes Received:
    2711
    Joined:
    Nov 13, 2010
    Location:
    ohio
    Local Time:
    1:52 PM
    That’s a Dorman part number on the stud.
    Hit a good auto parts store or order one online

  5. 69Bee

    69Bee FBBO Gold Member FBBO Gold Member

    Messages:
    1,743
    Likes Received:
    1247
    Joined:
    Nov 17, 2009
    Location:
    Whetstone, AZ
    Local Time:
    12:52 PM
    I need to know thread size, knurled shoulder length under head, total length UNDER head, knurled shoulder diameter.

  6. 69Bee

    69Bee FBBO Gold Member FBBO Gold Member

    Messages:
    1,743
    Likes Received:
    1247
    Joined:
    Nov 17, 2009
    Location:
    Whetstone, AZ
    Local Time:
    12:52 PM
    I looked in my Dorman book, and it skips 200

  7. 69Bee

    69Bee FBBO Gold Member FBBO Gold Member

    Messages:
    1,743
    Likes Received:
    1247
    Joined:
    Nov 17, 2009
    Location:
    Whetstone, AZ
    Local Time:
    12:52 PM
    That stud is probably incorrect. The correct stud is a Dorman 610-039. The correct stud specs are: Thread 1/2"x20, Knurl Dia 0.625", OAL under head 1.625", shoulder length under head 23/32 (0.719")

    • Thanks! Thanks! x 1
    • Agree Agree x 1
    • khryslerkid

      khryslerkid FBBO Gold Member FBBO Gold Member

      Messages:
      19,379
      Likes Received:
      27764
      Joined:
      Mar 10, 2010
      Location:
      Hanover, Pennslyvania
      Local Time:
      2:52 PM

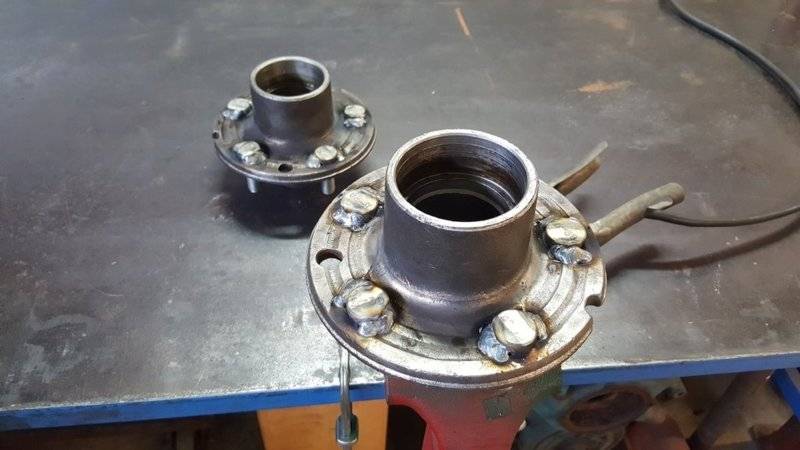

      And it might still fit loosely. They were swedged studs from the factory and have been drilled out so the drum can be removed without removing the whole hub. Find something that fits, if still loose you'll have to weld it on the back side.

      Last edited: Jan 28, 2020
      • Agree Agree x 1
      • khryslerkid

        khryslerkid FBBO Gold Member FBBO Gold Member

        Messages:
        19,379
        Likes Received:
        27764
        Joined:
        Mar 10, 2010
        Location:
        Hanover, Pennslyvania
        Local Time:
        2:52 PM
        • Like Like x 1
        • JPrusinows

          JPrusinows Well-Known Member

          Messages:
          116
          Likes Received:
          121
          Joined:
          Jun 23, 2014
          Location:
          Biloxi, MS
          Local Time:
          1:52 PM
          Thank you for all the help guys. Still trying to figure this out. Think I found the stud I need on Ebay. We shall see and fingers crossed.

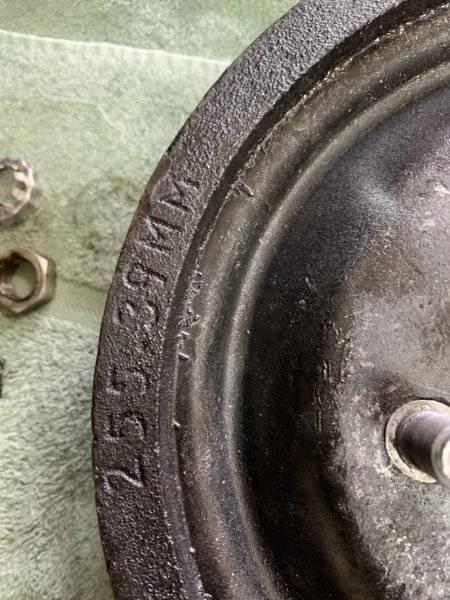

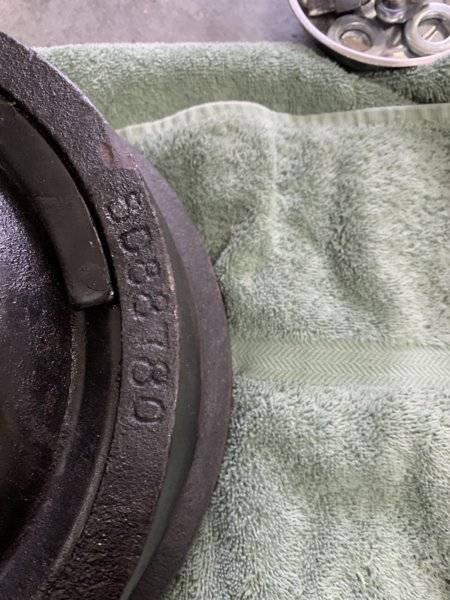

          In the mean time anybody recognize this drum and part number/size? Of course I cant find it either! LOL! It is definitely a 10 x 2.5 drum but probably aftermarket and maybe not even from a 65 Plymouth?

          Car stops beautifully and looks great but whoever got to it before me may have used a brake setup from another year Mopar car or truck. Who knows! Part tof the fun I guess!

          Any thoughts on the part numbers?

          Thanks in advance, again!

          Jeff

          IMG-0639.jpg IMG-0638.jpg

        • khryslerkid

          khryslerkid FBBO Gold Member FBBO Gold Member

          Messages:
          19,379
          Likes Received:
          27764
          Joined:
          Mar 10, 2010
          Location:
          Hanover, Pennslyvania
          Local Time:
          2:52 PM
          From my build thread...

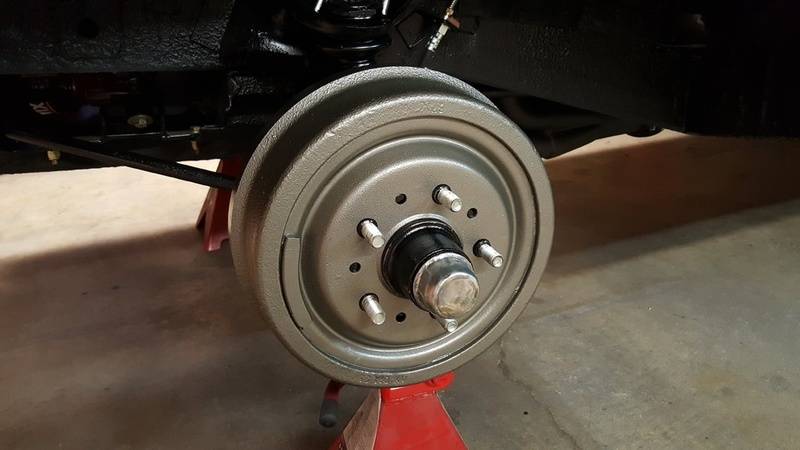

          Ordered a different set of drums for the front. They are more expensive but are the ones listed for the front. Napa part #440-1056.

          I was trying to use the same drums that I had used on the rear but the center hole was bigger and it wasn't a perfect fit for the front hubs. These fit tight. Only a couple of mm difference but these are what you need to use for a good fit. I don't know why the front hubs are just a tick smaller than the rear but they are.

        • andyf

          andyf Well-Known Member

          Messages:
          622
          Likes Received:
          979
          Joined:
          Jul 21, 2012
          Location:
          Oregon
          Local Time:
          11:52 AM
          The drum brake stuff is getting hard to find, might be time to swap on some late model A body brakes since they are easier to get parts for.
          I always use a Dorman Ford truck lug stud since they are a little longer and have a dog nose. You may need to drill the hub to a larger size for the knurl. If you're going to be working on an old car you'll either need to acquire some machine shop tools or else find a friendly machine shop nearby that can whittle on things for you. The days of walking into an auto parts store and buying replacement parts is long gone when you have a '65 Belvedere.

        • 69Bee

          69Bee FBBO Gold Member FBBO Gold Member

          Messages:
          1,743
          Likes Received:
          1247
          Joined:
          Nov 17, 2009
          Location:
          Whetstone, AZ
          Local Time:
          12:52 PM
          Those are replacement Chinese drums. The 255.39mm is the max size allowed. This is 10.055" max, so they are 10" brake drums.

        • JPrusinows

          JPrusinows Well-Known Member

          Messages:
          116
          Likes Received:
          121
          Joined:
          Jun 23, 2014
          Location:
          Biloxi, MS
          Local Time:
          1:52 PM

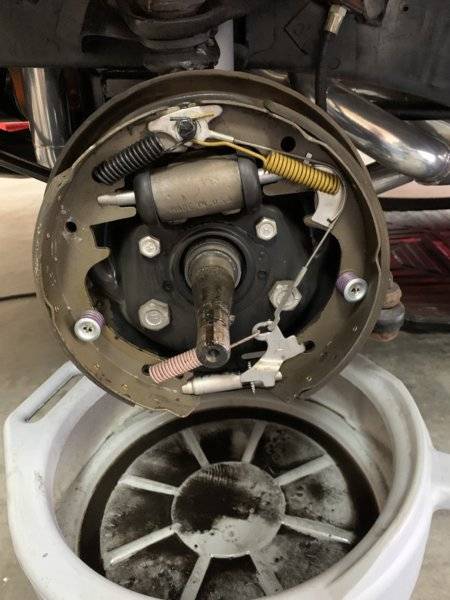

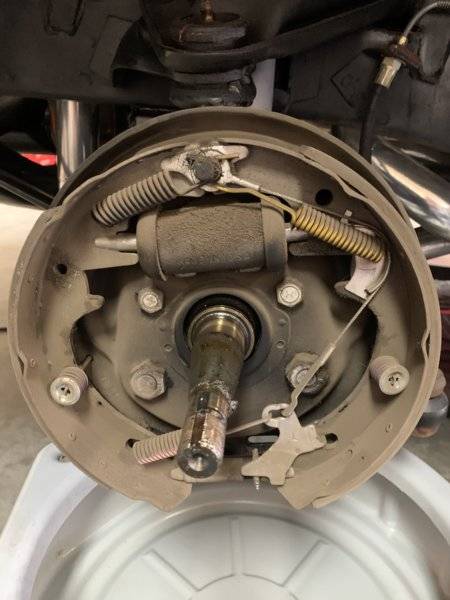

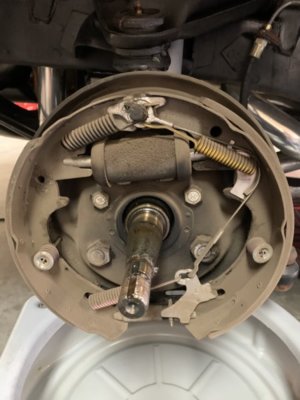

          Thanks Everybody for the feedback! Much appreciated! I'll keep you posted on progress! Kid, nice (great) work buddy and great info. Andy, if you only knew how much I use those tools! LOL! Just like to be thorough and try to match things up if possible. Found the studs on ebay so all will be same length and size. Will drill and or tack weld as needed to get all to fit together properly. Did give me a chance to clean the brakes though!

          And here is the patient.

          Thanks again, Jeff

          IMG-0644 (2).jpg IMG-0645.jpg IMG_0193 (1).jpg

          • Like Like x 1
          • JPrusinows

            JPrusinows Well-Known Member

            Messages:
            116
            Likes Received:
            121
            Joined:
            Jun 23, 2014
            Location:
            Biloxi, MS
            Local Time:
            1:52 PM
            Back in action. Thanks everyone! Especially Kid and PRND21/Randy!
