Milodon 31010 oil pan fits ?

Cranky

Banned Henchman #27
Staff member
FBBO Gold Member
Local time
12:42 PM
Joined
Dec 4, 2009
Messages
37,684
Reaction score
51,835
Location
Pasadena, Texas
Milodon's site says this pan will fit later model B's (66 and newer to a point) but the Summit site says differently unless you dig deeper then they seem to contradict themselves. Anyone have 1st hand experience with this pan on 66 and newer cars?

Sorry I don't think that I haven used that specific # pan,
BUT it looks allot like an older Milodon pan, I had back probably some 30 years ago,
it had a really deep sump, it had ground clearance issues, is what I remember
not any fitting issues that I can remember offhand anyway...

I have an older Milodon 7qt pan that's only 7" deep old Part #MRE71172 from Mancini racing,
Looks allot like this one http://www.summitracing.com/parts/mil-30930 #30930
for 66-70 B body triangulated sump for better ground clearance, it's marginal, but it fit well...

that one you listed is 7.750" deep it'd be really low & close to the ground,
even if only another 0.750" that's really low, too close for comfort

That same #31010 Milodon pan listing say the same thing on Mancini Racings site too
http://www.manciniracing.com/mibheap1.html

sorry not much help with the fitment stuff

good luck


Attachments

  • Milodon Oil Pan Mopar B-Body 66-70 7 inch deep triangulated sump MIL-30930_ml $252 Summit Racing.jpg
    Milodon Oil Pan Mopar B-Body 66-70 7 inch deep triangulated sump MIL-30930_ml $252 Summit Racing.jpg
    5.2 KB · Views: 195
  • Milodon Oil Pan Mopar B-Body 66-70 7.750 inch really deep sump MRE 31010 $311.95 Mancini Racing.jpg
    Milodon Oil Pan Mopar B-Body 66-70 7.750 inch really deep sump MRE 31010 $311.95 Mancini Racing.jpg
    2.1 KB · Views: 204

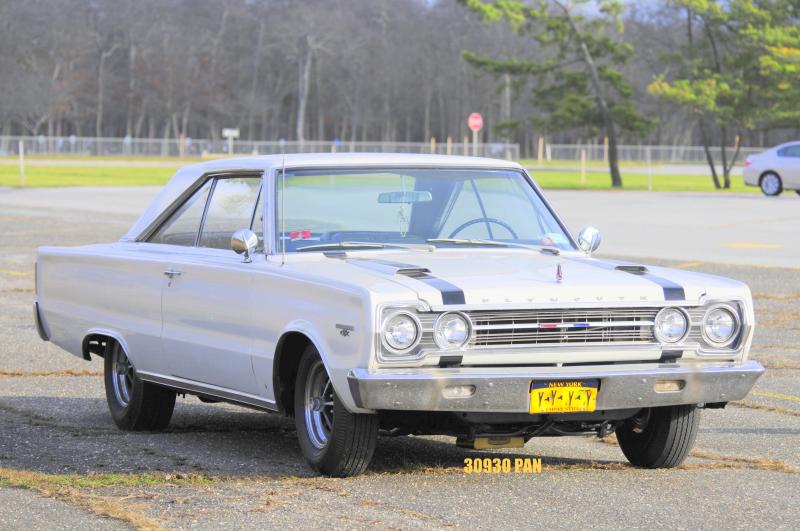

Cranky, i'm running the 30930 pan, the center link is close but clears on my 67 gtx you should have no problems the 31010 is a little deeper i gotta put a skid plate on mine over the winter every time i go over the railroad track crossing i pucker ;-) _DSC2336-001.jpg

my catalog says '59-'73 vehicles. the sump is far enough back to fit an early chassis and if it's 9" long it will fit a later. 7 3/4" deep; will knock the heads off of worms if your not careful. i built an 8" backsump once; didn't work well with manhole covers.
