    This 70 runner I've been working on had a (non O.E.) Holley and a rubber fuel line on it. Boy don't have the correct carb, so I got a new 1406 for it. Now I need to create a fuel line.

    So what I need is/are pic(s) of big blocks with an AVS or AFB with stock type metal fuel line. I need a good view of how the line is run/bent so I can (not spend my usual 3-4 hours creating the perfect line) bend one up quick

    :HappyNewYear:

  2. 69 Runner

    69 Runner ADMIN wif a corner office (Deceased - RIP)

    Messages:
    6,913
    Likes Received:
    64
    Joined:
    Jun 16, 2008
    Location:
    In Absentia Texas
    Local Time:
    4:53 AM
    well I'm glad I wasn't really in a hurry:edgy:

  3. 69 Runner

    69 Runner ADMIN wif a corner office (Deceased - RIP)

    Messages:
    6,913
    Likes Received:
    64
    Joined:
    Jun 16, 2008
    Location:
    In Absentia Texas
    Local Time:
    4:53 AM
    No one? :edgy: Nobody has a pic of a 383 with an AVS and O.E. type metal fuel line from pump to carb?

    :no:

  4. khryslerkid

    khryslerkid FBBO Gold Member FBBO Gold Member

    Messages:
    24,359
    Likes Received:
    38186
    Joined:
    Mar 10, 2010
    Location:
    Hanover, Pennslyvania
    Local Time:
    5:53 AM
    Had to go way back for this one:


  5. khryslerkid

    khryslerkid FBBO Gold Member FBBO Gold Member

    Messages:
    24,359
    Likes Received:
    38186
    Joined:
    Mar 10, 2010
    Location:
    Hanover, Pennslyvania
    Local Time:
    5:53 AM

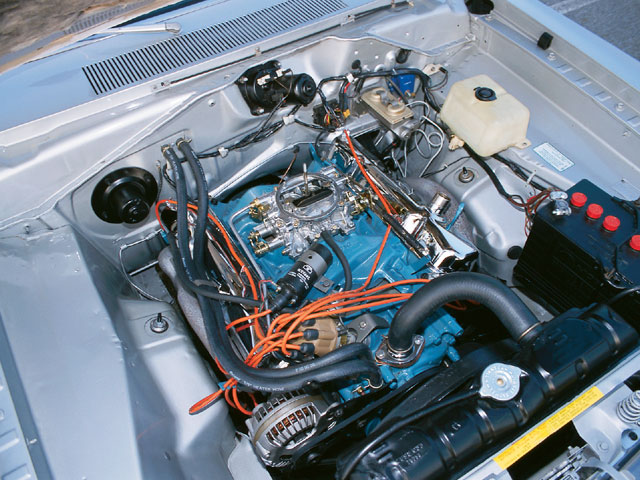

    A little newer:


  6. Charg68

    Charg68 Well-Known Member

    Messages:
    52
    Likes Received:
    2
    Joined:
    Mar 5, 2010
    Location:
    Alberta,Canada
    Local Time:
    3:53 AM

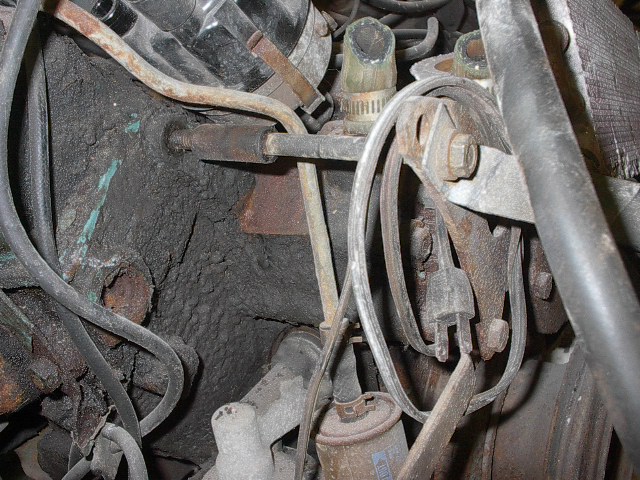

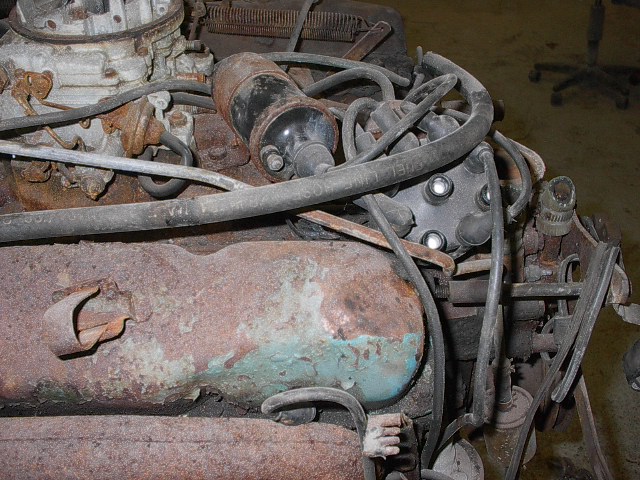

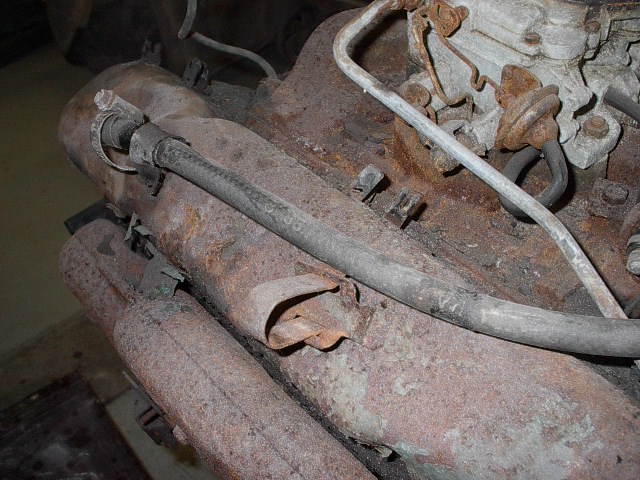

    have three,hope they help

    MARCH 15-91.JPG

    MARCH 15-117.JPG

    MARCH 15-124.JPG

  7. khryslerkid

    khryslerkid FBBO Gold Member FBBO Gold Member

    Messages:
    24,359
    Likes Received:
    38186
    Joined:
    Mar 10, 2010
    Location:
    Hanover, Pennslyvania
    Local Time:
    5:53 AM

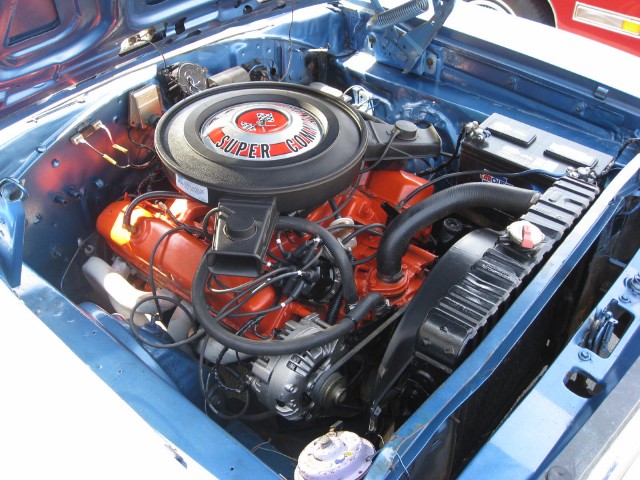

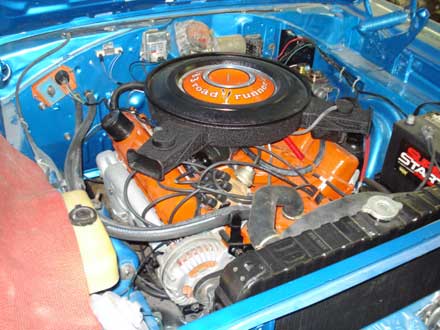

    These are both 70 RRs. Check out "carsonline.com" Most everything has an air cleaner on it. (hard to see) I would use your shop manual. Not the first two I sent you. :grin: The line comes out the front...



  8. 69 Runner

    69 Runner ADMIN wif a corner office (Deceased - RIP)

    Messages:
    6,913
    Likes Received:
    64
    Joined:
    Jun 16, 2008
    Location:
    In Absentia Texas
    Local Time:
    4:53 AM
    Thanks gentlemen. I was hoping I could get away with something with fewer bends, but it looks like I'm actually gonna wind up with MORE because of the new Edelbrock 1406 which has an electric choke in the way.

  9. 69 Runner

    69 Runner ADMIN wif a corner office (Deceased - RIP)

    Messages:
    6,913
    Likes Received:
    64
    Joined:
    Jun 16, 2008
    Location:
    In Absentia Texas
    Local Time:
    4:53 AM
    Any possibility this is your car? (the silver one)

  10. khryslerkid

    khryslerkid FBBO Gold Member FBBO Gold Member

    Messages:
    24,359
    Likes Received:
    38186
    Joined:
    Mar 10, 2010
    Location:
    Hanover, Pennslyvania
    Local Time:
    5:53 AM
    I wish! Just swiping pics from that site I told you about:grin:
    Charg68 has an electric BB !!! (120volt looking at the plug)

  11. 69 Runner

    69 Runner ADMIN wif a corner office (Deceased - RIP)

    Messages:
    6,913
    Likes Received:
    64
    Joined:
    Jun 16, 2008
    Location:
    In Absentia Texas
    Local Time:
    4:53 AM
    Groovy.

    I got the line all bent up. Top of it looks pretty good, but those two bends at the bottom that exceed 90* ...................what a pain

  12. moparstuart

    moparstuart Well-Known Member

    Messages:
    6,587
    Likes Received:
    981
    Joined:
    Jul 19, 2008
    Location:
    overland park kansas / Former owner a salvage yard
    Local Time:
    4:53 AM
    a 70 383 should have had a holley right ? why not go back with the holley ?

  13. 69 Runner

    69 Runner ADMIN wif a corner office (Deceased - RIP)

    Messages:
    6,913
    Likes Received:
    64
    Joined:
    Jun 16, 2008
    Location:
    In Absentia Texas
    Local Time:
    4:53 AM
    He has a big Holley on it, but it wasn't the correct carb. And since I'm on a deadline I really didn't want to take the time to try and round up the correct thing. So I did the next best thing and went with the Edelbrock. Should work nicely with the M1 dual plane and Bob's cam. It ought to scream.

  14. moparstuart

    moparstuart Well-Known Member

    Messages:
    6,587
    Likes Received:
    981
    Joined:
    Jul 19, 2008
    Location:
    overland park kansas / Former owner a salvage yard
    Local Time:
    4:53 AM
    yes the edelbrock has great street manners , should work out great for drivablility

  15. 69 Runner

    69 Runner ADMIN wif a corner office (Deceased - RIP)

    Messages:
    6,913
    Likes Received:
    64
    Joined:
    Jun 16, 2008
    Location:
    In Absentia Texas
    Local Time:
    4:53 AM
    The original breather is long gone as well, so it's getting the 69 "unsilenced" style breather in wrinkle black with an orange "383 road runner engine" pie tin.
