Need Dual Point Assistance

Electrical & Ignition

  1. Dragon Slayer

    Dragon Slayer Well-Known Member

    Messages:
    517
    Likes Received:
    234
    Joined:
    Jun 18, 2014
    Location:
    Virginia
    Local Time:
    12:10 PM
    • Thanks! Thanks! x 1
    • Agree Agree x 1
    • Fran Blacker

      Fran Blacker FBBO Gold Member FBBO Gold Member

      Messages:
      11,391
      Likes Received:
      11328
      Joined:
      Sep 23, 2016
      Location:
      Connecticut
      Local Time:
      12:10 PM
      S#*t your right. I ass-u-med it was bb, bought a bb 2 weeks before.

    • miller

      miller Well-Known Member

      Messages:
      4,081
      Likes Received:
      2016
      Joined:
      Jan 5, 2014
      Location:
      Tom Bean,Texas
      Local Time:
      11:10 AM
      Very easy to find out, if points arms are touching the screw heads. Use an ohm meter, to ground, + side to the points arm. When the points are open, should not be any contact. Those screws look a little rough, too...maybe clean 'em up some with a file, if you don't change them.
      Be sure to check both sets of points.

    • HALIFAXHOPS

      HALIFAXHOPS MSGT(ret) and MOPAR only distributor rebuilder! FBBO Gold Member

      Messages:
      4,117
      Likes Received:
      1951
      Joined:
      May 5, 2016
      Location:
      Halifax, PA USA
      Local Time:
      12:10 PM
      :popcorn2:

    • 62MAX

      62MAX Well-Known Member

      Messages:
      1,573
      Likes Received:
      1111
      Joined:
      Jul 21, 2008
      Location:
      PA
      Local Time:
      12:10 PM
      :popcorn2::popcorn2:

    • 67 GTX

      67 GTX Well-Known Member

      Messages:
      671
      Likes Received:
      126
      Joined:
      Jan 17, 2011
      Location:
      New York
      Local Time:
      12:10 PM
      Thank you for pointing that out!

      I am thinking about point float at RPM. When I checked the tolerance on the play in the shaft, side to side was in tolerance (but at the extreme). But would this issue make the up and down slop come in to play?

      That could explain why the vacuum advance makes the ignition cut out, but if my distributor cam is within spec, any idea what explains why I have to set the gaps so small to get the thing to work?

    • Dragon Slayer

      Dragon Slayer Well-Known Member

      Messages:
      517
      Likes Received:
      234
      Joined:
      Jun 18, 2014
      Location:
      Virginia
      Local Time:
      12:10 PM
      Hard to really say without seeing it. First, up and down is set by the shim under the shaft, and the one at the collar outside distributor. You also can install the collar reversed which can either add too much slop or make it too tight when installed. The hole is not really centered, find this on Chrysler distributors too. So you have to pay attention when disassembling/reassembling. Sometimes the thrust washer can stick to the bearing of the distributor body and then fall off. So you may be missing one?

      As far as vacuum, how much does it put in? What number stamped on arm? You can move the plate at the link point with distributor out of car and observe how it moves. Also, that movement of the plate for vacuum is the reason for that ground wire loop. Early distributors could have the strands break from the constant motion and AL/Prestolite redesigned it. So you might be loosing ground when vacuum kicks in. Also if the bearing plate is loose that may be causing an unwanted shift.

    • rarefish

      rarefish Well-Known Member

      Messages:
      428
      Likes Received:
      229
      Joined:
      Jul 9, 2013
      Location:
      NY
      Local Time:
      12:10 PM

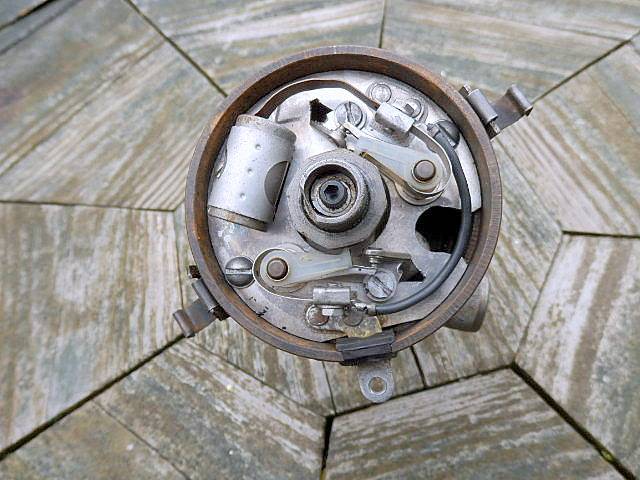

      Here is a pic of the Prestolite from my 340 A-Body. Works great...
      I'm missing the little pad that goes in the top of the shaft. I'm assuming that
      it is there to keep the dirt out?


    • Fran Blacker

      Fran Blacker FBBO Gold Member FBBO Gold Member

      Messages:
      11,391
      Likes Received:
      11328
      Joined:
      Sep 23, 2016
      Location:
      Connecticut
      Local Time:
      12:10 PM
      Think yoi put oil on during tune ups.

    • rarefish

      rarefish Well-Known Member

      Messages:
      428
      Likes Received:
      229
      Joined:
      Jul 9, 2013
      Location:
      NY
      Local Time:
      12:10 PM
      You are correct as that lubes the mechanical advance.

      • Agree Agree x 1
      • oldbee

        oldbee FBBO Gold Member FBBO Gold Member

        Messages:
        9,835
        Likes Received:
        9952
        Joined:
        Oct 15, 2011
        Location:
        NE Ohio
        Local Time:
        12:10 PM
        Just musing here about point spring tension.... Wondering why I don’t think any current point sets possibly could have lower tension than years before. Kinda thinking QC might not be what it once was(?) @HALIFAXHOPS!

      • HALIFAXHOPS

        HALIFAXHOPS MSGT(ret) and MOPAR only distributor rebuilder! FBBO Gold Member

        Messages:
        4,117
        Likes Received:
        1951
        Joined:
        May 5, 2016
        Location:
        Halifax, PA USA
        Local Time:
        12:10 PM
        Cheaper manufacturing. The new stuff sucks.

        • Thanks! Thanks! x 1
        • Dragon Slayer

          Dragon Slayer Well-Known Member

          Messages:
          517
          Likes Received:
          234
          Joined:
          Jun 18, 2014
          Location:
          Virginia
          Local Time:
          12:10 PM
          Both dirt and lubrication. Also, the metal clamp on point set closest to the vacuum should go over the tension spring arm.
          Even Chrysler distributors have the felt pad, so you can get one pretty easily.

          • Thanks! Thanks! x 1
          • rarefish

            rarefish Well-Known Member

            Messages:
            428
            Likes Received:
            229
            Joined:
            Jul 9, 2013
            Location:
            NY
            Local Time:
            12:10 PM
            I see what you are saying about the clamp position. Thanks...

          • rarefish

            rarefish Well-Known Member

            Messages:
            428
            Likes Received:
            229
            Joined:
            Jul 9, 2013
            Location:
            NY
            Local Time:
            12:10 PM
            Most of the rubbing blocks on today's points all seem to be plastic. The older ones looked like the material was made of bakelite.

            • Agree Agree x 1
            • HALIFAXHOPS

              HALIFAXHOPS MSGT(ret) and MOPAR only distributor rebuilder! FBBO Gold Member

              Messages:
              4,117
              Likes Received:
              1951
              Joined:
              May 5, 2016
              Location:
              Halifax, PA USA
              Local Time:
              12:10 PM
              The new condensers from my experience have around a 50% fail rate when they get hot. All I use in rebuilds is nos or NORS. Starting to get hard to find now also you are paying for it.

            • HALIFAXHOPS

              HALIFAXHOPS MSGT(ret) and MOPAR only distributor rebuilder! FBBO Gold Member

              Messages:
              4,117
              Likes Received:
              1951
              Joined:
              May 5, 2016
              Location:
              Halifax, PA USA
              Local Time:
              12:10 PM
              The only half way decent stuff now is accel or blue streak. Once again if you can find it.

            • 62MAX

              62MAX Well-Known Member

              Messages:
              1,573
              Likes Received:
              1111
              Joined:
              Jul 21, 2008
              Location:
              PA
              Local Time:
              12:10 PM
              Not actually,all the original Prestolite were plastic including the Race Hemi with Platinum contacts..


            • Dragon Slayer

              Dragon Slayer Well-Known Member

              Messages:
              517
              Likes Received:
              234
              Joined:
              Jun 18, 2014
              Location:
              Virginia
              Local Time:
              12:10 PM
              Plastic is a pretty generic term. The specific type determines it use. Certain types of plastic are used in guide blocks for motor cycle chains. Not a problem as a rubbing block as long as it is high quality and type for the application. G

            • HALIFAXHOPS

              HALIFAXHOPS MSGT(ret) and MOPAR only distributor rebuilder! FBBO Gold Member

              Messages:
              4,117
              Likes Received:
              1951
              Joined:
              May 5, 2016
              Location:
              Halifax, PA USA
              Local Time:
              12:10 PM
              Just got some NOS autolite in they are also "plastic" Thinking the fiber ones are earlier in general.

              • Thanks! Thanks! x 1
