Next piece of the puzzle

Racers Hangout

  1. dvw

    dvw Well-Known Member

    Messages:
    6,318
    Likes Received:
    9463
    Joined:
    Feb 16, 2010
    Location:
    waterford mi
    Local Time:
    9:55 AM

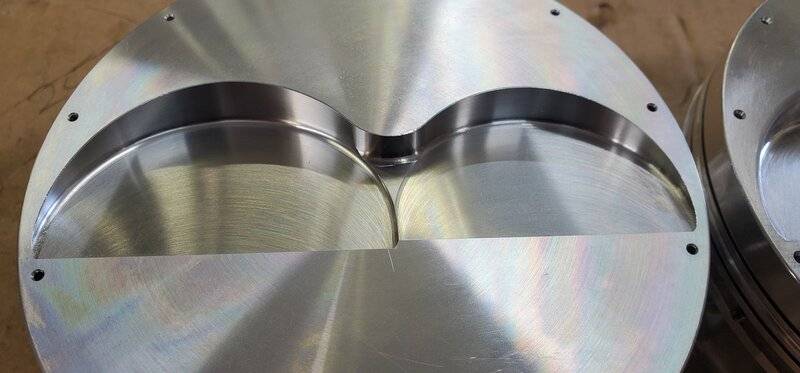

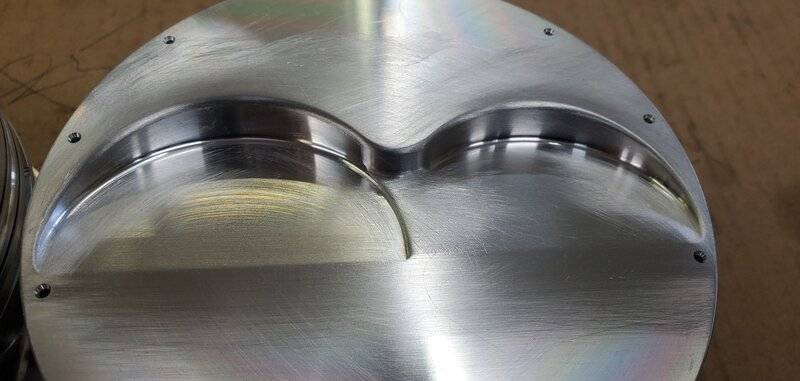

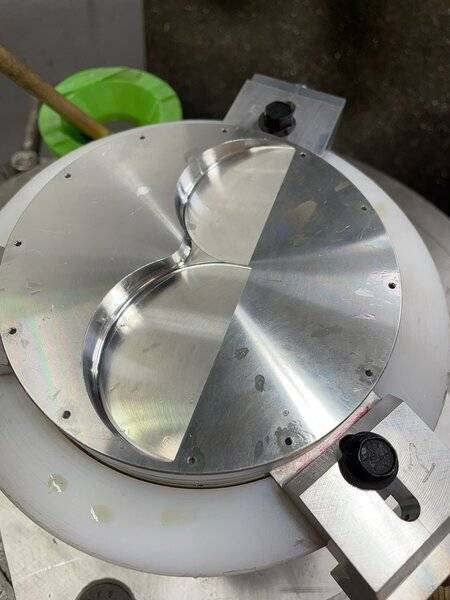

    My friend Paul comes through again. There was miscommunication when my pistons were ordered. They came with no gas ports. Paul built a fixture to hold tolerance and got it done, at home.
    Doug 19261.jpeg

    • Like Like x 13
    • 69 Sleeper Bee

      69 Sleeper Bee Well-Known Member

      Messages:
      1,905
      Likes Received:
      2814
      Joined:
      Feb 18, 2021
      Location:
      Tallahassee Florida
      Local Time:
      9:55 AM
      Just saw this post and I am not a racer but what is the purpose of gas ports ?
      Looks cool though.

    • 493 Mike

      493 Mike FBBO Gold Member FBBO Gold Member

      Messages:
      4,094
      Likes Received:
      4614
      Joined:
      Dec 25, 2011
      Location:
      White Cloud, MI
      Local Time:
      9:55 AM
      The combustion pressure is directed behind the ring which increases its radial pressure and reduces blow by, there by making more power.
      Mike

      • Thanks! Thanks! x 3
      • Like Like x 1
      • Agree Agree x 1
      • LemonWedge

        LemonWedge Well-Known Member

        Messages:
        726
        Likes Received:
        1511
        Joined:
        Dec 27, 2009
        Location:
        Puyallup, WA
        Local Time:
        6:55 AM
        Nice to see the puzzle is coming together, Doug!

        • Agree Agree x 1
        • Budnicks

          Budnicks You Can Just Thank Me Later FBBO Gold Member

          Messages:
          60,358
          Likes Received:
          72296
          Joined:
          Jan 16, 2011
          Location:
          NorCal Sierras
          Local Time:
          6:55 AM
          not to over simplificate it
          it helps gasses force the top rings out & seal better
          less blow-by
          it's an old SS or P/S trick

          • Thanks! Thanks! x 1
          • 69 Sleeper Bee

            69 Sleeper Bee Well-Known Member

            Messages:
            1,905
            Likes Received:
            2814
            Joined:
            Feb 18, 2021
            Location:
            Tallahassee Florida
            Local Time:
            9:55 AM
            it took me a minute to wrap my brain around the concept but I think I get it.
            And it is just into the top groove’s compression ring, not both rings right.
            Damned ingenious actually.

            • Agree Agree x 1
            • Hemirunner

              Hemirunner Well-Known Member

              Messages:
              5,297
              Likes Received:
              6701
              Joined:
              Jul 12, 2011
              Location:
              Down South
              Local Time:
              8:55 AM
              • Agree Agree x 2
              • Like Like x 1
              • vintage chromoly

                vintage chromoly Well-Known Member

                Messages:
                2,168
                Likes Received:
                4064
                Joined:
                Nov 13, 2010
                Location:
                ohio
                Local Time:
                8:55 AM
                • Like Like x 2
                • dvw

                  dvw Well-Known Member

                  Messages:
                  6,318
                  Likes Received:
                  9463
                  Joined:
                  Feb 16, 2010
                  Location:
                  waterford mi
                  Local Time:
                  9:55 AM

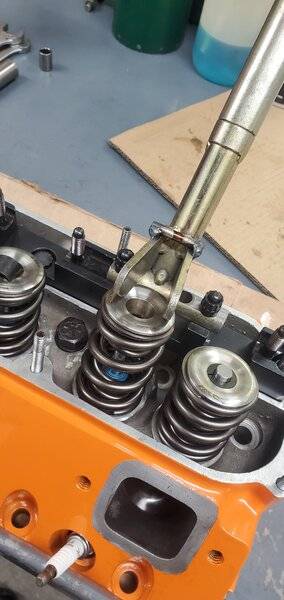

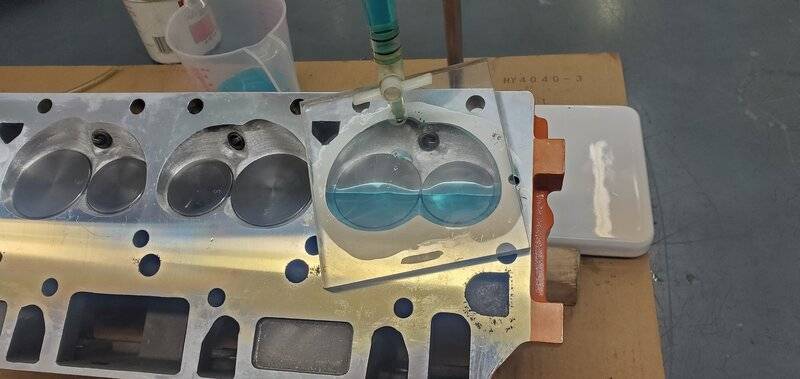

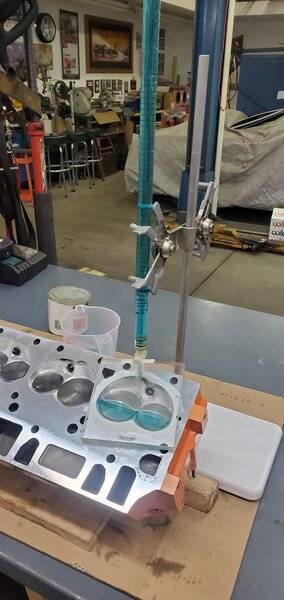

                  Made more progress. Measured coil bind of each spring. All exceed the Pac spec. Set all the installed heights +/- .005". Checked cc's on every chamber. All were within .5cc except 2 chambers which were 1cc small. Heads all assembled. The head is bolted to the bench with a piece of cardboard to protect the deck face. The in the car spring tool works well. My air powered compressor won't even touch these springs, 307/810 psi.
                  Doug 20220112_160826.jpg 20220112_160830.jpg 20220112_165350.jpg

                  • Like Like x 8
                  • LemonWedge

                    LemonWedge Well-Known Member

                    Messages:
                    726
                    Likes Received:
                    1511
                    Joined:
                    Dec 27, 2009
                    Location:
                    Puyallup, WA
                    Local Time:
                    6:55 AM
                    Hard to believe I’m not already aware, but what heads are in use here, Doug?
                    Wishing you the best with this updated bullet.

                  • dvw

                    dvw Well-Known Member

                    Messages:
                    6,318
                    Likes Received:
                    9463
                    Joined:
                    Feb 16, 2010
                    Location:
                    waterford mi
                    Local Time:
                    9:55 AM

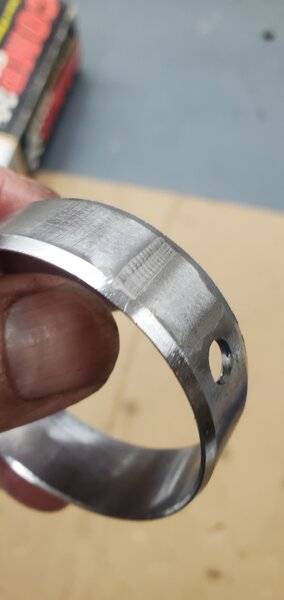

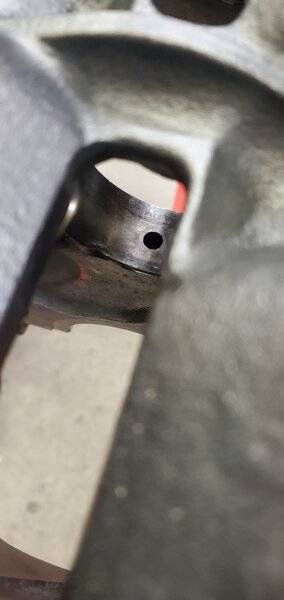

                    Heads are older pair of -1s hand ported by the late Jeff Koybitski at Modern cylinder head. They've been welded on a few times but make good power. Completed some more today. Cam bearings are in.. of course not w/o issue. I missed where the broken rod had nicked the front of the #3 cam bearing tunnel. Had to pull it back out and dress up the area. Fortunately a friend had a partial set of bearings. Got it all squared away.
                    Doug

                    20220113_153958.jpg 20220113_150415.jpg

                    Last edited: Jan 16, 2022
                    • Like Like x 3
                    • dvw

                      dvw Well-Known Member

                      Messages:
                      6,318
                      Likes Received:
                      9463
                      Joined:
                      Feb 16, 2010
                      Location:
                      waterford mi
                      Local Time:
                      9:55 AM

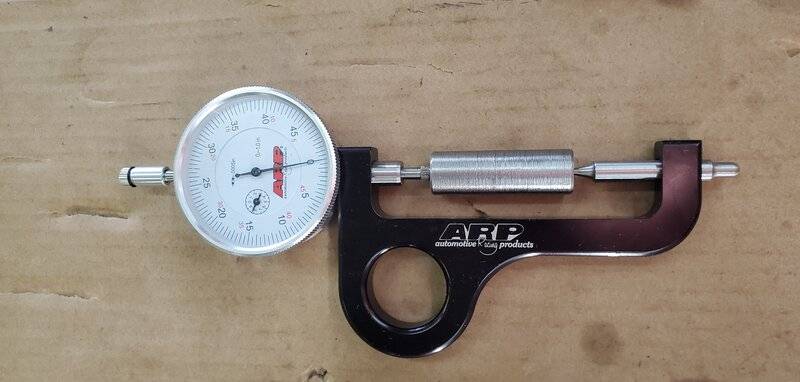

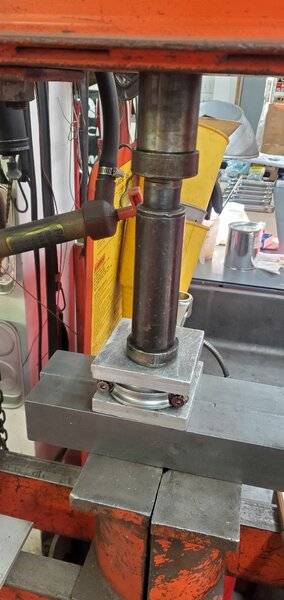

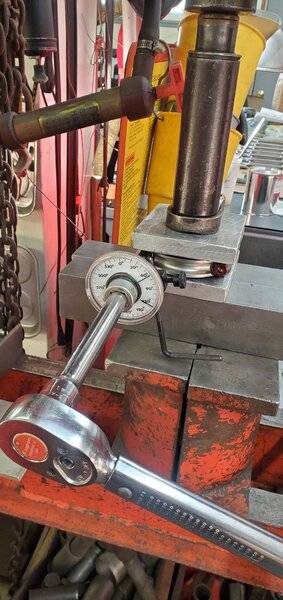

                      Now time to check rod bolt stretch and rod bearing clearance. I had previously checked all the rod dimensions (Molnar 7.100"/ 2.200"/.990") and they were spot on. For those of you haven't checked rod bolt stretch. Each bolt length is measured for individual length and recorded. I fabricated a "standard" to zero the gauge. Then each bolt is compared to the standard. They all vary in length from .0001"-.0050" +/- . I used the torque angle method to tighten the bolts to 30lb/ft with an additional 60 degrees of rotation afterwards. Then using the gauge you measure the bolts in the rod while torqued. A few needed a slight bit more rotation to reach the desired. 0060"-. 0064" stretch spec. The crank (Molnar 4.500") was measured previously (all mains 2.7500", rods 2.1995") with .0000 out of round or taper. You set the mic to the journal diameter and zero the dial bore gauge in the mic. The bearings were all checked with the dial bore gauge. Clearances came in as expected. .0026+/- .0001". This is a time consuming process. You also need to have a clamp fixture to properly hold the rod while torqued. Also a way to grab the cap to remove the caps.
                      Doug
                      20220115_161714.jpg 20220115_161803.jpg 20220115_163405.jpg

                      Last edited: Jan 17, 2022
                      • Like Like x 5
                      • Thanks! Thanks! x 1
                      • LemonWedge

                        LemonWedge Well-Known Member

                        Messages:
                        726
                        Likes Received:
                        1511
                        Joined:
                        Dec 27, 2009
                        Location:
                        Puyallup, WA
                        Local Time:
                        6:55 AM
                        Class is in session! Thanks for sharing, Doug!

                        • Agree Agree x 4
                        • Like Like x 1
                        • Wookie316

                          Wookie316 Well-Known Member

                          Messages:
                          1,186
                          Likes Received:
                          1285
                          Joined:
                          Oct 7, 2011
                          Location:
                          Alberta
                          Local Time:
                          7:55 AM
                          I always learn when I read your threads. Thanks for sharing. I appreciate your input to this forum.

                          • Agree Agree x 7
                          • Gunner1

                            Gunner1 Well-Known Member

                            Messages:
                            243
                            Likes Received:
                            204
                            Joined:
                            Nov 9, 2021
                            Location:
                            LA Cal
                            Local Time:
                            6:55 AM
                            You would be surprised at how many calls I fielded from people who didn't check individual bolt lengths before torquing for stretch. .001 is a substantial difference when your looking for precision finals. Your rod and main numbers are off the charts. .0000 is what we aimed our billet cranks to. I dont know who Molnar is sourcing their stuff from but I am hearing a lot of very good things about them.

                            • Like Like x 1
                            • dvw

                              dvw Well-Known Member

                              Messages:
                              6,318
                              Likes Received:
                              9463
                              Joined:
                              Feb 16, 2010
                              Location:
                              waterford mi
                              Local Time:
                              9:55 AM
                              Well went back to the heads. Took the rotate scotch brite to the 2 small chambers. Now all are 57.5cc +/- .5cc. Dusted the valve pockets on all the pistons to remove the sharp edges. Then deburred all the gas port holes. Tight getting into the ring groove as its only .9mm (.0365) wide. Still have to check the actual deck height. But preliminary math shows 15.3-15.4 to 1 with a standard .051" Cometic gasket.
                              Doug



                              Last edited: Jan 20, 2022
                              • Like Like x 12
                              • khryslerkid

                                khryslerkid FBBO Gold Member FBBO Gold Member

                                Messages:
                                25,735
                                Likes Received:
                                41124
                                Joined:
                                Mar 10, 2010
                                Location:
                                Hanover, Pennslyvania
                                Local Time:
                                9:55 AM
                                :eek:

                                • Agree Agree x 2
                                • RemCharger

                                  RemCharger Well-Known Member

                                  Messages:
                                  2,083
                                  Likes Received:
                                  1684
                                  Joined:
                                  Apr 5, 2014
                                  Location:
                                  Sask
                                  Local Time:
                                  8:55 AM
                                  Very nice post. Thanks.

                                • Gunner1

                                  Gunner1 Well-Known Member

                                  Messages:
                                  243
                                  Likes Received:
                                  204
                                  Joined:
                                  Nov 9, 2021
                                  Location:
                                  LA Cal
                                  Local Time:
                                  6:55 AM
                                  Is this motor corn fed or race gas?

                                • dvw

                                  dvw Well-Known Member

                                  Messages:
                                  6,318
                                  Likes Received:
                                  9463
                                  Joined:
                                  Feb 16, 2010
                                  Location:
                                  waterford mi
                                  Local Time:
                                  9:55 AM
                                  Renegade 114+ has been run in it for 9 years.
                                  Doug

                                  • Like Like x 1
