Now for something completely different . . . an anvil stand . . . for my shop

[conv67bdere]

Got a little more progress done tonight after I got home from work . . .

Not too sure I explained me "error" quite, so I've got pics to show it . . . ( I guess I am human ! ! ! - LOL )

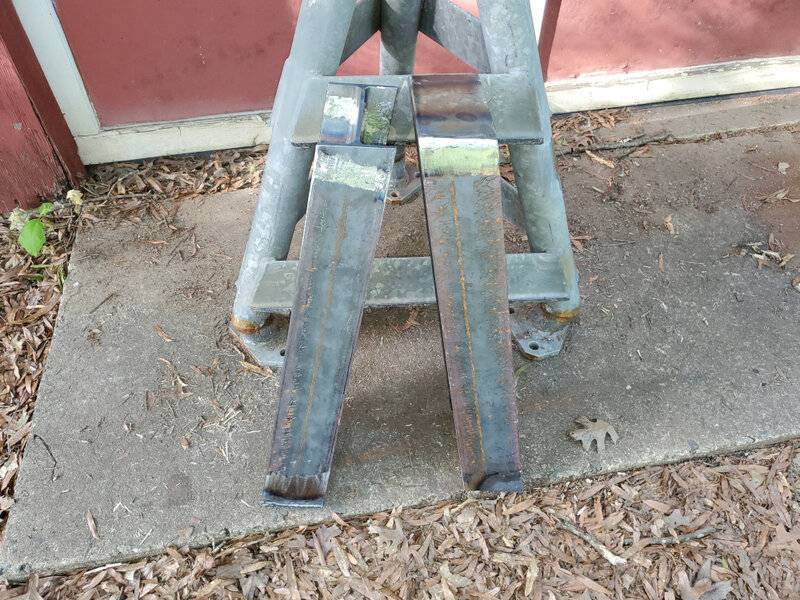

This is what I ended up with . . . close, but not "quite" right . . .

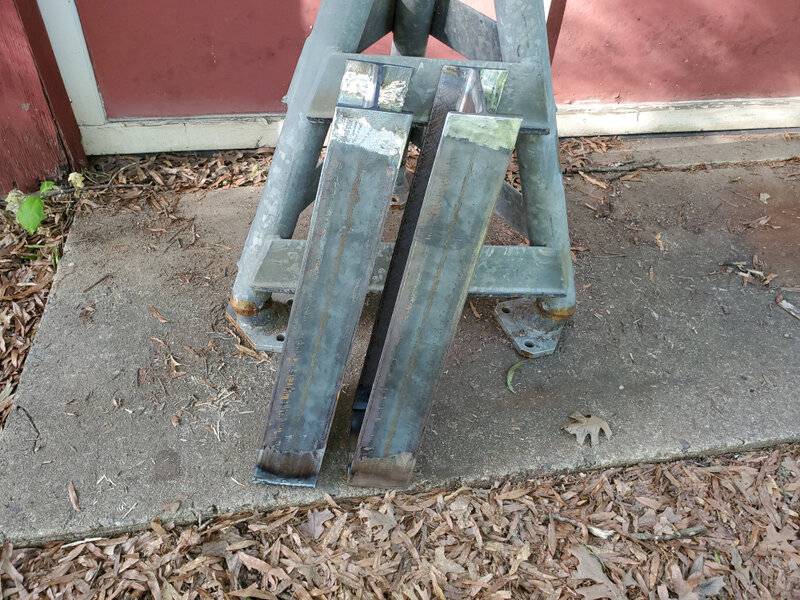

What I need is this set up - which clearly shows the end on the right piece in the wrong place . . .

So I cut that end off . . . and I'll weld another end cap on the other side and I'll be good . . .

It's cut off . . . now just to weld the end cap on the other side . . . and on to the next step of the process . . .



[conv67bdere]

Much better . . . when you get it right the "second time" . . .

But it's looking good . . .

This is how they'll be positioned . . . now I just need to get them blended together with the right width . . .

I'm happy with it . . . should turn out nice . . . ( I hope ) . . .

Now for some interesting geometry . . . in 3D . . .



[Coronet_Arch]

Is your welding table a table saw?



[PRND21]

Looks like a Roll-In saw.



[conv67bdere]

Is your welding table a table saw?

NO . . . that is not my welding table . . . just using it to hold the anvil stand legs in the proper orientation so that I can determine where to go next . . . and how . . .

Looks like a Roll-In saw.

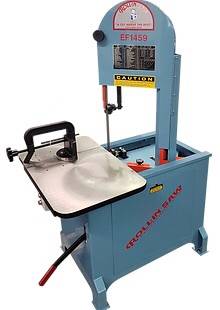

View attachment 1103735

Yes it is . . . a fairly new addition to the shop tools . . .



[conv67bdere]

More progress . . .

Time to work on some "customization" for this stand . . . so I need to pull out the big guns . . .

Need to drill some 2 1/2" holes . . . so I thought I would use this . . .

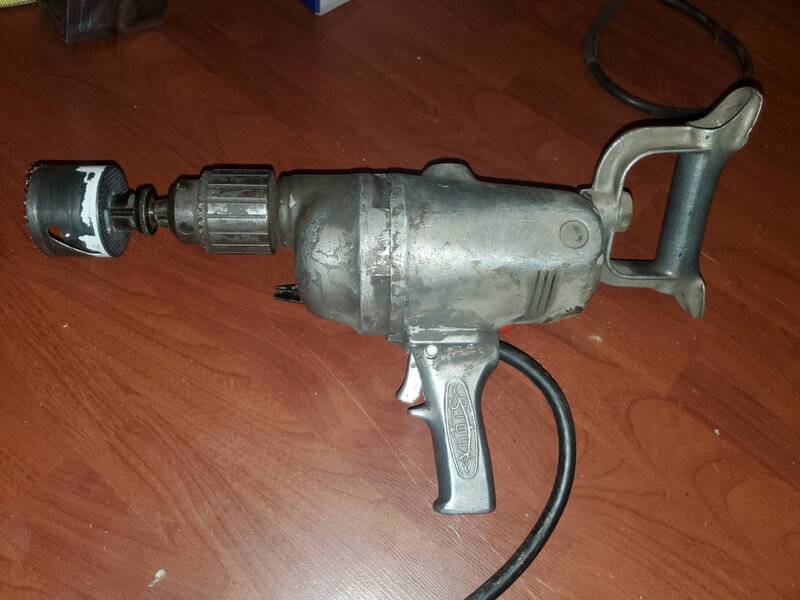

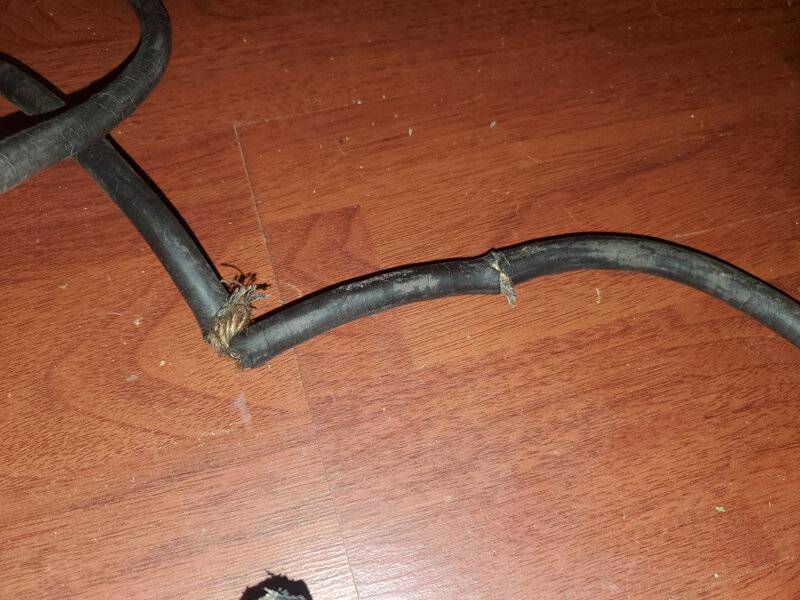

However . . . when I plugged it it and it sparked . . . it needed some attention . . .

and the wires in the handle for the trigger were just as bad (or worse) . . .

Now the drill is sporting a brand new cord . . . and ready to be used . . . ( maybe ? ! ? )

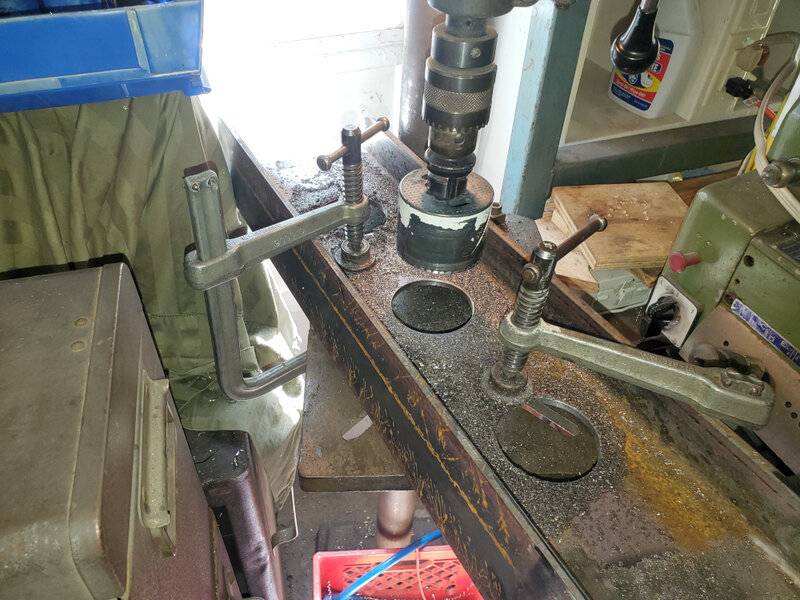

Decided that the had drill was not the best idea, and opted for the drill press and clamping it to the table . . .

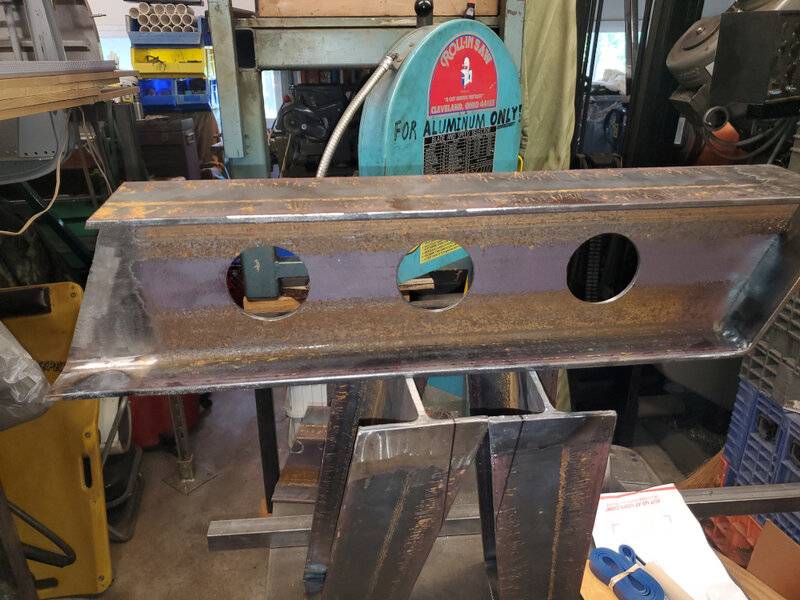

So the legs are now customized . . . BSH style . . . and ready for the next step . . .

Here is my plan for fitting the legs together under the base . . . they will be intertwined with each other . . .

Fighting with getting all the mill scale off of these things . . . dang it's really thick . . .



[PRND21]

NO . . . that is not my welding table . . . just using it to hold the anvil stand legs in the proper orientation so that I can determine where to go next . . . and how . . .



Yes it is . . . a fairly new addition to the shop tools . . .

I’d love to find a nice used saw. Have you seen the price of a new one? WOW?



[conv67bdere]

Gawd . . . never seen mill scale ( maybe it was mill slag ) this thick and this hard to remove ever ! ! !

But . . . I got them all cleaned up ( got a few areas that need some attention ) . . .

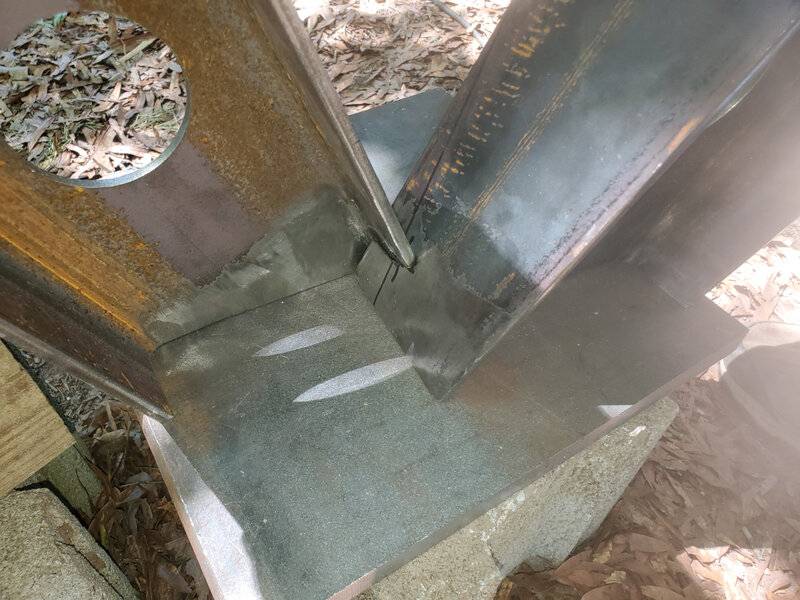

Top one - didn't clean it up before welding the foot base in place . . . ( bad welder ) . . . Ugh ! !

Just means a little more work to try and get it cleaned up now . . . pay now or pay later . . . LOL



[conv67bdere]

Good day . . . and good progress on this thing . . . just ran out of daylight . . .

The interlocking legs added a lot to the stability . . . even when this thing was not welded, it was very sturdy . . .

Another angle of the interlocking legs . . .

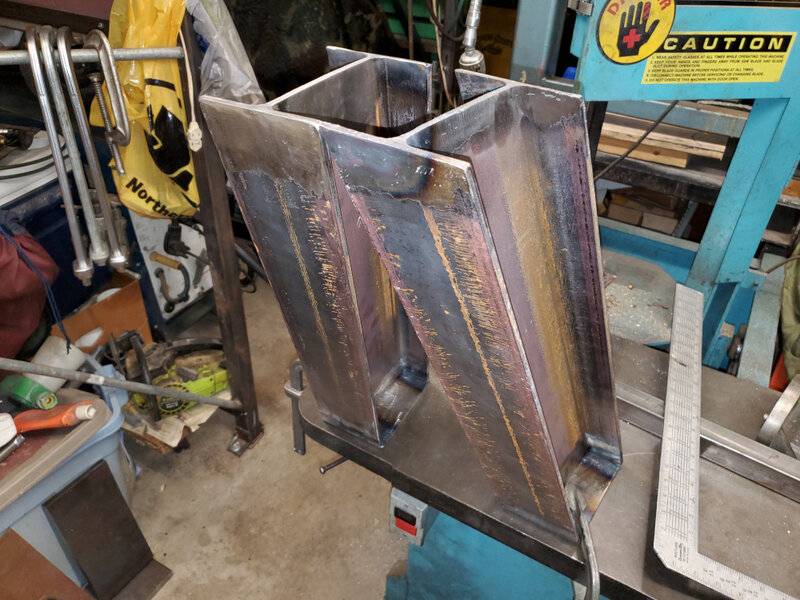

And how the stand will look . . . once I can get it measured, aligned, and welded together . . .

other side view . . .

Front view . . .

rear side view . . . pretty happy with it . . .

thought about pulling out the anvil and setting it on the stand . . . then when I got to it,

"thinking" about it was more than enough . . . LOL
