Photos Wanted - Fan Shroud

[Detroit Iron]

I have an OEM fan shroud for 62-65 b cars and would like to see some photos of how to attach it. If your shroud is OE or aftermarket, I'd like to see your setup. Thanks!



[khryslerkid]

I don't have one. I'd like to have one!
There is four clips/brackets that attach it to the outside of the radiator. I've seen them on ebay...



[Rick62]

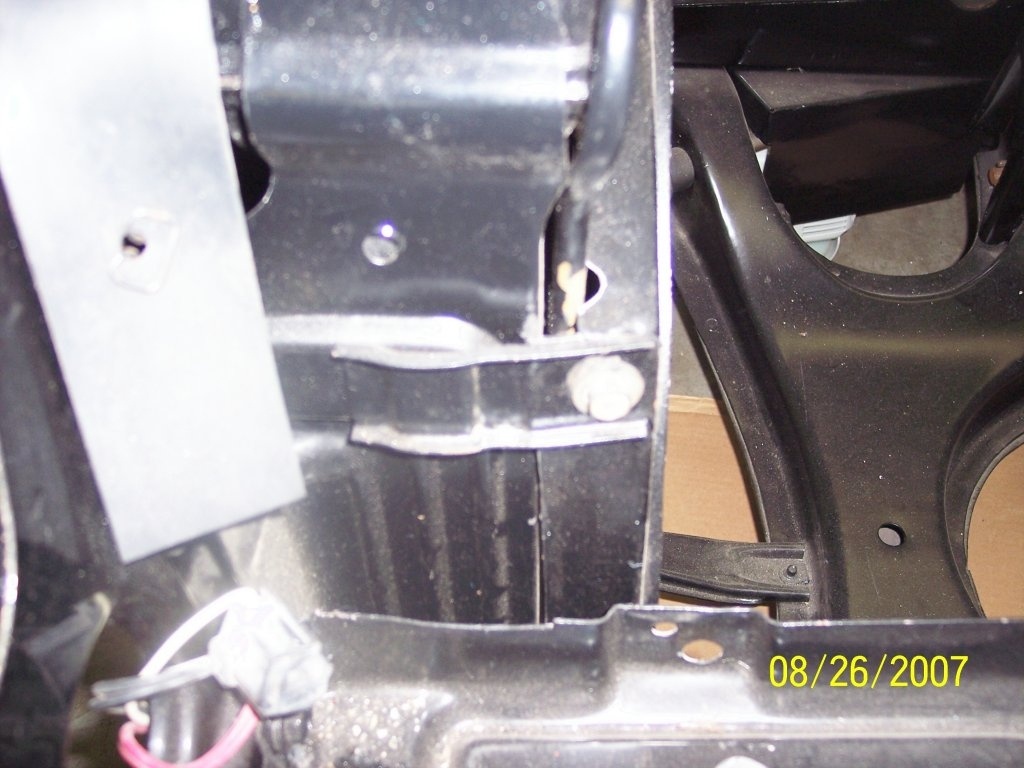

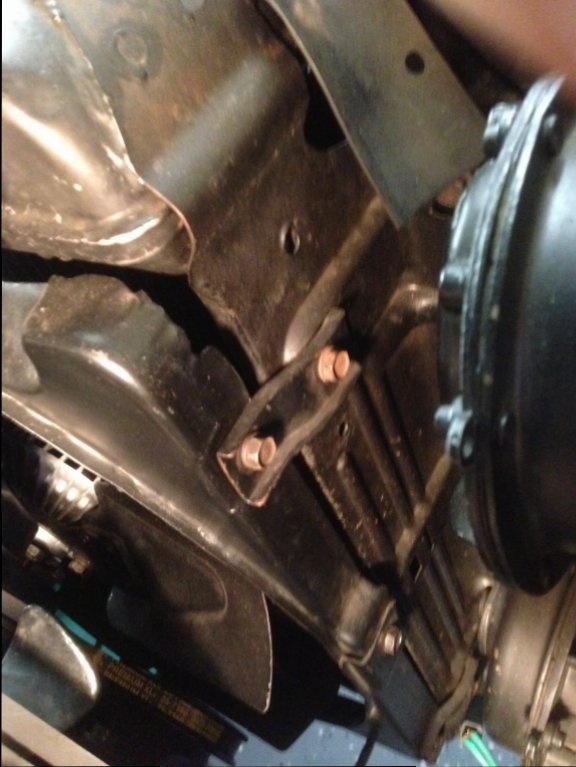

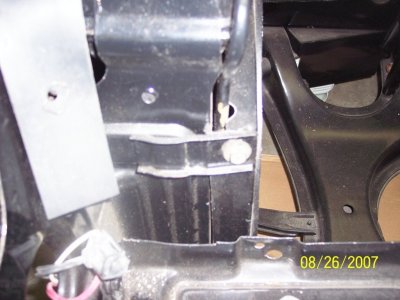

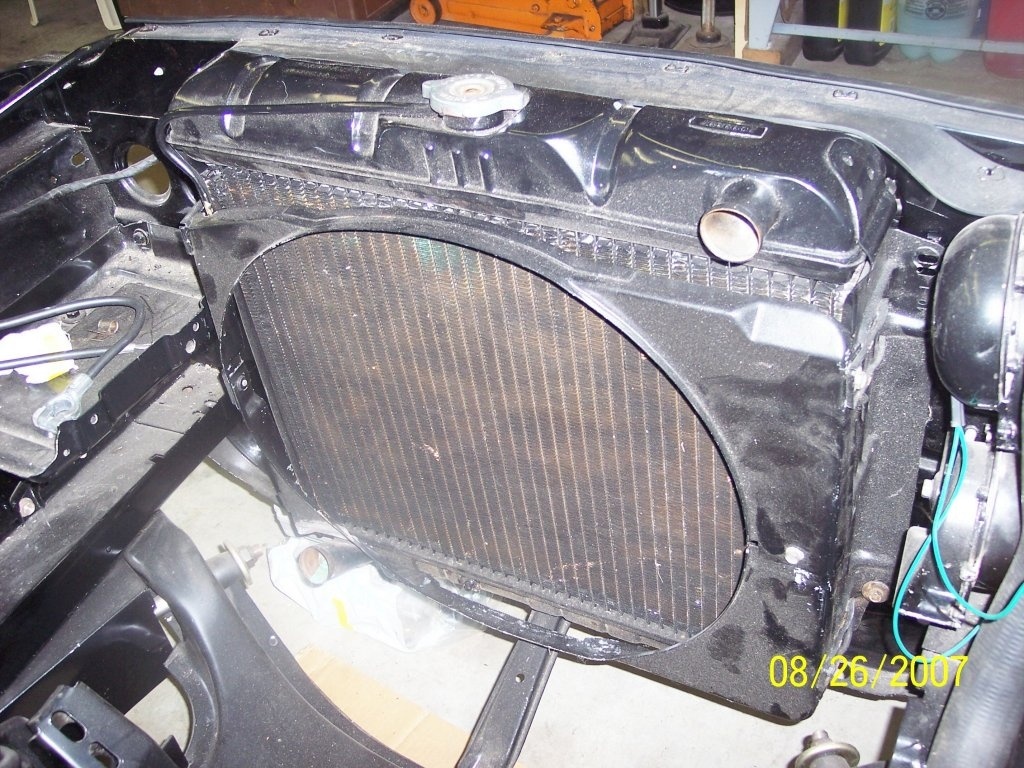

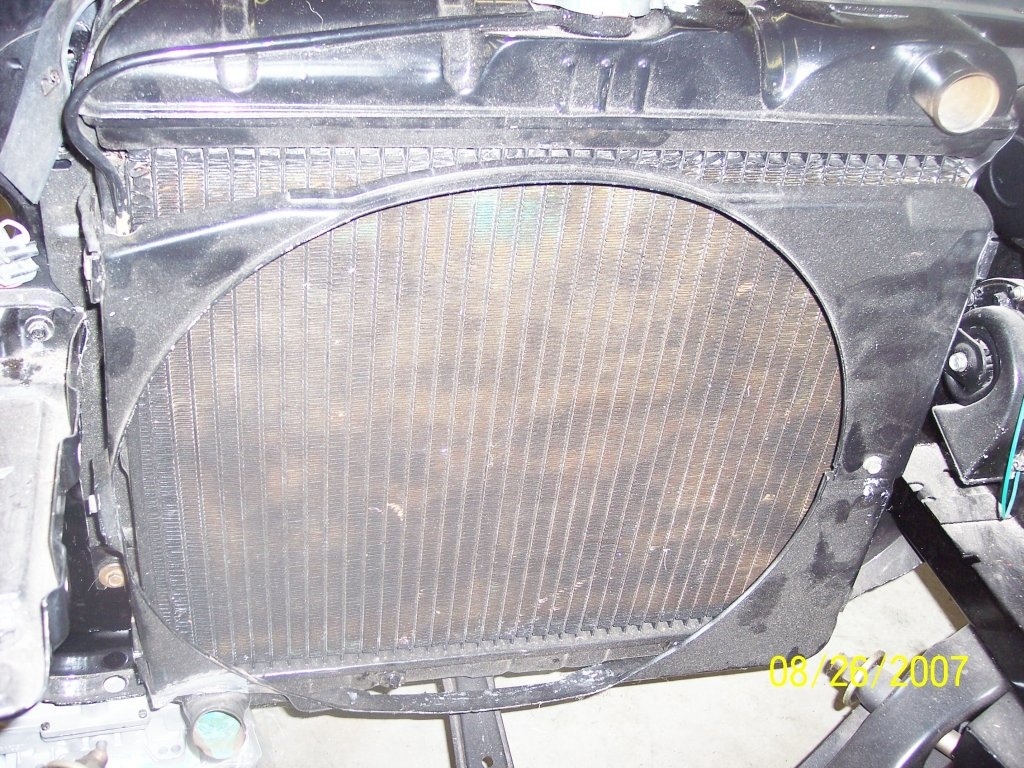

Here ya go. This is the OE setup. There are four of these brackets.



[Mogre]

I have a set of those brackets. PM me if interested.



[Rick62]

'62 to '65 C body shroud is the same.



[ply64post]

I don't have one. I'd like to have one!
There is four clips/brackets that attach it to the outside of the radiator. I've seen them on ebay...

Here is some information on shroud and brackets.

Jeff

"7423" - 1962-68 22" B-Body Radiator Fan Shroud - $249 each
Steel fan shroud for use on 1962-68 B-Body cars with V-8 and 22” radiator. Two piece unit with formed fan opening lip, hose reliefs, and contours of an original part. Top and bottom stiffener is spot welded in place like original. Made from 16 ga steel like original and powder coated low gloss black. Comes complete with both hex coni sems nuts to secure the two halves together. Used on both Small and Big Block applications. Reference P/N 2417 423 & 2417 427


Mounts to radiator with HWC mounting kit #9212 for 1962-65 cars or kit #9555 for 1966-68 cars (see kits below).

"9212" - Fan Shroud Mounting Bracket Kit - $55 per Kit
The kit includes (4) powder coated formed steel brackets, (4) correct 1/4-20 cage nuts for the radiator side brackets, and (8) 1/4-20 x 1/2" hex head coni sems bolts to mount the parts together. Used on 1962-65 B-Body cars with steel fan shrouds and 22" radiators.

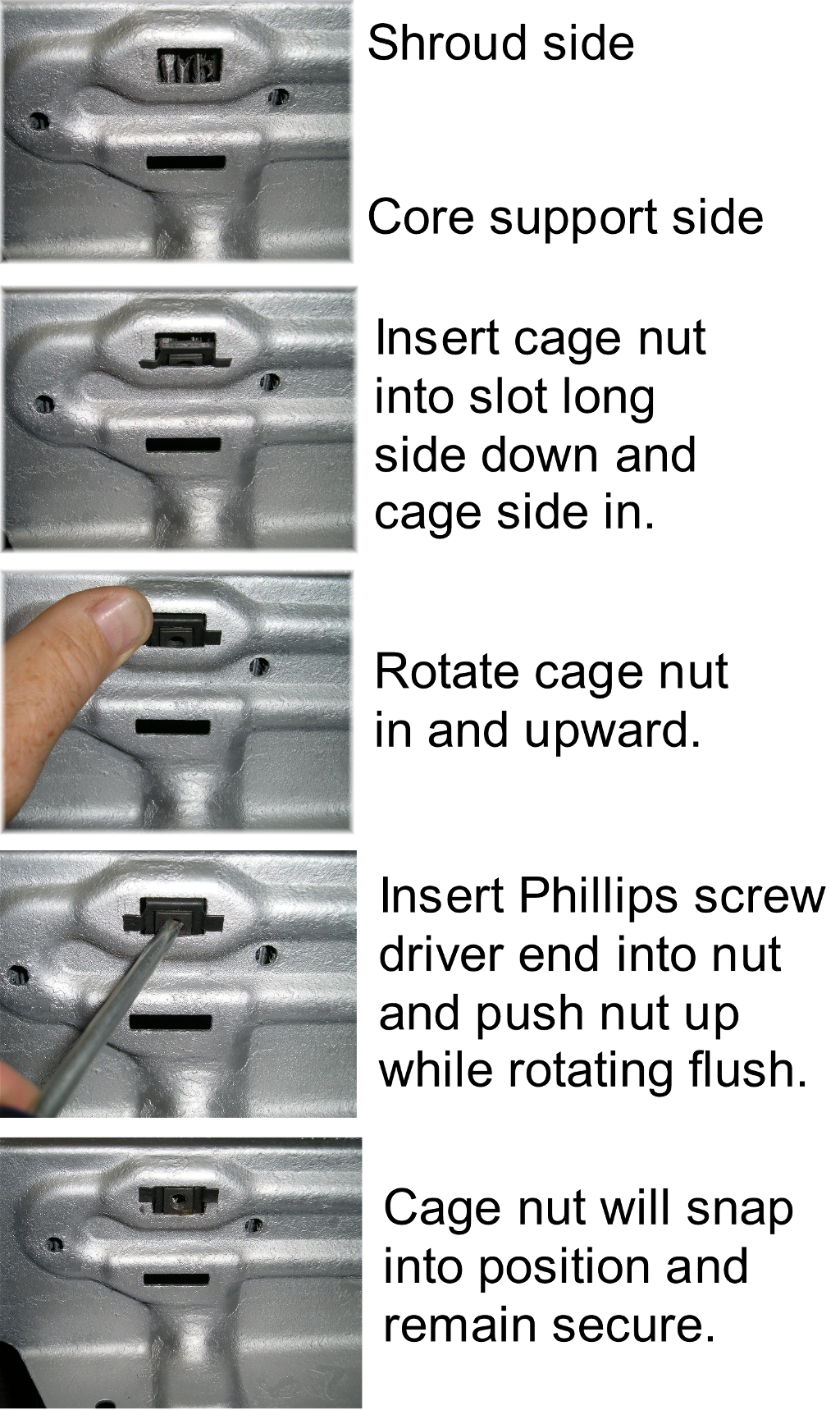

CLICK HERE to view instructions on how to install cage nuts.

One kit required per vehicle.

"9555" - Fan Shroud Mounting Bracket Kit - $55 per Kit
The kit includes (4) powder coated formed steel brackets, (4) correct 1/4-20 cage nuts for the radiator side brackets, and (8) 1/4-20 x 1/2" hex head coni sems bolts to mount the parts together. Used on 1966-68 B-Body cars with steel fan shrouds and 22" radiators.

CLICK HERE to view instructions on how to install cage nuts.

One kit required per vehicle.



[ply64post]

I have an OEM fan shroud for 62-65 b cars and would like to see some photos of how to attach it. If your shroud is OE or aftermarket, I'd like to see your setup. Thanks!

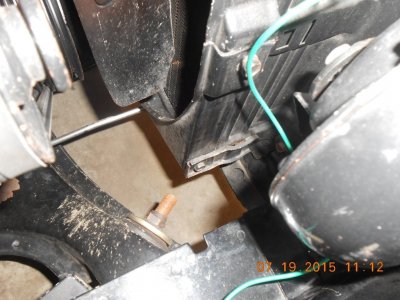

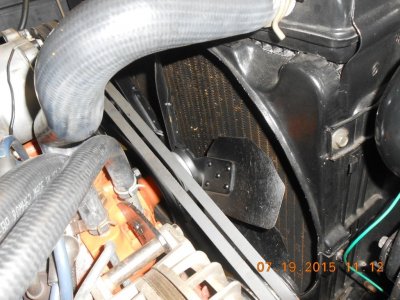

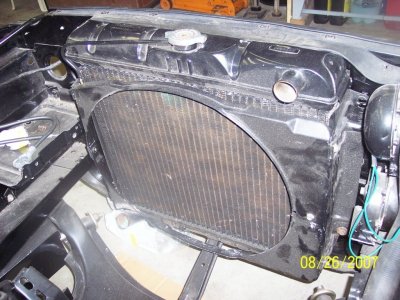

Here are some pictures from a friends 62 Savoy.

Jeff
