Question on road wheel / magnum 500 trim rings.

Tires and Wheels (Mopar Hubcaps Too)

  1. 1967coronet

    1967coronet FBBO Gold Member FBBO Gold Member

    Messages:
    1,247
    Likes Received:
    1477
    Joined:
    Jun 19, 2014
    Location:
    Iowa
    Local Time:
    3:37 AM
    I have a set of AMC road wheels 14X 5 1/2 or 6. Old tires still have to come off .
    my trim rings that are beat to crap are 2 & 3/4 " deep. from the edge to the bottom. 2 3/4 not the 2 1/2"
    Ive been hunting around the net but have not yet found any 2 & 3/4"
    This sounds stupid but are the 2 &1/2 closer to 2 3/4 ?

  2. Geetex

    Geetex Well-Known Member

    Messages:
    136
    Likes Received:
    76
    Joined:
    Nov 17, 2019
    Location:
    Illinois
    Local Time:
    3:37 AM
    A little late, but I just saw this. I don't know much about trim rings but, how are you measuring the height, putting the ring on a flat surface and measuring from the surface, vertically, to the face of the trim ring or are you measuring diagonally across the brushed surface of the ring? I thought they were supposed to be 2-1/4 tall using the first method I described, but, as I said I'm no expert. I don't know there are different heights of 14" trim rings or if they are all the same? Hopefully someone with good knowledge of trim rings will chime in. One of the many people on here that seems to know everything is @dadsbee let's see if he can shed any light on this.

    • Thanks! Thanks! x 1
    • YY1

      YY1 Well-Known Member

      Messages:
      14,968
      Likes Received:
      7128
      Joined:
      Jun 26, 2010
      Location:
      FL
      Local Time:
      4:37 AM
      I'm having a similar issue.

      The ones on my 14x5.5 rally wheels measure 2 3/16 surface to surface and 2 5/16 on the diagonal.

      • Like Like x 1
      • dadsbee

        dadsbee FBBO Gold Member FBBO Gold Member

        Messages:
        5,508
        Likes Received:
        11719
        Joined:
        Jan 29, 2018
        Location:
        Ontario, Canada
        Local Time:
        4:37 AM
        Thank Geetex, but I ain't no expert! I just make it up as a go along. 58 years old and I came home from the hospital in a Dodge is my only credential ! LOL

        I know the different years and ring or not, but not depth. I have a set (5 wheels - 7 rings) of OE 14" road wheels off a 73 Roadrunner here that I could measure.

        • Thanks! Thanks! x 1
        • 1967coronet

          1967coronet FBBO Gold Member FBBO Gold Member

          Messages:
          1,247
          Likes Received:
          1477
          Joined:
          Jun 19, 2014
          Location:
          Iowa
          Local Time:
          3:37 AM
          The rings are 2 & 3/4" measuring from the top inner edge to the base laying the tape on each edge.
          Guess I should measure depth with a straight edge across the top like
          {wheel back space} LOL.
          Im a little slow sometimes, to many paint fumes.

        • dadsbee

          dadsbee FBBO Gold Member FBBO Gold Member

          Messages:
          5,508
          Likes Received:
          11719
          Joined:
          Jan 29, 2018
          Location:
          Ontario, Canada
          Local Time:
          4:37 AM

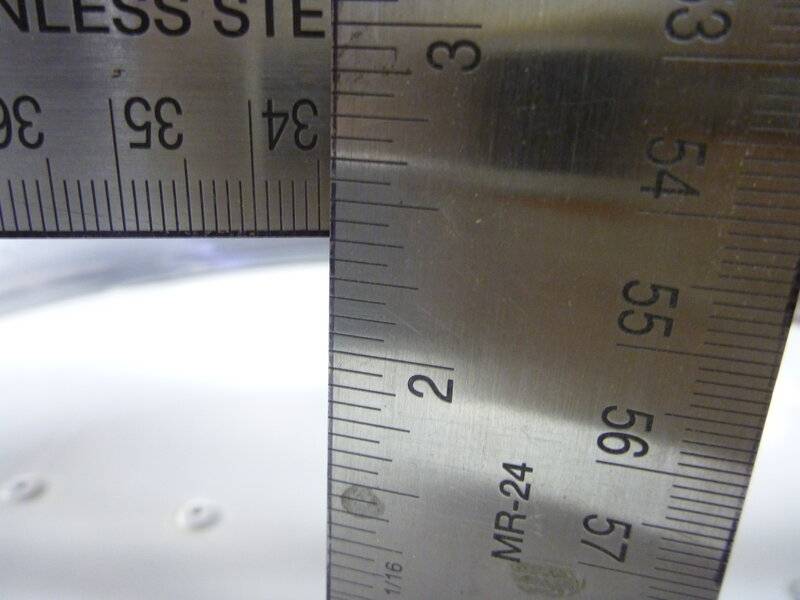

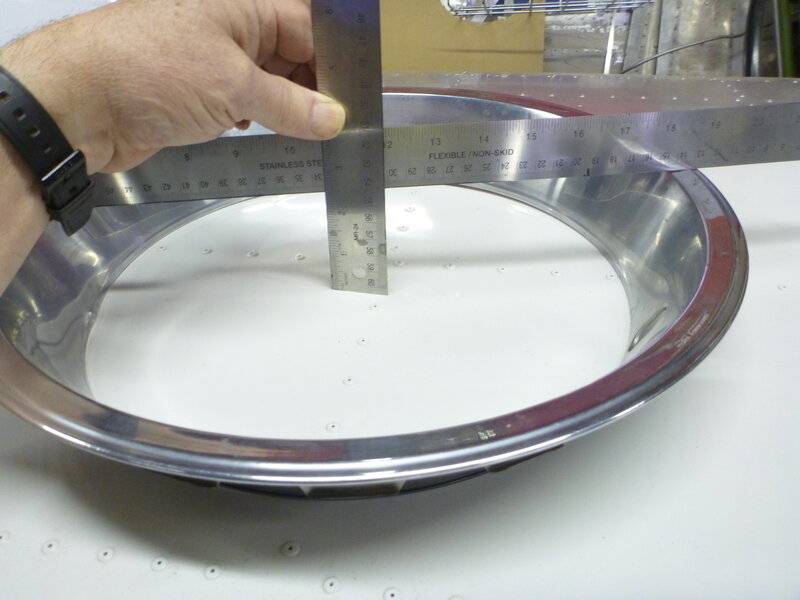

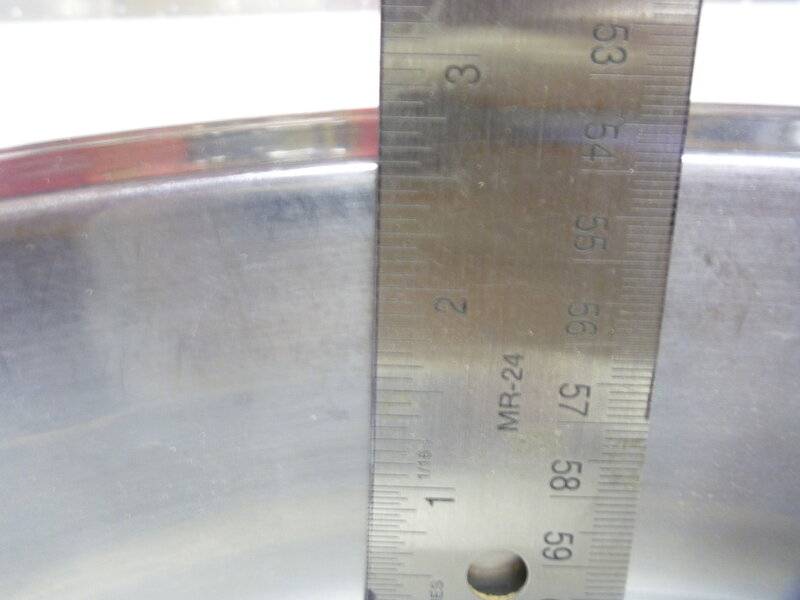

          The set I have for a '73 Road Runner are 14x 6 and the trim rings are 2 9/16" on the surface and 2 3/8" true depth.
          moparpartsandmanuals 016.JPG moparpartsandmanuals 018.JPG moparpartsandmanuals 017.JPG

          • Thanks! Thanks! x 1
          • 1967coronet

            1967coronet FBBO Gold Member FBBO Gold Member

            Messages:
            1,247
            Likes Received:
            1477
            Joined:
            Jun 19, 2014
            Location:
            Iowa
            Local Time:
            3:37 AM
            well Geetex, LMAO, You are 100 % correct thank you. If you measure them same as you would a wheels back space my 2.75s turn into 2.5" , its the slope that gets ya.
            No wonder nobody had any 2.75s for sale LOL.
            in my 60s and still learning.
            I would like to thank everyone who read that my original post and could have really messed with me but did not.
            :luvplace::thankyou:

            • Like Like x 1
            • 1967coronet

              1967coronet FBBO Gold Member FBBO Gold Member

              Messages:
              1,247
              Likes Received:
              1477
              Joined:
              Jun 19, 2014
              Location:
              Iowa
              Local Time:
              3:37 AM
              • Like Like x 1
              • Geetex

                Geetex Well-Known Member

                Messages:
                136
                Likes Received:
                76
                Joined:
                Nov 17, 2019
                Location:
                Illinois
                Local Time:
                3:37 AM
                Well, glad I could be a little help to someone.
                dadsbee, if you aren't an expert you sure do have a lot of answers to a lot of questions. I have a sort of surrogate dad that's getting close to turning 90 years old, he's been a Hudson guy forever and has done about everything you can do with a Hudson, the only thing he doesn't know about Hudson's is how much he knows about Hudson's. All his White Triangle buddies (that's the Hudson group) tell him he's the expert, he told me once that the way to become an expert is to outlive everyone that can prove you wrong.
                I'll bet @duster22 could fill us all in on what years had what depth trim rings and probably teach us even more info on the subject.

                • Like Like x 1
                • dadsbee

                  dadsbee FBBO Gold Member FBBO Gold Member

                  Messages:
                  5,508
                  Likes Received:
                  11719
                  Joined:
                  Jan 29, 2018
                  Location:
                  Ontario, Canada
                  Local Time:
                  4:37 AM
                  :rofl:

                  • Like Like x 1
                  • Agree Agree x 1
                  • duster22

                    duster22 Well-Known Member

                    Messages:
                    109
                    Likes Received:
                    36
                    Joined:
                    Dec 3, 2017
                    Location:
                    Midwestern Indiana
                    Local Time:
                    4:37 AM
                    The ring you measured , is it a factory ring ?I could not see the valve stem hole opening or the back side retaining system. That would tell me a lot about the ring.
                    Frank

                  • dadsbee

                    dadsbee FBBO Gold Member FBBO Gold Member

                    Messages:
                    5,508
                    Likes Received:
                    11719
                    Joined:
                    Jan 29, 2018
                    Location:
                    Ontario, Canada
                    Local Time:
                    4:37 AM
                    If you are referring to me, I bought these 14" wheels and rings from a guy that up'd his car to 15's and they are supposed to be the OE's off the car. Can't remember if it was a '73 or '74 RR. They have oval stem holes.. The OP's are AMC wheels !

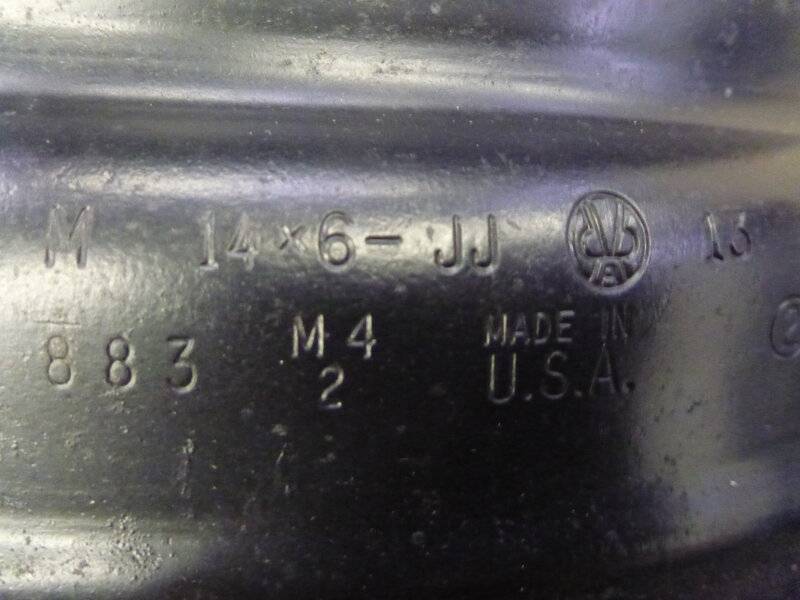

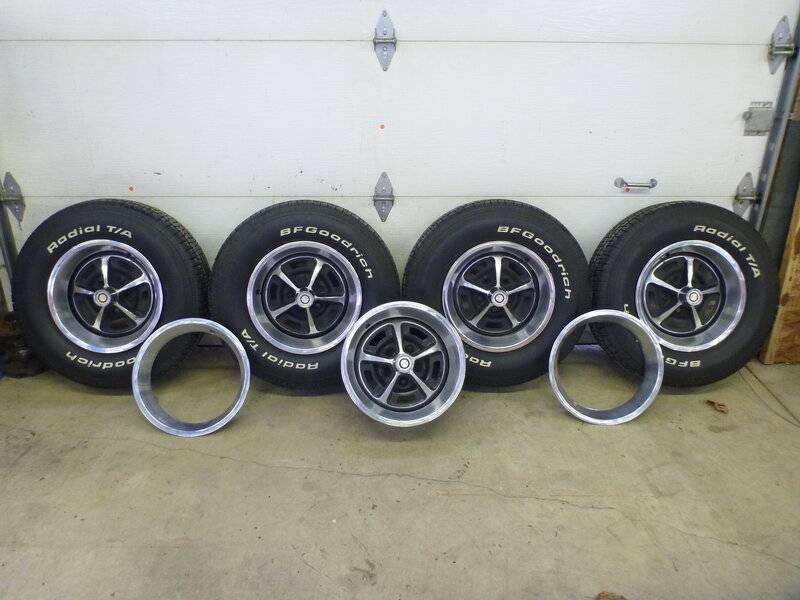

                    magnum500roadwheels 001.JPG magnum500roadwheels 007.JPG magnum500roadwheels 008.JPG magnum500roadwheels 006.JPG

                  • duster22

                    duster22 Well-Known Member

                    Messages:
                    109
                    Likes Received:
                    36
                    Joined:
                    Dec 3, 2017
                    Location:
                    Midwestern Indiana
                    Local Time:
                    4:37 AM
                    Yes , that is a very nice correct set of wheels. Because the only made one 14 inch trim ring ( starting in 70 ) to fit both the Road and Ralley wheels , both 14 x 5.5 and 14 x 6 , you can see a small gap at the bottom edge of the trim ring on your 14 x 6 Road wheels. Also from the factory those rings were polished on the top edge and brushed on the face of the ring.

                    Frank

                    • Thanks! Thanks! x 1
                    • Geetex

                      Geetex Well-Known Member

                      Messages:
                      136
                      Likes Received:
                      76
                      Joined:
                      Nov 17, 2019
                      Location:
                      Illinois
                      Local Time:
                      3:37 AM
                      Frank,
                      So '69 is the only oddball 14" trim ring, all the others were the same, same measurements, polished front edge with brushed angled plane? I did not know that. Did the part numbers change over the years?

                    • duster22

                      duster22 Well-Known Member

                      Messages:
                      109
                      Likes Received:
                      36
                      Joined:
                      Dec 3, 2017
                      Location:
                      Midwestern Indiana
                      Local Time:
                      4:37 AM

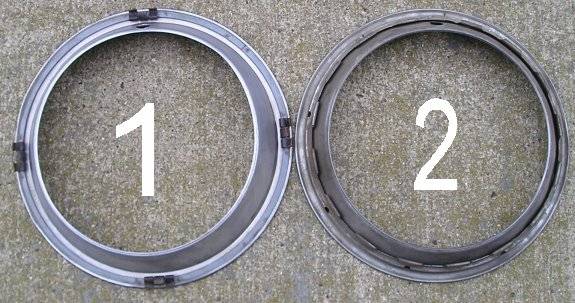

                      The 69 ring has an odd shaped valve stem hole and only 4 clips for retainers.
                      I have a used set of those if anyone needs them.

                      Frank

                    • dadsbee

                      dadsbee FBBO Gold Member FBBO Gold Member

                      Messages:
                      5,508
                      Likes Received:
                      11719
                      Joined:
                      Jan 29, 2018
                      Location:
                      Ontario, Canada
                      Local Time:
                      4:37 AM
                      '69

                    • duster22

                      duster22 Well-Known Member

                      Messages:
                      109
                      Likes Received:
                      36
                      Joined:
                      Dec 3, 2017
                      Location:
                      Midwestern Indiana
                      Local Time:
                      4:37 AM
                      Yep , there you go , 69 only...

                      Frank

                      • Like Like x 1
                      • Geetex

                        Geetex Well-Known Member

                        Messages:
                        136
                        Likes Received:
                        76
                        Joined:
                        Nov 17, 2019
                        Location:
                        Illinois
                        Local Time:
                        3:37 AM
                        This discussion about trim rings reminds me I still have to find another pair of nos 14" trim rings for my '70 before I need them. Off to the WTB section to put up a post. duster22 where did you manage to find a set of '69 trim rings? Those things are supposed to be just about impossible to find.

                      • duster22

                        duster22 Well-Known Member

                        Messages:
                        109
                        Likes Received:
                        36
                        Joined:
                        Dec 3, 2017
                        Location:
                        Midwestern Indiana
                        Local Time:
                        4:37 AM
                        The 69 rings came off a set of road wheels brought to me by a regular customer. He brings me wheels as
                        we meet at certain shows , to build up trade money for wheels that he wants to buy from me.

                        Frank

                        69 vs 70.jpg.jpg
