Quick Q on oil pans.

[onebadmk8]

The Satellite is in need of an oil pan.

Was thinking mildon but the real Q here is how hard is it in this body?

This is my first ever Mopar so i have no idea. I am a Ford/Chevy Guy.

Is it a nightmare?

Thanks in advance.



[AdamR]

Not sure if B bodies are the same but on an A body you need to trim the K frame for clearance. You can use a Hemi pan which holds extra oil.



[69 Runner]

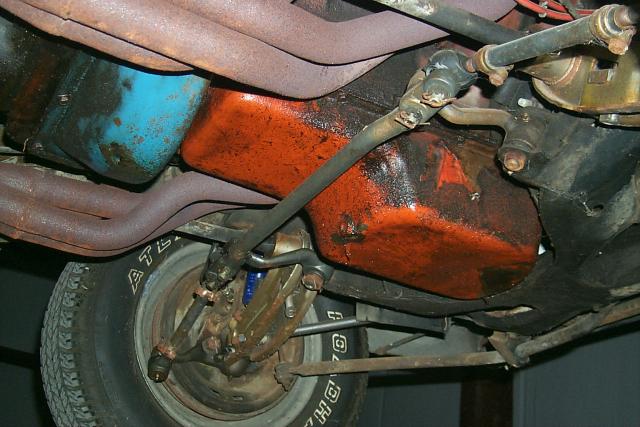

Depends on the pan. You can get some monsters that have a hole in them for the steering to go through if you need one that big. Here is a pic of a factory "Hemi" or 70 up Six Pack pan on a 69. It holds a quart more than a 402 and no fit problems

View attachment 325598

View attachment 325599



[junkman]

i run a mildon in my satellite with a 440 with no problems. it does stick down a couple of inches so you have to watch were you're going, i'm going to add a skid plate in the furture.



[onebadmk8]

I have a Moroso big pan but its leaking bad I just need to know what needs to be done for the swap. Can I snake it out, motormounts have to come off? Etc..........



[69 Runner]

Don't need to do anything to pull the pan except ditch the drag link. BUT, if you're changing pans and therefore pickups, you may need to raise/remove the motor to have room to do that.



[onebadmk8]

So worst is pop the mounts?



[rolling_Thunder]

shouldnt need to remove anything but the drag link



[Meep-Meep]

I'll go with 69Runner on this one. There are also about four bolts in the front that are very close to the K member and the extra room by lifting the engine may pay off. I've had the flared Milodon pans tap the K member in one spot but no trouble with Moroso.



[onebadmk8]

Cool Ill be doing it next week just got the pan shipped.
