Red Brake Drum Paint

Brakes, Steering & Suspension

  1. RT68440

    RT68440 Well-Known Member

    Messages:
    397
    Likes Received:
    411
    Joined:
    Mar 8, 2016
    Location:
    Akron, Ohio
    Local Time:
    12:56 PM
    Hey guys, I’ve been doing some research on cars that got the red painted brake drum faces and one thing that seems to be sporadic is when this process actually started. I have heard anything from 2/1968 to 8/1969. I’m just wondering if it would be correct for my April built 1968 Charger. Has anyone seen any ‘68 models with the red drums?

  2. DeltaV

    DeltaV Beam us up! FBBO Gold Member

    Messages:
    10,248
    Likes Received:
    27194
    Joined:
    Jul 11, 2015
    Location:
    Savannah River
    Local Time:
    12:56 PM
    There is probably a Factory Service Bulletin floating around the internet that will help answer your question.

  3. dadsbee

    dadsbee FBBO Gold Member FBBO Gold Member

    Messages:
    8,954
    Likes Received:
    21058
    Joined:
    Jan 29, 2018
    Location:
    Ontario, Canada
    Local Time:
    12:56 PM
    Unfortunately the only shot I have of the bulletin, oldest revision date on it is 3-26-1969 so it was published originally sometime before that. Would think if it was done on '68's they would have had everything revised long before well into the '69 model year... but I've been wrong at guessing Ma Mopar before..

    • Like Like x 2
    • Thanks! Thanks! x 1
    • Agree Agree x 1
    • RT68440

      RT68440 Well-Known Member

      Messages:
      397
      Likes Received:
      411
      Joined:
      Mar 8, 2016
      Location:
      Akron, Ohio
      Local Time:
      12:56 PM
      I’ve searched around and the service bulletins that I have found was 8/1969 and 5/1969. Then someone commented that they saw one from 2/1968 but wasn’t able to provide proof. I searched as much as I could but wasn’t sure if any of the gurus on here knows for sure when it started...

      • Thanks! Thanks! x 1
      • DeltaV

        DeltaV Beam us up! FBBO Gold Member

        Messages:
        10,248
        Likes Received:
        27194
        Joined:
        Jul 11, 2015
        Location:
        Savannah River
        Local Time:
        12:56 PM

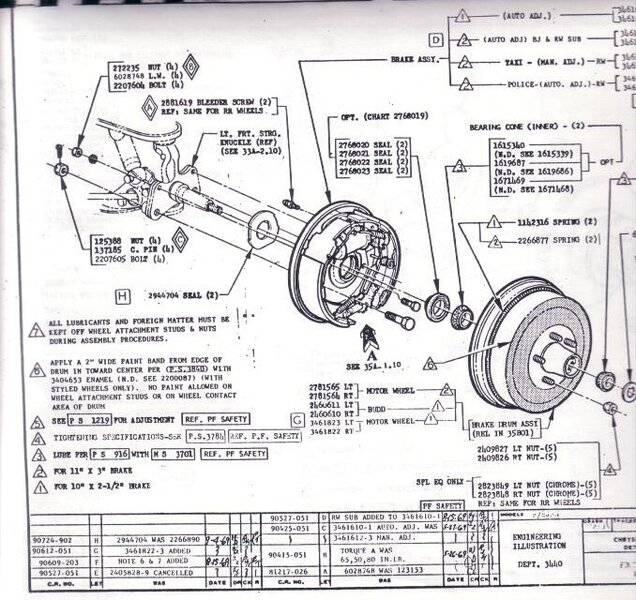

        Flag notes 6 and 7 were added 8/15/69 as per the revision history block. Flag note 6 is for the paint. Flag note 6 on the drawing is pointing to the face of the drum.

        I would say that the drums weren't painted in 1968 based on that revision history.

        • Thanks! Thanks! x 1
        • dadsbee

          dadsbee FBBO Gold Member FBBO Gold Member

          Messages:
          8,954
          Likes Received:
          21058
          Joined:
          Jan 29, 2018
          Location:
          Ontario, Canada
          Local Time:
          12:56 PM
          Yep.. you read better than me. By that I probably should haven't done my Feb built '69 Bee.

        • Builderguy

          Builderguy Builderguy FBBO Gold Member

          Messages:
          980
          Likes Received:
          858
          Joined:
          Sep 5, 2017
          Location:
          Alma, mi
          Local Time:
          12:56 PM
          Here is an answer to your question from Mopar Muscle magazine off an old For Road Runner Only forum

          Note the red paint on the face of this rear brake drum. A Chrysler Passenger Cars-Procedure and Materials engineering document dated January 31, 1969, states, "Apply a 2-inch Wide Paint Band in Toward Center Per P.S.3840 With 3404653 Enamel (Styled Wheels Only). No Paint Allowed on Wheel Attachment Studs or on Wheel Contact Area of Drum." "Styled" wheels refer to Magnums or to the Rallyes in this vehicle's case. We have seen original cars where the red paint was still wet and dripping when the wheels were installed-evident by the amount of the paint on the wheel. We have so far confirmed this procedure on '69 -'71 model year cars.

          • Thanks! Thanks! x 3
          • SgtSuperbird

            SgtSuperbird Well-Known Member

            Messages:
            214
            Likes Received:
            367
            Joined:
            Jun 4, 2019
            Location:
            Clay, MI
            Local Time:
            12:56 PM

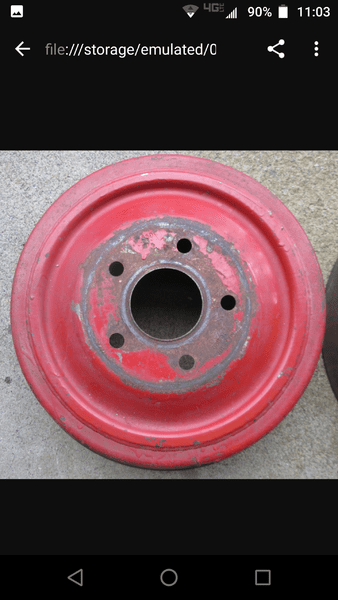

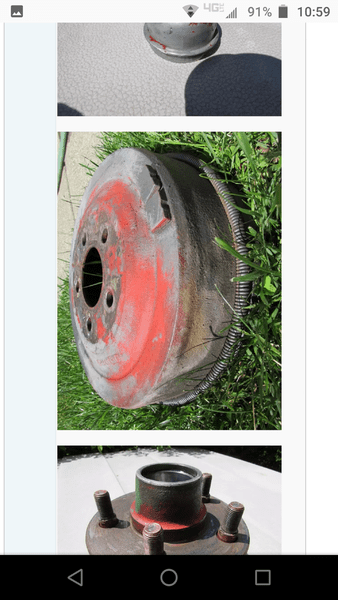

            I'm sorry that I don't know who to give credit for these pictures, but I had saved them awhile ago, most likely from this site. As you can see, the factory was very careful where they placed the paint. :lol:.

            Screenshot_20180910-110346.png Screenshot_20180910-105944.png

            • Like Like x 2
            • Photon440

              Photon440 FBBO Gold Member FBBO Gold Member

              Messages:
              10,965
              Likes Received:
              11521
              Joined:
              Mar 14, 2012
              Location:
              Surrey, B.C. Canada
              Local Time:
              9:56 AM
              • Thanks! Thanks! x 1
