Rstoring a 71-74 Rallye cluster - This is how I did it.

Interior

  1. dangina

    dangina Well-Known Member

    Messages:
    655
    Likes Received:
    156
    Joined:
    Aug 17, 2010
    Location:
    lethbridge
    Local Time:
    10:08 PM
    No one had any real advice on how to do it so I did it the best way I thought I could do it. This is it:

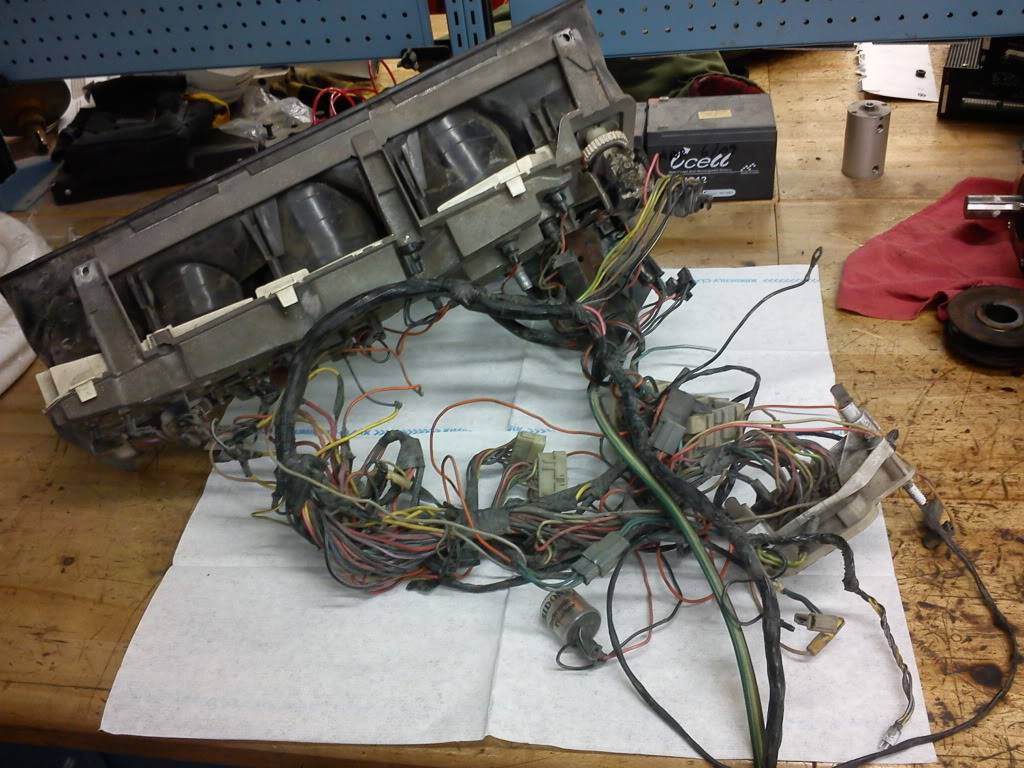

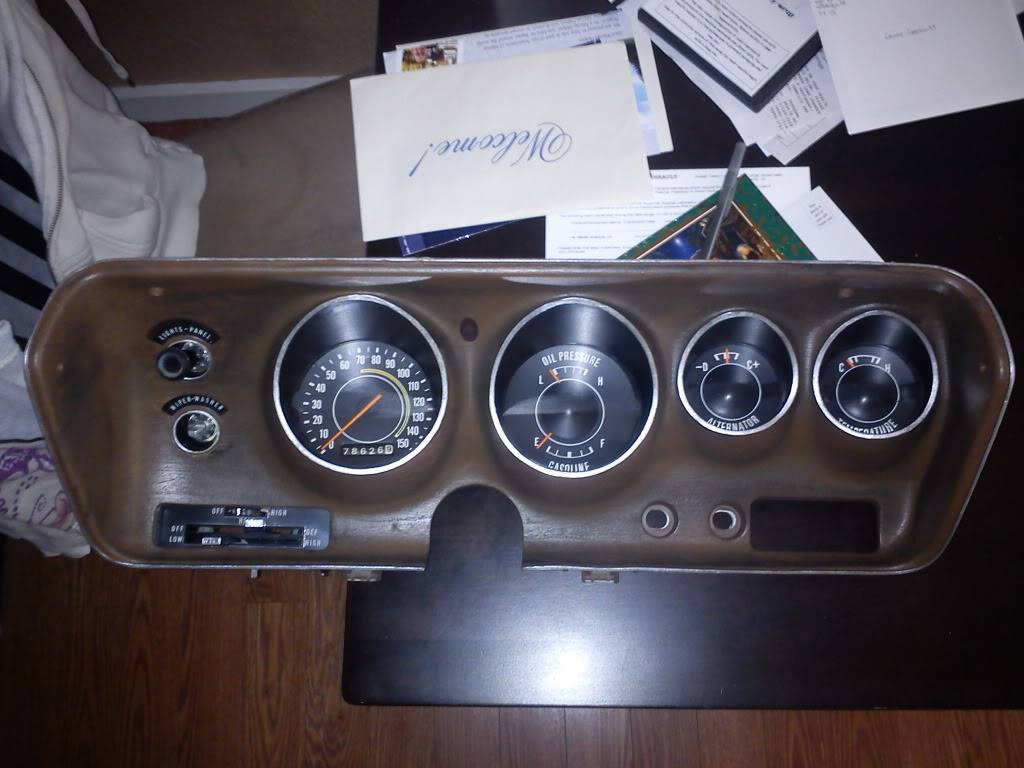

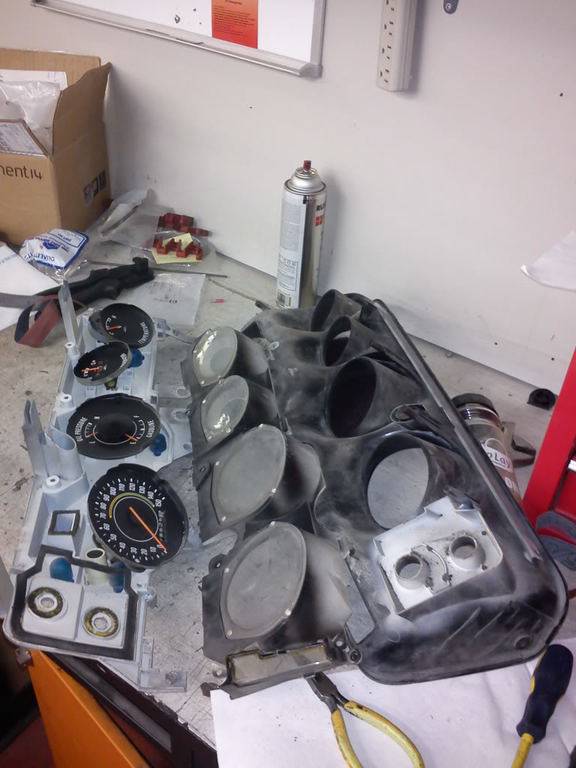

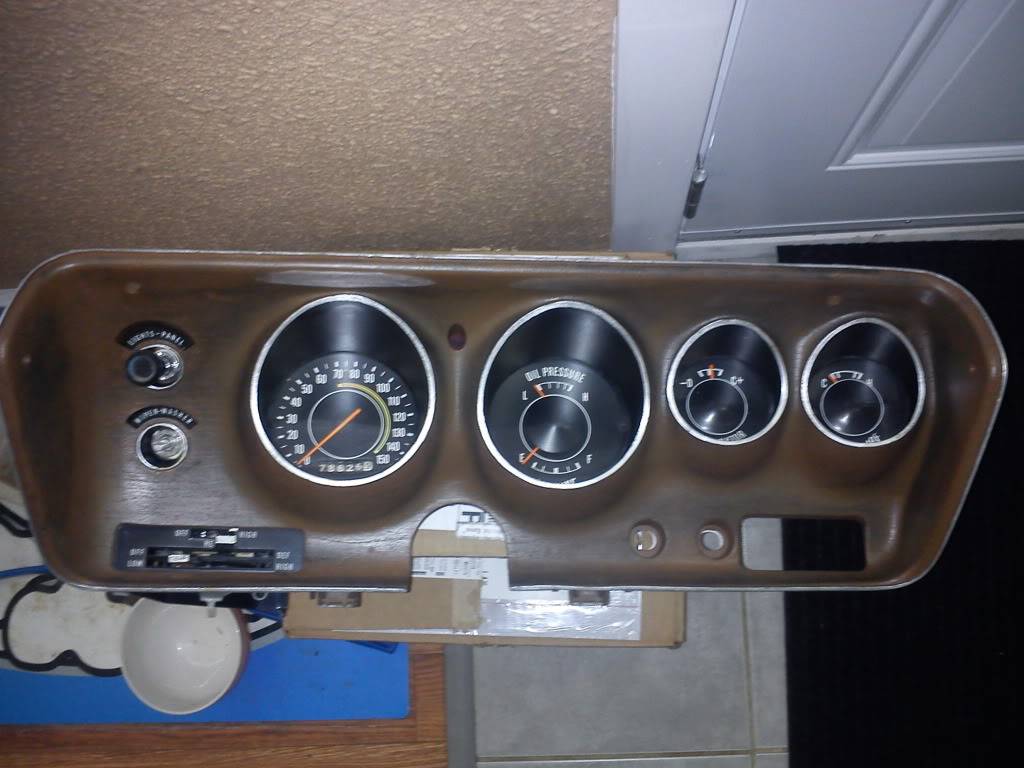

    what i had to start with:

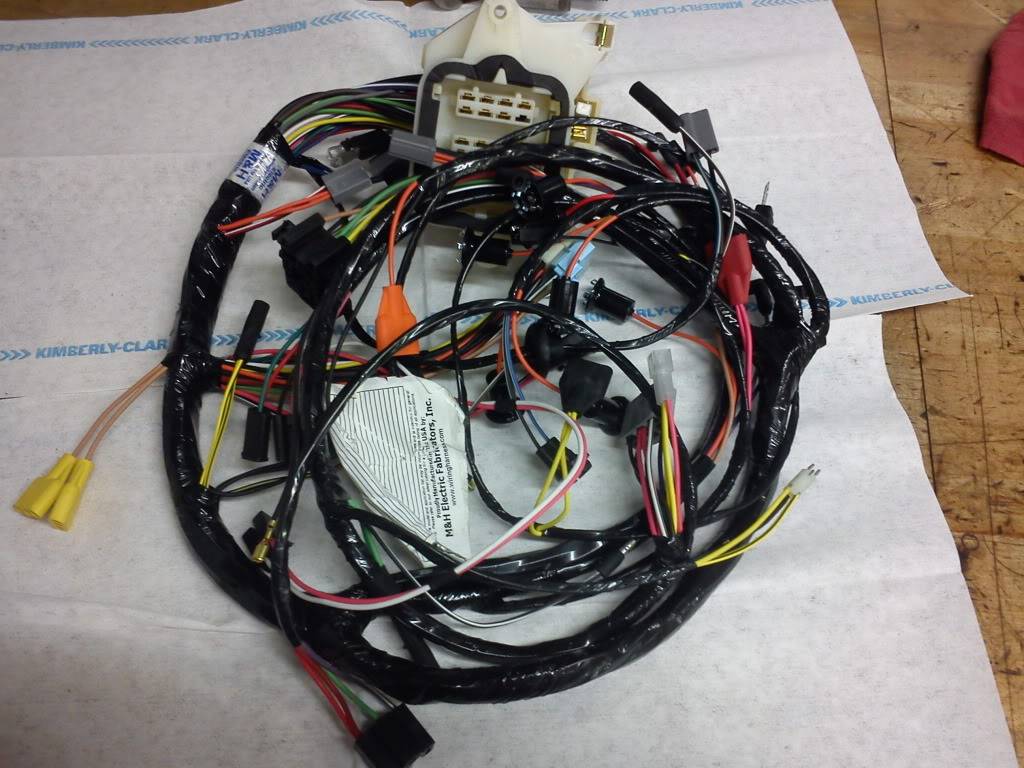

    no more old wiring gremlins!!!

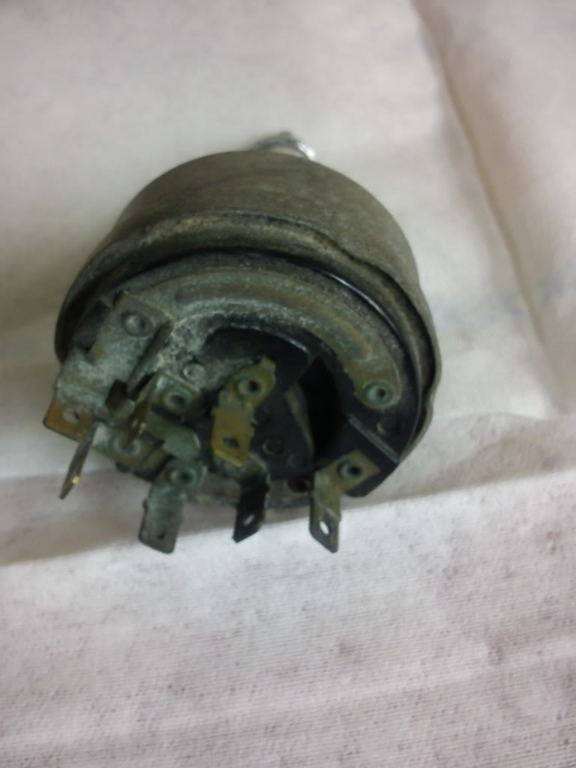

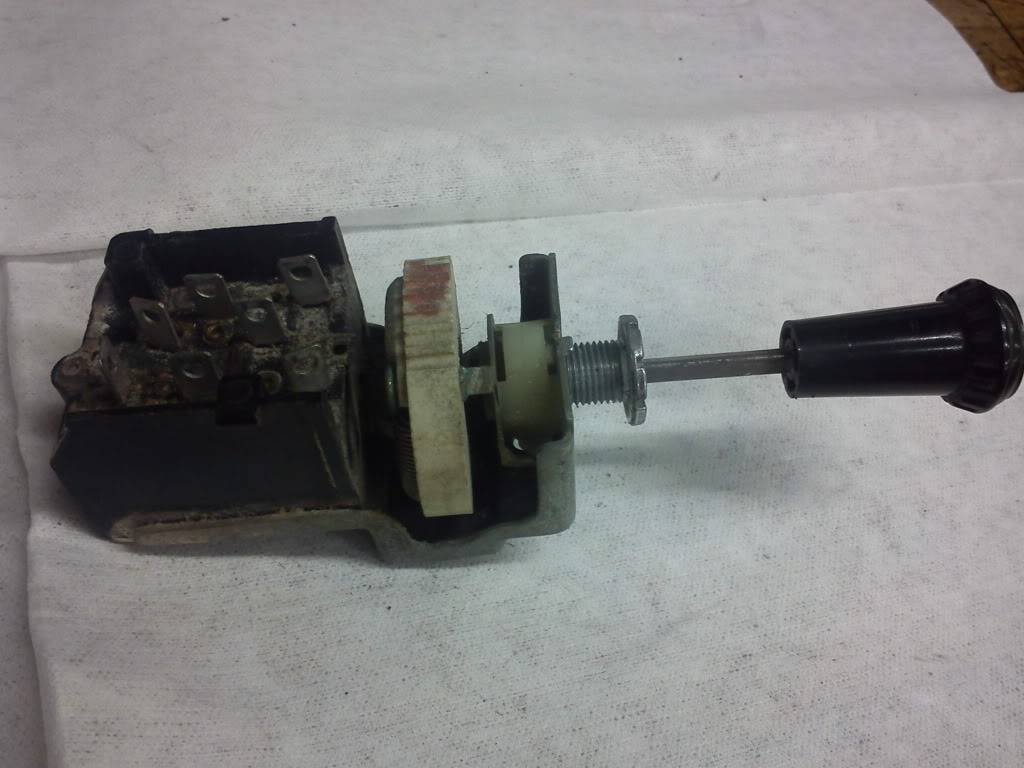

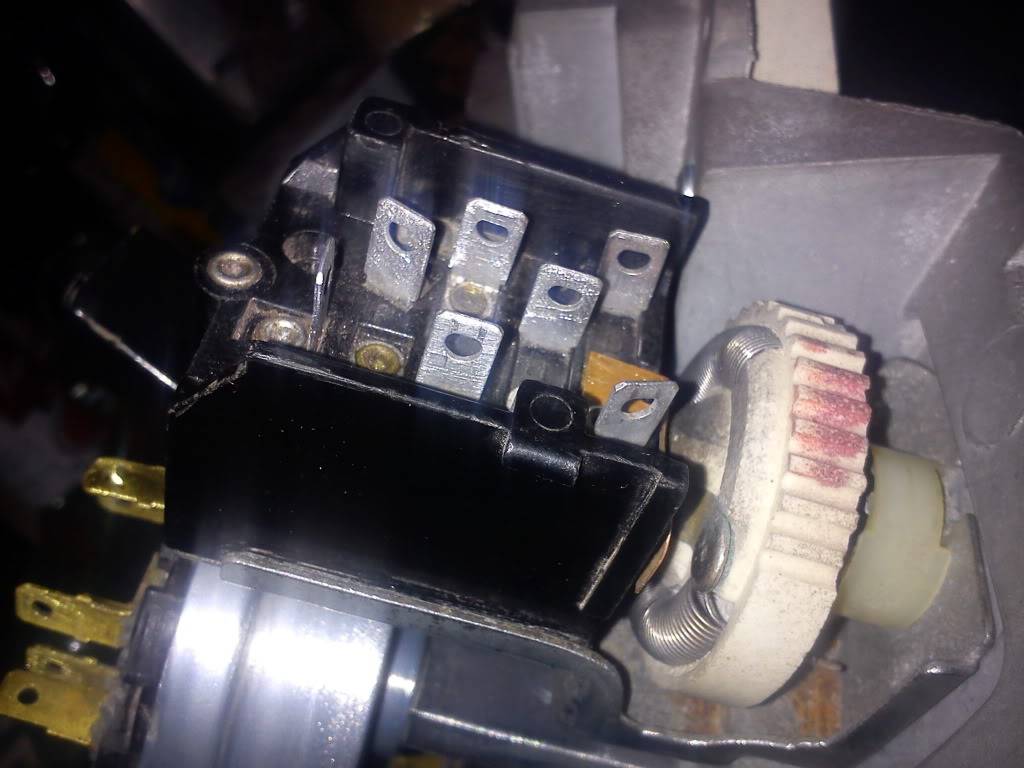

    Light switch:

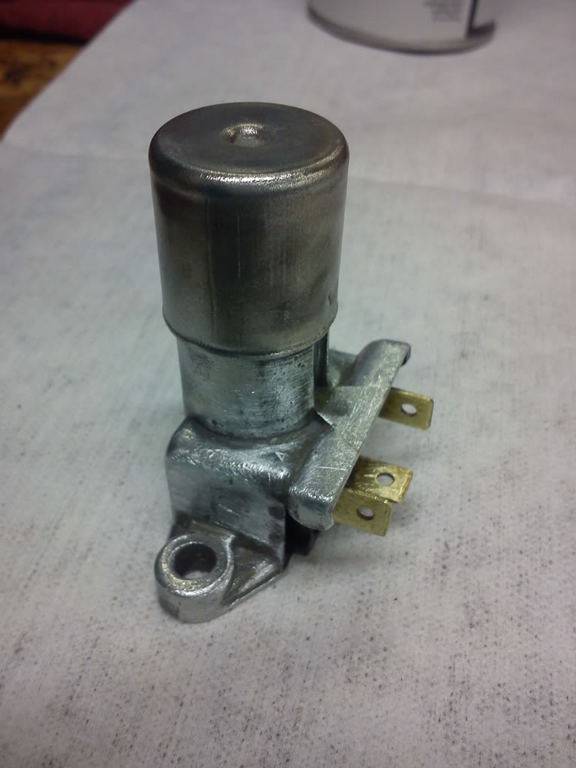

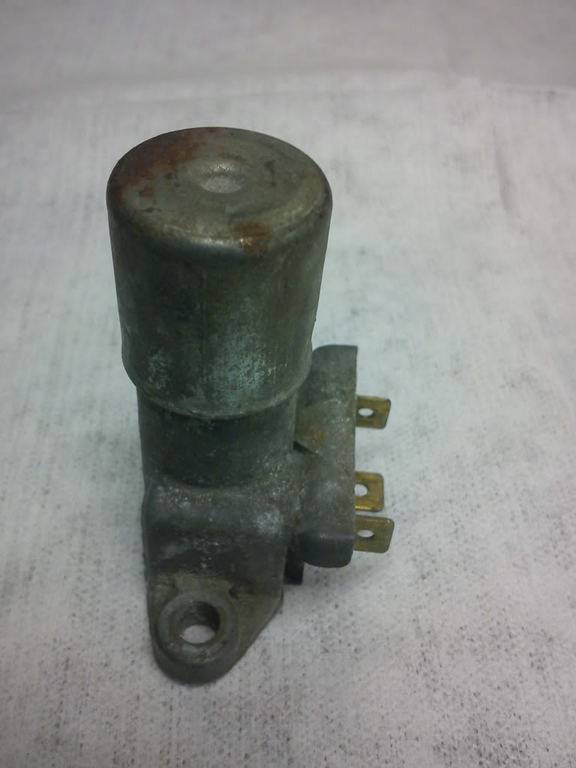

    high/low beam floor switch:

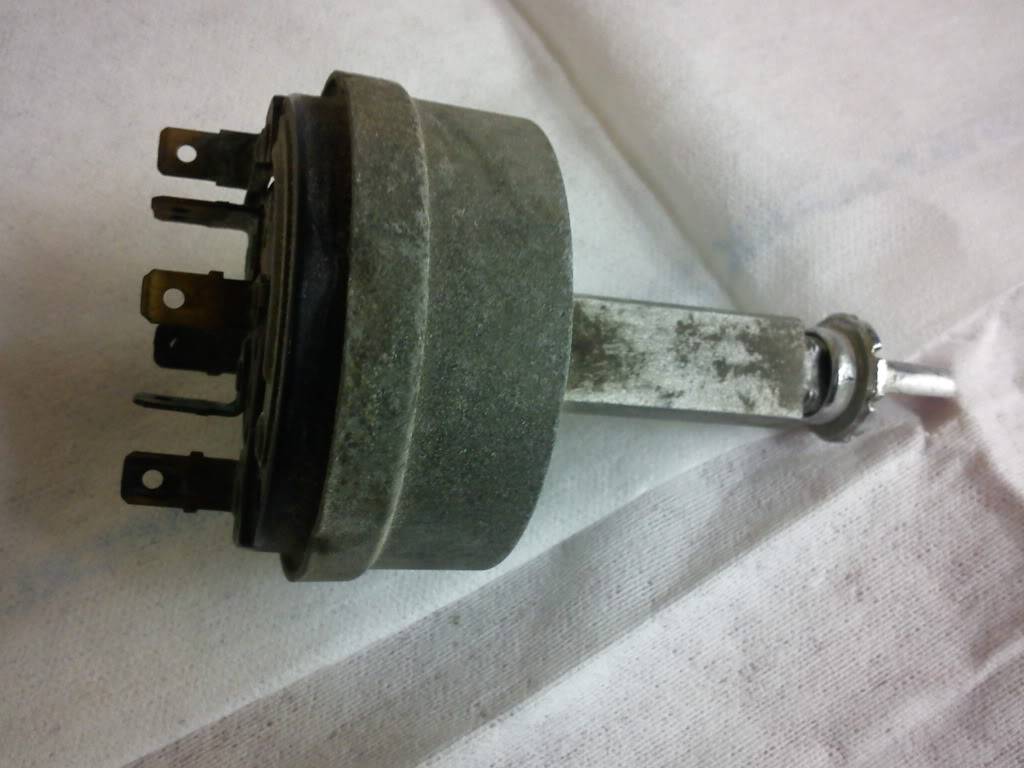

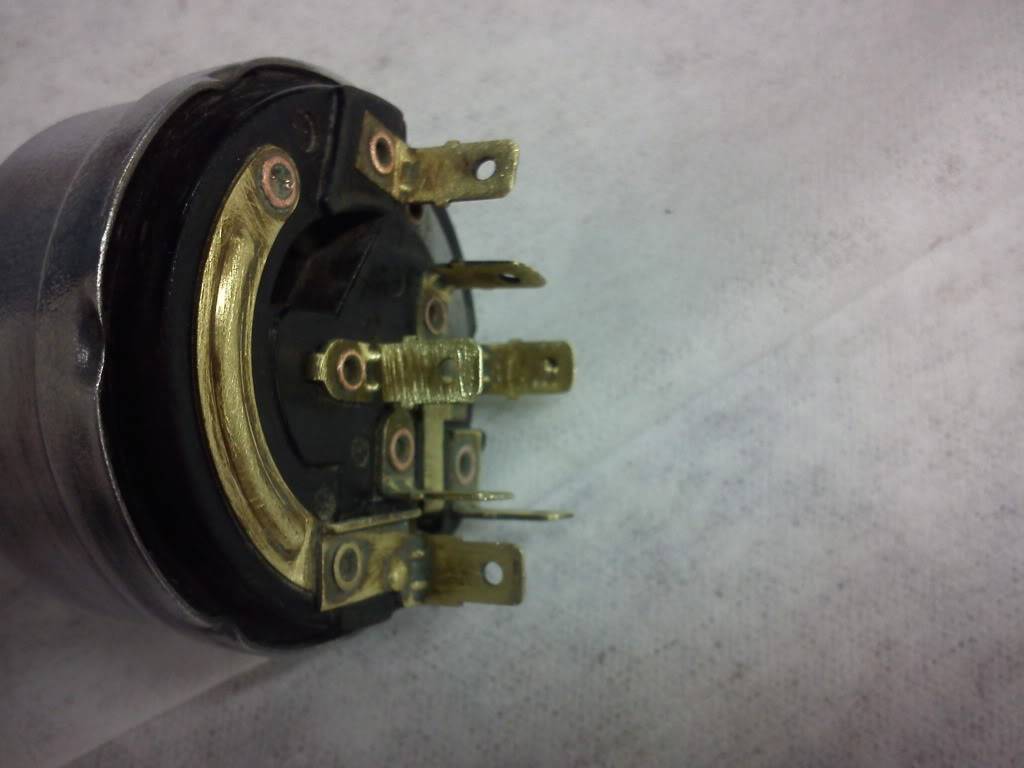

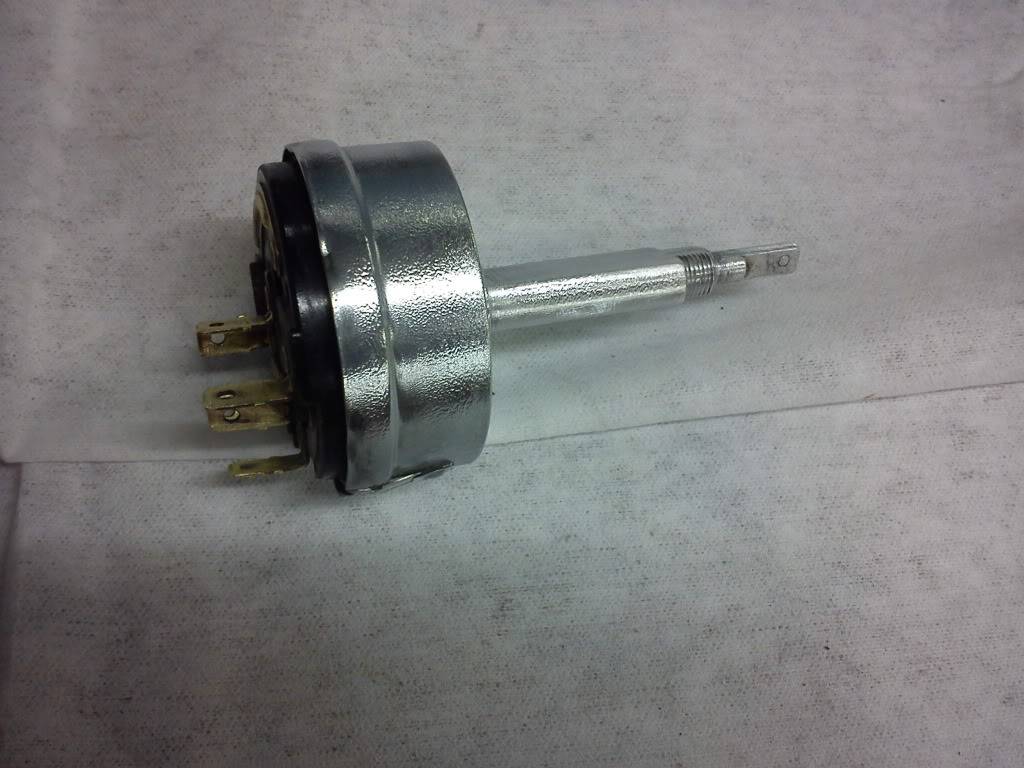

    Wiper switch:

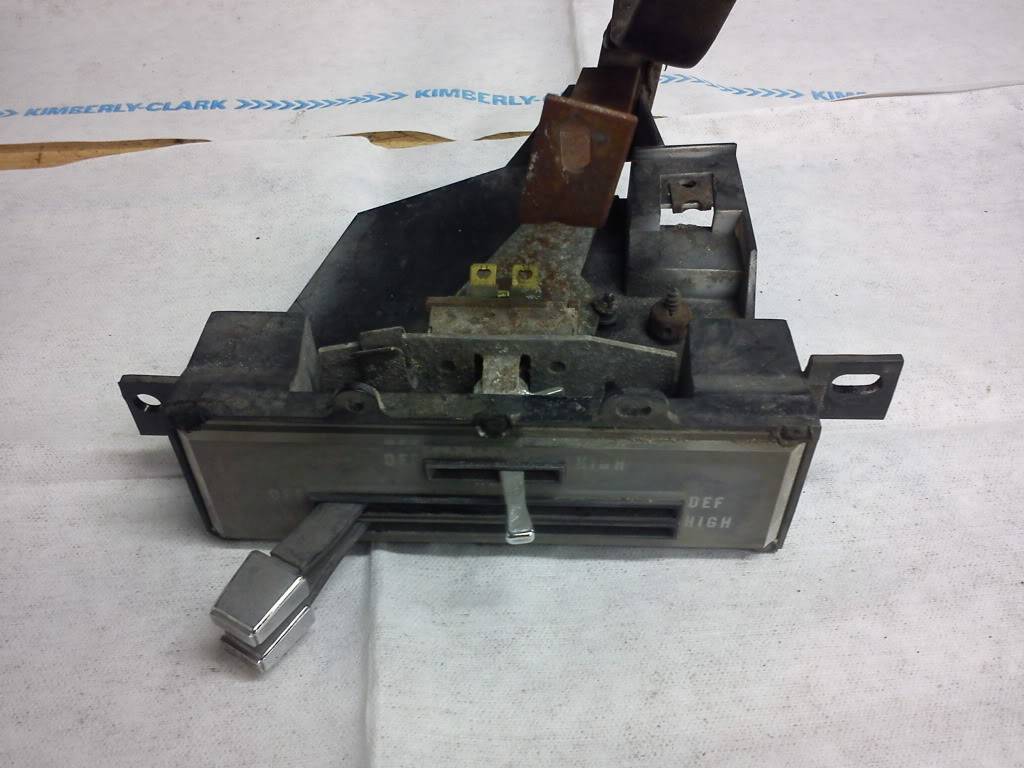

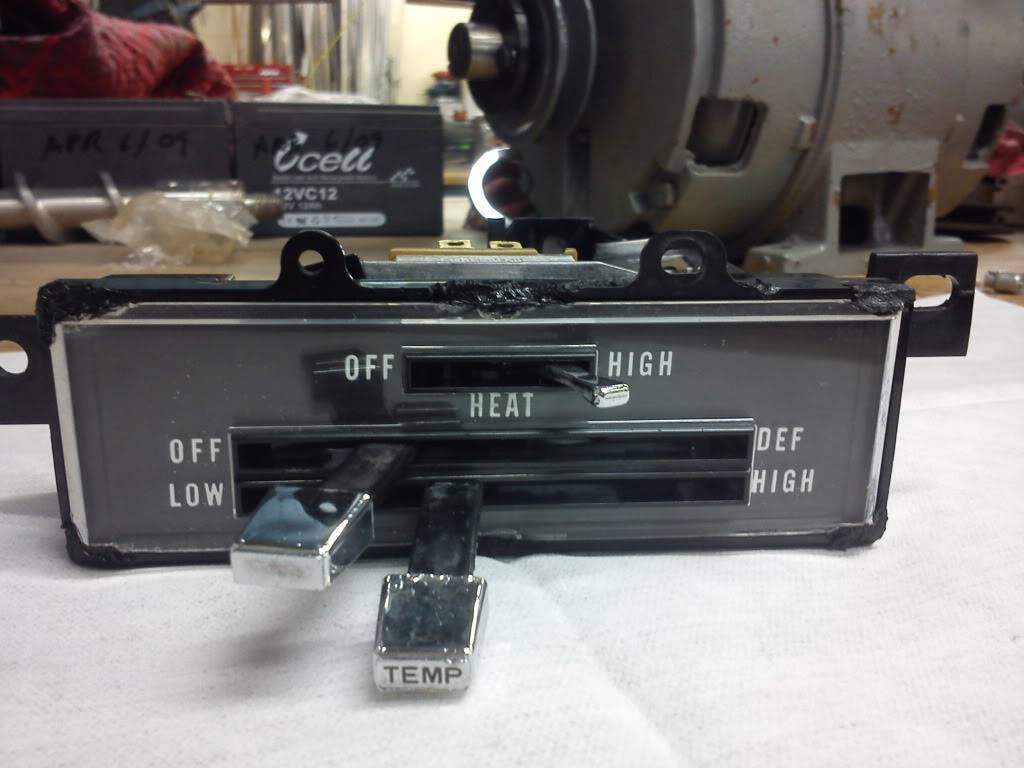

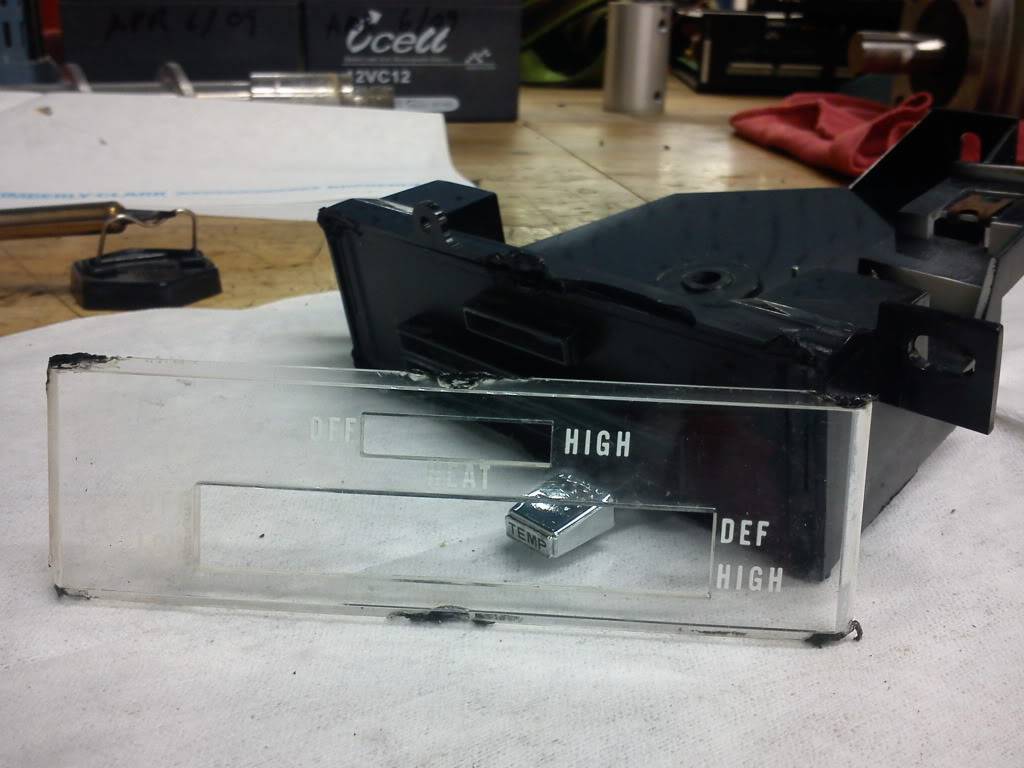

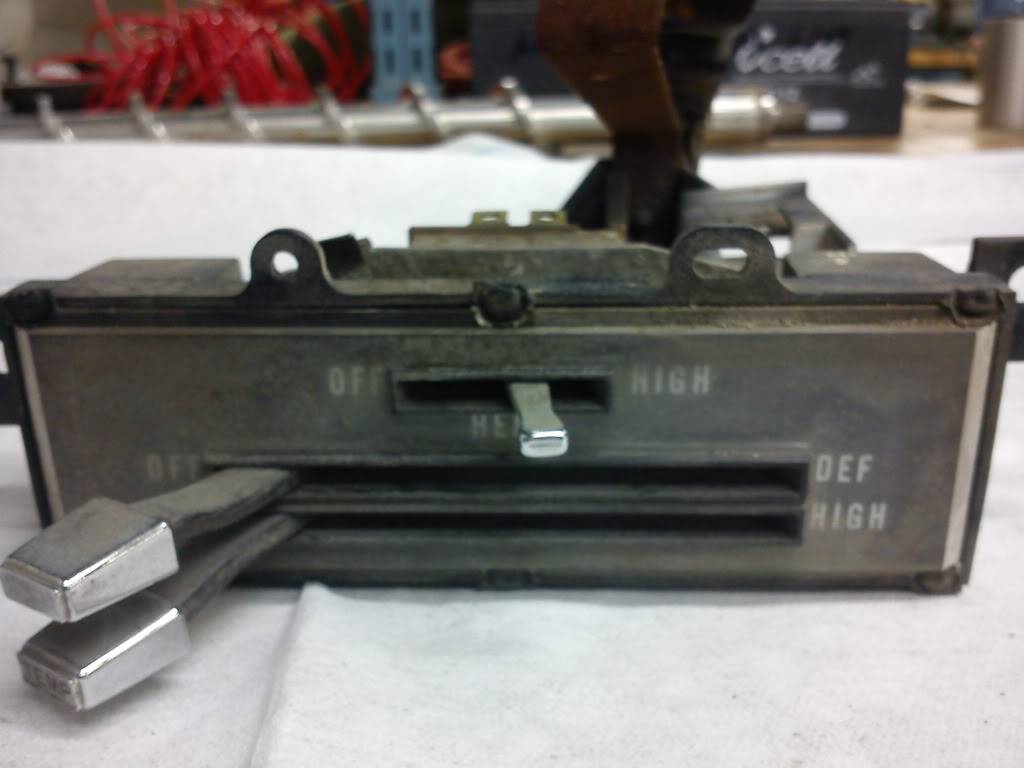

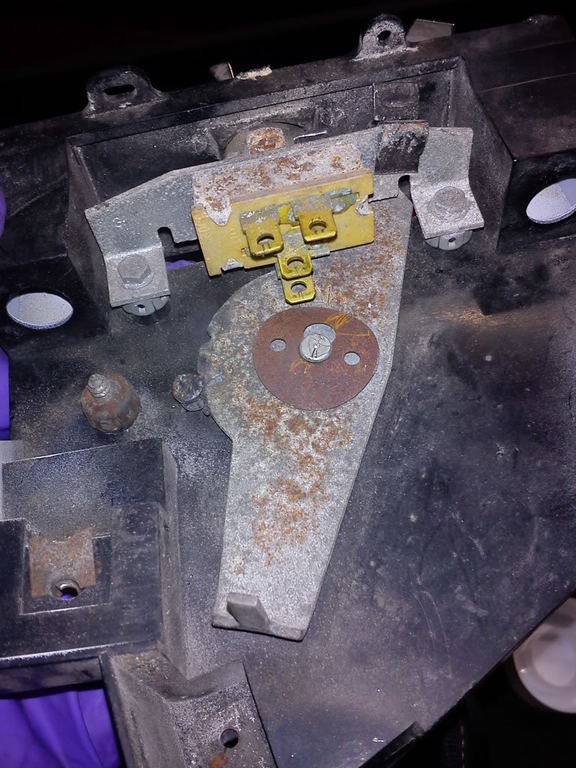

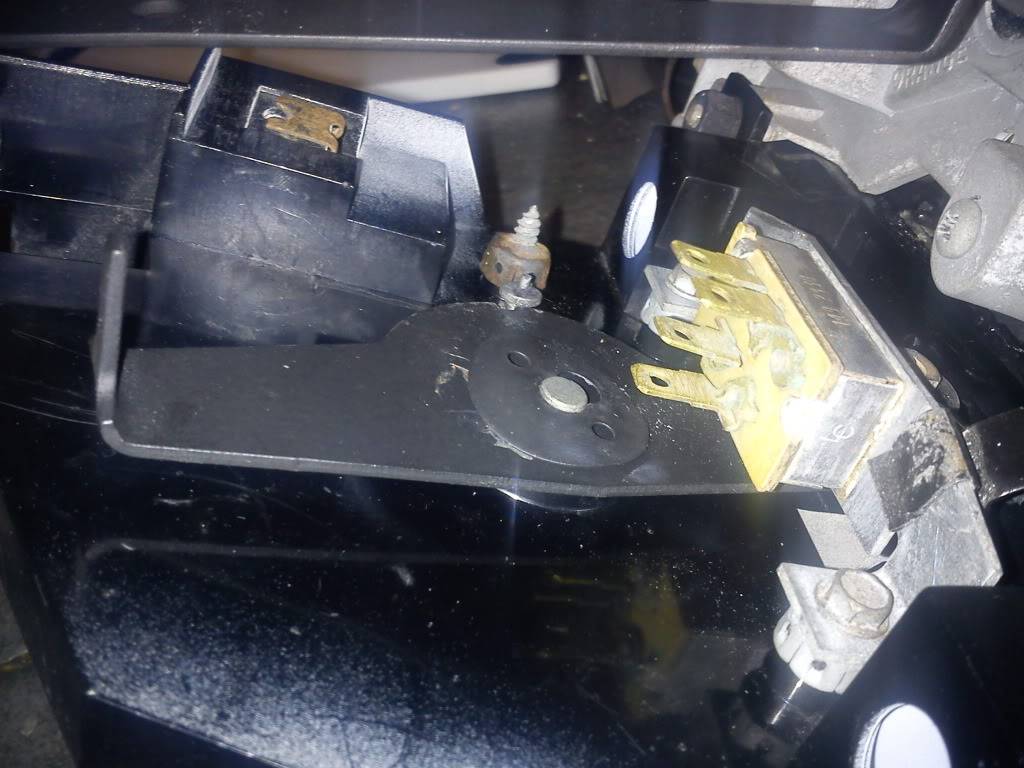

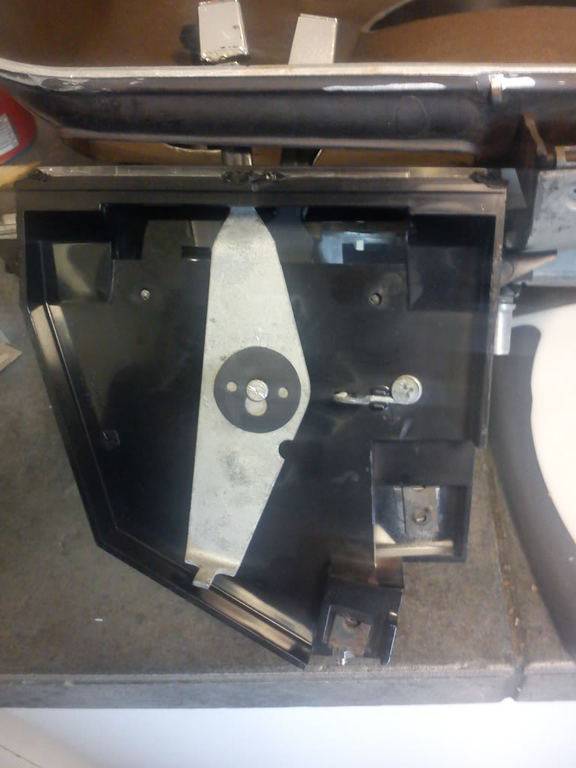

    Temp control:


    - - - Updated - - -

    Now the hard part:

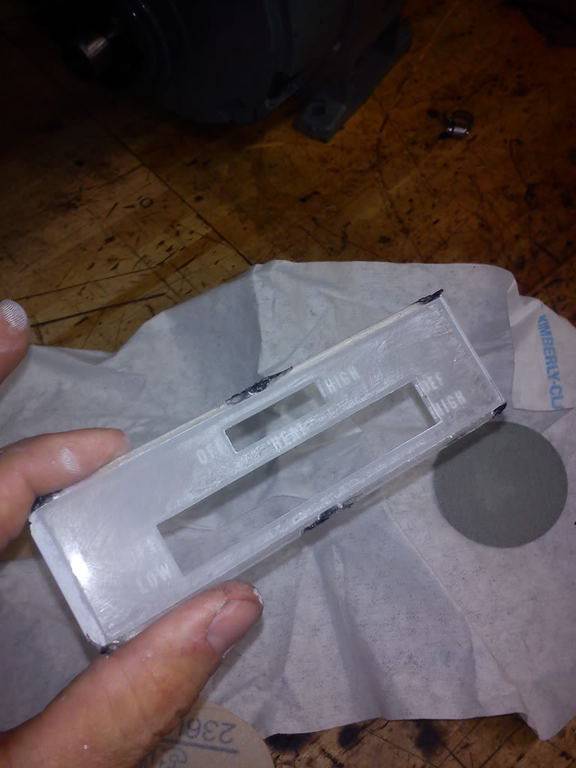

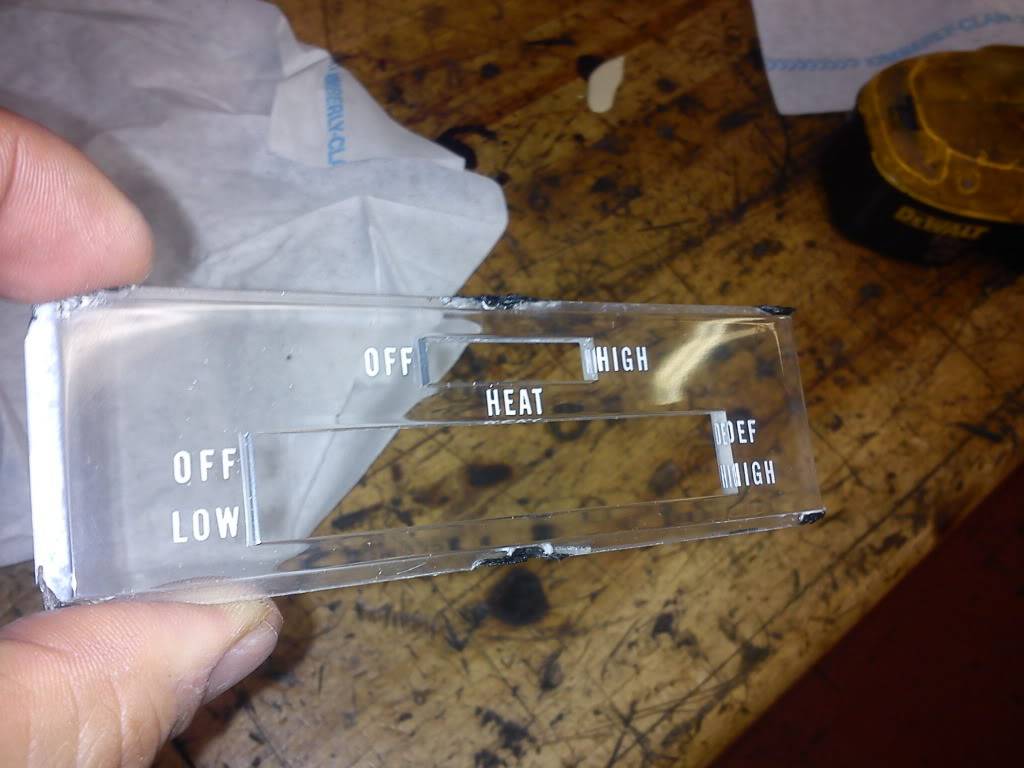

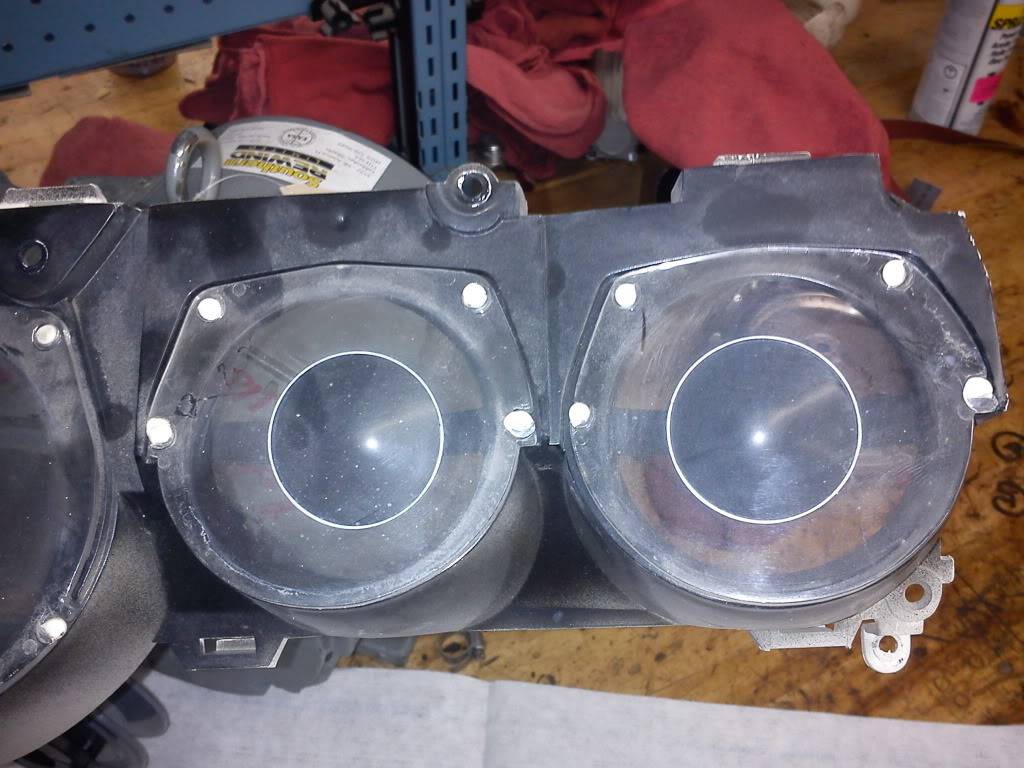

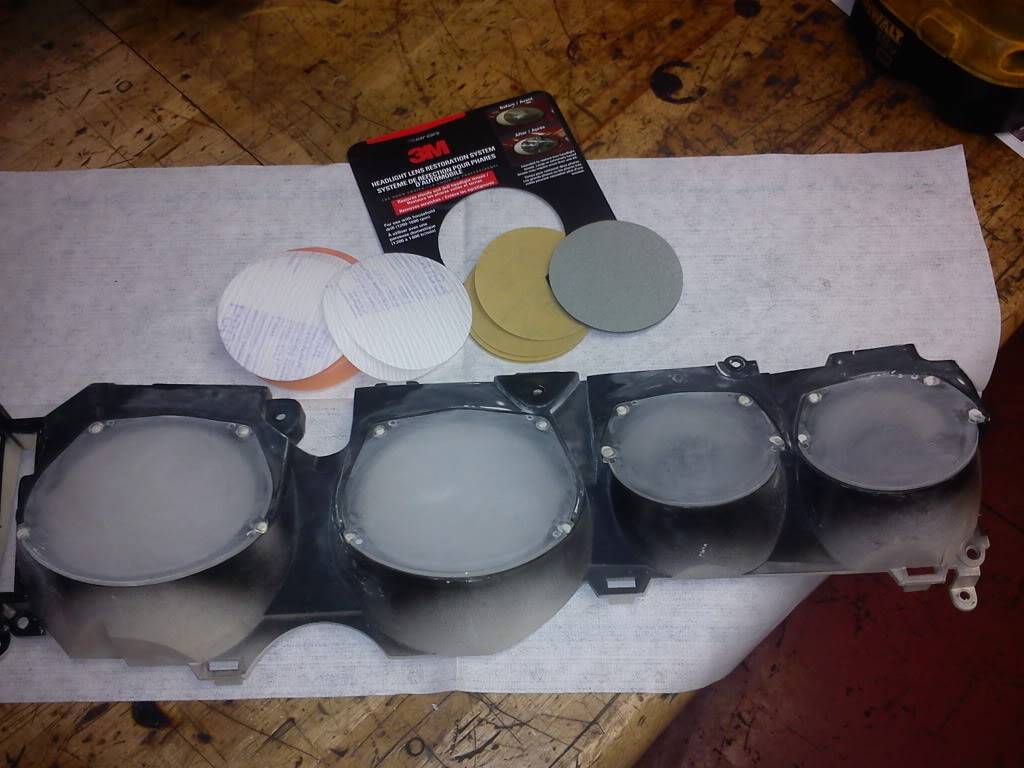

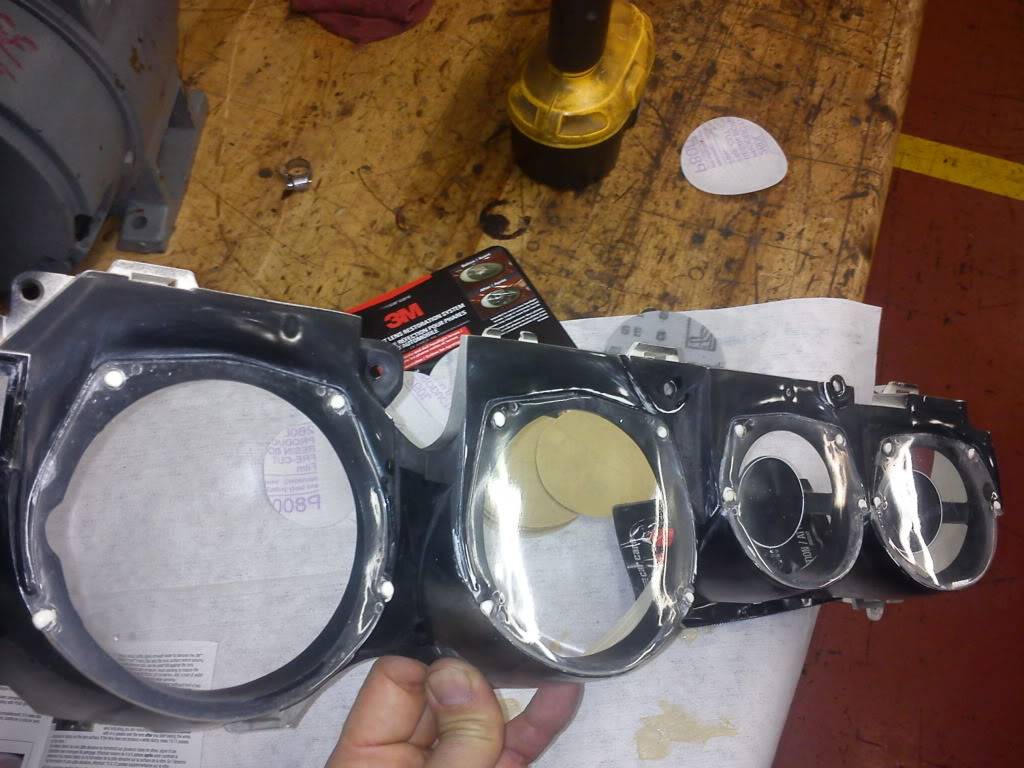

    started on the gauge face plates, I used the 3M Headlight restore kit, I thought "what the hell, they're both plastic, should work for this as well" I also did this to the temp control plate as well:

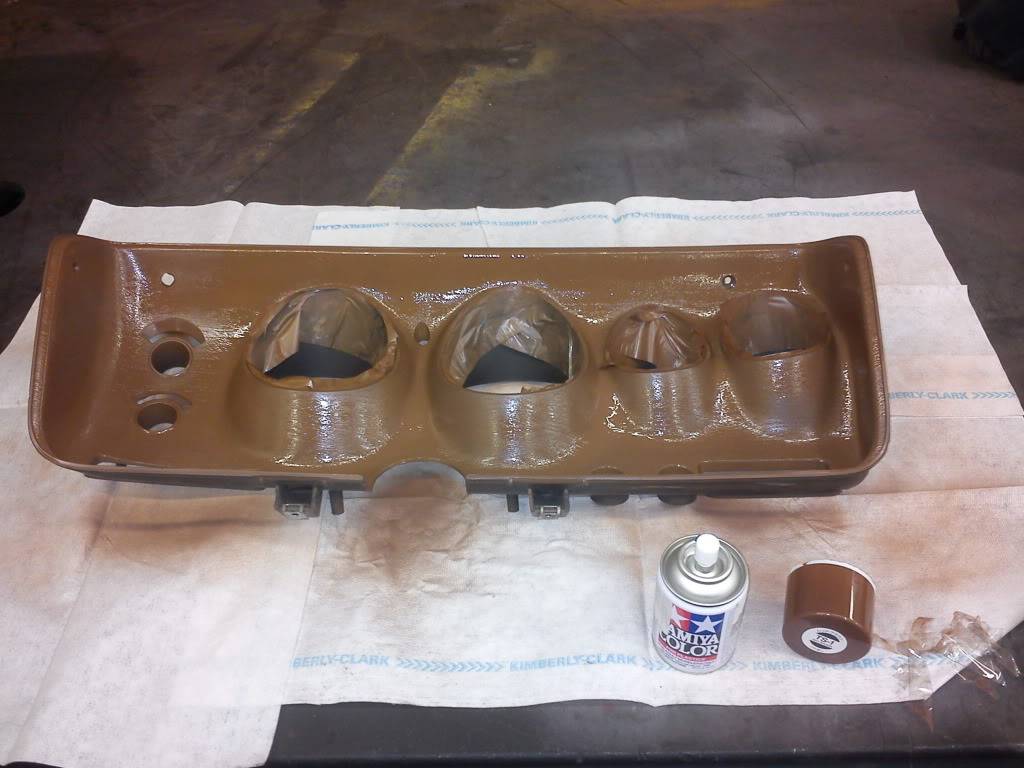

    Went to a hobby shop and got a paint that I thought would look close to original and this stuff was bang on and it went on beautifully with no runs - Tamiya TS-1 Red Brown. Goes on light brown but dries to what I wanted. First I sanded and painted the whole shelll:

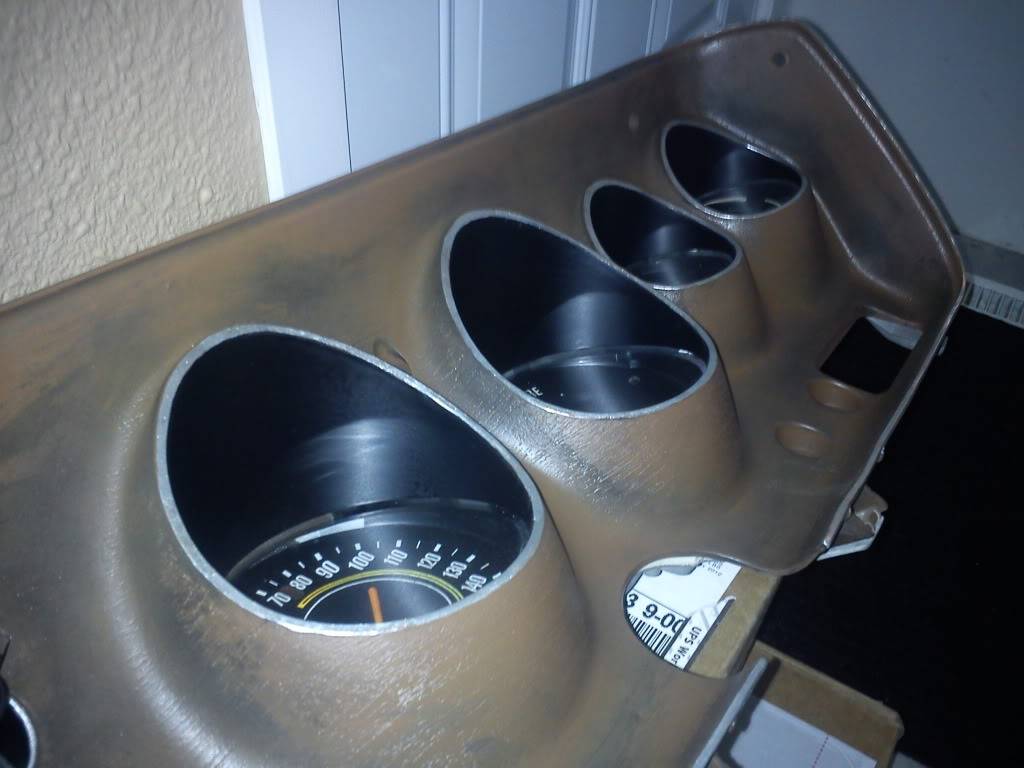

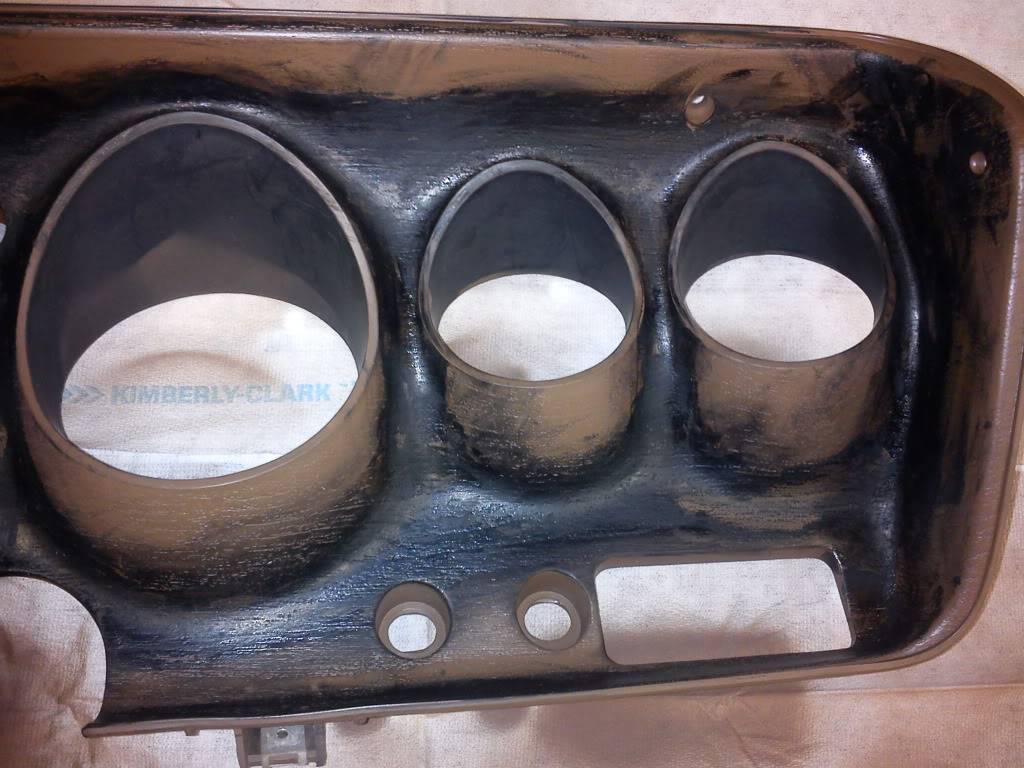

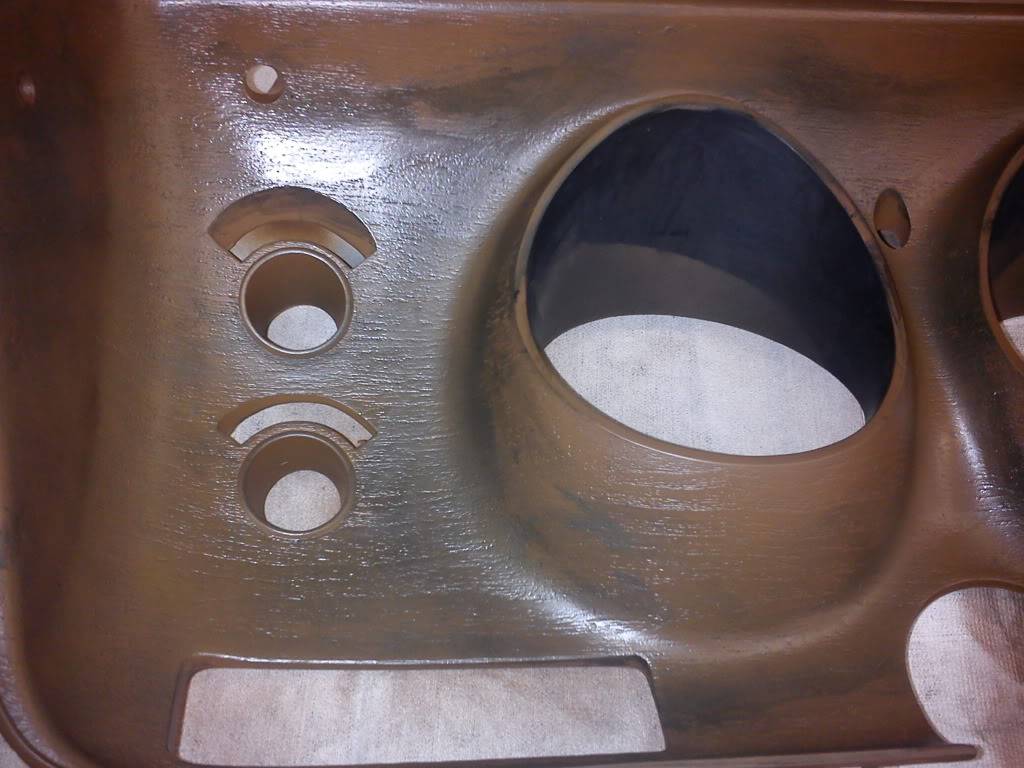

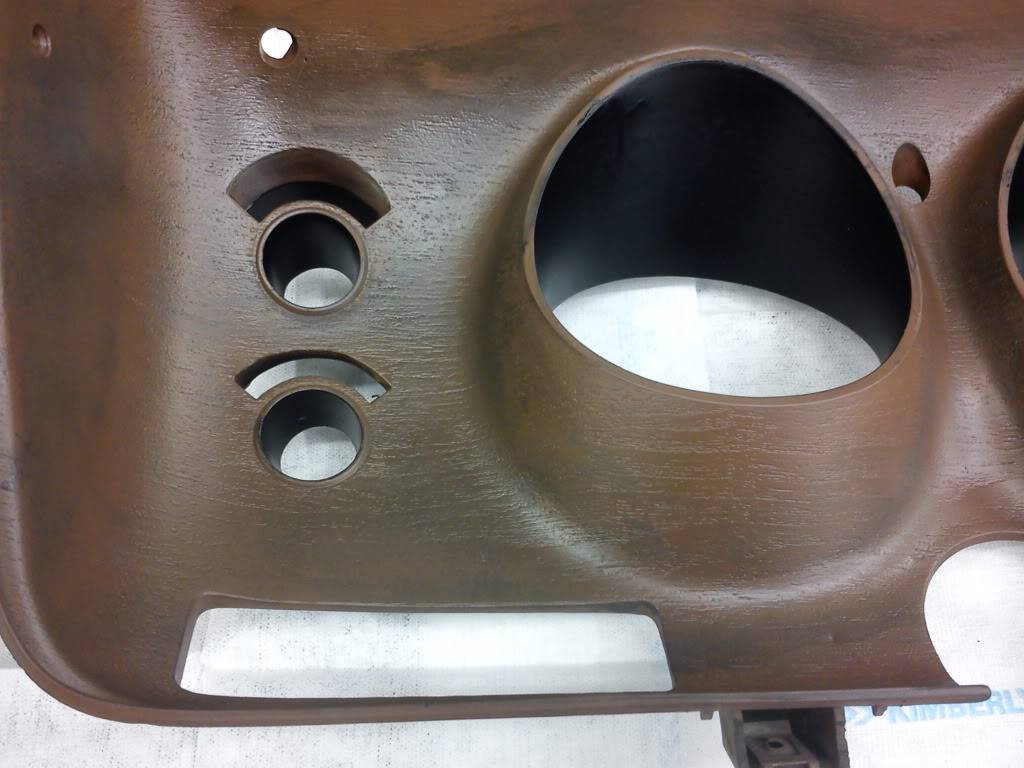

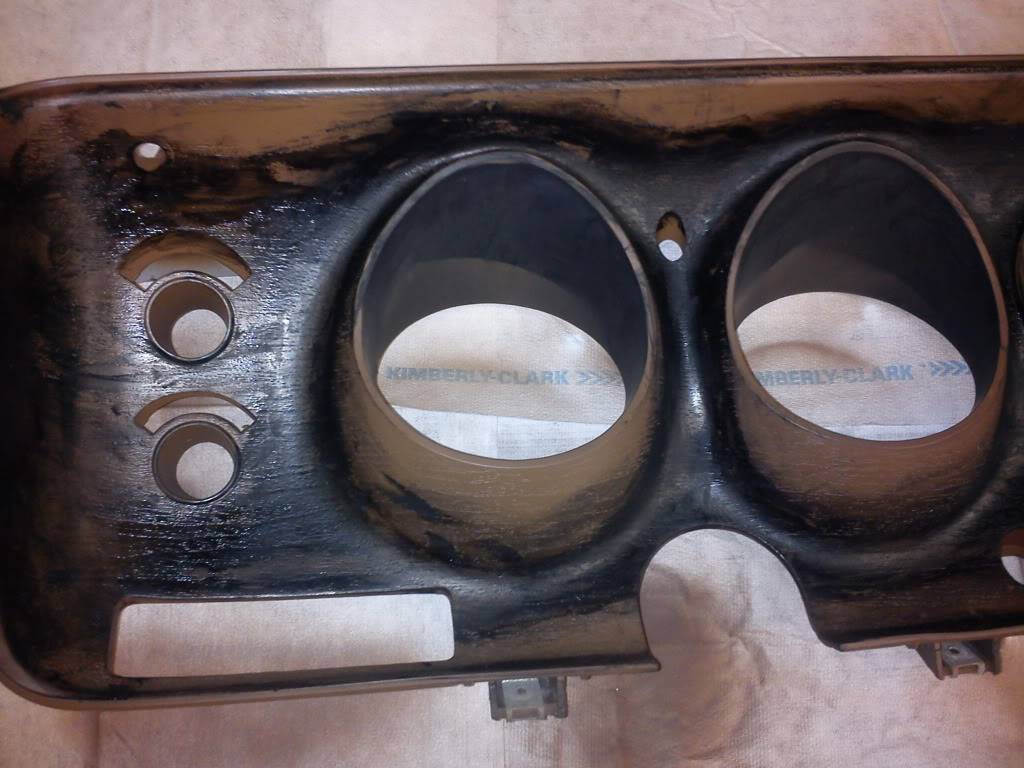

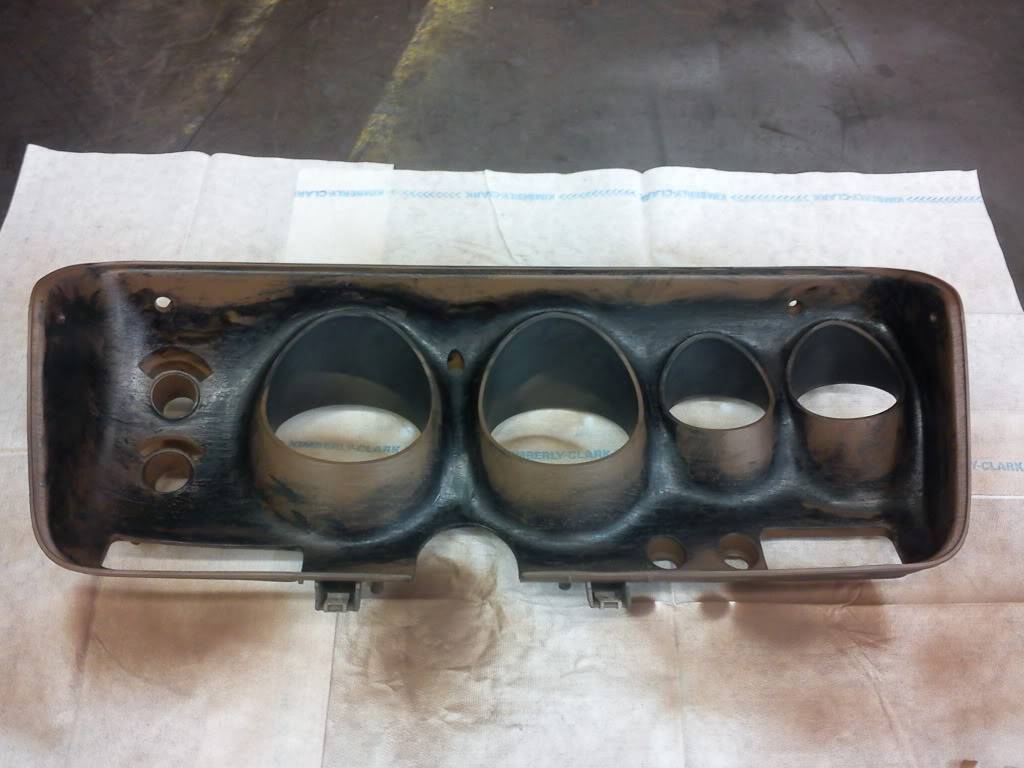

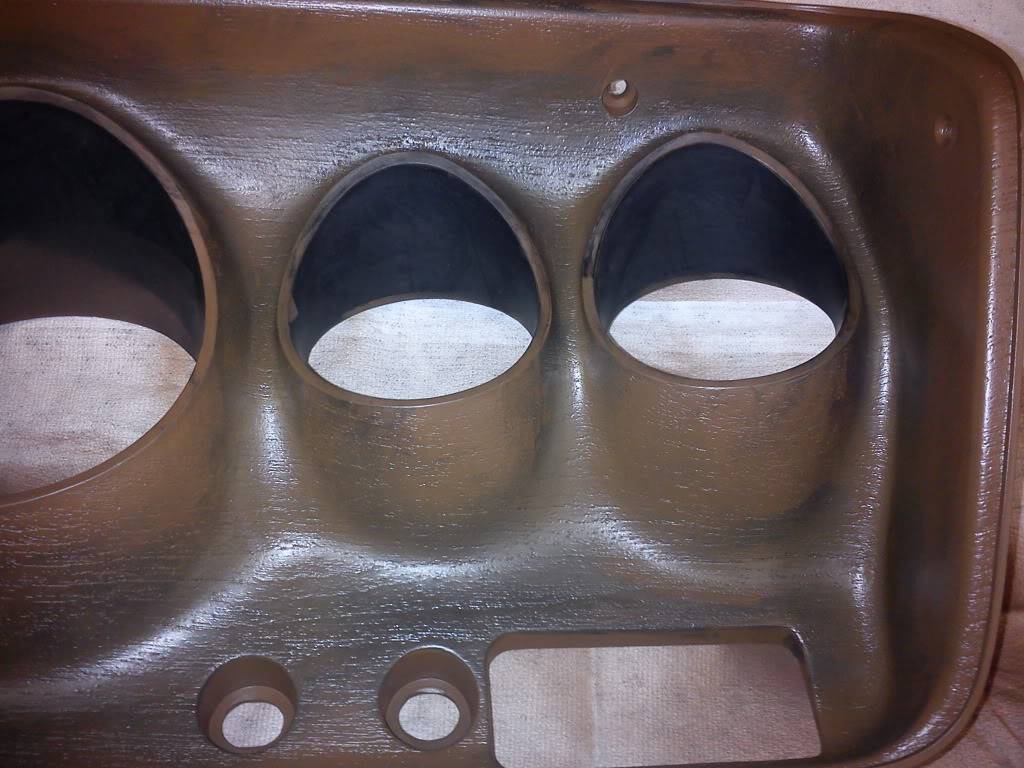

    I wasn't sure how to get the black in the wood like on the original, so I improvised, I thought if I could paint the background in a matt black and paint over top it might bleed through the paint. I used a acrylic paint which was messy to work with and it ran like crazy and pooled up alot so i had to keep wiping it down so the layer wouldn't get to thick, It was a PITA and I reccomend a different method but it ended up in my favor, I tried fingerpainting all the areas where the black was on the shell:

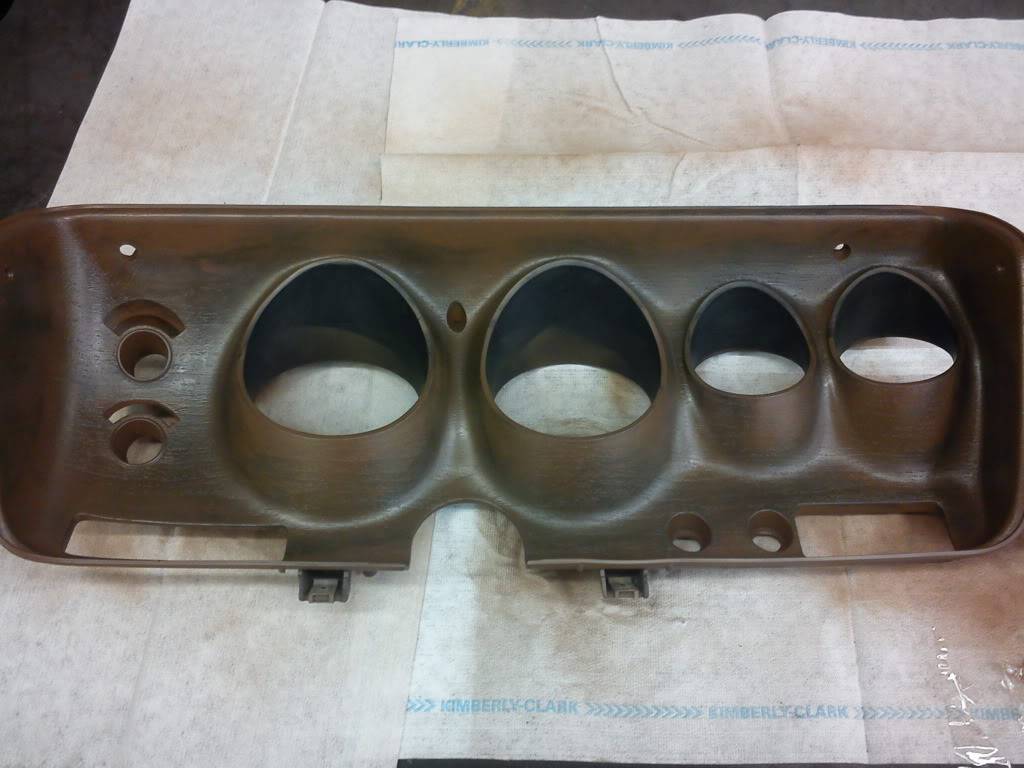

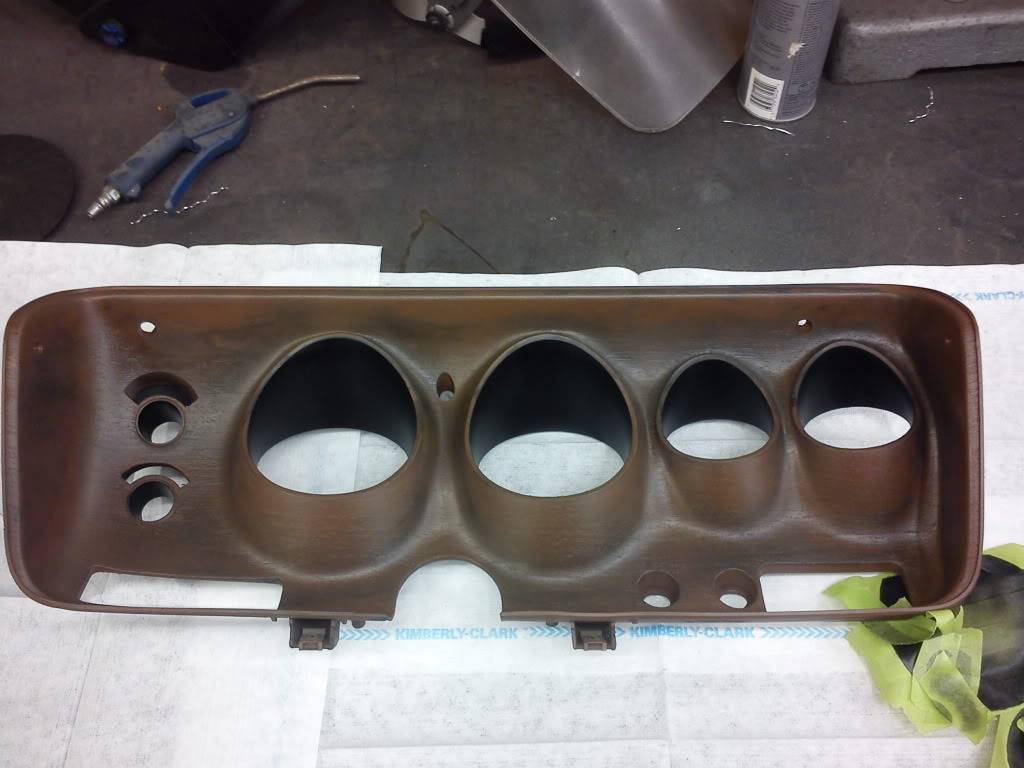

    Next I painted a very light layer of the red brown again:

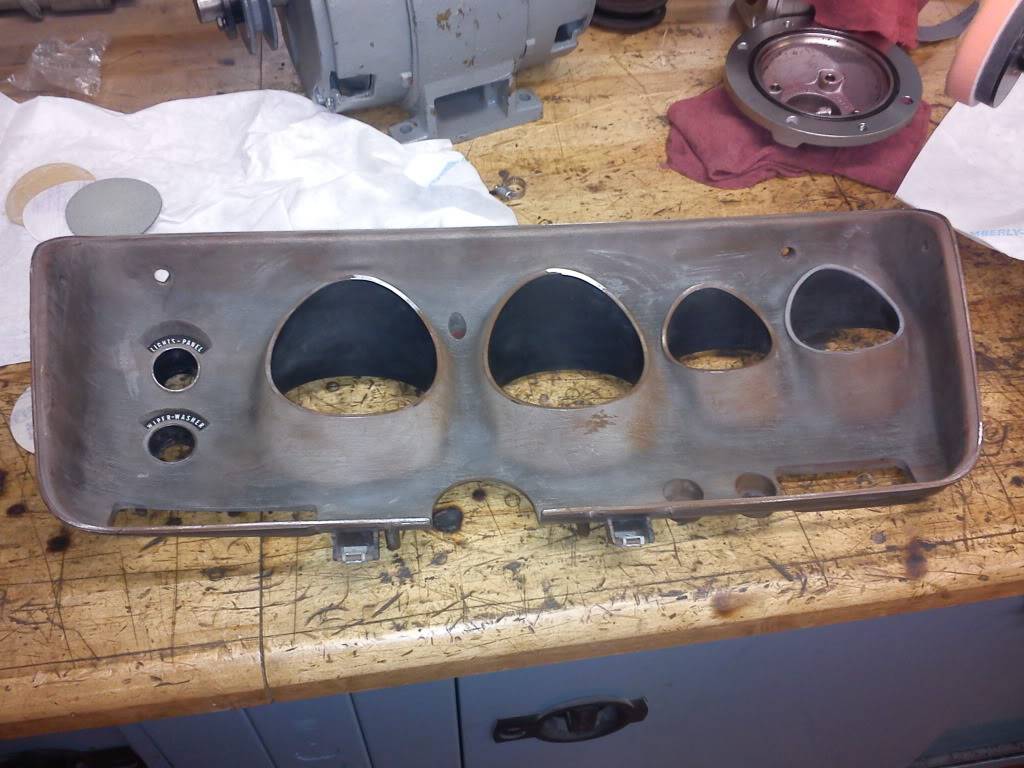

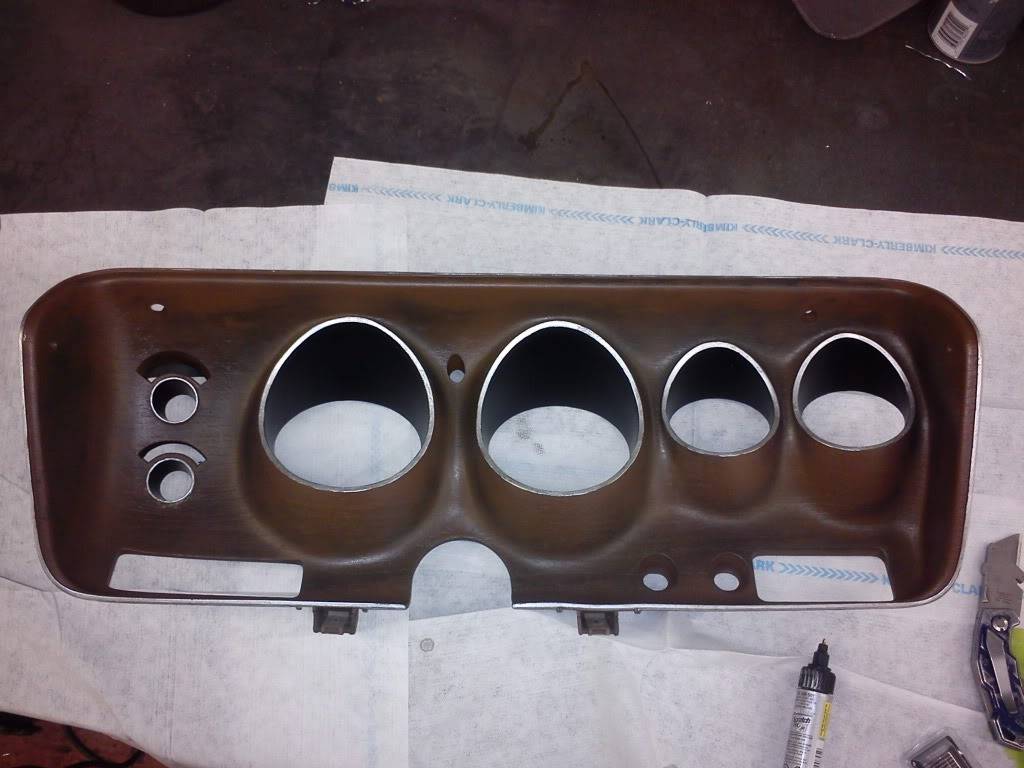

    next I sanded the gauge pods and wiper/light switch areas, masked them and painted them a semi gloss:

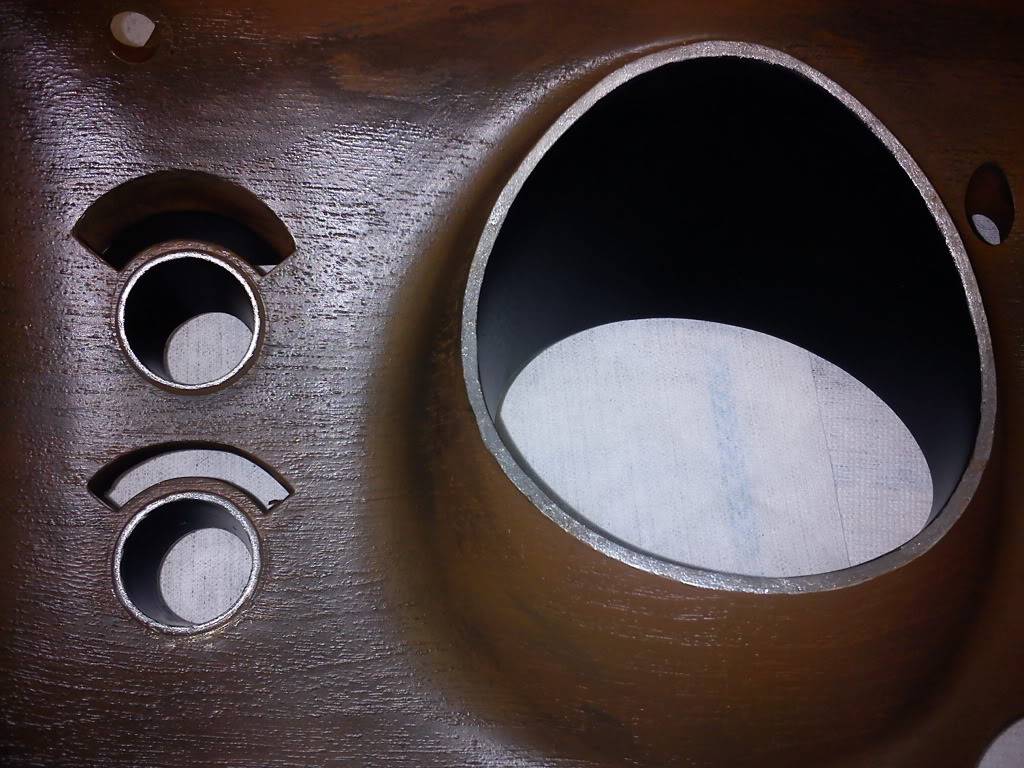

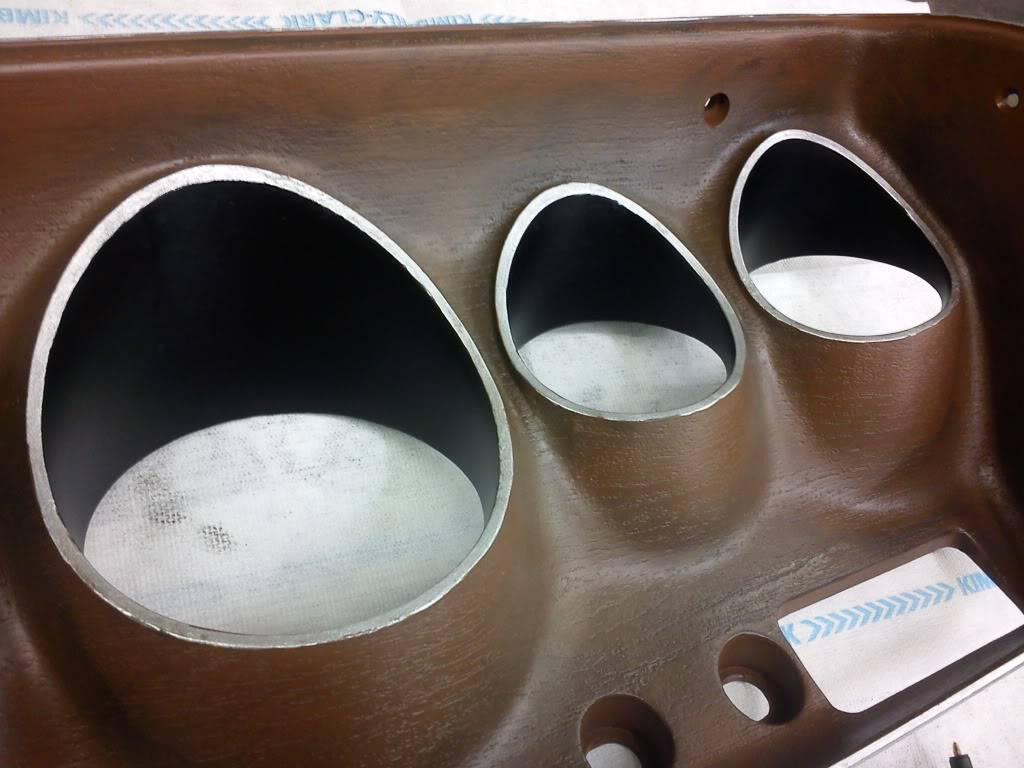

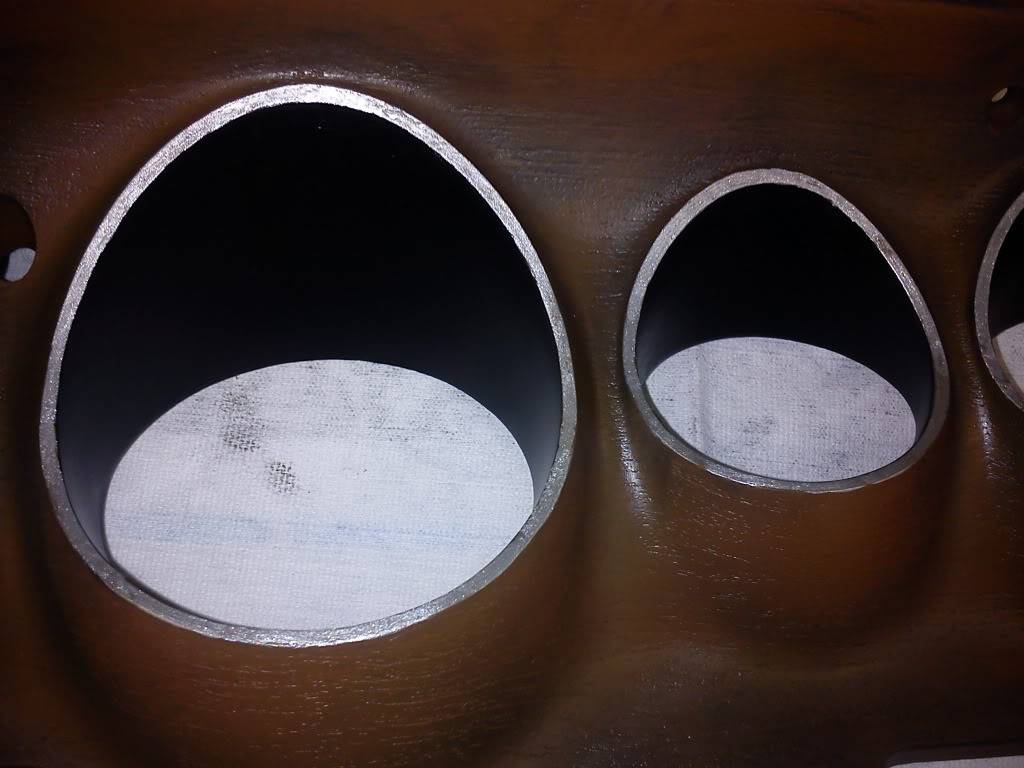

    Now this was the most stressful step of them all - applying the silver to the outer edges of the pods, switches and shell, I used a automotive GM Silver, comes as a 2 for 1, light bruch or can be used as a pen, i used the brush. It is hard to work with, you have to keep moving in one direction and it with thicken up on you if you overlap the previous area too much (it starts to dry pretty quick) This would be easy if you were a pin stripper, but for us joes its passable and didn't end up to bad:

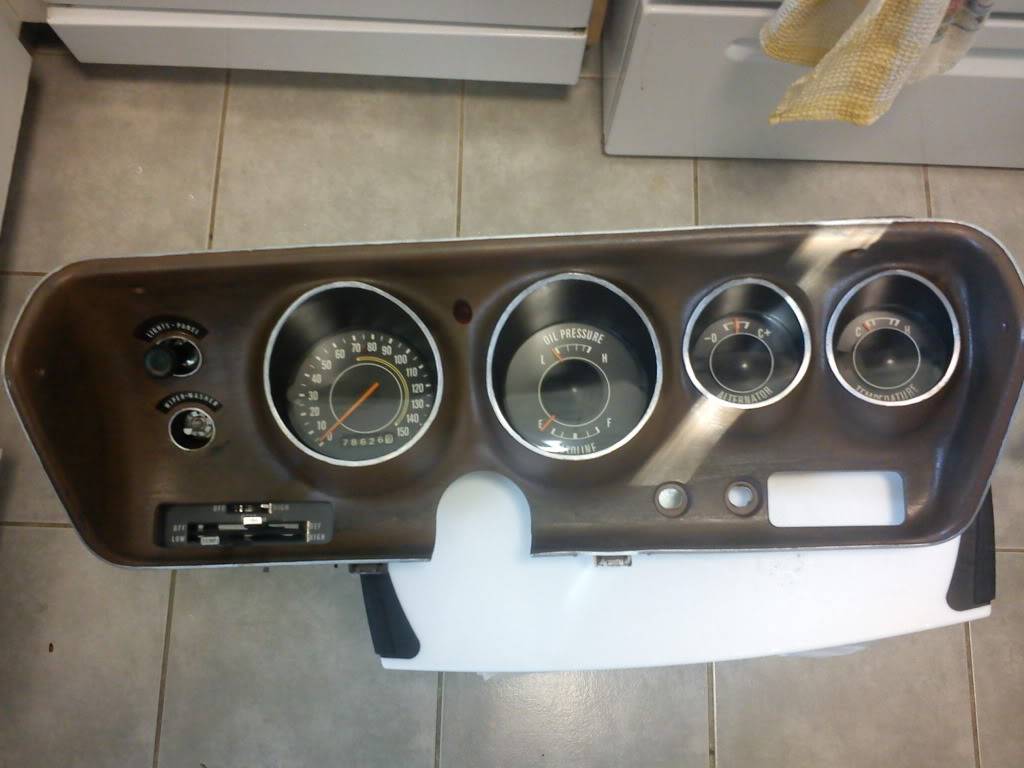

    Now all together: (I tried taking different pics in different light)


    • Like Like x 5
    • 65affair

      65affair Well-Known Member

      Messages:
      175
      Likes Received:
      209
      Joined:
      Dec 2, 2010
      Location:
      Beloit, WI
      Local Time:
      11:08 PM
      I think you did a fantastic job!

      • Like Like x 1
      • 74roadrunner440

        74roadrunner440 Well-Known Member

        Messages:
        299
        Likes Received:
        9
        Joined:
        Jun 14, 2009
        Location:
        karlsruhe nd
        Local Time:
        11:08 PM
        what color brown did u use n where u get it ive been looking w no luck

      • roadrunnerman

        roadrunnerman Well-Known Member

        Messages:
        5,302
        Likes Received:
        1108
        Joined:
        Feb 28, 2010
        Location:
        iowa
        Local Time:
        11:08 PM
        Everthing looks like it turned out great to me.

        • Like Like x 1
        • dangina

          dangina Well-Known Member

          Messages:
          655
          Likes Received:
          156
          Joined:
          Aug 17, 2010
          Location:
          lethbridge
          Local Time:
          10:08 PM
          Thanks for the comments guys!

          I mentioned in my post - Tamiya Color TS-1 Red Brown, I included it in the first picture painting the shell for future reference;) I just went down to the local hobby store

        • idrivemopar

          idrivemopar Well-Known Member

          Messages:
          3,655
          Likes Received:
          2594
          Joined:
          Apr 30, 2012
          Location:
          Colorado
          Local Time:
          10:08 PM
          Looks awesome! You forgot to reset the odometer!

          • Like Like x 1
          • fla 66 cuda

            fla 66 cuda Well-Known Member

            Messages:
            455
            Likes Received:
            69
            Joined:
            May 2, 2011
            Location:
            Florida
            Local Time:
            11:08 PM
            Looks great, my outer face is nice [just cleaning it] the guages are crappy [but i have two clusters] so i'll pick the better from the two to make one good one.

            • Like Like x 1
            • 74roadrunner440

              74roadrunner440 Well-Known Member

              Messages:
              299
              Likes Received:
              9
              Joined:
              Jun 14, 2009
              Location:
              karlsruhe nd
              Local Time:
              11:08 PM
              how do u reset odometer and where did u get the right brown i dont think i can find it in the states u use 3 difrent types of brown? flat semi gloss n gloss for the final?i looked at hobby lobby if any one knows where to get the right brown it would be help full

            • moparmarks

              moparmarks FBBO Gold Member FBBO Gold Member

              Messages:
              6,212
              Likes Received:
              2426
              Joined:
              Jul 31, 2011
              Location:
              Western Colorado
              Local Time:
              10:08 PM
              Thats gotta be one of the best do it yourself jobs that I've seen on a 71/4 cluster. Nice work.

              • Like Like x 1
              • MAGNUM GT XS22L9R

                MAGNUM GT XS22L9R Well-Known Member

                Messages:
                471
                Likes Received:
                73
                Joined:
                Oct 19, 2009
                Location:
                Orlando Florida area
                Local Time:
                12:08 AM
                Very nice! I'll be refurbing a similar dash myself soon but with digital gauges. Thanks for the share!

                • Like Like x 1
                • dangina

                  dangina Well-Known Member

                  Messages:
                  655
                  Likes Received:
                  156
                  Joined:
                  Aug 17, 2010
                  Location:
                  lethbridge
                  Local Time:
                  10:08 PM
                  sorry just one type of brown - I took a pic of it (in the first dash painted pic bottom right of the pic) - i'm in canada, and it was at the local hobby shop here - maybe you can find it online?
                  http://www.amainhobbies.com/product...e=google_ext&gclid=CKa5j7OmqbQCFQ-e4AodMjEAyA
                  or
                  http://www.ebay.com/sch/i.html?_from=R40&_trksid=p2047675.m570.l2736&_nkw=tamiya+ts-1

                  I did:

                  1)sanded and did 2 layers of the TS-1 brown,
                  2)next did the acrylic black over top (which I'd reccomend something else as it wasn't the best to work with)
                  3)then a very light layer of the same TS-1 brown again,
                  4)then sanded the guage/wipers/headlight pods and painted with a tamiya semi gloss black
                  5)silver paint pen the outer guages and shell

                  thanks for the comments!

                • MikeyT

                  MikeyT Well-Known Member

                  Messages:
                  875
                  Likes Received:
                  184
                  Joined:
                  Jul 18, 2008
                  Location:
                  Wisconsin
                  Local Time:
                  11:08 PM
                  Holy crap, that looks awesome. How long did it take you to complete it?

                  Mike

                  • Like Like x 1
                  • Mopardrt

                    Mopardrt Well-Known Member

                    Messages:
                    87
                    Likes Received:
                    6
                    Joined:
                    May 25, 2012
                    Location:
                    Detroit
                    Local Time:
                    9:08 PM
                    Looks fantastic!

                    • Like Like x 1
                    • tpodwdog

                      tpodwdog Banned

                      Messages:
                      2,736
                      Likes Received:
                      733
                      Joined:
                      Oct 31, 2011
                      Location:
                      pittsburgh pa
                      Local Time:
                      12:08 AM
                      that looks absolutely fan-freekin-tastik ! sometimes ya just gotta jump right in with or without any advice! and driving a car with a nice clean shiny dashboard makes ya feel better about the entire car.

                      • Like Like x 2
                      • super-bee_ski

                        super-bee_ski FBBO Gold Member FBBO Gold Member

                        Messages:
                        15,988
                        Likes Received:
                        15090
                        Joined:
                        Nov 22, 2010
                        Location:
                        Muroc Dry Lake Bed
                        Local Time:
                        9:08 PM
                        I'm sending mine to you right now!
                        LOL
                        Professional job, good work

                        • Like Like x 1
                        • fanucme

                          fanucme Well-Known Member

                          Messages:
                          98
                          Likes Received:
                          28
                          Joined:
                          Nov 20, 2012
                          Location:
                          Louisville, Kentucky
                          Local Time:
                          11:08 PM
                          Did you do anything to the guage faces themselves ? Mine look sunfaded

                        • Ron 73

                          Ron 73 Deceased, But not forgotton

                          Messages:
                          9,961
                          Likes Received:
                          3003
                          Joined:
                          Sep 17, 2010
                          Location:
                          40th an Plum
                          Local Time:
                          12:08 AM
                          You really did a great job on this! The way you made it look with that little dark to it, looks real good.. I wish i would have done a better job on the clear lens on mine when i did this..

                          • Like Like x 1
                          • dangina

                            dangina Well-Known Member

                            Messages:
                            655
                            Likes Received:
                            156
                            Joined:
                            Aug 17, 2010
                            Location:
                            lethbridge
                            Local Time:
                            10:08 PM
                            Thanks for the comments!

                            took me one night at work on night shift! just the resurfacing guage plastic faces and the bezel about 4 hrs.

                            these were the best part of the guages, I just used an cleaner that we use to clean electronics, no film or residue left behind, cleaned them up pretty good, I found out later you can by the proper paint to paint the needles, but mine didn't really need it

                          • Ron 73

                            Ron 73 Deceased, But not forgotton

                            Messages:
                            9,961
                            Likes Received:
                            3003
                            Joined:
                            Sep 17, 2010
                            Location:
                            40th an Plum
                            Local Time:
                            12:08 AM
                            "these were the best part of the guages, I just used an cleaner that we use to clean electronics, no film or residue left behind, cleaned them up pretty good, I found out later you can by the proper paint to paint the needles, but mine didn't really need it"

                            I put the white faced over lays on mine, the main reason to take the cluster out was to check all my wire connections, make sure to best of my ability to stop any dash fires from starting, When i seen the white faced i thought that would look good with white and red LED lights in them.
                            But i would have had to do something if i would have tore it apart just to clean them lol, When i took a cloth to wipe the faces off, from about 70 MPH on down just plain disappeared! I couldn't believe it as shiny and black the gauges were, at first i began to debate putting the white on, cleaning fixed that quick, I really don't understand why they flaked off so easy, ive seen really rusty faces that still had the numbers on them...

                          • SureGrip

                            SureGrip FBBO Gold Member FBBO Gold Member

                            Messages:
                            807
                            Likes Received:
                            245
                            Joined:
                            Mar 20, 2011
                            Location:
                            Central Maryland
                            Local Time:
                            12:08 AM
                            Any local model shop or store that sells R/C cars should have it. Tamyia has been around for decades. Worst case, check on-line for Tower Hobbies...Here: http://www3.towerhobbies.com/cgi-bin/wti0095p?FVPROFIL=&FVSEARCH=<B>tamiya</B>+spray+lacquer+ts-1

                            - - - Updated - - -

                            Maybe one option to apply the black might be a flat black paint pen, and then rub with a rag to 'soften' the edges of the black areas and smooth the coat.
