Seat rail hole placement 67 Coronet

Interior

  1. Jay Williamson

    Jay Williamson FBBO Gold Member FBBO Gold Member

    Messages:
    93
    Likes Received:
    64
    Joined:
    Jun 8, 2019
    Location:
    Indiana
    Local Time:
    3:48 PM

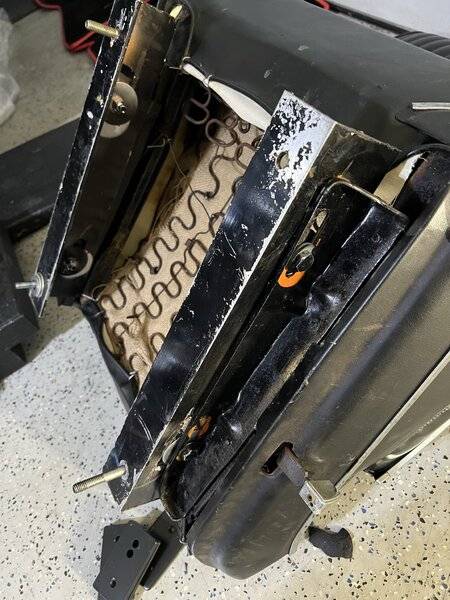

    Hello all. I purchased my 67 R/T about three years ago and noticed that even though I’m 6 foot tall, I seem to sit low and far back from the pedals. So I decided to investigate a learned that apparently, the previous owner must have been very tall and removed the factory seat rails and replaced them with angle iron. DE8573FB-9332-45AF-A54E-AFEDFA2705B1.jpeg

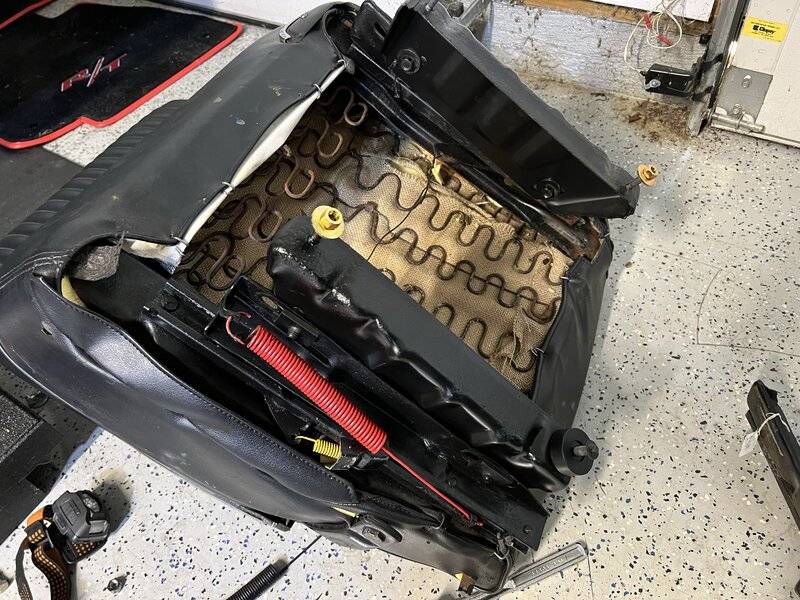

    Well, I decided to tackle this problem and purchased a set of correct, factory seat rails. I planned on installing floor insulation and thought this would be an opportune time. Here are the seats now with the correct rails. B519D90C-ACFB-4F30-B3CC-FAD0A5C1D277.jpeg
    This is the issue I am having. I cannot seem to locate factory holes on the floor pan that line up with the seat rails. The previous owner had installed new floor pans and drilled holes to fit the incorrect rails. There are a couple of holes that have the correct width, but the length between holes front to back is too long. The floor pans are stating to look like Swiss Cheese. Can anyone help with the correct hole placement? Distance from sill over to first hole and distance from the rise for the back seat forward to the rear hole for the bucket seat? If I have thos dimensions, I think I can figure it out. Here is what I’m looking at now. Thanks!
    B63683E9-5680-402E-AFFA-EAA9AE363FE3.jpeg F0DD5B1B-437E-4E23-94DA-E3675836F4F7.jpeg

  2. Stanton

    Stanton Well-Known Member

    Messages:
    3,452
    Likes Received:
    3623
    Joined:
    Aug 8, 2012
    Location:
    Ontario, Canada
    Local Time:
    3:48 PM
    The hole positions are usually indicated with a significant indentation - like someone hit the spot with a big center punch.
    The outer holes for buckets versus bench seat are different BUT if you crawl under the car and look at the seat braces both the front and rear braces will have two holes which may or may not be drilled into the new floor pan. However, one of these sets of holes will be the proper set for buckets. That will give you the front to back spacing. The inner mounting holes will be directly across from the outer holes (look for the punch marks. You can determine the correct outer holes once you locate the inners by measuring the width of the studs on the seat frames..

    This will work - for lack of a better answer.

    Also, not sure about your model year BUT on '69's the inner frames got support plates which also serve to level the seat side to side. bucket seat plates (2016_11_22 02_37_15 UTC).jpg

    • Agree Agree x 1
    • AR67GTX

      AR67GTX Well-Known Member

      Messages:
      2,404
      Likes Received:
      1519
      Joined:
      Jan 28, 2012
      Location:
      Arkansas
      Local Time:
      2:48 PM
      There are some extra factory holes in the pan for the bench seat mount. They should receive plastic plugs when bucket seats were ordered. This may seem redundant but before putting the seats in, first move the sliders either all the way forward or all the way to the rear so they are in sync side to side. They should the fall in line with the 4 mounting holes. If the slides are not in the same position on both sides the are not going to line up with the holes. If I’m just stating the obvious please excuse me.

      • Agree Agree x 1
      • Jerry Hall

        Jerry Hall FBBO Gold Member FBBO Gold Member

        Messages:
        7,010
        Likes Received:
        11707
        Joined:
        Mar 26, 2018
        Location:
        Alabama
        Local Time:
        2:48 PM
        Your inner reinforcement plates seem to be missing. @Stanton , his picture shows them well. The outer holes can be located from under the car as he also states.

      • 440 4 speed

        440 4 speed Well-Known Member

        Messages:
        1,456
        Likes Received:
        691
        Joined:
        Oct 20, 2019
        Location:
        Saskatoon Saskatchewan Canada
        Local Time:
        2:48 PM
        I think you are lucky, looks like you have the 66 adjustable bases.

      • AR67GTX

        AR67GTX Well-Known Member

        Messages:
        2,404
        Likes Received:
        1519
        Joined:
        Jan 28, 2012
        Location:
        Arkansas
        Local Time:
        2:48 PM
        Those 66 2-piece adjustable bases add complication in getting the base tracks synchronized side to side so they drop in the holes. Have some portions of the floor pan been replaced?

      • Stanton

        Stanton Well-Known Member

        Messages:
        3,452
        Likes Received:
        3623
        Joined:
        Aug 8, 2012
        Location:
        Ontario, Canada
        Local Time:
        3:48 PM
        You can't just look at the pictures, you have to read the post too.


      • Jay Williamson

        Jay Williamson FBBO Gold Member FBBO Gold Member

        Messages:
        93
        Likes Received:
        64
        Joined:
        Jun 8, 2019
        Location:
        Indiana
        Local Time:
        3:48 PM

      • Jay Williamson

        Jay Williamson FBBO Gold Member FBBO Gold Member

        Messages:
        93
        Likes Received:
        64
        Joined:
        Jun 8, 2019
        Location:
        Indiana
        Local Time:
        3:48 PM
        Thank you. I’ll give this a shot

      • AR67GTX

        AR67GTX Well-Known Member

        Messages:
        2,404
        Likes Received:
        1519
        Joined:
        Jan 28, 2012
        Location:
        Arkansas
        Local Time:
        2:48 PM
        Guilty as charged.

      • 440 4 speed

        440 4 speed Well-Known Member

        Messages:
        1,456
        Likes Received:
        691
        Joined:
        Oct 20, 2019
        Location:
        Saskatoon Saskatchewan Canada
        Local Time:
        2:48 PM
        We must have gotten lucky. Took the 66 bases bolted them into the 67 tops and no problem fitting to the floor. Had adjusted angles and distance beforehand. Then minor adjustments. My wife never had a problem with discomfort driving 8-9 hours at a spell.

      • Jay Williamson

        Jay Williamson FBBO Gold Member FBBO Gold Member

        Messages:
        93
        Likes Received:
        64
        Joined:
        Jun 8, 2019
        Location:
        Indiana
        Local Time:
        3:48 PM
        Okay, I think I understand what you are saying. I did climb under the car and found the two sets of holes in the seat support closest to the door sill. You are saying that one of these holes is positioned for the bench seat and the other for buckets, correct? I just need to measure and see which set to use and the drill holes in the pan by positioning my bit up through the correct set of holes. Sound right?

      • Stanton

        Stanton Well-Known Member

        Messages:
        3,452
        Likes Received:
        3623
        Joined:
        Aug 8, 2012
        Location:
        Ontario, Canada
        Local Time:
        3:48 PM

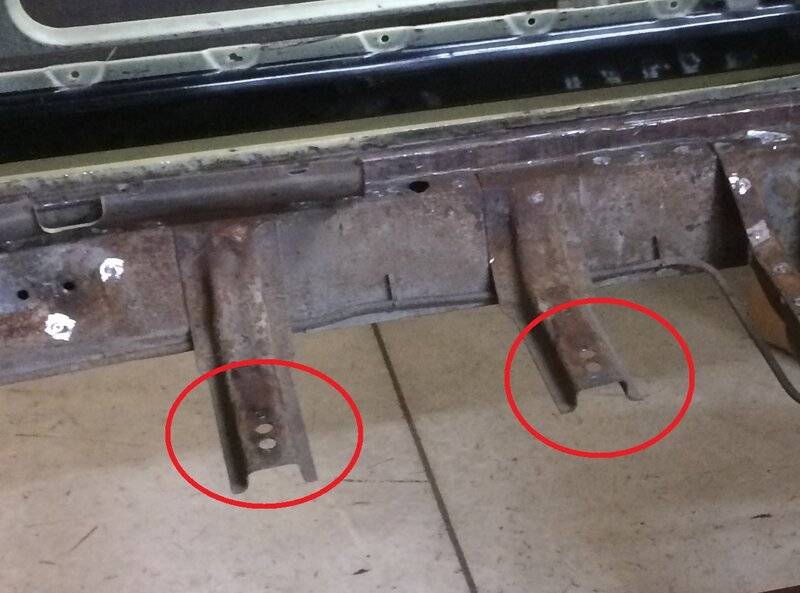

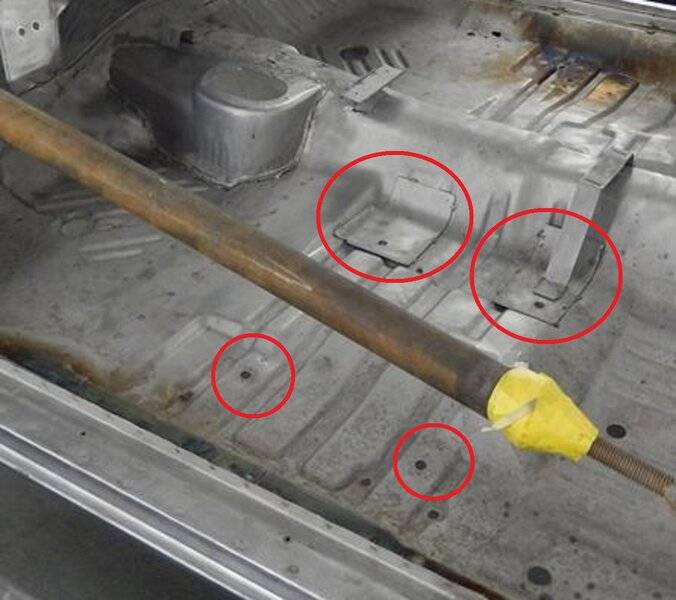

        Here are two shots of the holes. You might be able to judge from the photos where the holes are. Also note the inner support plates.

        xx2.jpg xx1.jpg

      • Stanton

        Stanton Well-Known Member

        Messages:
        3,452
        Likes Received:
        3623
        Joined:
        Aug 8, 2012
        Location:
        Ontario, Canada
        Local Time:
        3:48 PM
        And yes, just drill up from the bottom. The holes are also quite a bit larger than the studs on the frames - probably for ease of installation at the factory.

      • Jay Williamson

        Jay Williamson FBBO Gold Member FBBO Gold Member

        Messages:
        93
        Likes Received:
        64
        Joined:
        Jun 8, 2019
        Location:
        Indiana
        Local Time:
        3:48 PM
        This is awesome. Thank you! I guess my floor pans came without the inner support plates. Do you know which hole in the outer support is correct for buckets. I think it’s the inner one?

      • Stanton

        Stanton Well-Known Member

        Messages:
        3,452
        Likes Received:
        3623
        Joined:
        Aug 8, 2012
        Location:
        Ontario, Canada
        Local Time:
        3:48 PM
        Well I’m surprised but its the outer holes

      • Jay Williamson

        Jay Williamson FBBO Gold Member FBBO Gold Member

        Messages:
        93
        Likes Received:
        64
        Joined:
        Jun 8, 2019
        Location:
        Indiana
        Local Time:
        3:48 PM
        Thank you sir. I’ll get going on this. My floor pans also did not come the the mounting brackets for the console, so I had to install this as well

      • Stanton

        Stanton Well-Known Member

        Messages:
        3,452
        Likes Received:
        3623
        Joined:
        Aug 8, 2012
        Location:
        Ontario, Canada
        Local Time:
        3:48 PM

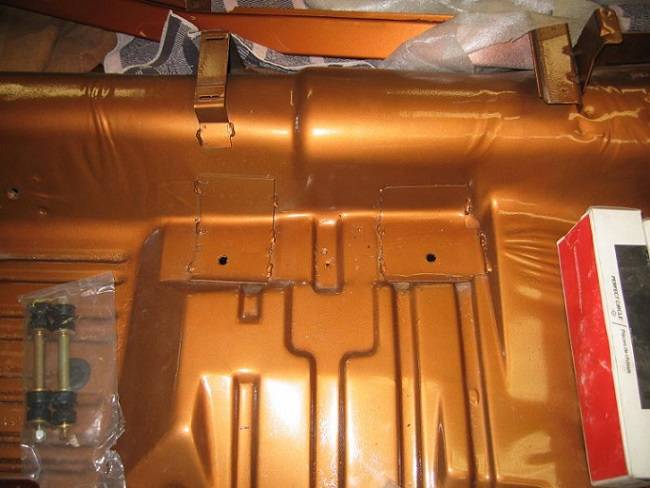

        They generally don't come with console brackets. I bought a 1/2 floor from AMD and it had the seat support plates. I had to make the ones for the passenger side. I have an extra set for the driver side if you're interested. I can also give you the pattern for the passenger side - which I think is just a mirror of the driver side but the holes are in a different position.

      • Stanton

        Stanton Well-Known Member

        Messages:
        3,452
        Likes Received:
        3623
        Joined:
        Aug 8, 2012
        Location:
        Ontario, Canada
        Local Time:
        3:48 PM
      • Jay Williamson

        Jay Williamson FBBO Gold Member FBBO Gold Member

        Messages:
        93
        Likes Received:
        64
        Joined:
        Jun 8, 2019
        Location:
        Indiana
        Local Time:
        3:48 PM
