    Embarking on some changes, and LemonWedge will become a little more of a real racecar over the winter.
    Last race of this past season I broke something in the Calvert suspension. So I figure as long as I have to take it apart, I might as well make some improvements; and this will be a big step for me.
    I’m going to install the US Cartools mini-tub and leafspring relocation kit. I’ll be moving the axle rearward 1/2” to make room for taller tires. Plan is to go with the M/T 29.5x10.5 PBR (which are listed as 30” tall). Also going to resize the wheels. I love torque thrust originals, so The plan is to stay with that look in 15x8.5’s out back, and I’m going to mount 27” ET fronts on a 15x5 up front. Since I’m moving from 28” to 30” tires, I’ll be swapping my current 4.10 gears for a set of 4.56’s. The effective gearing will get slightly deeper, which should work well with the one change I’ll be making up front: Swapping my Performer RPM for an M1 single plane I was able to pick up. I’m also going to finally jettison the street exhaust system that’s been under the car since I got it. I run 3” cutouts, but the weight of the full exhaust is something I could stand to drop. I picked up some 3” FlowFX mufflers that I’ll run with some turndowns. That’ll drop weight and be better flowing.

    lots of work, I hope I can get through all of this by spring. I’ll post updates here. Let me know if you have experience and tips for these modifications.

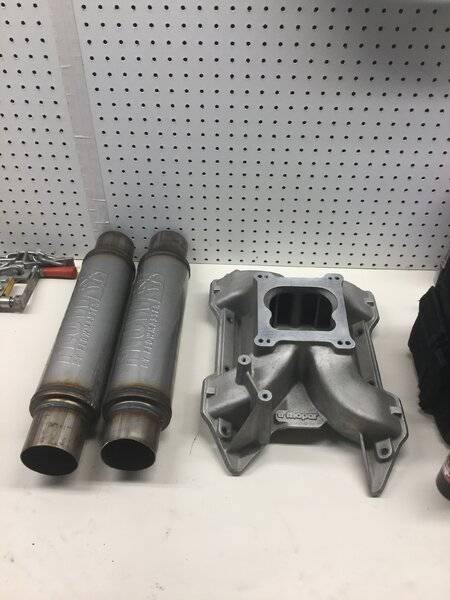

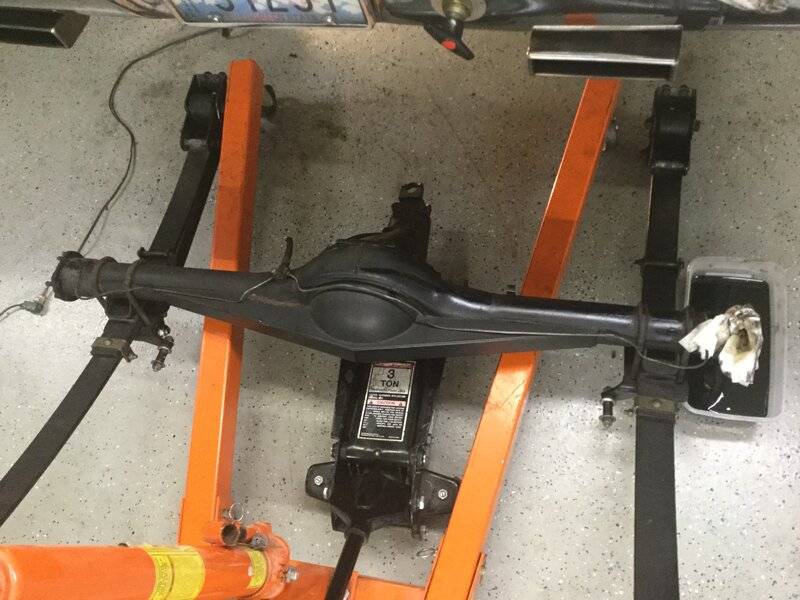

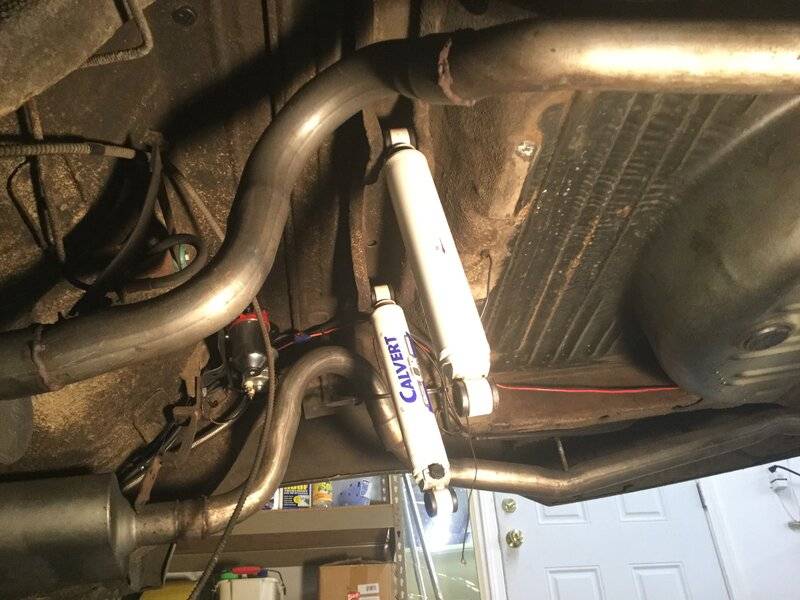

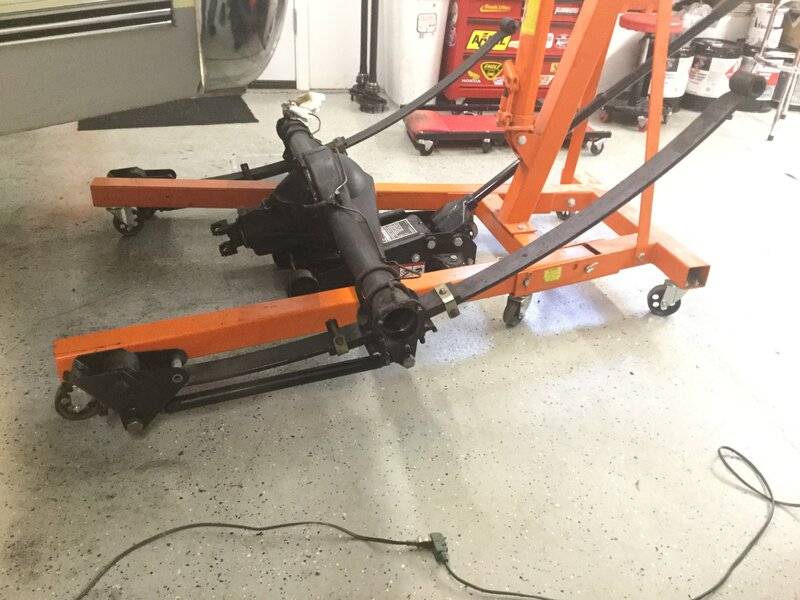

    16EE42EF-6587-46F1-9ADB-FBA5C2A14C05.jpeg AB22F41C-8818-430D-88DE-04BC2DDDEDA7.jpeg 2D63782E-3B6B-4B3A-83B6-29FB09DFFBD1.jpeg F0A11023-36CA-4B19-8E2D-9302BC0CB8CF.jpeg

    Last edited: Oct 17, 2020
    • Like Like x 6
    • Agree Agree x 1
    • dvw

      dvw Well-Known Member

      Messages:
      5,162
      Likes Received:
      7280
      Joined:
      Feb 16, 2010
      Location:
      waterford mi
      Local Time:
      1:36 PM
      All good improvements. You'll like it.
      Doug

      Last edited: Oct 18, 2020
      • Thanks! Thanks! x 1
      • Agree Agree x 1
      • Aron Gleason

        Aron Gleason Well-Known Member

        Messages:
        83
        Likes Received:
        21
        Joined:
        Aug 5, 2020
        Location:
        Washington
        Local Time:
        10:36 AM
        Good luck with your project. Sounds like a solid plan

        • Thanks! Thanks! x 1
        • Tex013

          Tex013 Well-Known Member

          Messages:
          591
          Likes Received:
          496
          Joined:
          Jun 15, 2011
          Location:
          Sydney,Australia
          Local Time:
          12:36 PM
          Looking good . I would say a Victor 440 would be better if you have a RB , used both .
          The PBR 29.5x10.5 are great i use them , if you can go a wider rim i would they are designed around a 10" rim . I started with PBR 28x10,5 on 8s then T thrustd 8 1/2 now 10s contact patch widened with each rim increase . Mini tub kind of makes it a no brainer . I moved the diff back 1/4" to fit the 29.5
          Good luck

          Tex

          • Like Like x 1
          • 66Satellite47

            66Satellite47 FBBO Gold Member FBBO Gold Member

            Messages:
            4,187
            Likes Received:
            3073
            Joined:
            Jan 15, 2015
            Location:
            St Paul MN
            Local Time:
            11:36 AM
            Good plan.

          • BSB67

            BSB67 FBBO Gold Member FBBO Gold Member

            Messages:
            1,430
            Likes Received:
            1133
            Joined:
            Jan 18, 2018
            Location:
            PA
            Local Time:
            1:36 PM
            Sounds great. Looking forward to the stories to come.

          • 67MPRFAN

            67MPRFAN Well-Known Member

            Messages:
            316
            Likes Received:
            224
            Joined:
            Mar 21, 2010
            Location:
            Cols,Ohio
            Local Time:
            12:36 PM

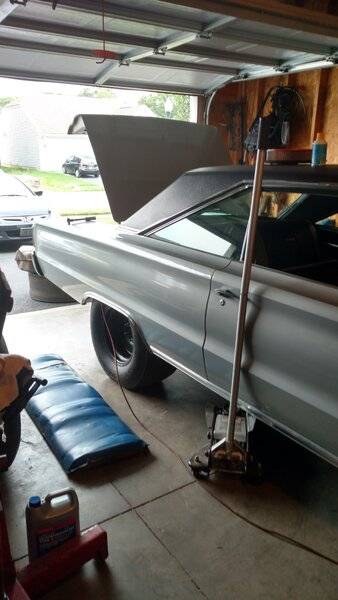

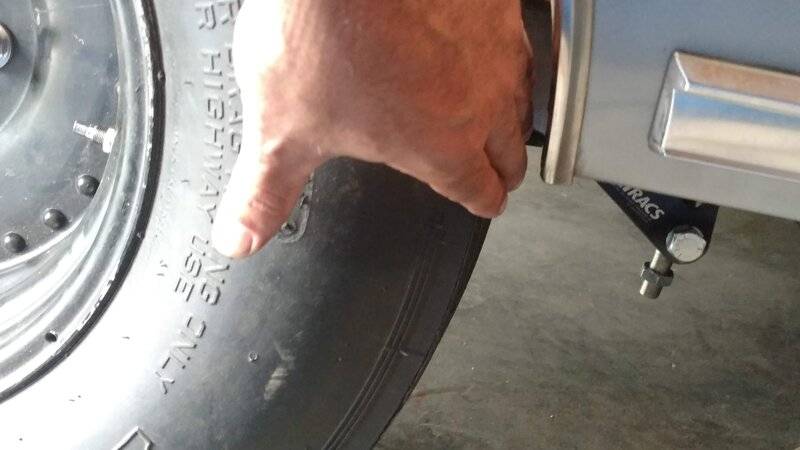

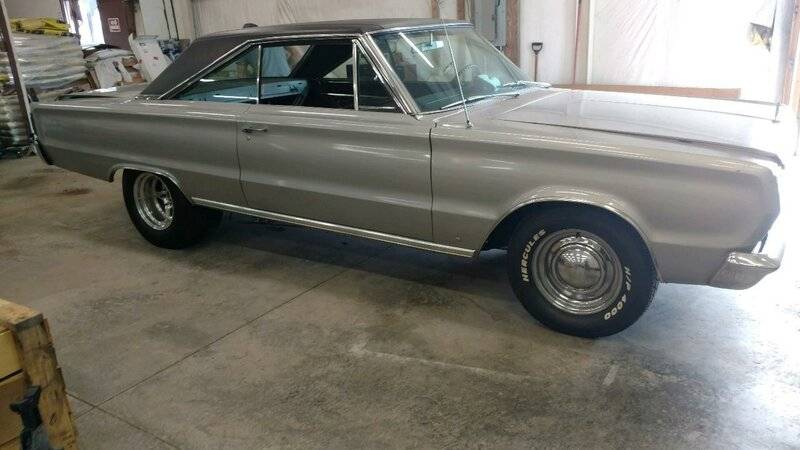

            I know you mentioned running 29.5 10.5 MT and a 27 inch front tire here's mine 1 using a 10 inch rim and the other with a 12 inch rim and also how mine sits with a 28 front runner. Good luck my Fab guy used the US cartool kit on mine and didn't move rear axle back

            IMG_20180730_192825967_HDR.jpg PIC_MAIL_ATTACHMENT_1533946574611.jpeg 0627201656a.jpg IMG_20180730_192647854.jpg

            • Like Like x 2
            • Agree Agree x 1
            • 67MPRFAN

              67MPRFAN Well-Known Member

              Messages:
              316
              Likes Received:
              224
              Joined:
              Mar 21, 2010
              Location:
              Cols,Ohio
              Local Time:
              12:36 PM
              Also what's your plans for fuel system 1 issue I ran into was stock tank would fit but the filler line ran through where spring was moved to , so if you are thinking of weight reduction removing the spare tire well might be a good start


            • Dan64

              Dan64 Well-Known Member

              Messages:
              879
              Likes Received:
              912
              Joined:
              Dec 27, 2018
              Location:
              South Jersey
              Local Time:
              1:36 PM
              You can get the torq-thrust in a 15x10 but i think it only comes with a 3 3/4"b.s. I works with my 64' with usct mini tubs/ spring but the rear was slighty narrowed , not sure about your year/model.

            • Fizz66Coronet

              Fizz66Coronet Well-Known Member

              Messages:
              116
              Likes Received:
              130
              Joined:
              Nov 3, 2016
              Location:
              Lincoln Park
              Local Time:
              1:36 PM

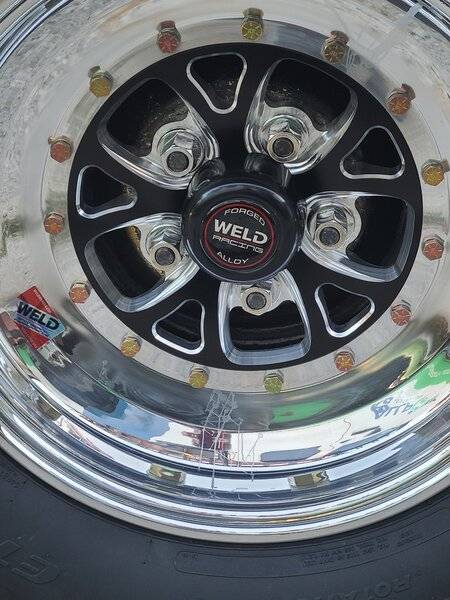

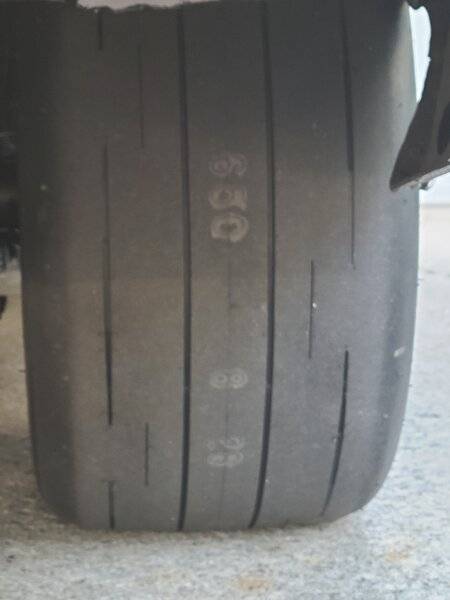

              Just did the same to the Coronet 15x10 with 7 inches bs. I also used rear sliding shackles from Afco. This winter time for frame connectors and torque boxes and new fiberglass hood. The tire is MT type R 325-50-15. New best time 11.4 at 117mph

              20201008_180253.jpg 20201008_173719.jpg

              • Like Like x 2
              • PRHeads

                PRHeads Well-Known Member

                Messages:
                869
                Likes Received:
                1062
                Joined:
                Aug 31, 2018
                Location:
                So. Burlington Vt
                Local Time:
                1:36 PM
                What broke?

                • Agree Agree x 1
                • LemonWedge

                  LemonWedge Well-Known Member

                  Messages:
                  519
                  Likes Received:
                  966
                  Joined:
                  Dec 27, 2009
                  Location:
                  Puyallup, WA
                  Local Time:
                  10:36 AM
                  I don’t have it completely apart yet, and can’t remember how exactly the split mono segments are located on one another. But there must be a pin between the two locating them(???). If so, that pin must have sheered somehow, because @ the passenger side, the rear segment was creeping forward on the front segment. I felt something was wrong; looked it over and noticed the rear shackle was angled forward (should be angled slightly back, as the driver side still was). I can see on the spring where it has creeped forward by about 3-1/2”. You can see in this picture the telltale scrape along the edge of the spring. I’ll get the assembly torn apart today and see exactly what happened between the two segments. I’ll also call Calvert and see what they have to say about it.


                  • Like Like x 1
                  • LemonWedge

                    LemonWedge Well-Known Member

                    Messages:
                    519
                    Likes Received:
                    966
                    Joined:
                    Dec 27, 2009
                    Location:
                    Puyallup, WA
                    Local Time:
                    10:36 AM

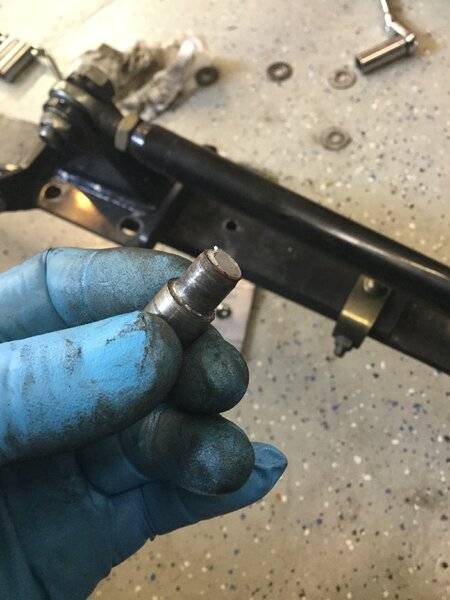

                    Sure enough..... here’s the locator pin that holds the split mono springs in place. This was still in the top segment, but sheered off and no longer extending into, and locating the lower segment.


                    Last edited: Oct 18, 2020
                    • Thanks! Thanks! x 3
                    • Like Like x 1
                    • LemonWedge

                      LemonWedge Well-Known Member

                      Messages:
                      519
                      Likes Received:
                      966
                      Joined:
                      Dec 27, 2009
                      Location:
                      Puyallup, WA
                      Local Time:
                      10:36 AM

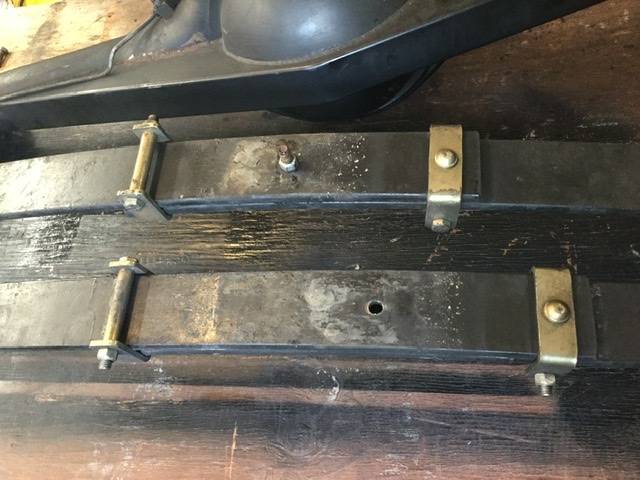

                      Here’s the two springs side by side. You can see the locator stud is missing, and the dimensional difference here.


                      • Like Like x 1
                      • Thanks! Thanks! x 1
                      • Budnicks

                        Budnicks Super Poster, You Can Just Thank Me Later FBBO Gold Member

                        Messages:
                        49,497
                        Likes Received:
                        50520
                        Joined:
                        Jan 16, 2011
                        Location:
                        East of Sonora Calif., We love the 2nd Amendment
                        Local Time:
                        10:36 AM
                        Interesting keep US all updated

                        should all be good improvements

                        good luck & go fast

                      • 66Satellite47

                        66Satellite47 FBBO Gold Member FBBO Gold Member

                        Messages:
                        4,187
                        Likes Received:
                        3073
                        Joined:
                        Jan 15, 2015
                        Location:
                        St Paul MN
                        Local Time:
                        11:36 AM
                        That's scary to have a pin/stud like that fail in sheer. I'd ask Calvert if it's parts quality problem or a design issue. Or possibly the spring movement was excessive?

                        • Agree Agree x 1
                        • LemonWedge

                          LemonWedge Well-Known Member

                          Messages:
                          519
                          Likes Received:
                          966
                          Joined:
                          Dec 27, 2009
                          Location:
                          Puyallup, WA
                          Local Time:
                          10:36 AM
                          I talked with John Gay at Calvert this morning. He says they have seen this before, but it’s very rare. He felt the weight of my car coupled with the age of the springs (7 years) and the fact that they have seen a fair amount of street use could all be factors. But said it is still a very rare occurrence. He’s sending me out a pair of new locator studs. I’ll raplace them both; Should be good to go.

                          That’s racing....... On to the improvements!

                          • Thanks! Thanks! x 3
                          • Like Like x 2
                          • Agree Agree x 2
                          • 66Satellite47

                            66Satellite47 FBBO Gold Member FBBO Gold Member

                            Messages:
                            4,187
                            Likes Received:
                            3073
                            Joined:
                            Jan 15, 2015
                            Location:
                            St Paul MN
                            Local Time:
                            11:36 AM
                            Well, hard use & racing does break stuff. I've proved that over and over.

                            • Like Like x 1
                            • Agree Agree x 1
                            • Ragnar S

                              Ragnar S Active Member

                              Messages:
                              32
                              Likes Received:
                              53
                              Joined:
                              May 13, 2019
                              Location:
                              Iceland
                              Local Time:
                              5:36 PM
                              Plans sound good. Only thoughts I have is the Eddy RPM vs M1 swap. but these are not serious doubts, mere speculations about how it will change the hp and torque curves.

                            • PRHeads

                              PRHeads Well-Known Member

                              Messages:
                              869
                              Likes Received:
                              1062
                              Joined:
                              Aug 31, 2018
                              Location:
                              So. Burlington Vt
                              Local Time:
                              1:36 PM
                              :thumbsup:
