tachometer help 1967 GTX

1966 -1967 Mopars

  1. Pops1967GTX

    Pops1967GTX FBBO Gold Member FBBO Gold Member

    Messages:
    25,979
    Likes Received:
    83561
    Joined:
    Oct 25, 2010
    Location:
    Monroe, New York
    Local Time:
    12:27 PM

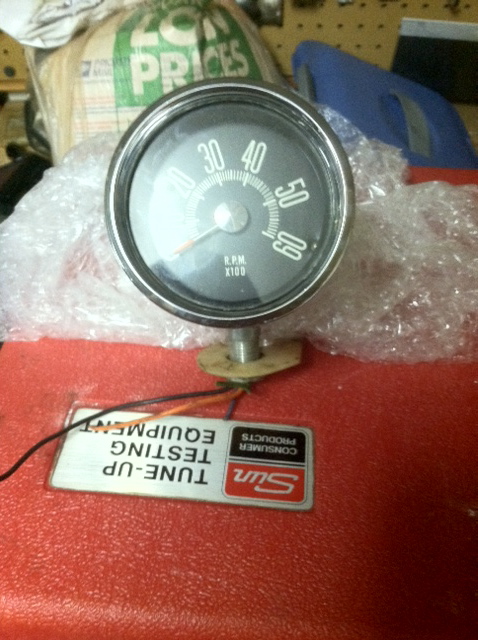

    Need information on tach wiring.It has 4 wires Blk/green/orange/yellow. Also need to know exact location to mount on console. I also have a console vacuum performance indicator. 2 wires orange/ black with vacuum line. Looking for ideas where to mount gauges. Thanks..


    Attached Files:

  2. 440roadrunner

    440roadrunner Well-Known Member

    Messages:
    803
    Likes Received:
    303
    Joined:
    Sep 21, 2009
    Location:
    Coeur d Alene
    Local Time:
    11:27 AM

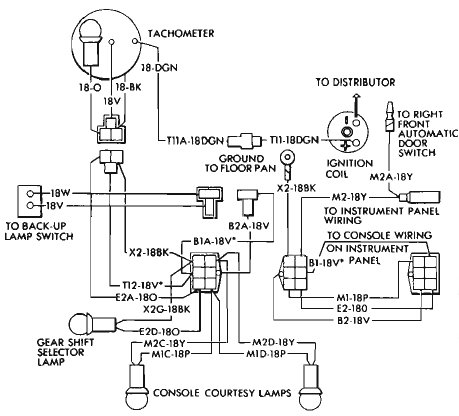

    From the 67 Dodge shop manual.

    Black is ground
    Green is points
    Orange is indicator lamp

    This shows violet, so yellow must be switched ignition power

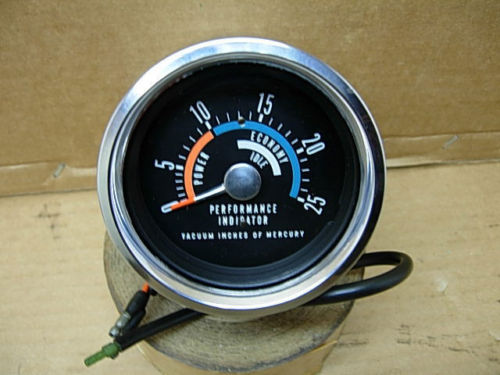

    On your vac gauge, orange is lamp (always on Mopar) black is ground


    Attached Files:

    • Like Like x 1
