Think I went about this wrong?? Floor board fix.

Cranky

Henchman #27
Staff member
FBBO Gold Member
Local time
12:50 AM
Joined
Dec 4, 2009
Messages
26,926
Reaction score
27,224
Location
Down southeast Taxas

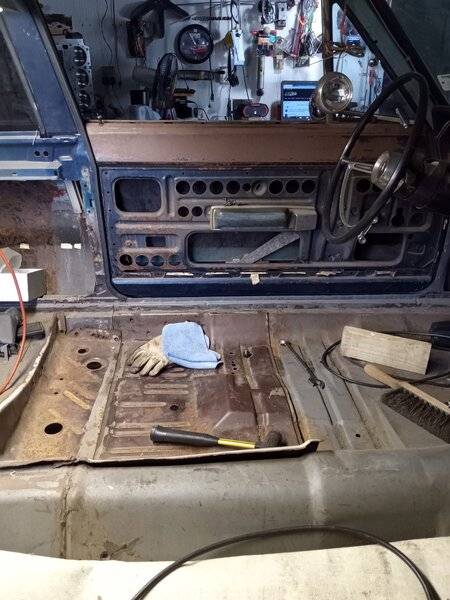

But I'll make the best of it now. Will probably use some self taping sheet metal screws to help hold it in place while cutting.....



RemCharger

Well-Known Member
Local time
12:50 AM
Joined
Apr 5, 2014
Messages
2,413
Reaction score
1,991
Location
Sask
What part is wrong about what you're doing?


Cranky

Henchman #27
Staff member
FBBO Gold Member
Local time
12:50 AM
Joined
Dec 4, 2009
Messages
26,926
Reaction score
27,224
Location
Down southeast Taxas
What part is wrong about what you're doing?
It just doesn't seem or feel like I'm going about it right lol. It sure isn't laying in place like I think it should. First time to do something like this. There's also have a 2x2" frame connector that's under it and that seems to be part of the problem but the part that meets with the drive shaft hump is the part that has me wondering. Thinking that once I screw it down in a few places and make sure of it's location, I'll cut the front edge and go from there. Does that sound like a plan in the right direction?


RemCharger

Well-Known Member
Local time
12:50 AM
Joined
Apr 5, 2014
Messages
2,413
Reaction score
1,991
Location
Sask
I wouldn't cut into the hump unless necessary, leave as much original as you can.
Pics of what it looks like under the patch panel?


slimt

FBBO Gold Member
FBBO Gold Member
Local time
11:50 PM
Joined
Apr 17, 2017
Messages
4,452
Reaction score
5,267
Location
Alberta
What is the issue? The metal not laying down properly?


slimt

FBBO Gold Member
FBBO Gold Member
Local time
11:50 PM
Joined
Apr 17, 2017
Messages
4,452
Reaction score
5,267
Location
Alberta
You have more pictures Cranky?


Cranky

Henchman #27
Staff member
FBBO Gold Member
Local time
12:50 AM
Joined
Dec 4, 2009
Messages
26,926
Reaction score
27,224
Location
Down southeast Taxas
I wouldn't cut into the hump unless necessary, leave as much original as you can.
Pics of what it looks like under the patch panel?
The original hump material goes down about 2 1/2" past the seat belt mount. I did cut out the old mount because it actually had rust around the reinforcement plate and that area is squared off. That's one of the reasons that I left the 'new' metal long in that area.

What is the issue? The metal not laying down properly?
That's what I'm thinking...

You have more pictures Cranky?
Not at the moment. I'm about to do some mowing and well, not sure if I can get more pics within the next few days....


slimt

FBBO Gold Member
FBBO Gold Member
Local time
11:50 PM
Joined
Apr 17, 2017
Messages
4,452
Reaction score
5,267
Location
Alberta
Is there a brace underneath the pan holding the rest of the floor?


Cranky

Henchman #27
Staff member
FBBO Gold Member
Local time
12:50 AM
Joined
Dec 4, 2009
Messages
26,926
Reaction score
27,224
Location
Down southeast Taxas
Is there a brace underneath the pan holding the rest of the floor?

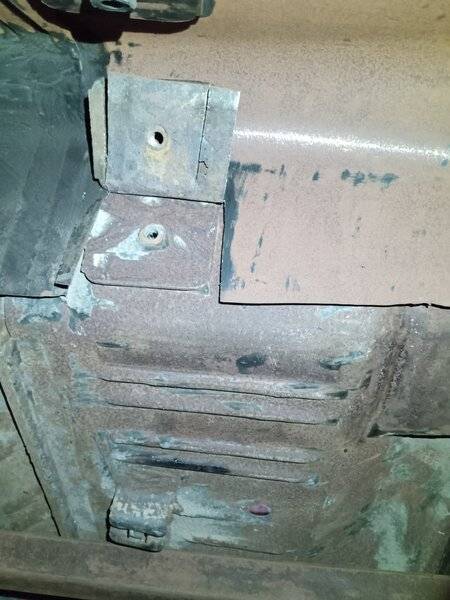

There is supposed to be a floor brace that's not in there yet plus I see a couple of places where the pan is resting on...one being the frame tie. Decided I had time to crawl under it and take a couple of pics and saw the spots that need trimming. Maybe I got this more that I thought!? Pics below....

I wouldn't cut into the hump unless necessary, leave as much original as you can.
Pics of what it looks like under the patch panel?

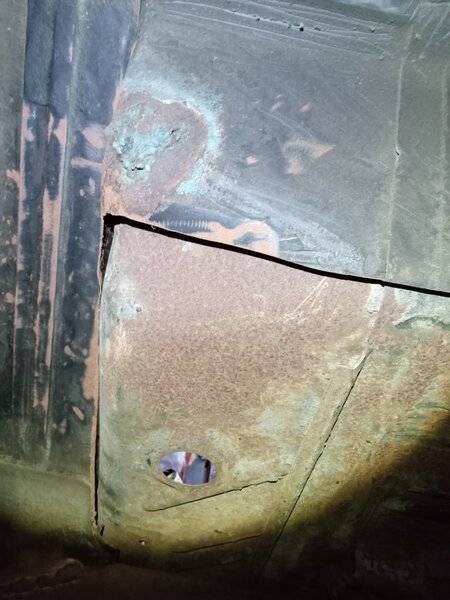

There's a 'booger' weld that looks like it has some epoxy in it too that I'd like to get rid of and that's another reason to cut higher on the tunnel. It's at the end of the tunnel before the transition to where the back seat bottom sits.

IMG_20220423_135750493.jpg IMG_20220423_135821935.jpg


slimt

FBBO Gold Member
FBBO Gold Member
Local time
11:50 PM
Joined
Apr 17, 2017
Messages
4,452
Reaction score
5,267
Location
Alberta
Putting the pan from the top to the main pan is the best. But dont cut to butt match ,leave overlap. I would push the pan tight againts the main and self tap screws to hold in place. Then trim where you need , after screwed down go underneath and sharpie the edge. To show a line all around. , anything you have on the front and back. Sits where you have it. That gets welded up then seam sealed after .
Leave at least a 1 1/2 of metal on the sides On the pan. I myself drill or punch 3/8” holes every 3” on the pan to weld to the main panel. . Then weld the edge inch at a time. Tap pan edge to fit tight or press then tack you have alot of prep to do prior.

I have a hard time explaining. I just think of the process as I go along

Last edited:
