Torsion bar install

1968 -1970 Mopars

  1. R/T

    R/T Well-Known Member

    Messages:
    259
    Likes Received:
    114
    Joined:
    Feb 12, 2014
    Location:
    Montreal
    Local Time:
    3:31 AM
    According to the 68 Charger Dart Coronet Service Manual " The torsion bars are ÑØT interchangeable side for side . The bars are marked either left or right by an "R" or an "L" stamped on one end of the bar." Ditto for the 69 as well. No mention of front or back! It twist the same way either way!

  2. R/T

    R/T Well-Known Member

    Messages:
    259
    Likes Received:
    114
    Joined:
    Feb 12, 2014
    Location:
    Montreal
    Local Time:
    3:31 AM

  3. JimKueneman

    JimKueneman FBBO Gold Member FBBO Gold Member

    Messages:
    3,156
    Likes Received:
    3555
    Joined:
    Mar 25, 2016
    Location:
    Sonoita, Az
    Local Time:
    12:31 AM
    My '68 Coronet has "L" and "R" marked on them. If they did not I would be in trouble right now!

  4. Beavis

    Beavis Well-Known Member

    Messages:
    343
    Likes Received:
    26
    Joined:
    Oct 18, 2013
    Location:
    Berkshires
    Local Time:
    3:31 AM
    mine were marked with a L & R
    it was the forwards and backwards that i was concerned with

  5. JimKueneman

    JimKueneman FBBO Gold Member FBBO Gold Member

    Messages:
    3,156
    Likes Received:
    3555
    Joined:
    Mar 25, 2016
    Location:
    Sonoita, Az
    Local Time:
    12:31 AM
    My markings were to the rear

    • Agree Agree x 1
    • PST

      PST FBBO Vendor FBBO Sponsor

      Messages:
      712
      Likes Received:
      692
      Joined:
      Sep 27, 2010
      Location:
      NJ
      Local Time:
      3:31 AM

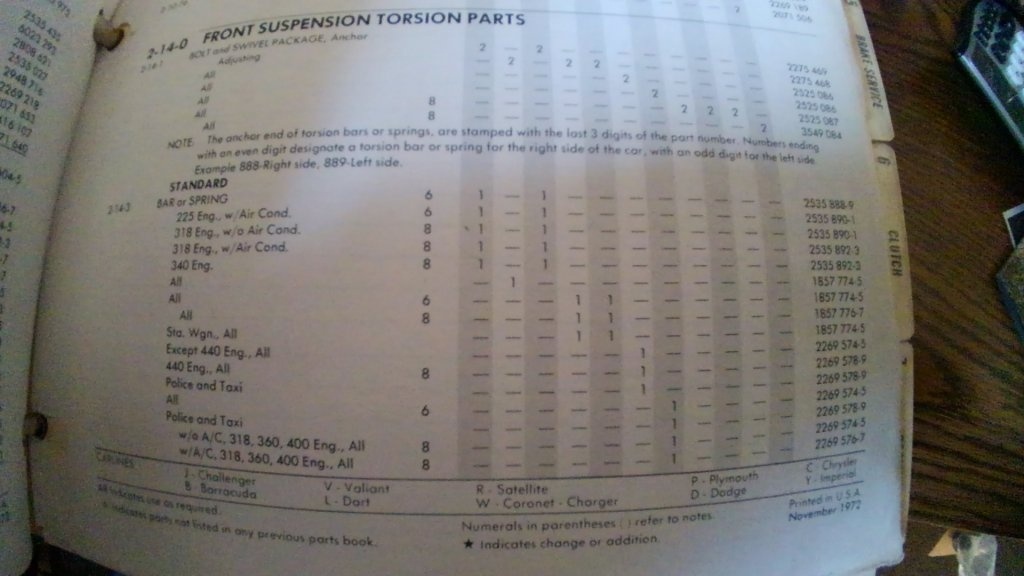

      I stand correct they use two part numbers. I have checked the a 72 Mopar Parts book quickly. If you look at the line listed "440 Engne All" and span over, the part number reads
      2269 578-9. I quickly read that as one part number. When in fact it is 2 part numbers
      2269 578 and 2269 579. The weird part is in the parts book it does not stated which is L and R and this a factory Chrysler parts book.From the research and engineering that we have done for our bars. The bars are the same left to right so a new set of bars can be put in either side, but once installed that creates a memory. So they should be marked prior to removal. That is a the main reason that we have stamped a L and R on our bars and tell customers to have the L and R facing to the rear of the car upon installation. In my opinion mopar used the same principal/idea as the bar where the same but stamped and L and R for possible future removal and service. KIMG0013.JPG

    • mmissile

      mmissile Well-Known Member

      Messages:
      9,006
      Likes Received:
      12534
      Joined:
      Jan 11, 2014
      Location:
      Motown
      Local Time:
      3:31 AM
      Even or odd last-numeral, determine which side of the car.

      • Agree Agree x 1
      • mopar 3 B

        mopar 3 B Well-Known Member

        Messages:
        10,754
        Likes Received:
        8045
        Joined:
        Aug 25, 2014
        Location:
        Kingsville, MO
        Local Time:
        2:31 AM
        Chrysler bar are not universal right or left. There is a 30 deg twist in the bar right and left. All you have to due is lay one flat on the floor one end will lay flat the other will not.
        arengineering.com has a great articular on Chrysler torsion bars. At this point it should be a must read. Especially for our Performance Suspension Tech

        • Agree Agree x 1
        • mopar 3 B

          mopar 3 B Well-Known Member

          Messages:
          10,754
          Likes Received:
          8045
          Joined:
          Aug 25, 2014
          Location:
          Kingsville, MO
          Local Time:
          2:31 AM
          Preset

          Mopar torsion bars are preset at the factory in the direction of use. You can observe this preset by laying the bars down on a flat surface and observing how the bar is twisted. The driver’s side bars will have a 30 degree right hand twist. A passenger side bar will have a 30 degree left handed twist. Pre-setting the bars in this manner improves the load carrying capacity in the pre-set direction. But, the load carrying capacity is reduced in the other direction of twist. This is why it is so important to get the bars installed on the correct side of the car. This twist is put into the bar during fabrication and is done to strengthen the bar. If the bars are put on the wrong side, they will be loaded against the pre-set and will not be able to carry their rated load.

          For those that can not find the link

          • Like Like x 1
          • Bull1tt

            Bull1tt Well-Known Member

            Messages:
            229
            Likes Received:
            84
            Joined:
            Oct 22, 2011
            Location:
            near Pgh, PA
            Local Time:
            3:31 AM
            WHOA! I call BS! There are absolutely right and left bars. They have part number on the ends, (last three digits) odd number is left (driver) side. Even number is right hand (passenger) side.
            Sometimes you can find some of the factory paint daubs used to distinguish right from left and different size bars, if you carefully clean them.

            Last edited: Jan 11, 2017
            • Agree Agree x 3
            • Bull1tt

              Bull1tt Well-Known Member

              Messages:
              229
              Likes Received:
              84
              Joined:
              Oct 22, 2011
              Location:
              near Pgh, PA
              Local Time:
              3:31 AM
              2269 578-9. I quickly read that as one part number. When in fact it is 2 part numbers
              2269 578 and 2269 579. The weird part is in the parts book it does not stated which is L and R and this a factory Chrysler parts book.

              Holy bejesus!

            • PST

              PST FBBO Vendor FBBO Sponsor

              Messages:
              712
              Likes Received:
              692
              Joined:
              Sep 27, 2010
              Location:
              NJ
              Local Time:
              3:31 AM

              I would like to the apologize for my miss information in the earlier posts. I had confused myself and over thought it. What I have researched is that the part number ending in a odd number would be for the Driver side where as a even number would be passengers side.

            • mopar 3 B

              mopar 3 B Well-Known Member

              Messages:
              10,754
              Likes Received:
              8045
              Joined:
              Aug 25, 2014
              Location:
              Kingsville, MO
              Local Time:
              2:31 AM
              Apology accepted. Now how many of these have been sold with the concept that 1 bar worked on both sides? How does one compensate for customer aggravation when proper product research has not been done? The ball is now in your court.

            • PST

              PST FBBO Vendor FBBO Sponsor

              Messages:
              712
              Likes Received:
              692
              Joined:
              Sep 27, 2010
              Location:
              NJ
              Local Time:
              3:31 AM
              That was my mistake I double checked the Blue Prints today with our forge and there is a 20 clocking designated for the L and the R sides. I had actually worked with Andy Finkbeiner on the engineering of the these bar years back and test fitting. He is the same individual that wrote the torsion bar tango that many have referenced. So I can assure you that there is no issue with our bars. They are labeled L and R and we asked when the L and R face the rear. The wheel rate on our 1.03 bars is 209lbs

            • coloradodave

              coloradodave Well-Known Member

              Messages:
              3,663
              Likes Received:
              3041
              Joined:
              Jun 1, 2011
              Location:
              Lincoln, CA
              Local Time:
              12:31 AM

              • Like Like x 1
              • PST

                PST FBBO Vendor FBBO Sponsor

                Messages:
                712
                Likes Received:
                692
                Joined:
                Sep 27, 2010
                Location:
                NJ
                Local Time:
                3:31 AM
                I'll be willing to supply the rope. My fault completely My head has been spinning as I bounce between various forums ( other forums that we sponsor besides mopar) and techs. I drop the ball and got confused.

                • Agree Agree x 1
                • coloradodave

                  coloradodave Well-Known Member

                  Messages:
                  3,663
                  Likes Received:
                  3041
                  Joined:
                  Jun 1, 2011
                  Location:
                  Lincoln, CA
                  Local Time:
                  12:31 AM
                  No need to apologize, James. Most of us know you're a good guy and an asset to this site...

                  • Thanks! Thanks! x 1
                  • Superb Bee

                    Superb Bee Well-Known Member

                    Messages:
                    430
                    Likes Received:
                    347
                    Joined:
                    Jan 12, 2017
                    Location:
                    Rhode Island
                    Local Time:
                    3:31 AM
                    I had one set that was a nightmare to remove, but out of all the cars I stripped, that is the only memorable set that fought me... In is the easy part...

                  • miller

                    miller Well-Known Member

                    Messages:
                    4,081
                    Likes Received:
                    2016
                    Joined:
                    Jan 5, 2014
                    Location:
                    Tom Bean,Texas
                    Local Time:
                    2:31 AM
                    Heck...it only hurts once!

                    Several years back, ran into an ol' boy with a 64 Ply, had already busted the lower ball joint loose. Claimed the LCA slammed down so hard, almost crushed his foot!
                    Me? Had nothing to say. Did laugh some, driving off...

                  • Redsawacs

                    Redsawacs Well-Known Member

                    Messages:
                    48
                    Likes Received:
                    12
                    Joined:
                    May 7, 2016
                    Local Time:
                    2:31 AM
                    Now the real question:

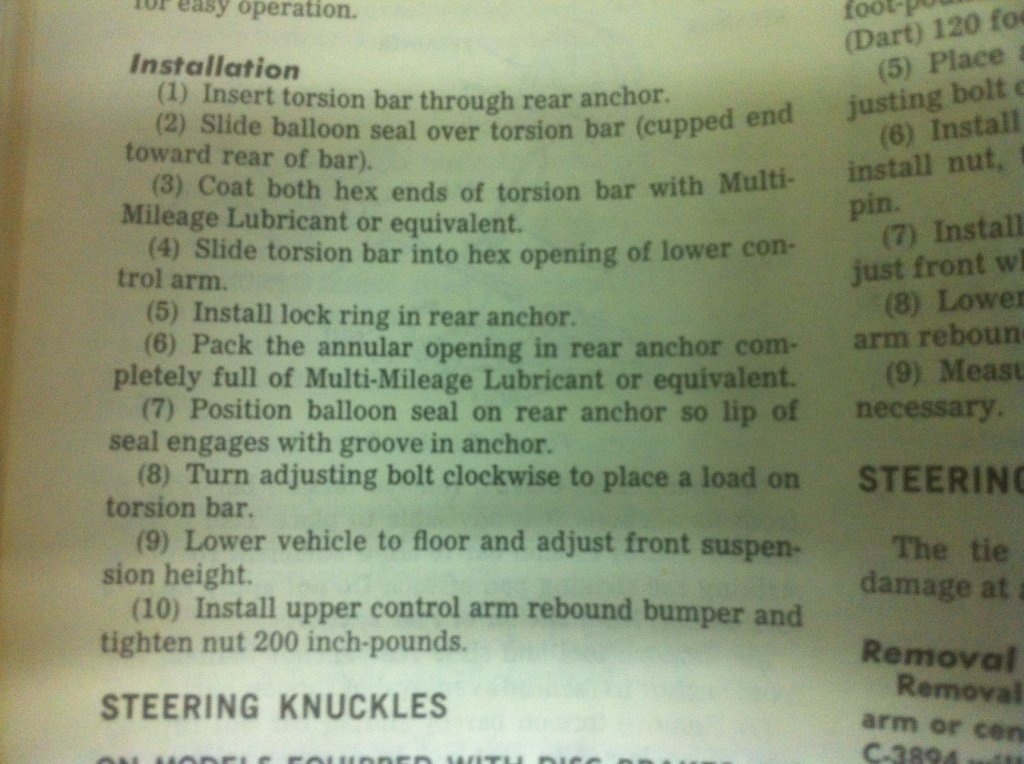

                    How do you install the bars correctly?!

                    What do I mean? Things I don't have knowledge of yet include the initial angle of the lower control arm when you install the bars, when do I torque the lower control arm anchor bolt? Will the preload on the preload bolt be different depending on the angle of the lower when installed?

                    I can not find a single video anywhere and my manual is vague at best. I know the new bushings will act as part of the rebound process and I don't want them to become overworked and damaged by doing this instaill incorrectly - Please help me understand a bit more (New mopar guy here)

                    My previous experience with torsion bars is a 2003 durango with the adjusters at the rear and a detailed manual with correct clocking procedures.

                    Thanks all,

                    Dan in OKC
