TTI headers, big block - spark plug wire routing - pics

4mulas

Well-Known Member
Local time
4:55 PM
Joined
Mar 16, 2017
Messages
2,011
Reaction score
2,252
Location
Just North of Montana
Looking for pics of your engine bay showing spark plug wire routing with tti headers on a big block.

Thanks!


I use a combo of 90’s and straights. Usually buy a set of each. Not a big fan of **** hooked to the valve covers with a solid cam.


Last edited:

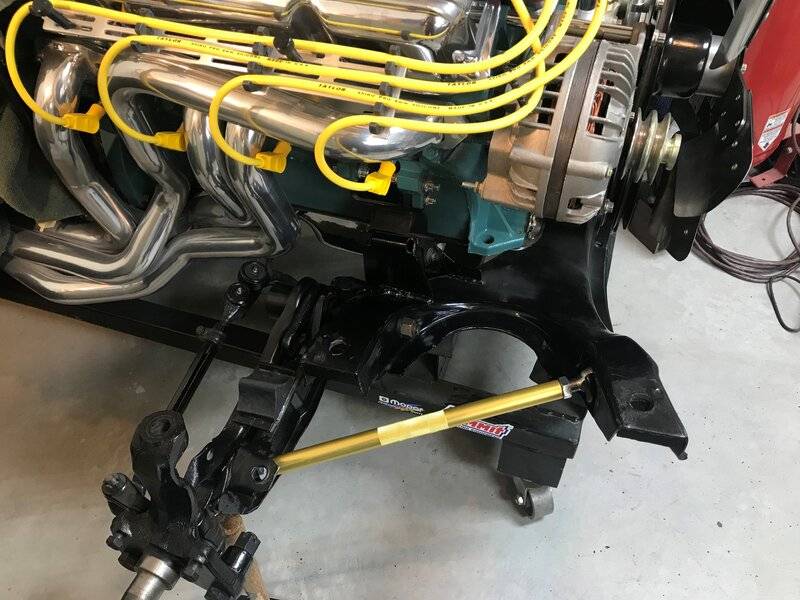

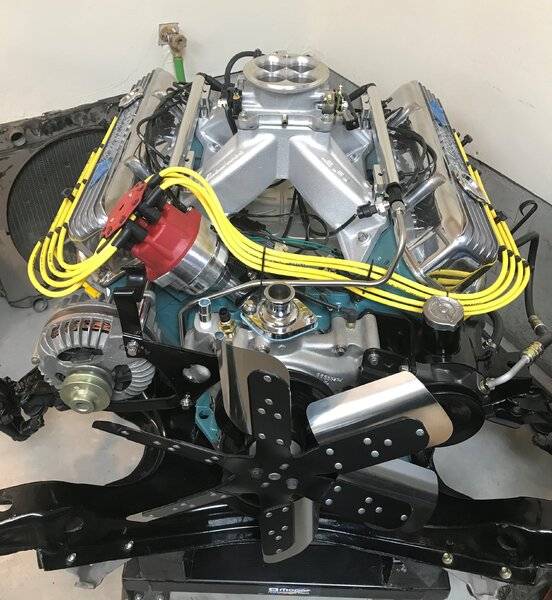

2 inch TTI, with Accel Ceramic, used straight, 90 and 45 degree.
there was another thread from just a few weeks ago asking the same about plug wires. You might look for it.
PT in Tennessee

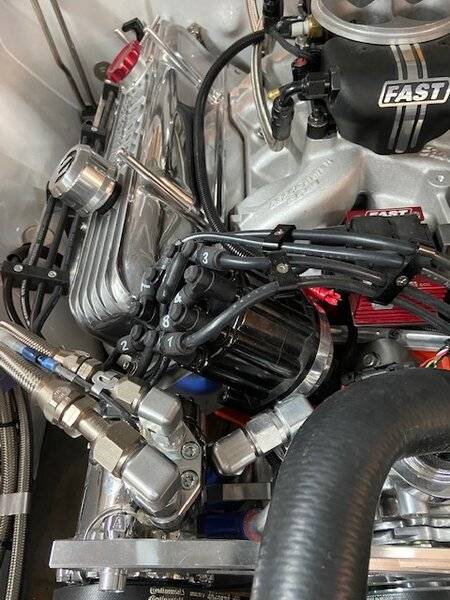

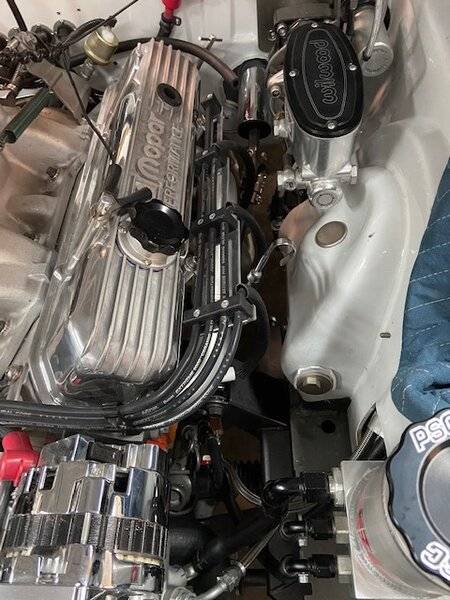

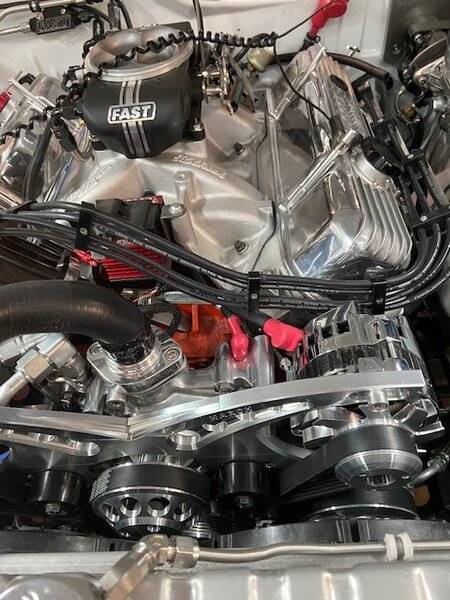

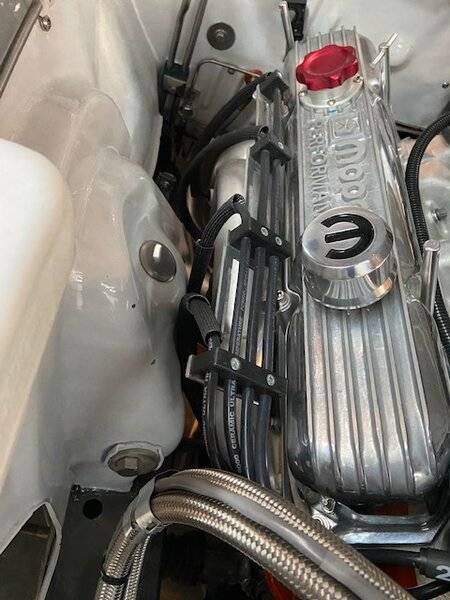

IMG_1277.jpg IMG_1278.jpg IMG_1279.jpg IMG_1280.jpg

Where did you get your loom bracket? And how did you raise it up as the tti header goes above the rocker cover flange?
They look like mine, made by R&M Specialties sold at Summit Racing. They carry different mounting methods.

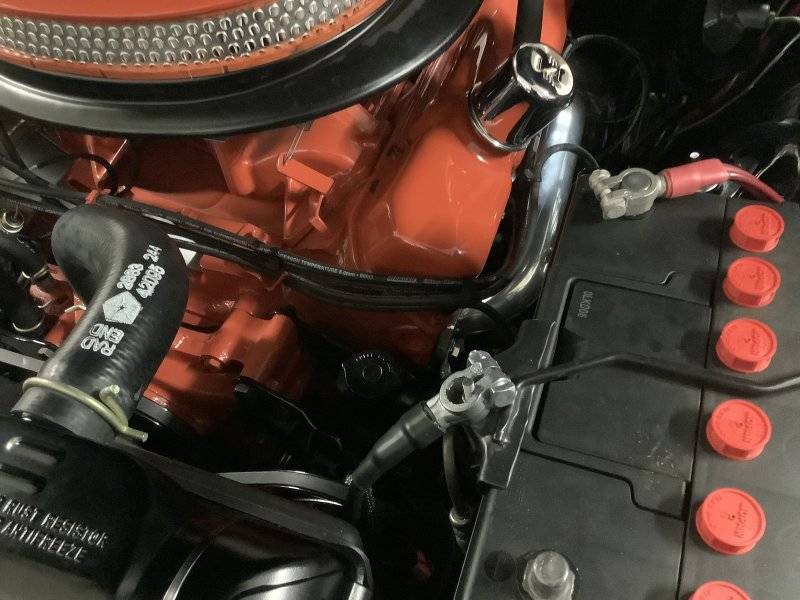

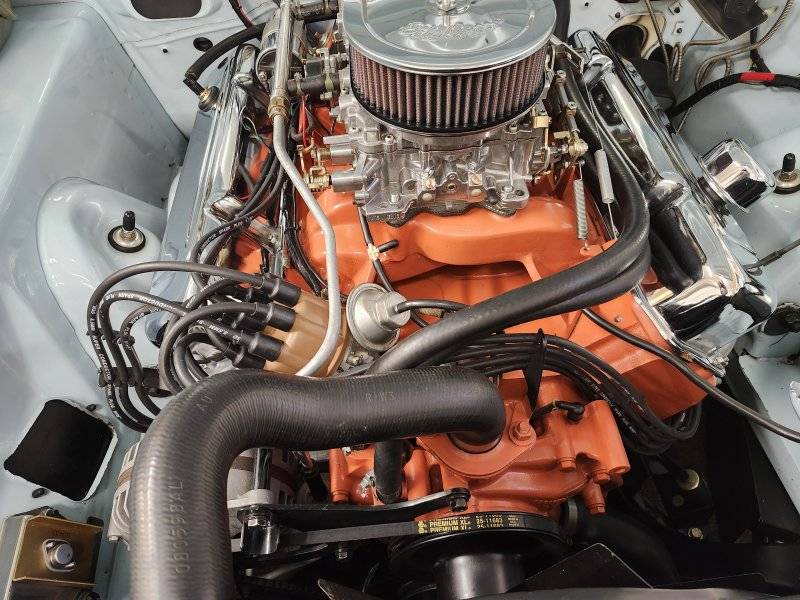

2" tti headers. I use 1968 factory wire looms. Everything tucked in and no burn problems.






Last edited:
Hi mate

Where did you get your loom bracket? And how did you raise it up as the tti header goes above the rocker cover flange?

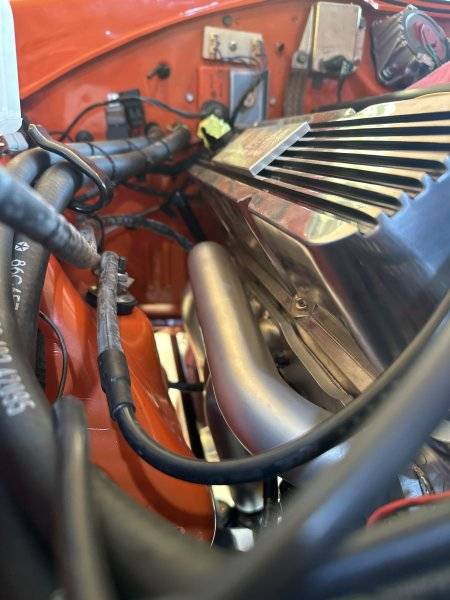

View attachment 1737577

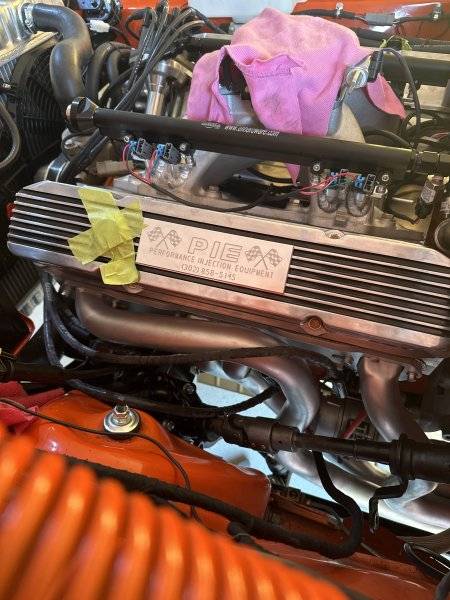

View attachment 1737578

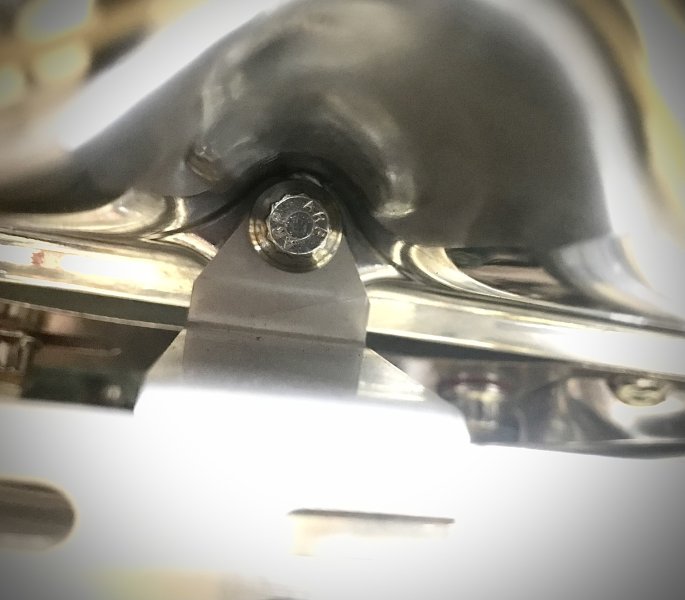

I fabricated some Z brackets out of some 20 Ga. SS and attach to the lower VC bolts. Welded some studs on the top flange for some thumb nuts to attach the looms (those black pieces with a knurled head). Works great, keeps the wires away from all that heat and a snap to remove for cleaning, plug changes, etc.
