Very CLOSE with my COOLING SYSTEM... couple questions

[jenkins71]

Hey guys. So for my cooling system I am using a Champion 26" 3-row, and a 7-blade fan off a mid-70's Chrysler. It has aluminum blades and a thermo-clutch.
What I am wondering is what I can use for a shroud? I see the Mopar Performance Shroud on Summit and Jegs, but I was wondering if anyone knows if it will fit around my rather large fan. I think it is about 20" diameter? Anyone know the diameter?
Also, I don't suppose it will bolt right up to the Champion? its a 71 charger, 440, by the way.
Thanks guys!!!



[Coronet 14]

On my 72 Coronet from fan tip to fan tip it's about 18 inches. I have a 26 inch stock Radiator with stock replacement Shroud



[jenkins71]

Cool, yeah, my fan is a little larger diameter. How much clearance is there around your fan?

- - - Updated - - -

I guess I can just buy it and return it to Jegs if it doesn't fit..



[383man]

Here is what I did on my 63 Sport Fury. I went to the junk yard and found this one from a V/6 Dakota truck and I had to modify it to work for me. Its not perfect by no means but it helps me and it was cheap. Ron



[Coronet 14]

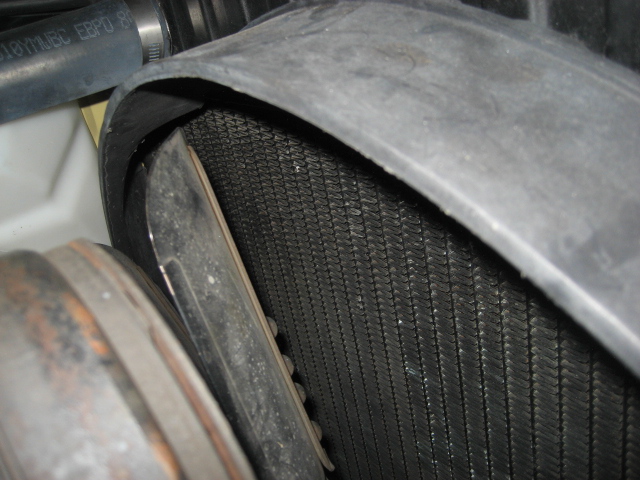

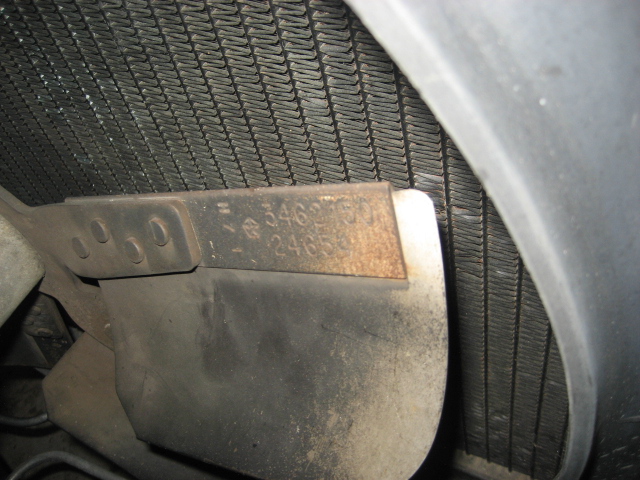

Here are a couple of pics



[bigmanjbmopar]

Here is the Summit shroud, mine is not a clutch fan but is an 18" flex, the opening is 20" and works great. bolted right up. 440 26" SB radiator.
