1967 Dodge Charger Carburetor Linkage Photos

[Charger Too]

I need some close up photos of the carburetor linkage for a 1967 Dodge Charger Carter AFB 4 barrel 383 engine and the linkage that connects to the automatic transmission. Thanks!



[Lefty71]

I think I have a '67 Dodge factory service manual here.... I'll have to dig.



[copper67sat]

You can find pdf versions of the manual on Mymopar.com



[copper67sat]

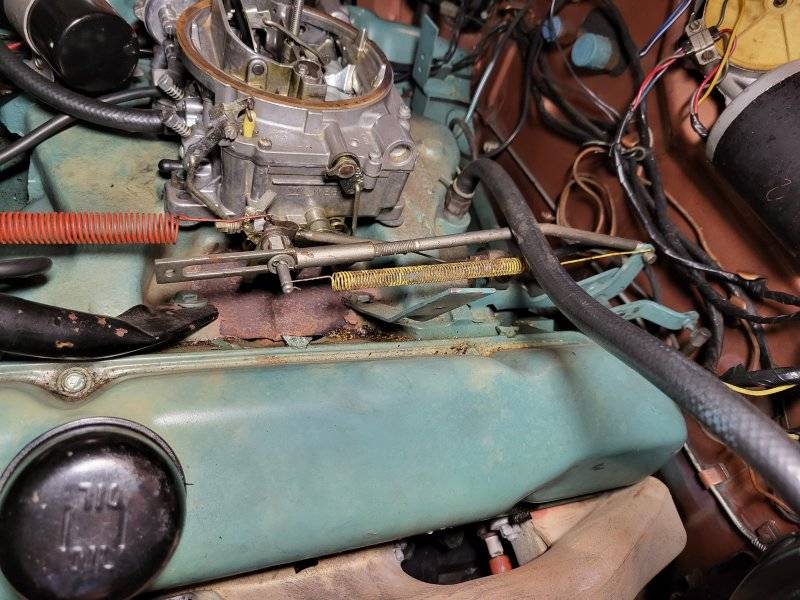

My 67 Satellite 383 4bbl probably has the same linkage as your Charger, but I'm not certain of that. Also not clear from your post which views you need. Here's what mine looks like at the carb.



[subforry]

My 67 Satellite 383 4bbl probably has the same linkage as your Charger, but I'm not certain of that. Also not clear from your post which views you need. Here's what mine looks like at the carb.

View attachment 1514363

Sweet, that's what my '66 looks like except the trans return spring pulls the linkage forward. Yours makes much more sense.



[TN Mopar]

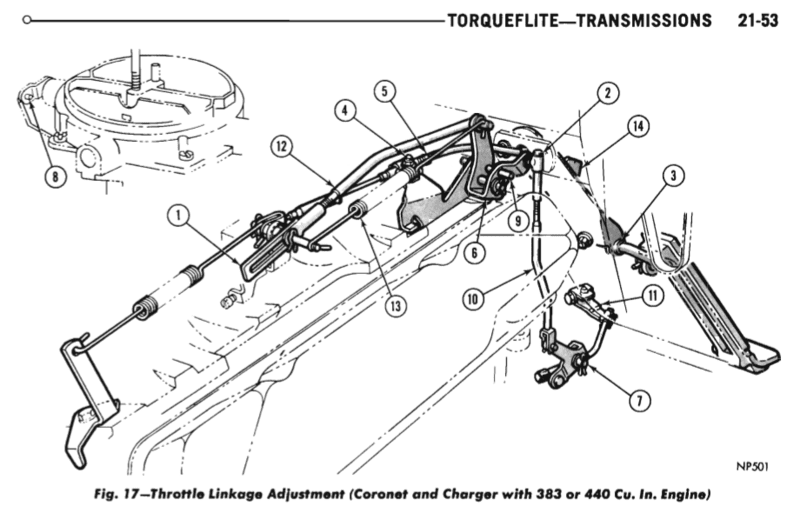

for reference
