1968 Charger Hellcat Swapped PWM Cooling Fan set up!

[Saleh]

Hello everyone,

So this is my first post and I really hope you guys can help me out with my project.

I did a hellcat swap on my 1968 Charger and used the OEM Radiator cooling fan, Also connected PIN #82 to the fan from the ECU but the fan won't work!
Am I missing something here?

Thanks



[Don Frelier]

How is it grounded?



[jamie]

Hello everyone,

So this is my first post and I really hope you guys can help me out with my project.

I did a hellcat swap on my 1968 Charger and used the OEM Radiator cooling fan, Also connected PIN #82 to the fan from the ECU but the fan won't work!
Am I missing something here?

Thanks

You mean to the ground side of a relay correct?



[Jerry Hall]

The way I see it is that pin #82 energies or operates a relay that switches 12V to operate the fan. The fan also has to be grounded.



[Saleh]

How is it grounded?

I did exactly as Goose performance did in his video :



[Saleh]

The way I see it is that pin #82 energies or operates a relay that switches 12V to operate the fan. The fan also has to be grounded.

power and ground are connected to the fan as well as a pcm signal from pin 82



[Jerry Hall]

power and ground are connected to the fan as well as a pcm signal from pin 82

There has to be a relay involved, even if it is internal to the fan assembly. The PCM signal will not run the fan.



[jamie]

The PCM should ground a relay.



[MoparRobTX]

Hello everyone,

So this is my first post and I really hope you guys can help me out with my project.

I did a hellcat swap on my 1968 Charger and used the OEM Radiator cooling fan, Also connected PIN #82 to the fan from the ECU but the fan won't work!
Am I missing something here?

Thanks

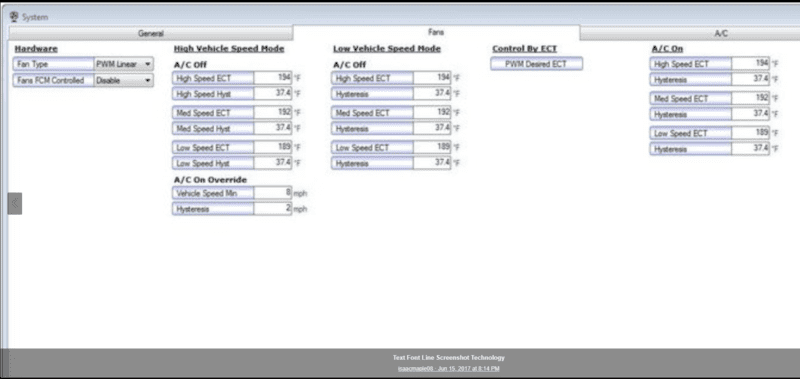

you updated everything in your tune in HPTuners? Similar to below?



[Saleh]

you updated everything in your tune in HPTuners? Similar to below?

View attachment 1242481

Yes sir, I did



[MoparRobTX]

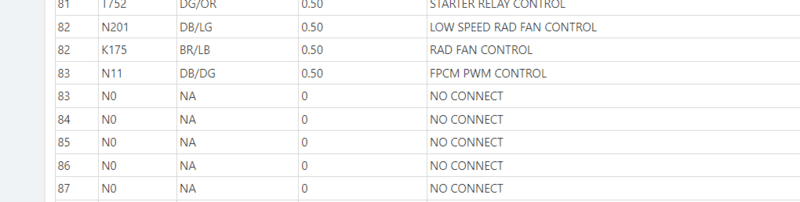

This pinout shows PIN 83 is PWM fan control.



[Saleh]

This pinout shows PIN 83 is PWM fan control.
View attachment 1242633

I made a direct wire connection from the wire that is connecting to pin 83 to the fan small wire and still nothing,



[RemCharger]

What about the possibility the fan doesn't work?



[RemCharger]

So you're getting the engine hot and it doesn't fire up? The srts started at like 225* F if I'm not mistaken.



[Saleh]

What about the possibility the fan doesn't work?

Thats why I'm trying to get a new fan and test it again



[Saleh]

So you're getting the engine hot and it doesn't fire up? The srts started at like 225* F if I'm not mistaken.

the factory setting is set at 208F for the fan to kick on



[What’s up dock]

So, you've got pin 82 run to the "trigger" side of your relay, pin 83 directly to your white PWM wire on the fan?



[Saleh]

So, you've got pin 82 run to the "trigger" side of your relay, pin 83 directly to your white PWM wire on the fan?

I finally figured it out! I moved pin #83 to pin #82 (which was empty in my case) and it finally worked !



[Kennith]

I finally figured it out! I moved pin #83 to pin #82 (which was empty in my case) and it finally worked !

I’m about to do the same on my 69 Charger.

Did you end up just using pin #83 to the white wire and power, ground from the fan?



[19 69 GTX]

Trying to do the same no luck. Had a friend program fan to work but nothing. Used pin 82 for pwm signal and the I just ran a ground and 12v to fan harness no luck. What do I need to do
