3 speed wiper wiring at the switch

[Frank1970]

I gutted out all of original wiring and installed a Ron Francis box. I can't remember the brown wires at the terminals. I have the 4 wires from the motor plus a feed. If I remember was there a small jumper wire to 2 terminals I think along the resistor? I know one terminals jumps over to the washer switch. Diagrams are not clear I can't tell if they just showing the resistor or a brown wire?
Thanks



[threewood]

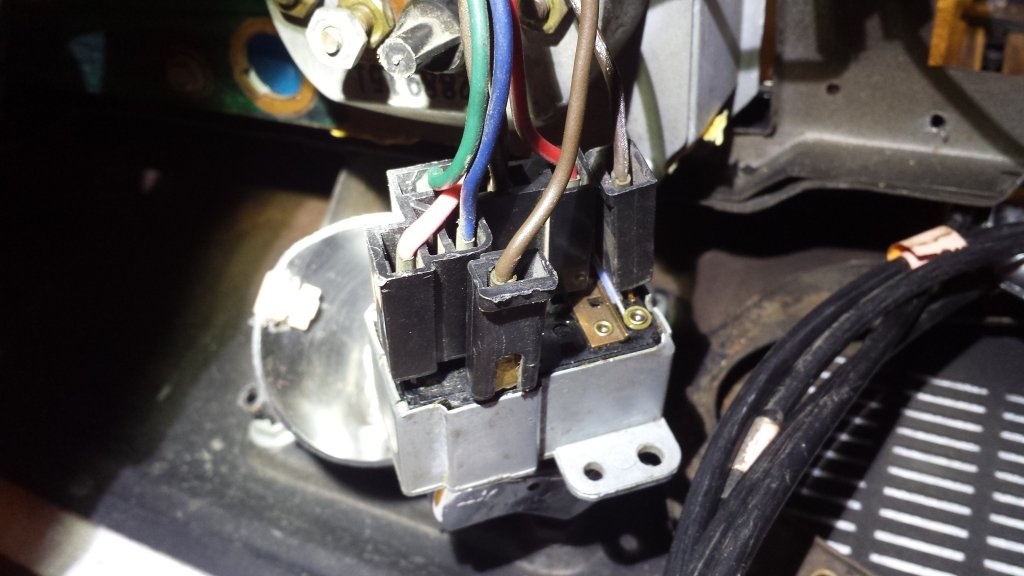

This is the wiring at my 3 speed switch



[Frank1970]

View attachment 392560
This is the wiring at my 3 speed switch

Yes thanks where are 2 brown wires going? One goes to tge washer switch and the other? The brown wire next to the resistor.
Thanks



[Frank1970]

View attachment 392560
This is the wiring at my 3 speed switch

Hey threewood can you tell where that brown wire is going? Not the one that goes to the washer switch?



[threewood]

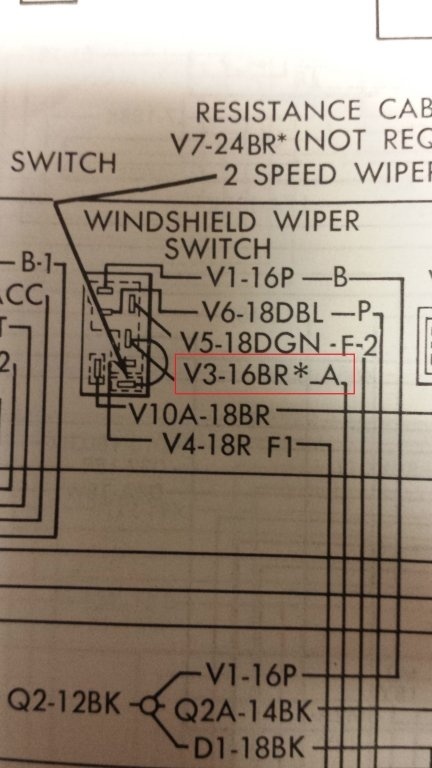

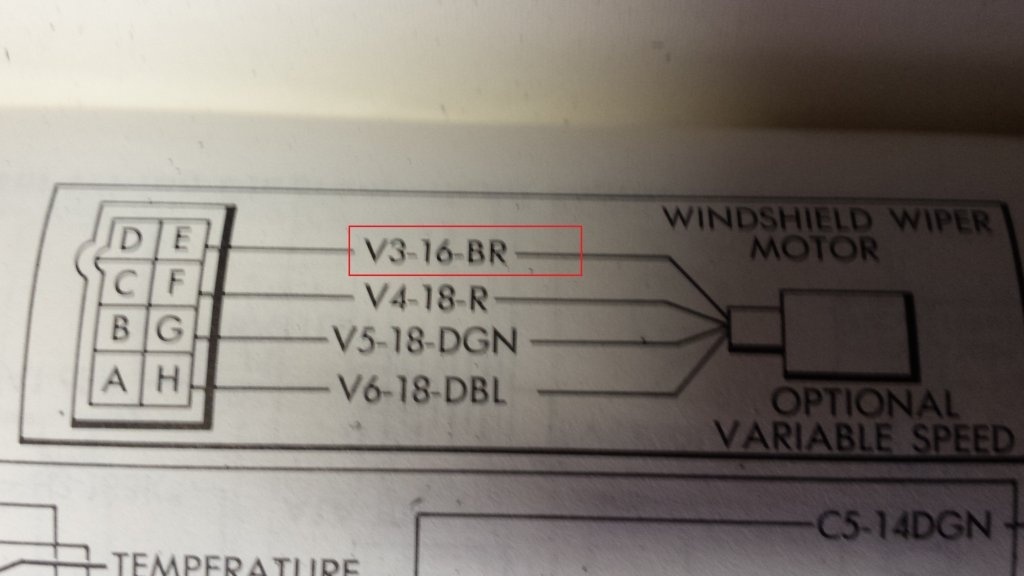

Sorry, I forgot about this. That brown wire goes to the wiper motor through bulkhead connector "E" Here are some service diagrams with the wire highlighted in red.



[Frank1970]

Thank you, i should use the diagrams in the manual. Im using others.
