440 carnage photos

General Discussion

  1. greenmachine

    greenmachine Well-Known Member

    Messages:
    564
    Likes Received:
    226
    Joined:
    Jul 23, 2012
    Location:
    portland
    Local Time:
    4:59 PM

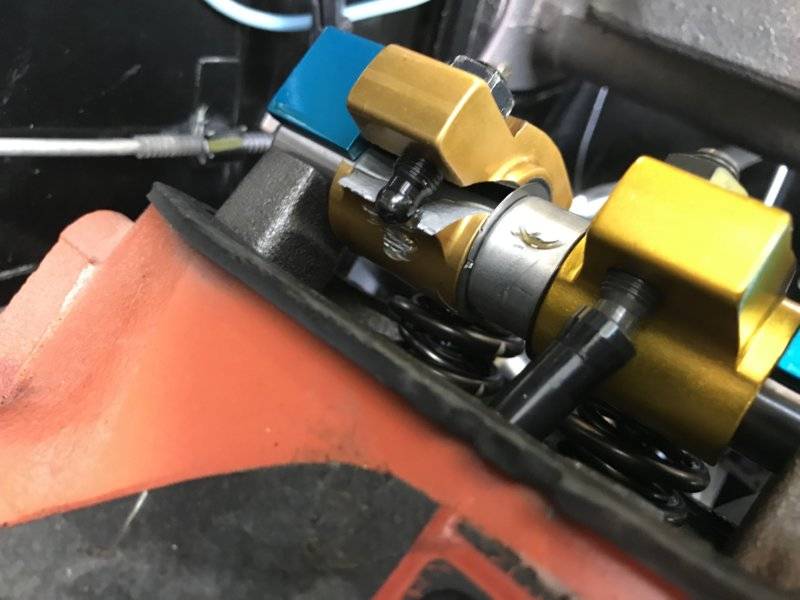

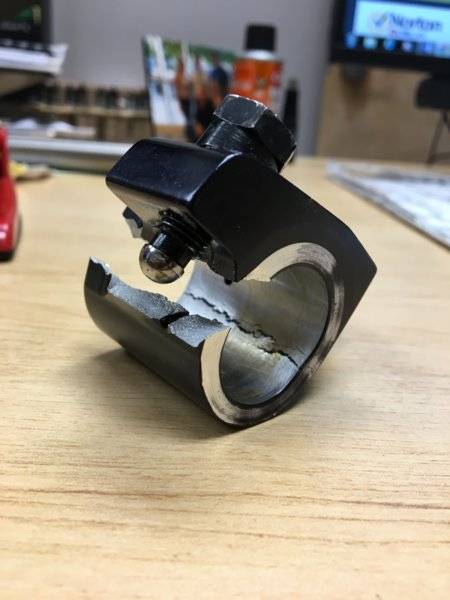

    Trying to figure out what happened. Only 300 miles on this motor. Out it comes.

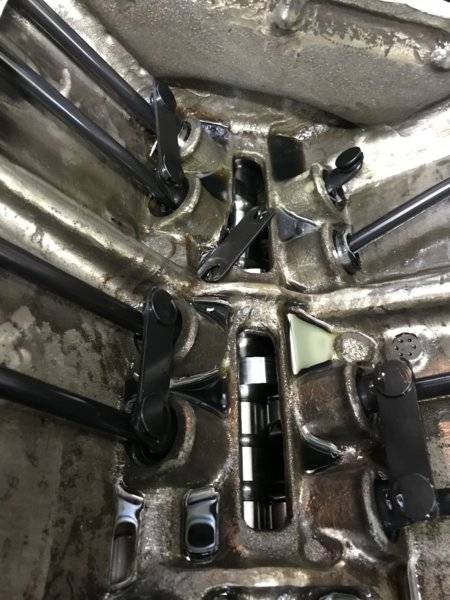

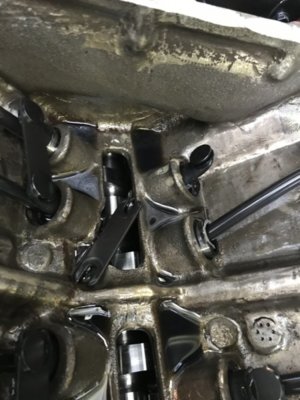

    1EAA62FE-D834-4214-BCB7-32E5E79F9D6E.jpeg 1AA1F789-7B80-45C5-A52D-F61EE22BDB77.jpeg C9911692-AC51-45C7-9A87-4330D5942CF7.jpeg BD391566-244F-4863-9BF2-7CFF69252455.jpeg

    • Thanks! Thanks! x 1
    • 91r/t

      91r/t FBBO Gold Member FBBO Gold Member

      Messages:
      1,444
      Likes Received:
      1564
      Joined:
      May 7, 2011
      Location:
      Buffalo, NY
      Local Time:
      6:59 PM
      Roller lifter failure? Looks like it bound up the pushrod and ended up snaping the rocker under stress.....Pushrod should have bent before that though. Wow that sucks man. Hope you figure out what happened man and get it back in action quick! Best of luck to ya.

    • 33 IMP

      33 IMP Well-Known Member

      Messages:
      1,718
      Likes Received:
      2040
      Joined:
      Dec 21, 2017
      Location:
      taxifornia,soon 2b Arizona.
      Local Time:
      4:59 PM
      Pushrods WAY,WAY too short. Bent or broken pushrod, breaks rocker, chucks out roller lifter, other roller goes sideways, chews camshaft up. Ask me how i know.

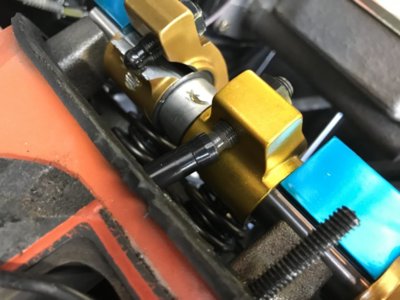

      Edit. You have about five threads showing under your crane rockers. Correct is zero to one. More threads, more bad sideload leverage on the adjuster/pushrod tip. I had the exact same result with mine,also with cranes. .200 longer pushrods solved my problem.
      Had to regrind my roller. Slowed down three tenths.

      Last edited: Sep 12, 2019
      • Agree Agree x 6
      • Like Like x 2
      • KENTON

        KENTON Well-Known Member

        Messages:
        711
        Likes Received:
        748
        Joined:
        Feb 25, 2014
        Location:
        chicken coop
        Local Time:
        5:59 PM
        Plenty of threads showing on those adjusters. I like having 1 or 2

        • Like Like x 1
        • 68Moparmaniac

          68Moparmaniac Well-Known Member

          Messages:
          482
          Likes Received:
          692
          Joined:
          Jan 18, 2019
          Location:
          Utah
          Local Time:
          5:59 PM
          First I thought the cam was wiped but the lobes I see look to be okay. Maybe one of the rockers gave up first then it just dominoes from there. Where did the push rod end up? What spring rate were you running?

        • greenmachine

          greenmachine Well-Known Member

          Messages:
          564
          Likes Received:
          226
          Joined:
          Jul 23, 2012
          Location:
          portland
          Local Time:
          4:59 PM
          The free lifter slides up and down in the bore like butter (not sure about the other one yet). The cam looks to be ok. The roller tip on the free lifter has no gouges. I have no idea where the broken piece of lifter went. I’m betting windage tray or bottom of pan. I thought about just fixing what was broken on top and running it but for piece of mind I will just pull the motor and go through it.

        • 1 Wild R/T

          1 Wild R/T Well-Known Member

          Messages:
          627
          Likes Received:
          962
          Joined:
          Jul 9, 2019
          Location:
          California
          Local Time:
          7:59 PM
          As has already been said your pushrods are way to short

          • Agree Agree x 3
          • Like Like x 1
          • Lefty71

            Lefty71 FBBO Gold Member FBBO Gold Member

            Messages:
            1,039
            Likes Received:
            1099
            Joined:
            Mar 8, 2018
            Location:
            Ohio
            Local Time:
            7:59 PM
            This is correct. Some folks think "aw it's just imperfect geometry", but the reality is, you can see the incredible stress you are putting on the rocker with pushrods that much too short. The rocker has no strength with the tip of the adjuster cantilevered that far from it's body.

            • Agree Agree x 2
            • Like Like x 1
            • 451Mopar

              451Mopar Well-Known Member

              Messages:
              1,567
              Likes Received:
              965
              Joined:
              Oct 25, 2011
              Location:
              Aurora, CO
              Local Time:
              5:59 PM
              I noticed that the exhaust rocker that broke has one more thread showing than the intake, which could mean the exhaust was adjusted too tight to start with. Don't know how close to coil bind or other clearances to know if valve train ran out of clearance. If not coil bind, could be Piston to valve, or even retainer to valve guide? As mentioned, the pushrods were too short to begin with.

              • Like Like x 1
              • 2quick

                2quick FBBO Gold Member FBBO Gold Member

                Messages:
                782
                Likes Received:
                575
                Joined:
                Apr 27, 2010
                Location:
                New Jersey
                Local Time:
                7:59 PM
                Or the rocker just couldn't take the stress of too much spring pressure and split in half. Then the push-rod fell out and on the next cycle got bound up under the rocker shaft destroying the lifter and carnage from there. I split an INDY Black rocker this way a few months ago. Rocker just couldn't handle #650 over the nose. But yea looks like the push-rods were to short to begin with.


              • Lefty71

                Lefty71 FBBO Gold Member FBBO Gold Member

                Messages:
                1,039
                Likes Received:
                1099
                Joined:
                Mar 8, 2018
                Location:
                Ohio
                Local Time:
                7:59 PM
                Correct me if im wrong, aren't Indy rockers T&D?? Or not any more?

              • Richard Cranium

                Richard Cranium FBBO Gold Member FBBO Gold Member

                Messages:
                24,198
                Likes Received:
                52291
                Joined:
                Feb 20, 2012
                Local Time:
                6:59 PM
                Non stock parts was the culprit.

                • Thanks! Thanks! x 1
                • Lefty71

                  Lefty71 FBBO Gold Member FBBO Gold Member

                  Messages:
                  1,039
                  Likes Received:
                  1099
                  Joined:
                  Mar 8, 2018
                  Location:
                  Ohio
                  Local Time:
                  7:59 PM
                  LOL, the right answer. This is exactly what the Dodge dealership would tell you if you took it to them for repairs!

                  • Agree Agree x 1
                  • Budnicks

                    Budnicks You Can Just Thank Me Latter FBBO Gold Member

                    Messages:
                    47,486
                    Likes Received:
                    42422
                    Joined:
                    Jan 16, 2011
                    Location:
                    East of Sonora Calif., We love the 2nd Amendment
                    Local Time:
                    4:59 PM
                    :poke:
                    non stock parts (aftermarket non OEM) not installed/used properly
                    or possibly not checked properly
                    or parts failure due to the above conditions
                    or parts failure period
                    all contributing to the parts failure
                    more like

                    ( #1 like too short of a pushrod, or #1a (?) improper adjustment
                    putting the pushrod tip in an over-center position
                    it's plausible may have shifted in/on the lifter, #2 breaking the aligning strap
                    #3 the adj. sticking out, it's starving or creating a situation where less oil
                    in the cup/pushrod tip than what it should have too far away
                    & bad leverage/fulcrum points
                    #3a because the rocker adjuster/ball 'is sticking out way to far'
                    part is prone to failures, I'm surprised it didn't break the adjuster 1st
                    before it broke the rocker or broke the roller lifter's alignment bar
                    #4 all the above contributing or creating a problem/s
                    )

                    Last edited: Sep 12, 2019
                    • Like Like x 1
                    • Agree Agree x 1
                    • 451Mopar

                      451Mopar Well-Known Member

                      Messages:
                      1,567
                      Likes Received:
                      965
                      Joined:
                      Oct 25, 2011
                      Location:
                      Aurora, CO
                      Local Time:
                      5:59 PM
                      I don't think they are T&D. Several reports of the Indy rockers breaking.

                      I think the intake pushrod is bent too?
                      Maybe the exhaust pushrod bent, and fell out of the adjuster, then beat the rocker to death.
                      Those Rockers look like Harlan Sharpe? They are pretty good, but I don't know the lift and spring pressure used here? I mean the rocker could have cracked? sounds like not too may cycles on them?

                      Also, what type of rocker side clearance?

                    • Budnicks

                      Budnicks You Can Just Thank Me Latter FBBO Gold Member

                      Messages:
                      47,486
                      Likes Received:
                      42422
                      Joined:
                      Jan 16, 2011
                      Location:
                      East of Sonora Calif., We love the 2nd Amendment
                      Local Time:
                      4:59 PM
                      I was thinking the roller rockers & adjt. look more like
                      Crane Super Gold's, offset style

                      HS would have needle bearings on the shafts

                    • 1 Wild R/T

                      1 Wild R/T Well-Known Member

                      Messages:
                      627
                      Likes Received:
                      962
                      Joined:
                      Jul 9, 2019
                      Location:
                      California
                      Local Time:
                      7:59 PM
                      Indy rockers are Dove....

                      • Thanks! Thanks! x 1
                      • yella71

                        yella71 Well-Known Member

                        Messages:
                        275
                        Likes Received:
                        401
                        Joined:
                        Dec 18, 2018
                        Location:
                        nj
                        Local Time:
                        7:59 PM
                        The engine....she bust

                        • Like Like x 1
                        • Agree Agree x 1
                        • threewood

                          threewood Well-Known Member

                          Messages:
                          3,824
                          Likes Received:
                          4247
                          Joined:
                          May 30, 2014
                          Location:
                          Yuma, AZ
                          Local Time:
                          4:59 PM
                          Are those 1.5 or 1.6 rockers? Spring bind at full lift? Hydraulic roller or solid? I agree on the pushrods being too short.

                          • Like Like x 1
                          • beanhead

                            beanhead FBBO Gold Member FBBO Gold Member

                            Messages:
                            4,265
                            Likes Received:
                            6397
                            Joined:
                            May 18, 2014
                            Location:
                            Wackyfornia
                            Local Time:
                            4:59 PM
                            Absolutely. We just saw another member here have the same problem, they also had the adjuster cranked way down...and as (I think it was 'Lewtot') pointed out the adjusters in these rockers nowadays are made longer than they used to be = even less threads should be exposed on the south side of the rocker.

                            • Like Like x 1
