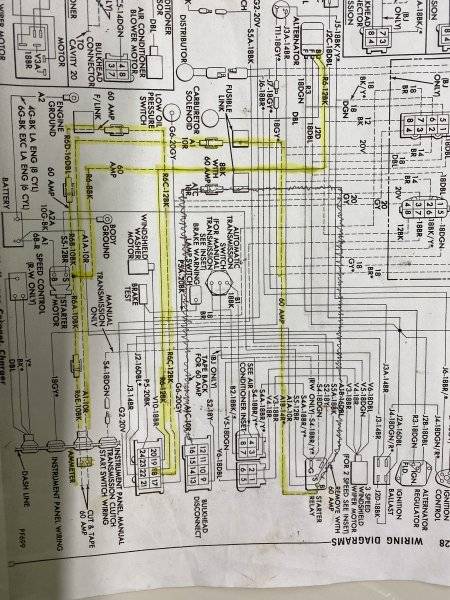

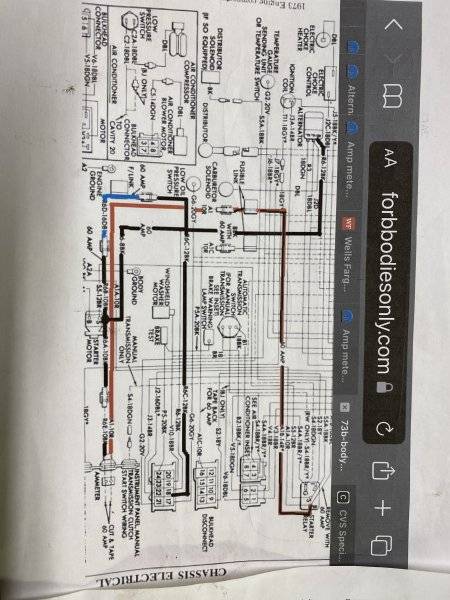

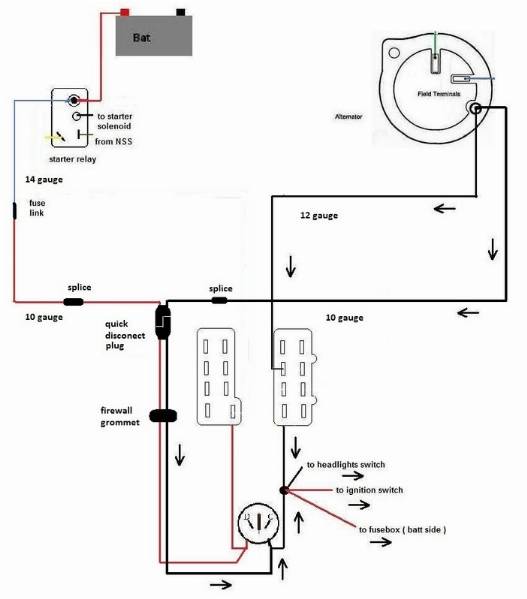

First I must say when I look at wiring diagrams, all I see is spaghetti! Someone was kind enough to send me a color coded wiring diagram, thanks! I’m just now tackling this project and have some questions. In my mind the factory wiring diagram for 60+amp shows #18 pin shares an 8awg with a 12awg wire, unless I’m looking at it wrong, good possibility. Is this the case? It doesn’t say cut and tape back the 12awg from pin 18 like in other locations. Last question or confirmation really, # 16 pin is deleted replaced by a 14awg fusible link from relay followed by a 10awg wire to ammeter. I should also say it’s for a 73 Charger.Thanks for reading and possibly replying!
