    Finally putting my 6 pack on and I am having a hard time building and routing the line from he pump to carb , the only pic I have seen shows the fuel line run around the dist is this the only way? Anyone have pictures of how there fuel line runs up to the carb?? Any photos would be appreciated !

  2. 440beep

    440beep FBBO Gold Member FBBO Gold Member

    Messages:
    1,115
    Likes Received:
    412
    Joined:
    Aug 6, 2012
    Location:
    NW Indiana
    Local Time:
    8:01 AM

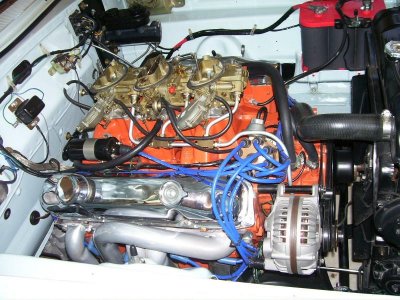

    Here, try this picture. The fuel line from the carb needs to come roughly straight out with a slight bend to clear the dizzy then goes straight down toward the fuel pump. This setup is using the original vapor canister, as does mine, and I have no clearance issues.


    - - - Updated - - -

    Here's another picture from a different view of someone's car on here that may help.

    View attachment 170987

    - - - Updated - - -

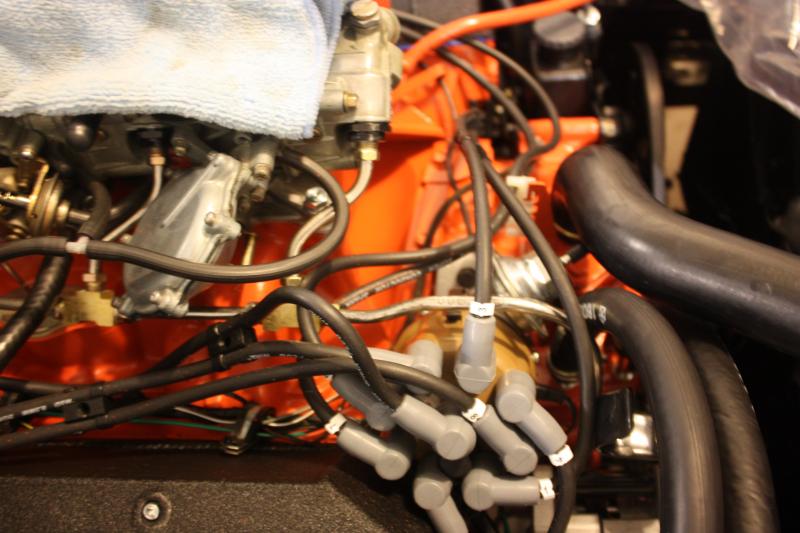

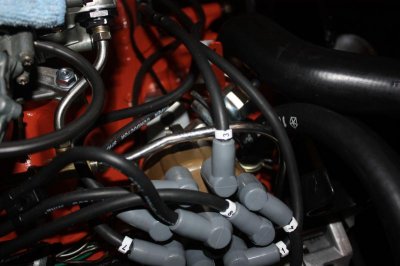

    Here's a couple more from my car. IMG_4224.jpg IMG_4222.jpg

    • Agree Agree x 1
    • lewtot184

      lewtot184 Well-Known Member

      Messages:
      4,637
      Likes Received:
      2935
      Joined:
      Aug 21, 2011
      Location:
      indianapolis
      Local Time:
      9:01 AM

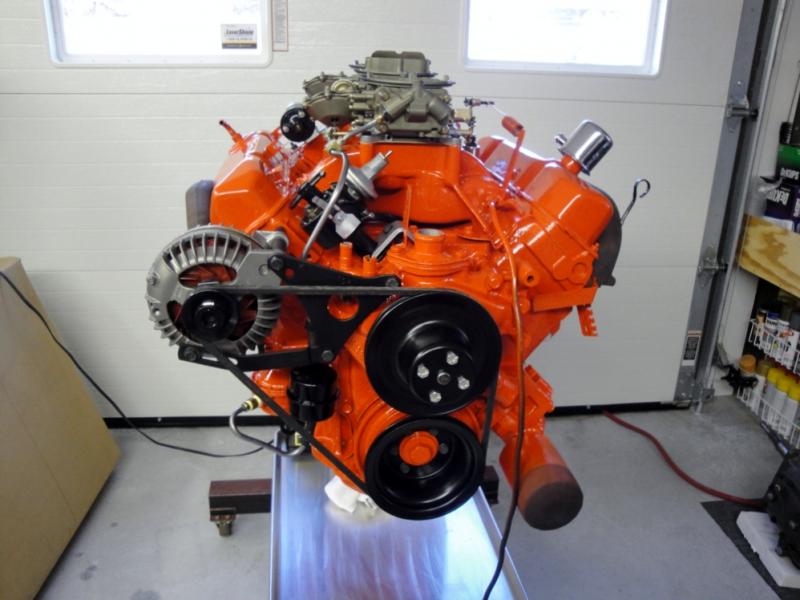

      here's a 3/8" line i bent up. routing around the distributor is the best way.


    • 62MAX

      62MAX Well-Known Member

      Messages:
      1,573
      Likes Received:
      1095
      Joined:
      Jul 21, 2008
      Location:
      PA
      Local Time:
      9:01 AM

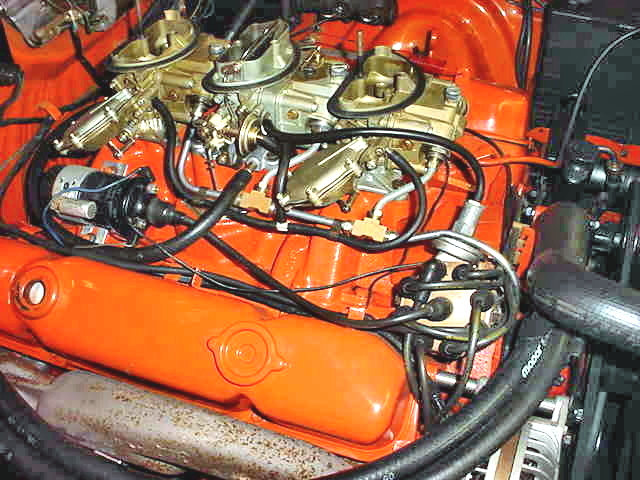

      And mine.


      Attached Files:

    • 68gtx

      68gtx Well-Known Member

      Messages:
      360
      Likes Received:
      13
      Joined:
      Dec 14, 2010
      Location:
      terrace b.c.
      Local Time:
      6:01 AM
      thanks for the info! built mine the same, where can i get some of those air filter base gaskets? i either misplaced mine or didnt get any, cant remember..

    • 440beep

      440beep FBBO Gold Member FBBO Gold Member

      Messages:
      1,115
      Likes Received:
      412
      Joined:
      Aug 6, 2012
      Location:
      NW Indiana
      Local Time:
      8:01 AM
    • 68gtx

      68gtx Well-Known Member

      Messages:
      360
      Likes Received:
      13
      Joined:
      Dec 14, 2010
      Location:
      terrace b.c.
      Local Time:
      6:01 AM
      on the center carb, there are two nipples for hoses , upper and lower, i assume the lower is for pcv , what is the upper one for? looks like the would fit a 3/8 hose

    • Meep-Meep

      Meep-Meep дворянин

      Messages:
      9,974
      Likes Received:
      3826
      Joined:
      Aug 4, 2008
      Location:
      NorCal
      Local Time:
      8:01 AM
      Fuel bowl vent to charcoal canister.

      • Like Like x 1
      • 68gtx

        68gtx Well-Known Member

        Messages:
        360
        Likes Received:
        13
        Joined:
        Dec 14, 2010
        Location:
        terrace b.c.
        Local Time:
        6:01 AM



        ok to plug it off?

      • 440beep

        440beep FBBO Gold Member FBBO Gold Member

        Messages:
        1,115
        Likes Received:
        412
        Joined:
        Aug 6, 2012
        Location:
        NW Indiana
        Local Time:
        8:01 AM
        I've got mine plugged and noticed no adverse effects. I noticed other guys have it plugged it also (two of the posted pics show plugs).


      • lewtot184

        lewtot184 Well-Known Member

        Messages:
        4,637
        Likes Received:
        2935
        Joined:
        Aug 21, 2011
        Location:
        indianapolis
        Local Time:
        9:01 AM
        the cap in the pic i posted does have a small hole in it. all factory center carbs had some kind of bowl vent. 69-70 vented to the atmosphere and 71 to a breather cap(?) or canister.

        • Like Like x 1
        • 440beep

          440beep FBBO Gold Member FBBO Gold Member

          Messages:
          1,115
          Likes Received:
          412
          Joined:
          Aug 6, 2012
          Location:
          NW Indiana
          Local Time:
          8:01 AM
          Hmmm......I knew they were vented somewhere, but didn't really want to vent to atmosphere, but think I will poke a small hole in my cap now. Thanks for the tip!


        • WM23M9

          WM23M9 FBBO Gold Member FBBO Gold Member

          Messages:
          183
          Likes Received:
          89
          Joined:
          Feb 28, 2020
          Location:
          Kansas City, MO
          Local Time:
          8:01 AM
          YES

        • RJRENTON

          RJRENTON FBBO Gold Member FBBO Gold Member

          Messages:
          1,375
          Likes Received:
          1225
          Joined:
          Jul 1, 2015
          Location:
          South Shores area of Decatur, Illinois
          Local Time:
          8:01 AM
          Out of curiosity, why don't you just buy what is needed from either Fine Lines or a similar supplier. There sre two components available: from the fuel vapor seperator to the carbs, including the around the distributor (origional Prestolite dual point distributor) line, all Tees, inverted flare nuts, all Tees to carbs. And the second set, from the fuel pump discharge to the vapor seperator. These are all 5/16" steel line and Weathead fittings just as origionally furnished. IMO...3/8" lines are not needed. These are exactly what I've used on my RS23V0A****** GTX. They are relatively inexpensive at ~ $ 40.00 for everything except the Keystone clamps and the 2 short sections of hose for the vapor seperator and fuel pump connections. Just my opinion of course.
          BOB RENTON

          • Agree Agree x 1
          • BLK 68 R/T

            BLK 68 R/T FBBO Gold Member FBBO Gold Member

            Messages:
            829
            Likes Received:
            1627
            Joined:
            Jan 10, 2016
            Location:
            Dayton, WA
            Local Time:
            6:01 AM
            It’s been 6 years, hopefully he’s got it figured out by now :lol:
