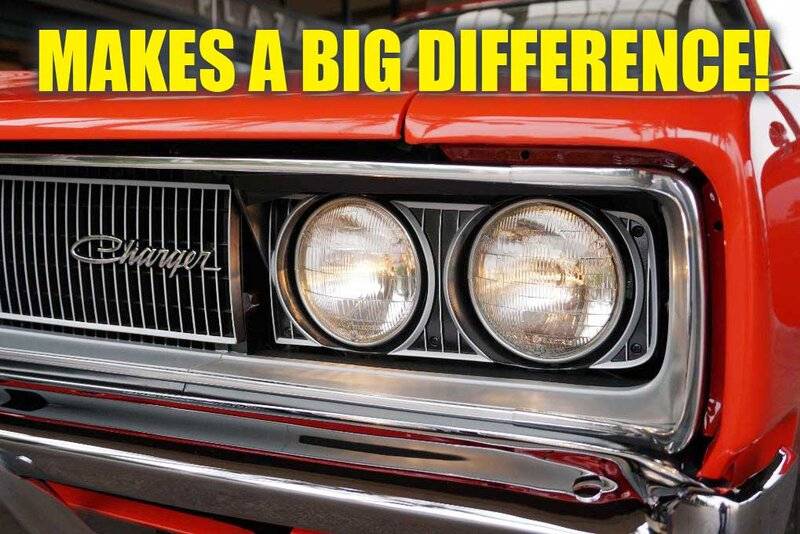

68 Charger headlight bezels, has anyone here painted these?

1968-1970 Dodge Charger Forum

  1. QOTHL

    QOTHL FBBO Gold Member FBBO Gold Member

    Messages:
    2,640
    Likes Received:
    3182
    Joined:
    Sep 13, 2017
    Location:
    Kentucky
    Local Time:
    3:28 AM
    If you have painted these back to original, please let me know how you did it.
    No offense, I'm glad 69's don't have these.

  2. partsmonsta

    partsmonsta FBBO Gold Member FBBO Gold Member

    Messages:
    378
    Likes Received:
    326
    Joined:
    Feb 14, 2012
    Location:
    Sanford, Florida
    Local Time:
    2:28 AM
    Yes, many times, but just touched them up.
    Use black DupliColor interior paint and the small DupliColor gray metallic paint...blends perfectly.
    Take the part in to match the 68 Charger dark silver.


  3. 68Charger440HP

    68Charger440HP Well-Known Member

    Messages:
    89
    Likes Received:
    107
    Joined:
    Dec 5, 2016
    Location:
    Phoenix
    Local Time:
    12:28 AM

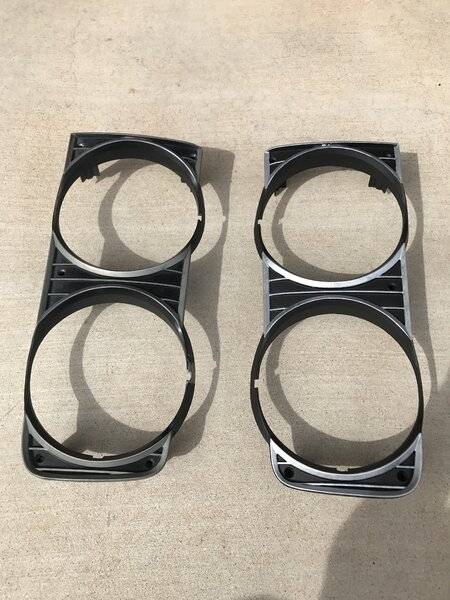

    I reconditioned mine a few years ago. I used Mother’s Back to Black and then used a silver paint pen from Hobby Lobby. Here they are side by side. One before and one after.


    • Like Like x 1
    • QOTHL

      QOTHL FBBO Gold Member FBBO Gold Member

      Messages:
      2,640
      Likes Received:
      3182
      Joined:
      Sep 13, 2017
      Location:
      Kentucky
      Local Time:
      3:28 AM
      The guy I'm doing them for has specific paint he wants like Rustoleum Metallic Matte Nickel. So I have to mask them off - already did it, it's a nightmare. He also has me using SEMS Color Coat landau black. My lines have to be straight, it has to be near perfect. I'm almost there but had problems with masking the round parts.

      That's why I posted my question to see if anyone has done it this way.
      Thanks for your help!

      • Like Like x 1
      • Triplegreen500

        Triplegreen500 Well-Known Member

        Messages:
        2,851
        Likes Received:
        6899
        Joined:
        Dec 3, 2020
        Location:
        western Maryland
        Local Time:
        3:28 AM
        I presume you're doing the black first (full coat), then masking off the parts that stay black in order to paint the silver/nickel? That, some good painters tape, and a fresh blade in an X-acto knife would be my method.

        I agree - glad my '70 doesn't have anything like that.

        I think.

        I haven't looked AT the front end with the headlights on yet! I'll get a good enough look when I install my halogen conversion lights in a couple weeks, once they arrive.

        • Like Like x 1
        • QOTHL

          QOTHL FBBO Gold Member FBBO Gold Member

          Messages:
          2,640
          Likes Received:
          3182
          Joined:
          Sep 13, 2017
          Location:
          Kentucky
          Local Time:
          3:28 AM

          Well the back was painted black, then like factory, I painted the whole front silver, then masked off the silver to paint the black. I used good painters tape, took a long time to get the curves and still had problems. They must have used a production mask, I'd bet money on it.
          Headlight bezels or no headlight bezels is probably a touchy subject - I think this handsome devil looks just fine without them:

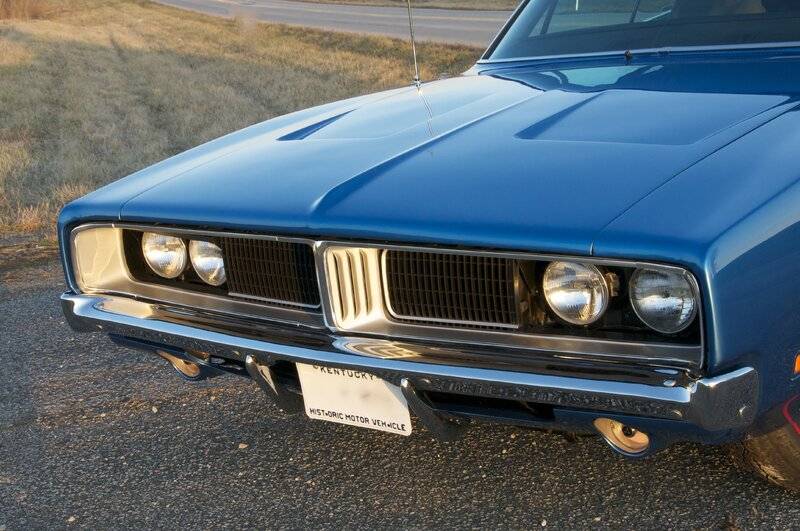

          DSC_4028.jpeg DSC_4035.jpeg


          • Like Like x 2
          • partsmonsta

            partsmonsta FBBO Gold Member FBBO Gold Member

            Messages:
            378
            Likes Received:
            326
            Joined:
            Feb 14, 2012
            Location:
            Sanford, Florida
            Local Time:
            2:28 AM
            That handsome devil is painted the wrong Silver. Charger Grilles were a dark silver. Trim blends in with this Silver, a big resto no no.

            • Like Like x 1
            • QOTHL

              QOTHL FBBO Gold Member FBBO Gold Member

              Messages:
              2,640
              Likes Received:
              3182
              Joined:
              Sep 13, 2017
              Location:
              Kentucky
              Local Time:
              3:28 AM

              That was researched and changed from the dark silver.

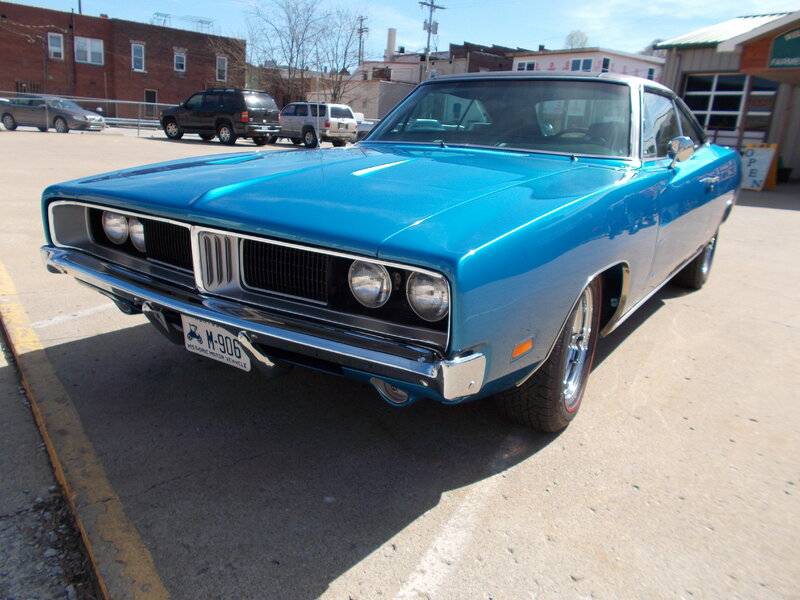

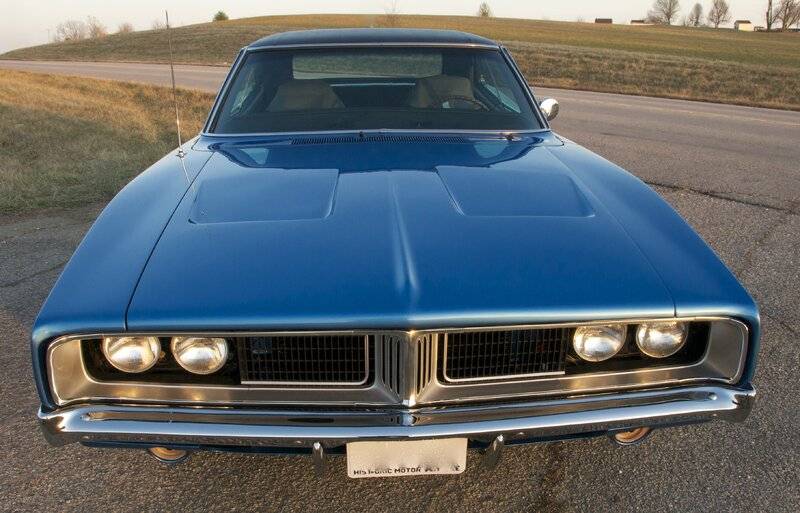

              I just went downstairs and looked at two untouched, unrestored 69 Charger front grills. One is dark and the other is light. I remember an "expert" telling me a 69 Charger couldn't have a pearl vinyl top...ooops, wrong, they can.
              Another expert told me that the tail panels are supposed to be painted with organisol. I've talked to people who do restoration paint and they have seen a lot of original 69 Chargers and have never seen it. I've looked at all of mine and none of them have that paint there either.

              I prefer the lighter silver because it helps reflect light in to the grill space. The trim contrasts by texture more than color. This car also has the light silver, back to original and looks great with B5 Blue.
              But I'm no expert.

              • Like Like x 1
              • blue69runner

                blue69runner Well-Known Member

                Messages:
                759
                Likes Received:
                845
                Joined:
                Jun 1, 2020
                Location:
                Lake Wales Fl.
                Local Time:
                3:28 AM
                Four paint one has the proper paint.

              • Jacksprater

                Jacksprater Well-Known Member

                Messages:
                53
                Likes Received:
                99
                Joined:
                Dec 22, 2019
                Location:
                British Columbia, Canada
                Local Time:
                12:28 AM

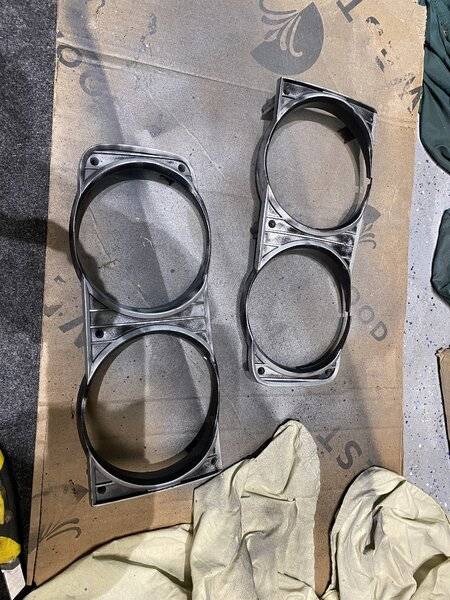

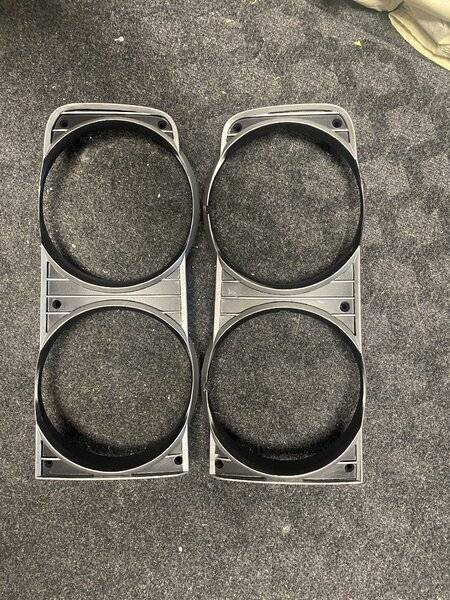

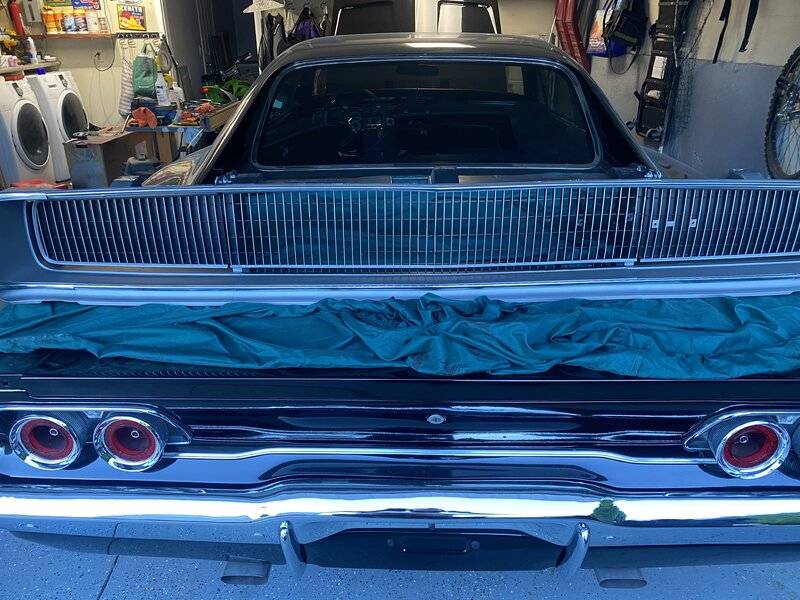

                I just did mine used Sem trim black
                & Sem titanium silver ,with Sem adhesion
                Promoter & heat gun , going to touch up a bit , did the grill as well.used a soda blaster
                to etch out the old paint

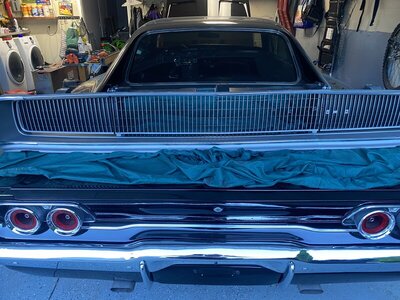

                F43AB410-F76B-4058-B248-52A3B94D5B9D.jpeg F4E4E86D-4AF5-42F5-BC58-8FDA170DB0C7.jpeg D7D9BC24-94CA-4F9A-9C2C-2C3B3995D742.jpeg 45DC5598-E621-4176-957D-B05112426330.jpeg 8BF1BB69-70AD-41CD-96ED-FC65DA92BFB5.jpeg A4F26115-A973-4425-90AF-B4E2BF1D0BB6.jpeg

                • Like Like x 3
                • QOTHL

                  QOTHL FBBO Gold Member FBBO Gold Member

                  Messages:
                  2,640
                  Likes Received:
                  3182
                  Joined:
                  Sep 13, 2017
                  Location:
                  Kentucky
                  Local Time:
                  3:28 AM

                  My car has the proper paint on it, thank you.

                  • Like Like x 2
                  • Jacksprater

                    Jacksprater Well-Known Member

                    Messages:
                    53
                    Likes Received:
                    99
                    Joined:
                    Dec 22, 2019
                    Location:
                    British Columbia, Canada
                    Local Time:
                    12:28 AM

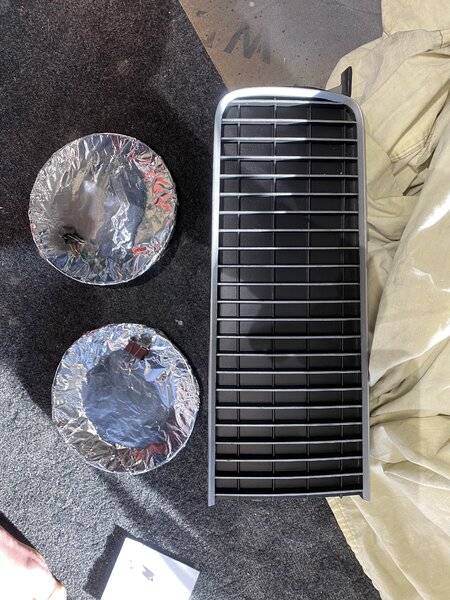

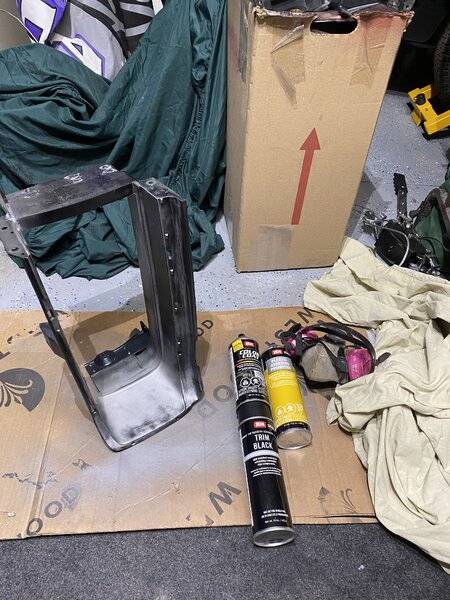

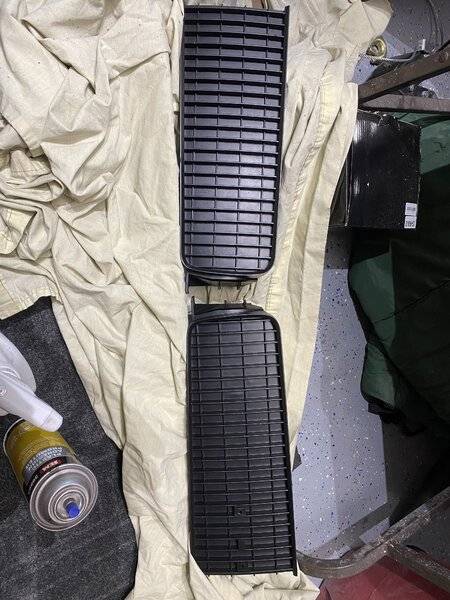

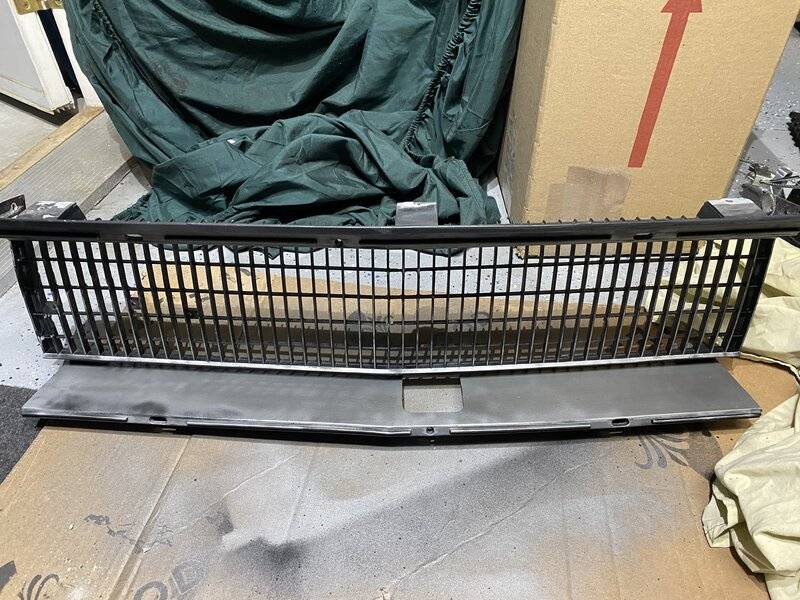

                    Hi I used SEM Trim Black 39143 & SEM Titanium Silver & SEM Adhesion Promoter for prep I used a soda media blaster I got off Amazon, built a card board box on top of 4’ table with a plexiglass 3’x2’ see through window for blasting soda works best
                    as it’s water soluble just rinse off the parts , dried them completely, any flaws or chips in the plastic I used jb weld for plastics waited 24 hrs and sanded with 400 & 800 grit wet sand paper each piece was then heated up with a heat gun ,then applied the Sem adhesion promoter follow directions on the spray can , heating between Sprays , then blacked out parts that require black, taped off the silver areas using different widths of masking tape , let dry 24 hrs , then taped off black areas , then more adhesion promoter & heat gun then sprayed Sem Silver titanium go lightly with sprays then get heavy then heat again between sprays , it stops running if you spray to much, let dry 24hrs, to get the silver stripes back to original I used a square piece of foam , pinched it off with a paper spring clip so just about an 1/8” of it was protruding at the end
                    You can see the pictures in this chat ,borrowed from the Mrs 2 pie plates with tinfoil protection, I sprayed adhesion promoter in one plate , the other silver paint
                    and gently brushed on promoter down each grill slat , then heat , then silver down each slat and more heat , go lightly don’t worry if you don’t get the paint on immediately, I gave mine 3 coats take your time have a beer and think how beautiful it will turn out , Good luck , I hope I helped you out Cheers !!!

                    • Thanks! Thanks! x 2
                    • Jacksprater

                      Jacksprater Well-Known Member

                      Messages:
                      53
                      Likes Received:
                      99
                      Joined:
                      Dec 22, 2019
                      Location:
                      British Columbia, Canada
                      Local Time:
                      12:28 AM

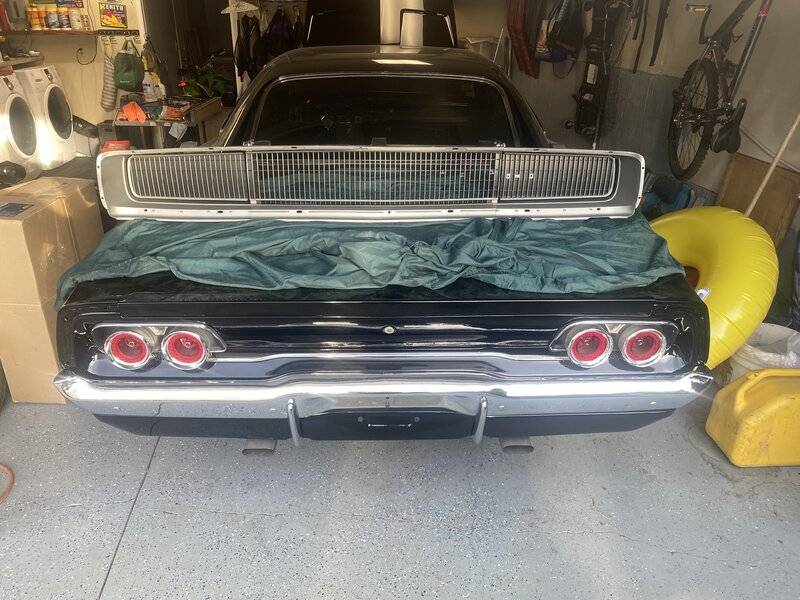

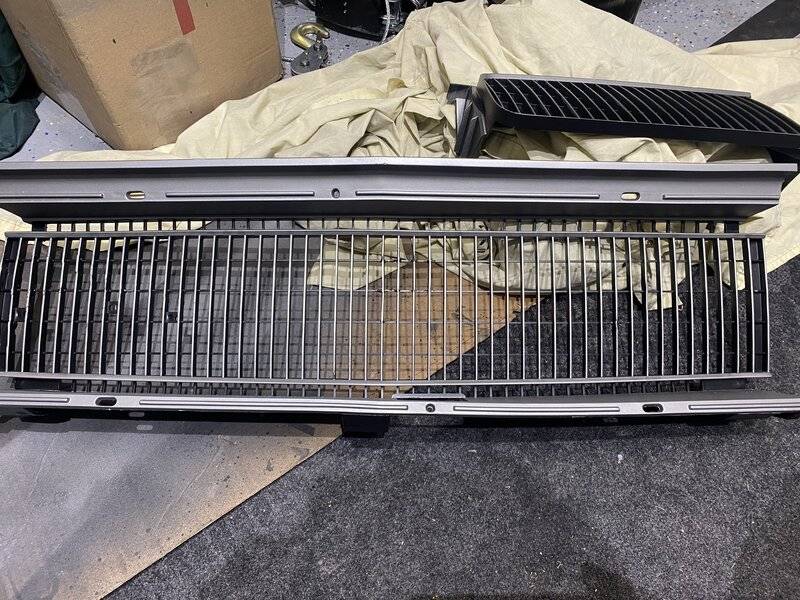

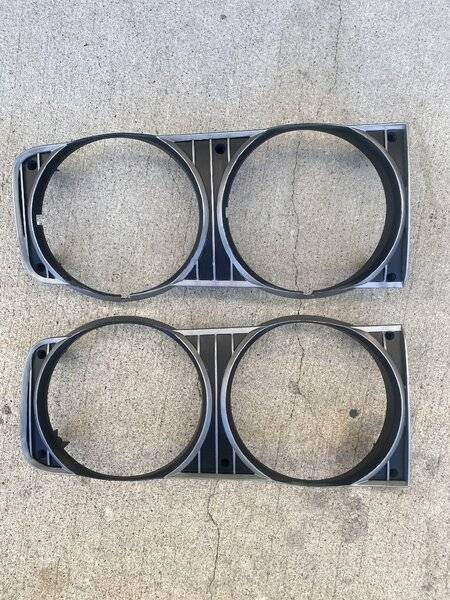

                      4526210F-C0B6-4163-88E3-C49EF4D98328.jpeg 5017B4F9-C4B3-4CED-8F86-A7390875A14D.jpeg 1CADC235-75AB-4203-878D-4545C3241F77.jpeg 2171CF0E-8FAB-4C55-BE51-DB51BE9E5083.jpeg C8B17FDB-3D7E-4698-8853-CBAD75840C16.jpeg 02CDACDE-6676-4348-83F9-F4F32DEBAC88.jpeg

                      • Like Like x 1
                      • Jacksprater

                        Jacksprater Well-Known Member

                        Messages:
                        53
                        Likes Received:
                        99
                        Joined:
                        Dec 22, 2019
                        Location:
                        British Columbia, Canada
                        Local Time:
                        12:28 AM

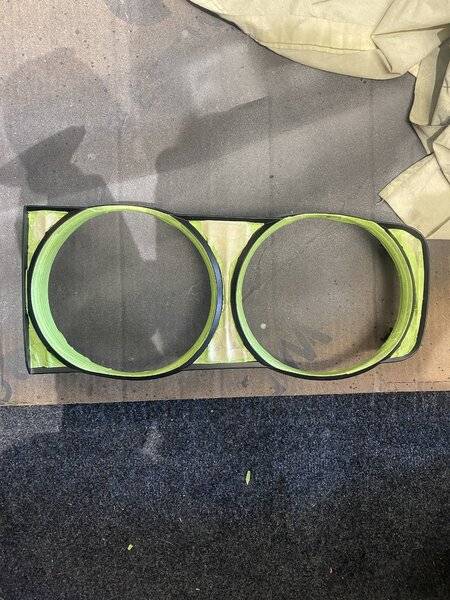

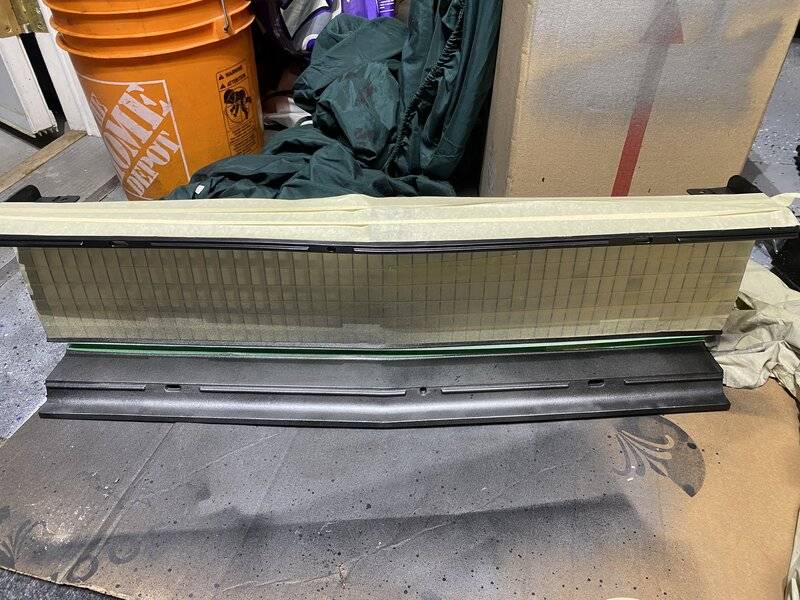

                        Hi I used 1/4” masking tape it bends easier than the other , as for getting the tape into the corners ,cut your tape at a 45 degree angles , as I found out in larger areas use more tape , so when you spray it doesn’t leach through the tape, and areas where there is single tape go lightly with the spray and heat it so it doesn’t soak , and more light sprays in those areas , good luck

                        • Thanks! Thanks! x 1
                        • blue69runner

                          blue69runner Well-Known Member

                          Messages:
                          759
                          Likes Received:
                          845
                          Joined:
                          Jun 1, 2020
                          Location:
                          Lake Wales Fl.
                          Local Time:
                          3:28 AM
                          Pin stripe tape works pretty good it stretches to the form you want. Local auto supply store.

                          • Agree Agree x 1
                          • Jacksprater

                            Jacksprater Well-Known Member

                            Messages:
                            53
                            Likes Received:
                            99
                            Joined:
                            Dec 22, 2019
                            Location:
                            British Columbia, Canada
                            Local Time:
                            12:28 AM
                            Another thing I forgot to mention when you cut your 1/4” masking tape at 45 degree angles overlap them as you go around the circumference of the circular part of the outer bezel, I just finished painting and touching up my bezels ,there not perfect by no means , but if any one is that close to your car looking at them , there too Close !!!

                            • Agree Agree x 1
                            • Jacksprater

                              Jacksprater Well-Known Member

                              Messages:
                              53
                              Likes Received:
                              99
                              Joined:
                              Dec 22, 2019
                              Location:
                              British Columbia, Canada
                              Local Time:
                              12:28 AM

                              • Like Like x 1
                              • QOTHL

                                QOTHL FBBO Gold Member FBBO Gold Member

                                Messages:
                                2,640
                                Likes Received:
                                3182
                                Joined:
                                Sep 13, 2017
                                Location:
                                Kentucky
                                Local Time:
                                3:28 AM

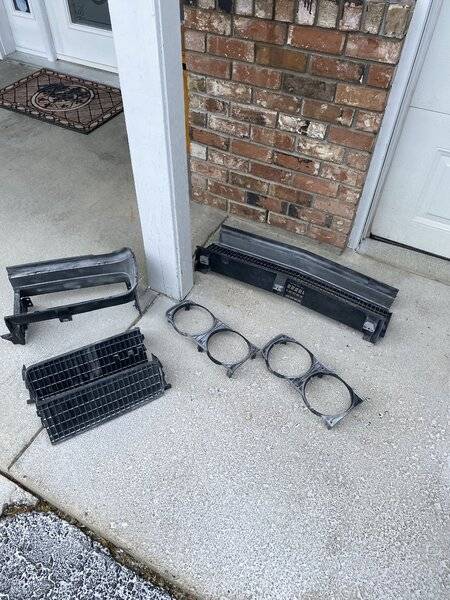

                                Unfortunately to some degree, these and the rest of the grill are for a customer. They have to be damn near perfect because they will be unpacking them and seeing them up close and personal. What I have so far after a lot of hours: Zooming in I can see a couple of little things that need touching up. Then, I hope I am done with these!:mad:

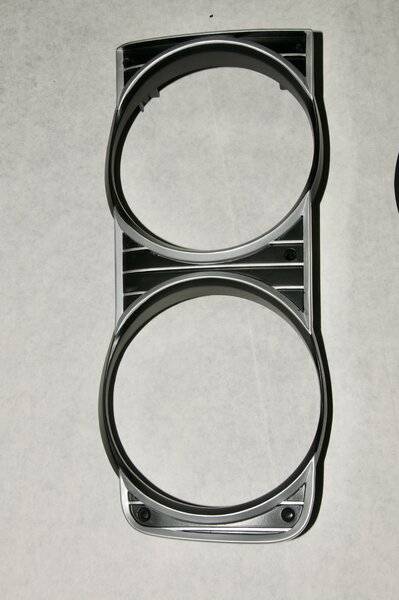

                                DSC_1669.jpeg DSC_1670.jpeg DSC_1671.jpeg

                                • Like Like x 1
                                • Jacksprater

                                  Jacksprater Well-Known Member

                                  Messages:
                                  53
                                  Likes Received:
                                  99
                                  Joined:
                                  Dec 22, 2019
                                  Location:
                                  British Columbia, Canada
                                  Local Time:
                                  12:28 AM
                                  Wow excellent Workmanship!! Your customer
                                  Will be Happy

                                  • Like Like x 1
                                  • QOTHL

                                    QOTHL FBBO Gold Member FBBO Gold Member

                                    Messages:
                                    2,640
                                    Likes Received:
                                    3182
                                    Joined:
                                    Sep 13, 2017
                                    Location:
                                    Kentucky
                                    Local Time:
                                    3:28 AM
                                    Could be better but at some point I have to stop. There are things I would do different if I had to do this again....:realcrazy:
                                    I hope you're right because I'm working for someone who got this job from a shop and I don't want to make him OR myself look bad.

                                    I really appreciate your help and kind words.
