69 GTX convertible top hose routing

General Mopar Tech Discussions

  1. RBcoolB

    RBcoolB FBBO Gold Member FBBO Gold Member

    Messages:
    35
    Likes Received:
    23
    Joined:
    Sep 24, 2017
    Location:
    Iowa
    Local Time:
    9:27 AM
    any body have a diagram of the hose routing from pump to cylinders on a 69.
    I know there is a double hump clamp on each side of the pump but then is it just lose behind the seat the rest of the way to cylinder?

  2. JackR

    JackR Member

    Messages:
    6
    Likes Received:
    5
    Joined:
    May 11, 2019
    Location:
    Gilbert Arizona
    Local Time:
    7:27 AM

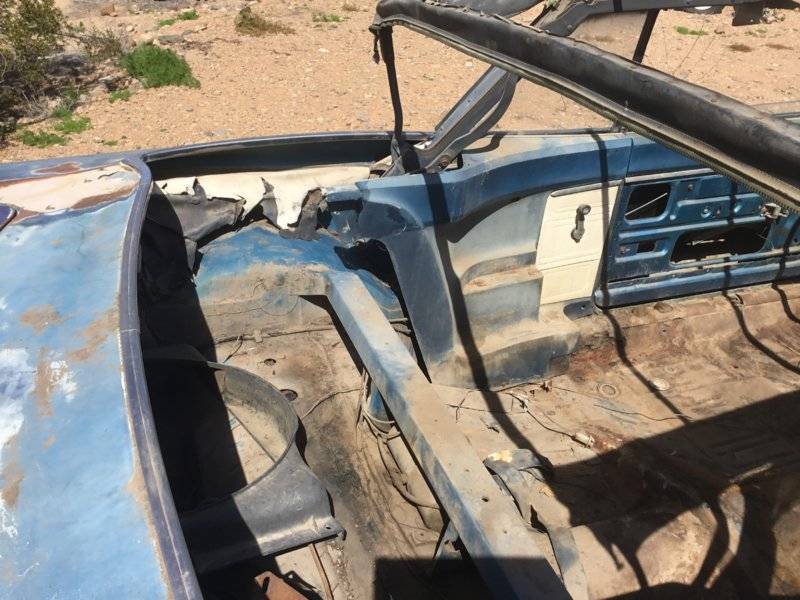

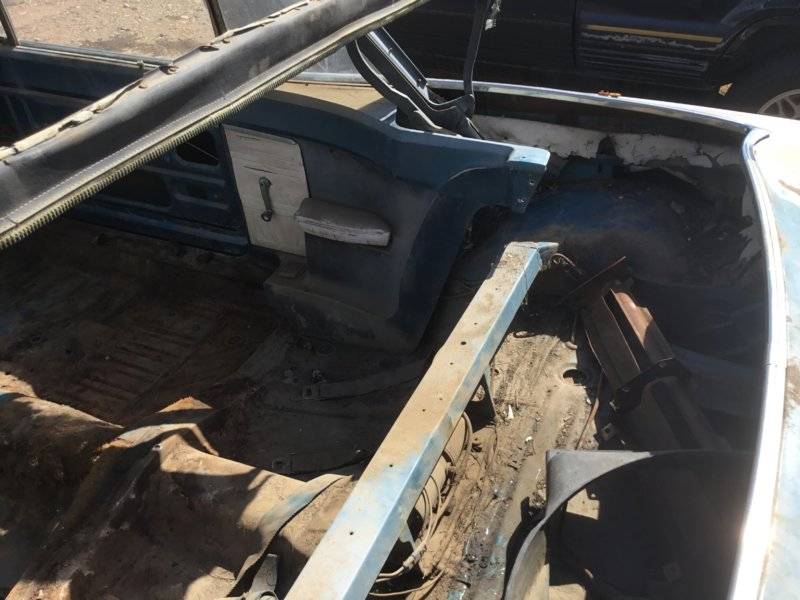

    81D91B59-C4F4-40E9-B007-2181884364F7.jpeg 26651A63-8188-40A7-BF75-0632A9DF7785.jpeg 81D91B59-C4F4-40E9-B007-2181884364F7.jpeg I have some poor pictures of my 69. These looked original placement hope it gives you something you can use for reference.

  3. Fran Blacker

    Fran Blacker FBBO Gold Member FBBO Gold Member

    Messages:
    5,720
    Likes Received:
    5123
    Joined:
    Sep 23, 2016
    Location:
    Connecticut
    Local Time:
    10:27 AM

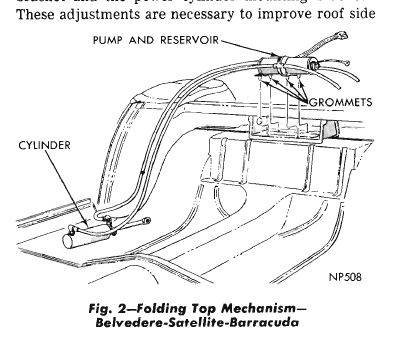

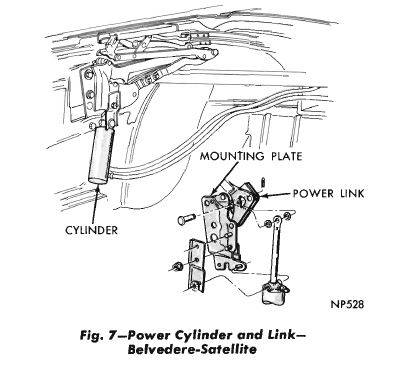

    vert.JPG vert1.JPG vert.JPG vert1.JPG This from a 68 SM, downloaded from mymopar.com you could go there to get a 69 in tools and referance. Not detailed 2nd picture is maybe premounting or bleeding ??

  4. RBcoolB

    RBcoolB FBBO Gold Member FBBO Gold Member

    Messages:
    35
    Likes Received:
    23
    Joined:
    Sep 24, 2017
    Location:
    Iowa
    Local Time:
    9:27 AM
    Thanks for the help
