71-74 rear frame dimensions

1971 - 1974 Mopars

  1. multimopes

    multimopes FBBO Gold Member FBBO Gold Member

    Messages:
    2,022
    Likes Received:
    2556
    Joined:
    May 6, 2015
    Location:
    Columbia ,NJ
    Local Time:
    9:26 AM
    Question. Are the (inside to inside) rear frame dimensions the same on a 71/72 vs a 73/74 at the point just before it bends up over the axel? I measured approx. 36" on my 73 Satty. I need to know for fitting something that says no according to the book. I believe that they should be but maybe not.

  2. YY1

    YY1 Well-Known Member

    Messages:
    17,629
    Likes Received:
    9683
    Joined:
    Jun 26, 2010
    Location:
    FL
    Local Time:
    9:26 AM
    Is it a rear sway bar?

    I believe they are.

    ...all the way to 79.

    I have a 71 I can measure but it might be a while.

    I'm pretty sure you can swap the whole rear axle and spring assembly.

    Not technically involving those frame rails, but the forward shackle mounts.

    • Thanks! Thanks! x 1
    • Nacho-RT74

      Nacho-RT74 FBBO Gold Member FBBO Gold Member

      Messages:
      4,640
      Likes Received:
      1582
      Joined:
      Oct 8, 2012
      Location:
      Valencia, España
      Local Time:
      3:26 PM
      rear frame rails are the same on all 71/74 2 doors B bodies. Differences could be on some hole provisions according with year options changes, but rails are the same shape and lenght

      • Thanks! Thanks! x 1
      • Agree Agree x 1
      • moparmarks

        moparmarks FBBO Gold Member FBBO Gold Member

        Messages:
        6,212
        Likes Received:
        2426
        Joined:
        Jul 31, 2011
        Location:
        Western Colorado
        Local Time:
        7:26 AM

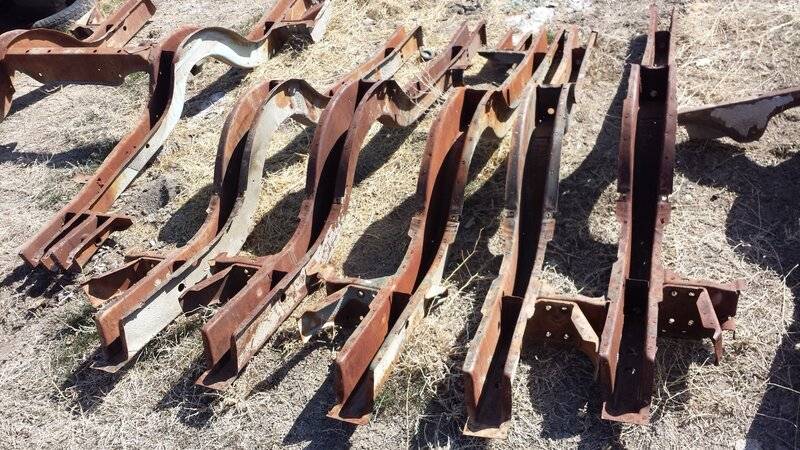

        Here are each year of the rear frames.


        • Thanks! Thanks! x 1
        • multimopes

          multimopes FBBO Gold Member FBBO Gold Member

          Messages:
          2,022
          Likes Received:
          2556
          Joined:
          May 6, 2015
          Location:
          Columbia ,NJ
          Local Time:
          9:26 AM

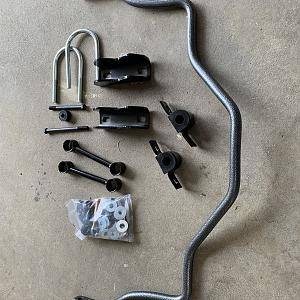

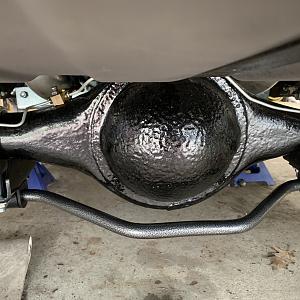

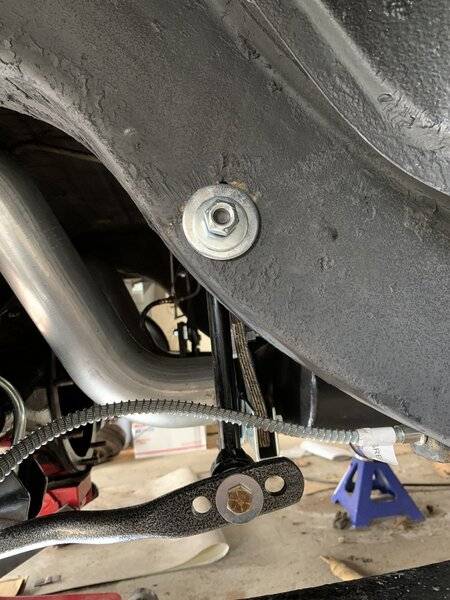

          Yessir, you guessed it! Thank you all for responding. I want to install a Hellwig rear sway bar that clamps around the rear housing & runs underneath the pumpkin and bolts to adjustable holes in the flattened tubing that is tied to rods that connect to through bolts that you have to drill through the rear frame on each side. My car has offset spring hangers and the leaf springs are in line with the frame rails. The sway bar ends are inside the frame and it looks to me that there shouldn't be any interference with anything. Of course, because the 73 & 74 cars came with a different rear spring setup with the rubber isolation blocks as well as the front k-frame, the aftermarket nixes things that will work as they don't always know. My car was changed out to the old solid style of u-bolts and shock mounts. That being said, when searching the web, Hellwig makes the bar I want for the 71 & 72 but says it won't fit the 73 & 74.
          I thank (65 satellite) for the idea and photos that I "borrowed!"
          swaybar2.jpeg sway1.jpeg sway3.jpeg

          Last edited: May 17, 2021
        • YY1

          YY1 Well-Known Member

          Messages:
          17,629
          Likes Received:
          9683
          Joined:
          Jun 26, 2010
          Location:
          FL
          Local Time:
          9:26 AM
          I'm pretty sure my car has factory holes for sway bar mounts in the frame rails.

          However, the captive bolts don't look fun to put in or take out.

        • multimopes

          multimopes FBBO Gold Member FBBO Gold Member

          Messages:
          2,022
          Likes Received:
          2556
          Joined:
          May 6, 2015
          Location:
          Columbia ,NJ
          Local Time:
          9:26 AM
          It appears that I have those (small) holes there as well. I actually went to a small Mopar bone yard over 10 years ago and bought the front & rear factory sway bars. Installed the front but found out that the rear would not fit due to the rear spring relocation inward for drag racing tire clearance. I gave the rear bar to another member here who lived about 20 miles away for his project. Unfortunately the member moved away and is no longer active on this site. Also the former owner of the small Mopar yard passed away some time ago and it closed up. When ever I get the chance to do this, I will also change out my 3.91 gear set for 3.23s. Again, thank you all for your input.

        • Nacho-RT74

          Nacho-RT74 FBBO Gold Member FBBO Gold Member

          Messages:
          4,640
          Likes Received:
          1582
          Joined:
          Oct 8, 2012
          Location:
          Valencia, España
          Local Time:
          3:26 PM
          72 and lates get the holes for the sway bar brackets, 71s not. Rear sway bar didn't exist for 71s

          74s get square holes for the bumper guard bottom braces fasteners ( U nuts ). 71/73 gets an extra bracket for that.

          Those are two diff between rear frame rails I'm sure. Maybe there are more and moparmarks will know better than me.

          • Thanks! Thanks! x 1
          • multimopes

            multimopes FBBO Gold Member FBBO Gold Member

            Messages:
            2,022
            Likes Received:
            2556
            Joined:
            May 6, 2015
            Location:
            Columbia ,NJ
            Local Time:
            9:26 AM
            Thanks Nacho, I appreciate your help. All I need now is money, time & a lift, Lol!
            :lol:

          • moparmarks

            moparmarks FBBO Gold Member FBBO Gold Member

            Messages:
            6,212
            Likes Received:
            2426
            Joined:
            Jul 31, 2011
            Location:
            Western Colorado
            Local Time:
            7:26 AM

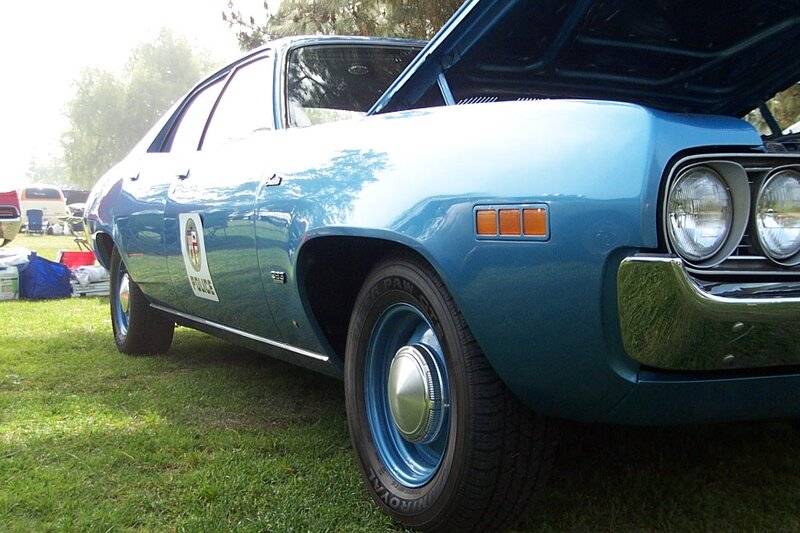

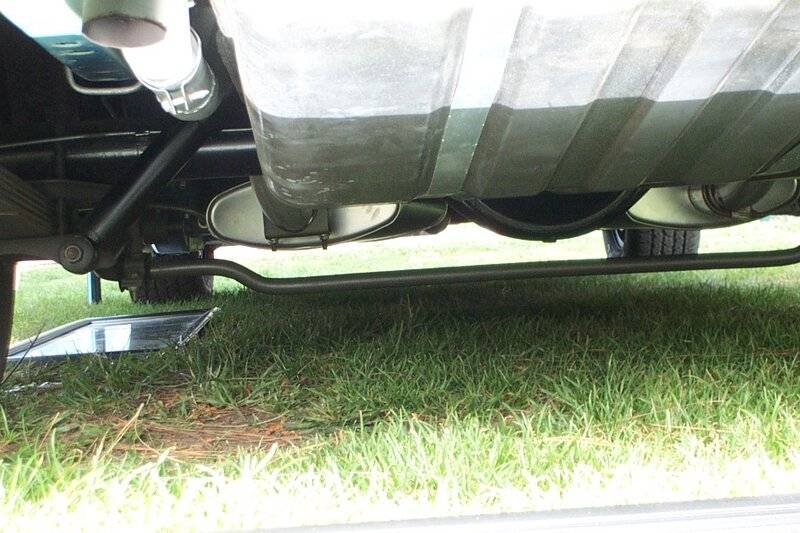

            Actually Nacho 71's did have the dimples for the sway bar holes as 71 cop cars had the rear sway bar. Passenger car did not have a sway bar. All of my 71 frames have the dimples.

            DCP_0059.JPG DCP_0053.JPG

            • Thanks! Thanks! x 1
            • Nacho-RT74

              Nacho-RT74 FBBO Gold Member FBBO Gold Member

              Messages:
              4,640
              Likes Received:
              1582
              Joined:
              Oct 8, 2012
              Location:
              Valencia, España
              Local Time:
              3:26 PM
              as I told, Moparmarks will know better LOL

              • Agree Agree x 1
              • multimopes

                multimopes FBBO Gold Member FBBO Gold Member

                Messages:
                2,022
                Likes Received:
                2556
                Joined:
                May 6, 2015
                Location:
                Columbia ,NJ
                Local Time:
                9:26 AM
                Thank you all again!:thumbsup:

              • Grabbergreendream

                Grabbergreendream Well-Known Member

                Messages:
                233
                Likes Received:
                221
                Joined:
                Jul 1, 2017
                Location:
                Ashtabula Ohio
                Local Time:
                9:26 AM
                That Hellwig looks like a pretty stout piece!
                I put an Adco on my 71' only because it was free & new. I have a 73 rail on my passenger side. Drilled 4 holes & it's in.

                • Like Like x 1
                • multimopes

                  multimopes FBBO Gold Member FBBO Gold Member

                  Messages:
                  2,022
                  Likes Received:
                  2556
                  Joined:
                  May 6, 2015
                  Location:
                  Columbia ,NJ
                  Local Time:
                  9:26 AM
                  I looked at the Adco & noted it seemed the only aftermarket rear bar listed, at least on Summit. I called them to ask the actual width on a couple bars I thought might fit but they didn't have any info on that. They told me to call Hellwig for that & I did. The guy who's project I saw the bar from in post #5 above actually said he got a Summit branded one for about a hundred dollars less. I tried to cross reference a Summit bar the same way but they don't make a knock off of the Hellwig, at least not in the proportion I need.

                • T2R9

                  T2R9 FBBO Gold Member FBBO Gold Member

                  Messages:
                  1,510
                  Likes Received:
                  2327
                  Joined:
                  Jul 18, 2008
                  Location:
                  South Carolina
                  Local Time:
                  9:26 AM
                  • Thanks! Thanks! x 1
                  • multimopes

                    multimopes FBBO Gold Member FBBO Gold Member

                    Messages:
                    2,022
                    Likes Received:
                    2556
                    Joined:
                    May 6, 2015
                    Location:
                    Columbia ,NJ
                    Local Time:
                    9:26 AM
                    Thank you for the link. That is a better price! But does it include shipping??
                    Post some pics if you took any.

                    Last edited: May 21, 2021
                  • T2R9

                    T2R9 FBBO Gold Member FBBO Gold Member

                    Messages:
                    1,510
                    Likes Received:
                    2327
                    Joined:
                    Jul 18, 2008
                    Location:
                    South Carolina
                    Local Time:
                    9:26 AM
                    Free Shipping. See the link in my sig. last page. I can take for you more if you like.

                  • multimopes

                    multimopes FBBO Gold Member FBBO Gold Member

                    Messages:
                    2,022
                    Likes Received:
                    2556
                    Joined:
                    May 6, 2015
                    Location:
                    Columbia ,NJ
                    Local Time:
                    9:26 AM
                    I did click that but didn't see the big "free shipping" posted right there. On second look it could have bit my nose off for crying out loud! Between getting old & working the midnight shift, I ain't worth a crap, Lol!
                    :thankyou:

                  • T2R9

                    T2R9 FBBO Gold Member FBBO Gold Member

                    Messages:
                    1,510
                    Likes Received:
                    2327
                    Joined:
                    Jul 18, 2008
                    Location:
                    South Carolina
                    Local Time:
                    9:26 AM
                    I meant the link in my signature for my 71 build for the pics of my install.

                    • Thanks! Thanks! x 1
                    • multimopes

                      multimopes FBBO Gold Member FBBO Gold Member

                      Messages:
                      2,022
                      Likes Received:
                      2556
                      Joined:
                      May 6, 2015
                      Location:
                      Columbia ,NJ
                      Local Time:
                      9:26 AM
                      Thanks for redirecting me. I missed that one too. I don't ever remember seeing a build thread link at the bottom of someone's post like that. Once again, too soon olt und too late shmart! Wow, you are doing a great job on your 71 Charger. I did however poke your avatar looking for a photo garage, but not having found one , decided to punt on first down. Thanks again!
                      :thumbsup:
