cking hazard lights operation on 66 satellite

Electrical & Ignition

  1. gtx6970

    gtx6970 Well-Known Member

    Messages:
    433
    Likes Received:
    477
    Joined:
    Dec 29, 2015
    Location:
    Tucson AZ
    Local Time:
    12:41 PM
    Ok
    just found out this week car has no 4 way flashers / hazard lights at all.

    Looked under dash found missing flasher unit. so I plugged on I had on hand in and still nuttin. ( Ive no idea of the one I have is good or not. )
    it has a 3 way plug that takes a 550 flasher unit. yet the plug only has 2 wires in it???
    This normal ?
    I cant find the flasher wiring schematic in the 1966 service manual I have

  2. Lefty71

    Lefty71 FBBO Gold Member FBBO Gold Member

    Messages:
    1,735
    Likes Received:
    1864
    Joined:
    Mar 8, 2018
    Location:
    Ohio
    Local Time:
    3:41 PM
    There is none. I think it may have been option, certainly wasnt standard equipment on a '66

    • Agree Agree x 2
    • Fran Blacker

      Fran Blacker FBBO Gold Member FBBO Gold Member

      Messages:
      9,503
      Likes Received:
      9121
      Joined:
      Sep 23, 2016
      Location:
      Connecticut
      Local Time:
      3:41 PM
      Mine was dealer installed because feds made them mandatory 1/66. 67 SM would have one may not be the same? Do you have a dash switch and a jumble wire under dash for it.

    • gtx6970

      gtx6970 Well-Known Member

      Messages:
      433
      Likes Received:
      477
      Joined:
      Dec 29, 2015
      Location:
      Tucson AZ
      Local Time:
      12:41 PM
      best I remember when I first looked at this car.
      Owner told me updated to a 67 dash to get the brake system indicator light

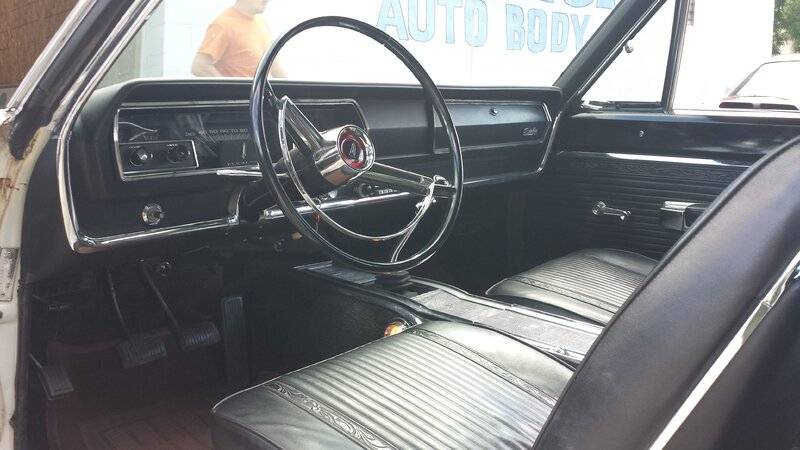

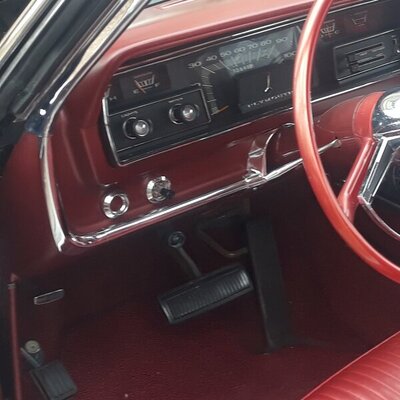

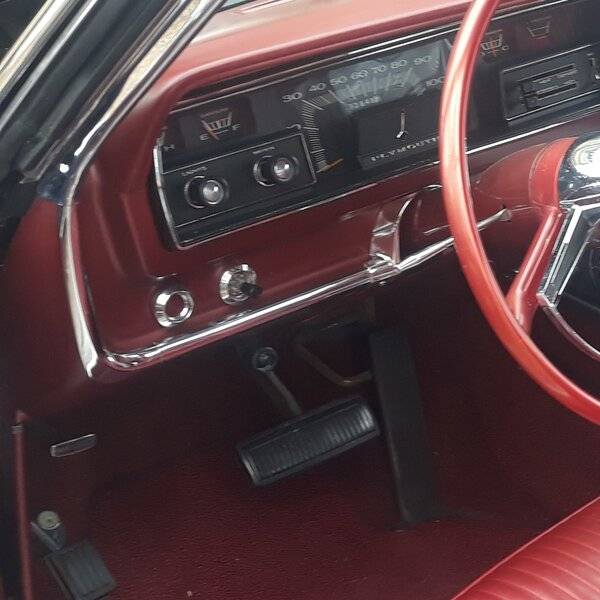

      so, I can only assume it has the related 67 dash harness . And yes it has a dash switch , left side of steering column , next to said brake light

      ps, I have not search back thru / from the relay pigtail to ck if its a separate harness or not


    • Fran Blacker

      Fran Blacker FBBO Gold Member FBBO Gold Member

      Messages:
      9,503
      Likes Received:
      9121
      Joined:
      Sep 23, 2016
      Location:
      Connecticut
      Local Time:
      3:41 PM
      My flasher switch is under wiper knob, about 2" to 2.5" from column. Not exact measurement.

    • 64BEL

      64BEL Well-Known Member

      Messages:
      4,093
      Likes Received:
      4506
      Joined:
      Feb 25, 2010
      Location:
      Wisconsin
      Local Time:
      2:41 PM
      Yes, it was an option in '66 for $12.60. Your switch is in the same spot as mine.



    • Fran Blacker

      Fran Blacker FBBO Gold Member FBBO Gold Member

      Messages:
      9,503
      Likes Received:
      9121
      Joined:
      Sep 23, 2016
      Location:
      Connecticut
      Local Time:
      3:41 PM

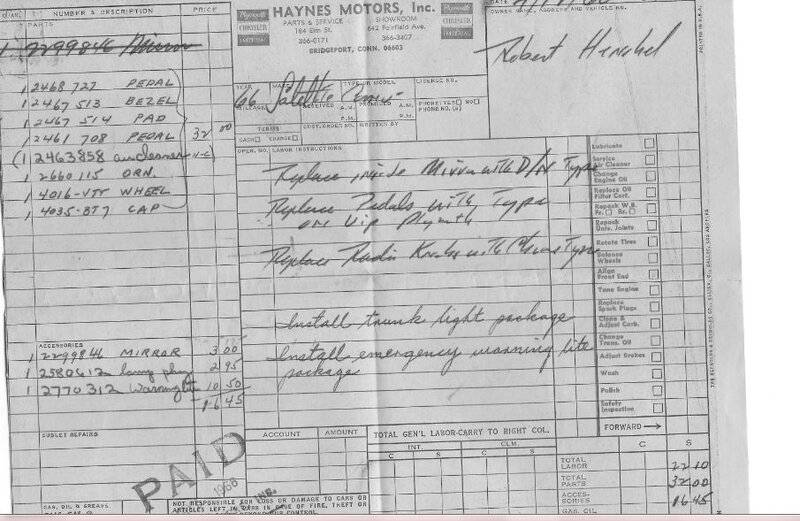

      The flasher switch? in picture is where my convertible top switch is. My flasher switch is to the right. Don't if you'll be able to read work order it has $10.50 for flashers. The work order date is 4/12/66 delivered 4/15/66. There were changes steering wheel to woodgrain for one. Was your flashers on window sticker, mine wasn't. work order.JPG

    • 64BEL

      64BEL Well-Known Member

      Messages:
      4,093
      Likes Received:
      4506
      Joined:
      Feb 25, 2010
      Location:
      Wisconsin
      Local Time:
      2:41 PM

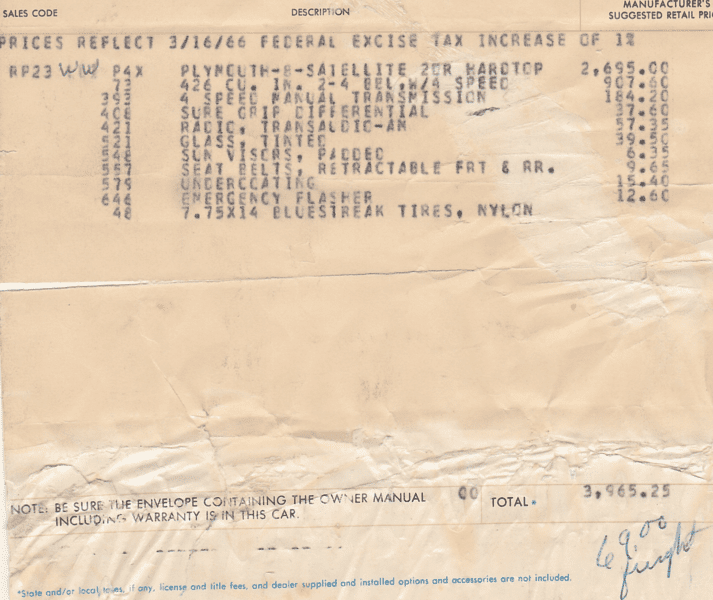

      Yes, it's code 646 on the sticker - second from the bottom - just above the tires. Is gtx6970's a convertible, too? I assumed the switch I saw in his pic is the flasher.

    • gtx6970

      gtx6970 Well-Known Member

      Messages:
      433
      Likes Received:
      477
      Joined:
      Dec 29, 2015
      Location:
      Tucson AZ
      Local Time:
      12:41 PM
      My car is a hardtop.

      I think mine is factory, especially with a April 66 SBD it should be correct ?

      Ps, my 67 service manual shows the same 2 way type plug for hazard flashers as the turn signal flashers.

      My car has a 3 way plug for said hazard flasher,,,,,,but only 2 wires in it

      Last edited: Apr 11, 2021
      • Agree Agree x 1
      • Fran Blacker

        Fran Blacker FBBO Gold Member FBBO Gold Member

        Messages:
        9,503
        Likes Received:
        9121
        Joined:
        Sep 23, 2016
        Location:
        Connecticut
        Local Time:
        3:41 PM
        Don't think so there there would be two switches. I haven't used top switch in 5 years, and flasher switch since I found it doesn't work. Can't say which position is flasher/top switch.:rolleyes:

      • AR67GTX

        AR67GTX Well-Known Member

        Messages:
        1,652
        Likes Received:
        832
        Joined:
        Jan 28, 2012
        Location:
        Arkansas
        Local Time:
        2:41 PM
        From my GTX and it’s manual I think the emergency hazards system was incorporated into the basic dash wiring harness for 1967. I would try to trace it out but with AC it’s hard to get around under dash. In the 66 b-body I’m pretty sure it was an auxiliary harness that was installed - probably - by piggyback connection to the back of the fuse panel or some other piggy back power source. For what that’s worth. My 66 which seems to be dated about the same period (April) doesn’t have it and the new M&H wiring harness has no provisions for it. By 67 it was shown as part of the shop manual wiring diagrams.

        That’s not to surprising as on my 66 I had to transfer the accessory fuse holder from my old fuse block to the new one and also install the original supplemental harnesses for accessories radio, clock, console, heater, and a couple others I forget. Pretty sure it was probably an after- thought though 66 model year although they may have made an engineering change late in the year.

      • gtx6970

        gtx6970 Well-Known Member

        Messages:
        433
        Likes Received:
        477
        Joined:
        Dec 29, 2015
        Location:
        Tucson AZ
        Local Time:
        12:41 PM
        Well.
        I did some digging around under dash. And best i can tell its an overlay harness. plugs into and back out of steering column wiring.

        Got the switch loose and i have no battery voltage at the switch on any terminal. Yet all fuses are good.

        So ......i plan to drop the steering column for some much needed room underdash and ck and trace wiring to see what i come up with

      • AR67GTX

        AR67GTX Well-Known Member

        Messages:
        1,652
        Likes Received:
        832
        Joined:
        Jan 28, 2012
        Location:
        Arkansas
        Local Time:
        2:41 PM
        The 67 manual shows four leads in and out of the switch. One lead has a couple of runs out to the rear signal/parking lights.

        One runs to the emergency flasher and the other lead out of the flasher to the brake light switch.

        Another lead runs to #7 position in the turn signal wiring plug. Shows to be brown. It shows another lead into #7 from the opposite end of the brake light switch.

        Another lead runs to the #1 position in the turn signal wiring plug. Shows to be light green. A second lead leaves #1 and runs to the bulkhead and out to the front signal lights.

        of course the 66 auxiliary harness may be configured a lot differently. I’m assuming the system is powered by the hot lead side of the brake light switch which should be a pink wire.

        Hope this helps.
