For years when tracing down electrical problems in cars I have used a method that has been extremely helpful at times. While checking for shorts, opens, and trying to figure out what wire goes to what component, sometimes I have found it very helpful to stick a pin into the wire and then attach the meter or continuity tester to the pin. Here is a device that does just that. You pull back the spike with the round trigger, grab the wire with the hook shaped end of the tool, connect the alligator clip to a voltage source, and then using the trigger, you pierce the installation of the wire. If there is continuity the body of the tool lights up. I thought my pin method was pretty clever, but this takes it to another level.


bm02tj

Well-Known Member
Local time
6:21 AM
Joined
Jan 27, 2013
Messages
2,594
Reaction score
5,528
Location
BC Canada
That works in some places around most it will cause more trouble than it is worth with corroded wires
OTC makes one that has multiple pricks that are small enough to not damage wire
but old wires it still does


dan juhasz

FBBO Gold Member
FBBO Gold Member
Local time
9:21 AM
Joined
Aug 5, 2016
Messages
1,226
Reaction score
1,386
Location
Whiting NJ
Fluke has that adapter but much smaller, wire corrosion is the downfall down the line


snakeyes

Well-Known Member
Local time
9:21 AM
Joined
May 5, 2011
Messages
31,024
Reaction score
42,040
Location
ohio
A lot of shops can not use them because of so many problems with corrosion especially warranty claims


bm02tj

Well-Known Member
Local time
6:21 AM
Joined
Jan 27, 2013
Messages
2,594
Reaction score
5,528
Location
BC Canada
I watch a U-Haul rep use scotch locks on a customers truck and I told the customer to have some one fix the damaged wires as soon as he got home and before they screwed up his lights the UHaul rep was not happy with me and told me to mind my own business
So I responded only and idiot would ruin wiring that way


Darrah

Active Member
Local time
9:21 AM
Joined
Jul 24, 2021
Messages
29
Reaction score
24
Location
Richmond, VA
I use the Fluke piercing clip quite often at work, but it’s a 60 year old aluminum plant… a tiny hole is the least of my worries. I’d be more cautious in an automotive environment (especially anything under the hood).


dan juhasz

FBBO Gold Member
FBBO Gold Member
Local time
9:21 AM
Joined
Aug 5, 2016
Messages
1,226
Reaction score
1,386
Location
Whiting NJ
I watch a U-Haul rep use scotch locks on a customers truck and I told the customer to have some one fix the damaged wires as soon as he got home and before they screwed up his lights the UHaul rep was not happy with me and told me to mind my own business
So I responded only and idiot would ruin wiring that way
Spot on, on a side note you should see the damage I see on my customers cars that have a none factory remote start installed on their new cars. It's criminal to hack up a cars harness like that. I usually remove them within 2 to 3 years because of the issues that arise.


Photon440

FBBO Gold Member
FBBO Gold Member
Local time
6:21 AM
Joined
Mar 14, 2012
Messages
13,309
Reaction score
16,681
Location
Surrey, B.C. Canada

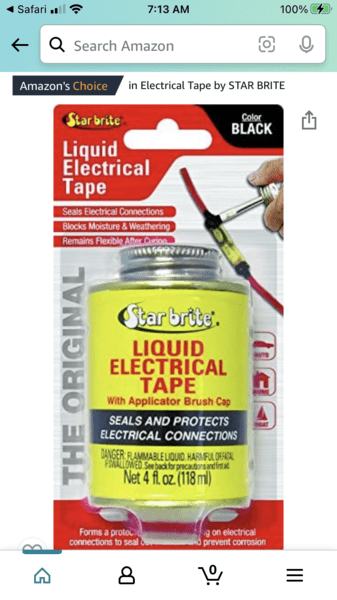

Seriously? I've been using liquid tape for years, it's better than shrink tube for multiple wire splices.


kiwigtx

Henchman #4
Staff member
FBBO Gold Member
Local time
1:21 AM
Joined
Jun 12, 2012
Messages
26,893
Reaction score
59,410
Location
NZ - just short of the South Pole

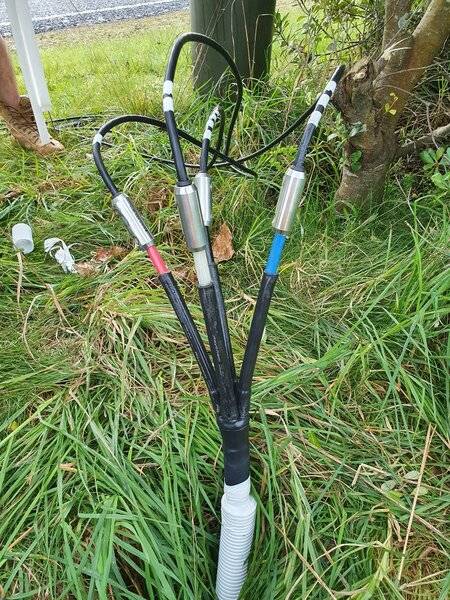

Here's a shot of a cable I was tailing down for connection to the roadside pillar on Monday this week. Aluminium 70mm 4-core down to 16mm copper as the fuses only take copper cable. I use Raychem heat-shrinks ...heavy wall mostly. That 4-way breakout boot is also a Raychem item. Using Aluminium cable for the run to the house due to voltage drop over 75 metres.....quarter the price of copper.

The links shown are barrier isolated sheer bolt links.



I'll have a chance to use my new Insulation Resistance test meter next week when I connect up. :thumbsup:


Billccm

FBBO Gold Member
FBBO Gold Member
Local time
6:21 AM
Joined
Aug 3, 2016
Messages
2,888
Reaction score
2,569
Location
Tucson
Seriously? I've been using liquid tape for years, it's better than shrink tube for multiple wire splices.
I will agree somewhat. The mining industry approves of liquid tape in certain situations. It does eventually crack under vibration.


kiwigtx

Henchman #4
Staff member
FBBO Gold Member
Local time
1:21 AM
Joined
Jun 12, 2012
Messages
26,893
Reaction score
59,410
Location
NZ - just short of the South Pole
I will agree somewhat. The mining industry approves of liquid tape in certain situations. It does eventually crack under vibration.
I can't see me being allowed to use it at the Quarry where I work. The rocks and fines would cut through in no time at all.
All the plates for mounting switchgear on have to be hardened steel.....normal steel rusts away in a year or two. And the fine get stuck in cable looms, and eventually rub through even the heaviest insulations.

I repaired some heavy duty Steel-Wire-Armoured cables at Christmas time that had rubbed all the PVC outer off, and had started on the steel armour too. I could see inner conductor PVC. :eek:


Photon440

FBBO Gold Member
FBBO Gold Member
Local time
6:21 AM
Joined
Mar 14, 2012
Messages
13,309
Reaction score
16,681
Location
Surrey, B.C. Canada
I will agree somewhat. The mining industry approves of liquid tape in certain situations. It does eventually crack under vibration.
Yeah, I can see that. I'm not talking about heavy industrial purposes for myself though. For the original mention of touching up a pierced wire on a 12v system, it will do just fine. I've got it in black and red liquids.


toolmanmike

Henchman #2
Staff member
FBBO Gold Member
Local time
8:21 AM
Joined
Aug 11, 2010
Messages
8,401
Reaction score
14,910
Location
Iowa
Back probe only. A poke in the insulation and the slightest bit of moisture and corrosion changes the continuity and can mess with anything computer related. Silicone for a sealer is the worst.
