Where does the ground jumper go? I'm sure it goes on the sender to fuel line(?) Can't seem to find it in the manual or thought I had a picture of it before I replaced the tank and lines.
Thanks!
Thanks!
Ground jumper for fuel tank/gauge
- Thread starter rrTor-Red
- Start date
- Local time
- 9:15 AM
- Joined
- Jun 12, 2012
- Messages
- 35,215
- Reaction score
- 94,407
- Location
- NZ - just short of the South Pole
The toothed claw ends go on the bare steel parts of the fuel delivery line - one on the fuel sender outlet - the other end goes on the bare fuel line.
That's what I thought but wanted to make sure sense I can't find the picture or in the manual. THANKS!!
Nacho-RT74
Well-Known Member
- Local time
- 11:15 PM
- Joined
- Oct 8, 2012
- Messages
- 6,080
- Reaction score
- 2,511
- Location
- Valencia, España
Sometimes google is your friend LOL
mopar73dge
Well-Known Member
It seems when you purchase a sending unit or fuel line kit the grounding strap is too short I had to use my old one which works but does not look new, also the reproduction b body sending units are a straight tube out to the rubber line, the original sending units have a curved end,
Nacho-RT74
Well-Known Member
- Local time
- 11:15 PM
- Joined
- Oct 8, 2012
- Messages
- 6,080
- Reaction score
- 2,511
- Location
- Valencia, España
There are two lenghts for it
bee71
Well-Known Member
Did not mean to post.
Last edited:

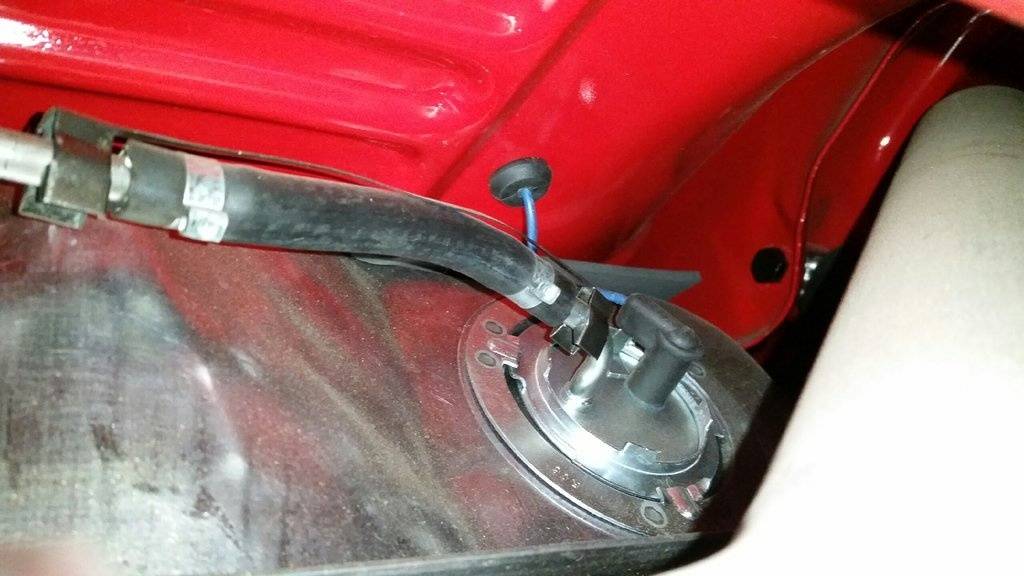

Since you're crawling up under there anyway, it might be worth your while to ditch that factory strap, which doesn't really provide a nice tight connection, in favor of a ground wire or strap that you can securely clamp at both ends... Just for added peace o' mind....this is what I did. Kind of hard to see, but I secured it with a hose clamp tightened around the sending unit
747mopar
Well-Known Member
I didn't think the factory strap looked very reliable myself, I took a small copper pipe clamp and made a strap that draws down tight on the sending unit nipple and grounded it to the body.
Thought of that as well, beanhead. I have the same ground jumper for my engine that I got working in aviation. Looks and functions the same as factory. I know I have a stainless one coming to "look" like factory strap but heck, who would really come under to look at that? I mean, as long as it is grounded/"bonded" and the fuel gauge works, who cares?
I think I'll do the same, 747mopar.
Nacho-RT74
Well-Known Member
- Local time
- 11:15 PM
- Joined
- Oct 8, 2012
- Messages
- 6,080
- Reaction score
- 2,511
- Location
- Valencia, España
I installed the strap maybe 7 years ago. Before that didn't have anythin and allways worked. Actually never needed, just installed for correctness. It was getting ground through the straps and J bolts I guess.
747mopar
Well-Known Member
The other reason I did mine that way is because I routed my fuel line down my subframe connectors using rubber coated clamps so my line isn't a good source for ground.
HT413
Semi Pro Bowler
We are all of like mind here. I used a 12g wife, stripped at both ends - 1 grounded to the body, the other to the sender.
I wana see that! But on a lighter note I agree with the above, I soldered the stripped end for a good clamp.
- Local time
- 9:15 AM
- Joined
- Jun 12, 2012
- Messages
- 35,215
- Reaction score
- 94,407
- Location
- NZ - just short of the South Pole
HT413
Semi Pro Bowler
Lmao, now that's funny right there.
idrivemopar
Well-Known Member

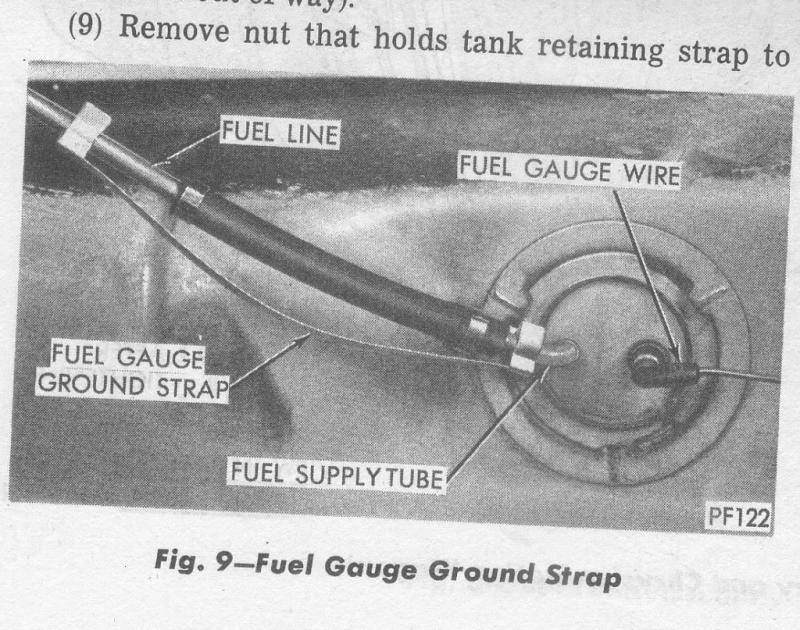

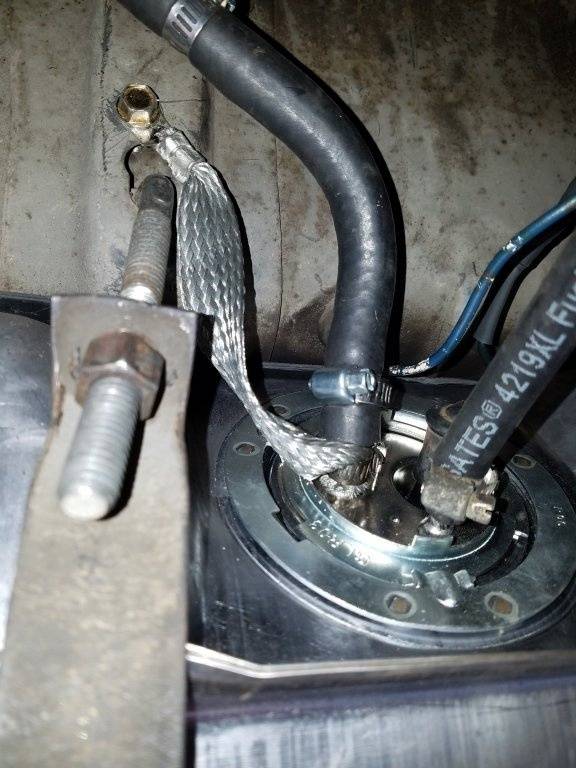

Here is a picture of a real setup to support Nachos diagram, I only wish I knew where I got the new sender with the correct curved pipe, because I had the same problem when I restored my car, I could only find ones with straight pipe out, but I found this one and unfortunately its not in my parts spreadsheet! Also just to note, I never have had any issue before or after restoration with the ground clip.
