Headlight relays on a car with concealed headlights

Electrical & Ignition

  1. Kern Dog

    Kern Dog FBBO Gold Member FBBO Gold Member

    Messages:
    20,999
    Likes Received:
    54609
    Joined:
    Apr 13, 2012
    Location:
    Granite Bay CA
    Local Time:
    1:32 PM
    I thought I got some low beam pictures but I guess that I didn't. These pictures are of high beams.
    The wattage is 55 low 60 high.

    Holeeeee crap!

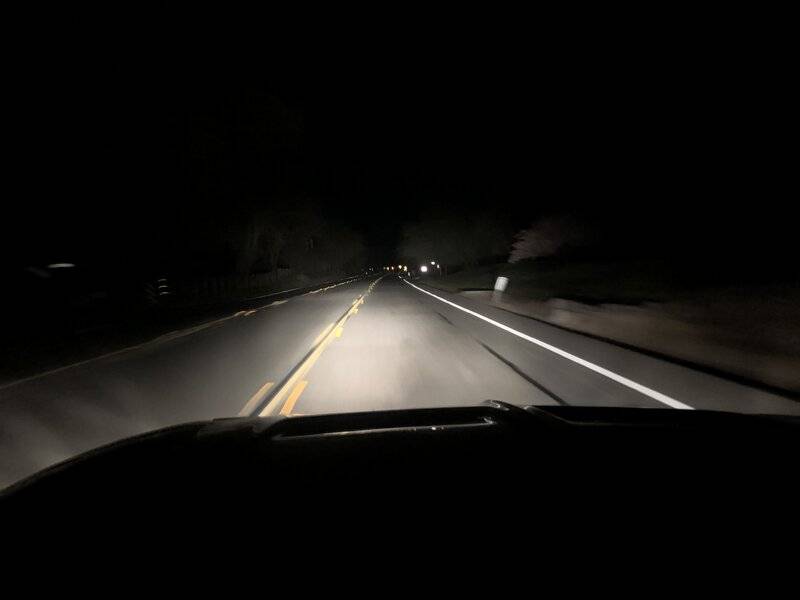

    Hella 22.JPG

    It is a little strange. On low beams, I don't even see a cut-off at the top. Compared to the Halogen sealed beams, it is just a brighter and even pattern all over. They even light up street signs hundreds of feet down the road.

    That concentrated blob to the left side is a little weird. It appears to be from the outer lamp on the left side but only with all 4 lights going. If I aimed the outer left up higher, I wonder if my low beam "nice and even" pattern would change. I'll mess with it a little more.

    Hella 24.JPG

    Sorry for the blurry picture. It does show how well it lights up way down the road.
    There aren't many deer out here but I was wondering if one would cross the road while I was bombing away. This 5 speed and the stereo had me speeding along and having a great time!

    • Like Like x 1
    • Nacho-RT74

      Nacho-RT74 FBBO Gold Member FBBO Gold Member

      Messages:
      4,579
      Likes Received:
      1553
      Joined:
      Oct 8, 2012
      Location:
      Valencia, España
      Local Time:
      10:32 PM
      Halogen lights, diff than the regular tugsteng lights, get a gas into the glass ( halogen of course ) who recirculate the burnt filament fumes into the bulb being recicled. This is what makes them to look brighter and longer life except for one detail, radiates more heat throught the glass. With the heat of the glass and the gas being recirculated, any oiled surface will make to increase the glass temperature just like a boling oil pan and will make the same to the filament with the gas also getting temp increased, hence the reason it blows.

      • Thanks! Thanks! x 1
      • Nacho-RT74

        Nacho-RT74 FBBO Gold Member FBBO Gold Member

        Messages:
        4,579
        Likes Received:
        1553
        Joined:
        Oct 8, 2012
        Location:
        Valencia, España
        Local Time:
        10:32 PM
        Low beams are low/high and the pattern changes along with the filament being used. High and low filaments are located at diff spot into the parabolic focus, so any small variation is made on purpouse. Lows and highs are not just about power/lumens, but also distance to be covered, so the filaments are located in diff position to reach this too via geometric location into the headlight.

        Front lense makes the rest about radiation. Some small radiation beams are kept onto the close areas around. Not everything must be focused just into the long distance when using highs.

        However is true there is something weird between left and right side focus over the road. And not just on lows but also noticeable on highs. Somehow they are not even.

        H1 and H4 are the bulb kind to be used. This of course matches to the lense accordingly

        Last edited: Mar 27, 2021
        • Thanks! Thanks! x 1
        • 72RoadrunnerGTX

          72RoadrunnerGTX FBBO Gold Member FBBO Gold Member

          Messages:
          1,345
          Likes Received:
          893
          Joined:
          Jan 14, 2009
          Location:
          Shoreline, Washington
          Local Time:
          1:32 PM

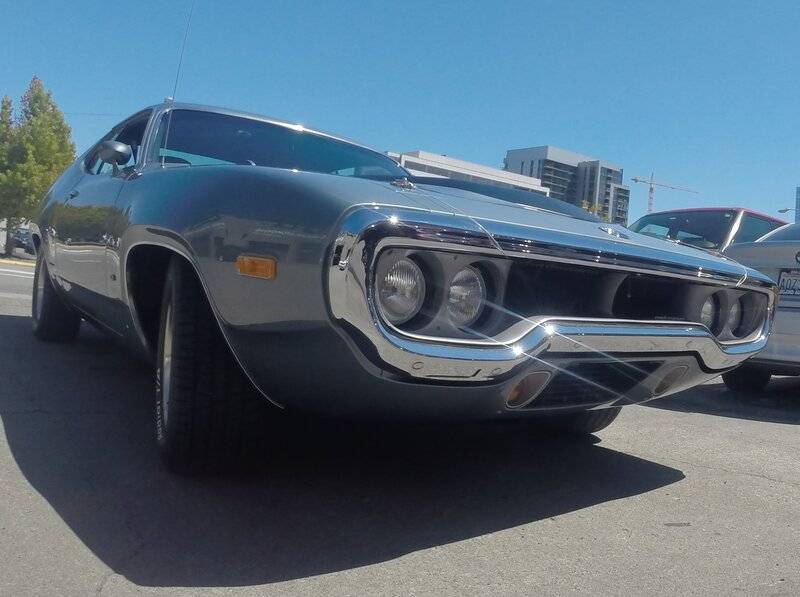

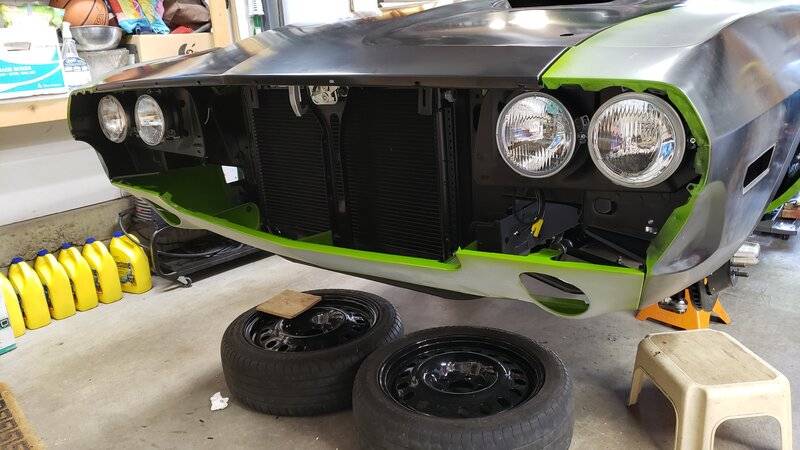

          I opt to run the 100/85W H4s, 100W H1s on my Hella E code installs.



          • Thanks! Thanks! x 1
          • Kern Dog

            Kern Dog FBBO Gold Member FBBO Gold Member

            Messages:
            20,999
            Likes Received:
            54609
            Joined:
            Apr 13, 2012
            Location:
            Granite Bay CA
            Local Time:
            1:32 PM
            How is the pattern? Are the low beams wide and even? Mine seem to be....with no sharp cutoff.
            I had Hella H4s in my 76 Camaro. The cutoff was dramatic with those. Below the cutoff, you had enough light to do surgery, above, it was enough to see reflectors but otherwise dim.

          • Sixtycycle

            Sixtycycle New Member

            Messages:
            1
            Likes Received:
            1
            Joined:
            Feb 23, 2021
            Location:
            Florida
            Local Time:
            4:32 PM
            I need a complete conversion harness setup for a 69’ Roadrunner Crackleback how do I get ahold of you to order?

            • Thanks! Thanks! x 1
            • 72RoadrunnerGTX

              72RoadrunnerGTX FBBO Gold Member FBBO Gold Member

              Messages:
              1,345
              Likes Received:
              893
              Joined:
              Jan 14, 2009
              Location:
              Shoreline, Washington
              Local Time:
              1:32 PM

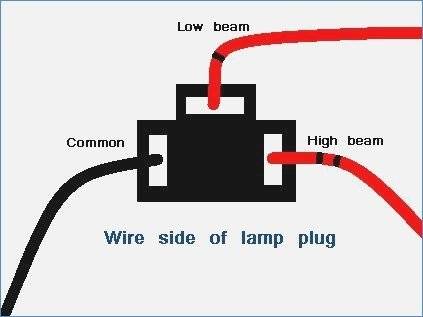

              Yep, on low beam, should have a sharp definition with a slight up angle to the right. May want to double check the pinout connection to the H4.



            • Kern Dog

              Kern Dog FBBO Gold Member FBBO Gold Member

              Messages:
              20,999
              Likes Received:
              54609
              Joined:
              Apr 13, 2012
              Location:
              Granite Bay CA
              Local Time:
              1:32 PM
              I had the left low/high lamp adjusted too low. That was why it showed a "blob" on the left side and not the right. Tonight I adjusted the low beams against the shop door.

              • Like Like x 1
              • Crackedback

                Crackedback Well-Known Member

                Messages:
                360
                Likes Received:
                332
                Joined:
                Aug 12, 2008
                Location:
                Southern California
                Local Time:
                1:32 PM
                Nice and those are providing very good light. Well done on that and good to read you got the lights adjusted better.

                Surprising what providing voltage to the lights will do for performance.

                • Agree Agree x 2
