How many gaskets for 63 440 Taillights?

AndersonC

New Member
Local time
4:17 AM
Joined
Apr 29, 2022
Messages
2
Reaction score
0
Location
Live Free or Die
Help please. I cannot find a diagram of the taillight assembly of a 1963 440 Sedan and am confused by how many gaskets (gray?) are on the inside. Without taking a taillight off and apart, can someone tell me how many are inside? One or two?
I know I need the two outer black gaskets (taillight to body) but how many gray gaskets are on the inside?
Thank you!
AJ

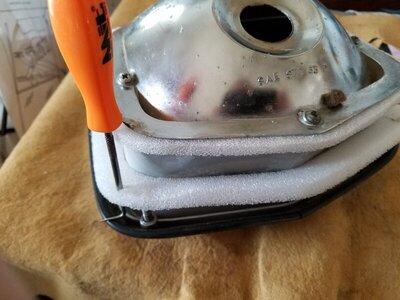

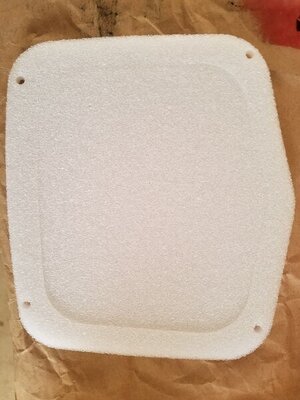

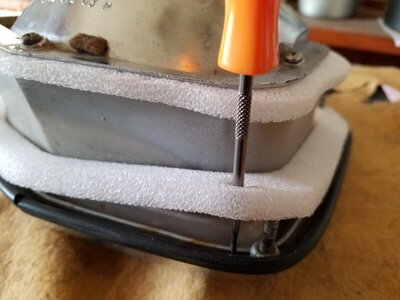

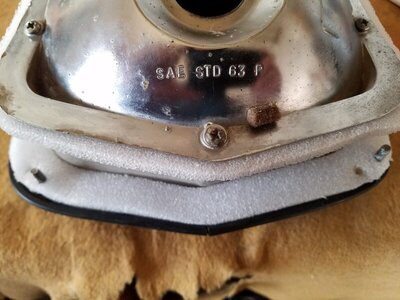

There are 2 grey gaskets ,one between the housing and lens and one between the lens and bezel.

Not the same ride; but yeah light gasket ‘kits’ can be a hoot. Parking light kit was a bigger...hoot..

20170504_184905.jpg 20170504_184712.jpg 20170504_185323.jpg 20170504_185537.jpg
