Ignition system prefrence

Electrical & Ignition

  1. 67 Coronet Conv

    67 Coronet Conv Well-Known Member

    Messages:
    49
    Likes Received:
    49
    Joined:
    Dec 1, 2019
    Location:
    Sacramento
    Local Time:
    3:24 AM
    Going to upgrade my ignition system, thoughts on the 3 systems below? Currently have electronic ignition with Mopar ECU and MSD high vibration coil.

    MSD-6AL with MSD high vibration coil

    Rev-n-nator with their coil
    http://thertgarage.com/products.html

    FBO with their coil
    http://4secondsflat.com/

    thanks

  2. 493 Mike

    493 Mike FBBO Gold Member FBBO Gold Member

    Messages:
    3,222
    Likes Received:
    3542
    Joined:
    Dec 25, 2011
    Location:
    White Cloud, MI
    Local Time:
    6:24 AM
    What do you hope to achieve with this change? Any problems now? Usage of car?
    Mike

  3. 67 Coronet Conv

    67 Coronet Conv Well-Known Member

    Messages:
    49
    Likes Received:
    49
    Joined:
    Dec 1, 2019
    Location:
    Sacramento
    Local Time:
    3:24 AM
  4. Nacho-RT74

    Nacho-RT74 FBBO Gold Member FBBO Gold Member

    Messages:
    4,579
    Likes Received:
    1553
    Joined:
    Oct 8, 2012
    Location:
    Valencia, España
    Local Time:
    12:24 PM
    I opted for the Rev-N-nator myself being a plug and play job, no mods anywhere and totally stock look except for the rev limiter/tach setup built into the box which is visible, but is true they are getting problems with inventory for whatever reason.

    ( Running Rev-N-Nator box with chromed Blaster II coil and MP ( Mallory ) dist )

    Is true I also entered on the first release offer for these when they came out for the first time ( being the first generation... I know they got new generation with internal upgrades ), being on the waiting list. I think paid maybe $100 or so?

    I think you are forgetting two other options on setup... Pertronix Ignitor ( I, II or III ) and RTR MSD dist. You only mentioned system with separated ign modules. I guess is a matter of prefference getting separated the dist from the ignition box module?

  5. 91r/t

    91r/t FBBO Gold Member FBBO Gold Member

    Messages:
    2,413
    Likes Received:
    3112
    Joined:
    May 7, 2011
    Location:
    Buffalo, NY
    Local Time:
    5:24 AM
    Mopar ECU's have become junk over the past few years and are now even discontinued by them which shows you their quality and plan overall. I run the Rev-n-Nator, but they are out of stock for quite some time. FBO ignition stuff is spot on but just doesn't look factory and was my only negative when I went Rev-n-Nator.

  6. 493 Mike

    493 Mike FBBO Gold Member FBBO Gold Member

    Messages:
    3,222
    Likes Received:
    3542
    Joined:
    Dec 25, 2011
    Location:
    White Cloud, MI
    Local Time:
    6:24 AM
    I am happy, so far, with my HEI conversion on my 65 poly 318.
    Mike

  7. 67 Coronet Conv

    67 Coronet Conv Well-Known Member

    Messages:
    49
    Likes Received:
    49
    Joined:
    Dec 1, 2019
    Location:
    Sacramento
    Local Time:
    3:24 AM
    I did look in to the MSD RTR distb but I have edelbrock RPM performer heads and read somewhere that they need to grind a portion of the head down to get it to fit. Anyone know if there is any truth to that? I’ll look into Petronix sytem.

    thanks

  8. Nacho-RT74

    Nacho-RT74 FBBO Gold Member FBBO Gold Member

    Messages:
    4,579
    Likes Received:
    1553
    Joined:
    Oct 8, 2012
    Location:
    Valencia, España
    Local Time:
    12:24 PM
    Not that I’m a fan of non stock look system but actually the Pertronix Ignitor is more an option I talk more for those with stock points system, but also an option for any other setup.

    being you have a 67 could be an option use the old stock points dist with the Ignitor system. Is not more than RTR system built to be instaled into the stock dist. Just need to bypass/modify the ballast.

    Last edited: Aug 3, 2020
    • Agree Agree x 1
    • Bee1971

      Bee1971 Well-Known Member

      Messages:
      987
      Likes Received:
      932
      Joined:
      Jun 22, 2017
      Location:
      Sobieski
      Local Time:
      5:24 AM
    • Bee1971

      Bee1971 Well-Known Member

      Messages:
      987
      Likes Received:
      932
      Joined:
      Jun 22, 2017
      Location:
      Sobieski
      Local Time:
      5:24 AM
      Same with the Pertronix RTR Distributors

      They will hit the Edelbrock Head
      E Street and RPM

      • Like Like x 1
      • Nacho-RT74

        Nacho-RT74 FBBO Gold Member FBBO Gold Member

        Messages:
        4,579
        Likes Received:
        1553
        Joined:
        Oct 8, 2012
        Location:
        Valencia, España
        Local Time:
        12:24 PM
        Juts in case, I meant Pertronix Ignition, I mean the module to be installed INTO the STOCK alt, not any RTR distributor from them.

      • threewood

        threewood FBBO Gold Member FBBO Gold Member

        Messages:
        4,955
        Likes Received:
        6422
        Joined:
        May 30, 2014
        Location:
        Yuma, AZ
        Local Time:
        3:24 AM
        I've had awesome luck with two Pertronix modules in both of my cars. Zero complaints.

      • diesel_lv

        diesel_lv Well-Known Member

        Messages:
        718
        Likes Received:
        637
        Joined:
        Dec 17, 2018
        Location:
        Arizona
        Local Time:
        4:24 AM
        I have great performance from my HEI conversion. Mopar performance electronic ignition from 1997. Got rid of orange box, took ballast apart and put 10ga wire inside and reinstalled. Used aluminum mount on bottom of distributor for heat sink for HEI module. A Blaster coil will work great. I went with an MSD performance HEI module.

      • 6872n73

        6872n73 Well-Known Member

        Messages:
        137
        Likes Received:
        99
        Joined:
        Apr 5, 2010
        Location:
        Oklahoma
        Local Time:
        5:24 AM

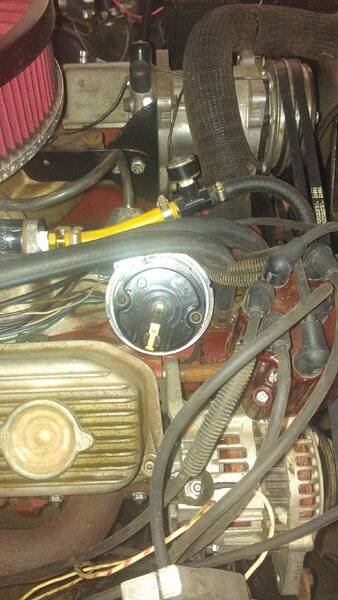

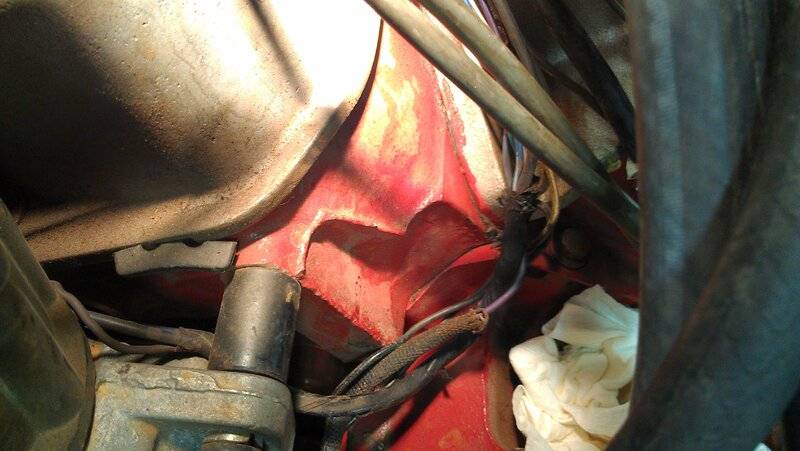

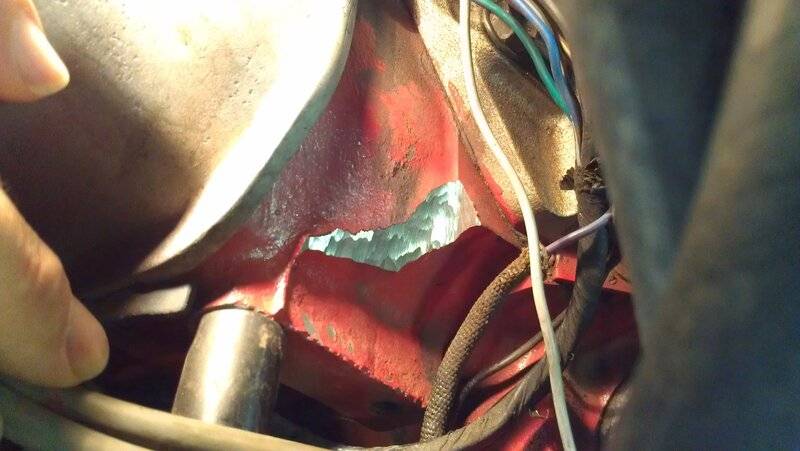

        Pertronix II did hit my 452 heads on the cast flashing

        IMAG1075.jpg IMAG0268.jpg IMAG0270.jpg

      • myk r sanchez

        myk r sanchez Well-Known Member

        Messages:
        1,921
        Likes Received:
        3455
        Joined:
        Apr 29, 2018
        Location:
        Sun diego
        Local Time:
        3:24 AM
        Running a firecore rtr distributor and the old analog MSD 6a boxes. I have no complaints...

      • 383man

        383man Well-Known Member

        Messages:
        4,629
        Likes Received:
        3461
        Joined:
        Jul 19, 2008
        Location:
        Md
        Local Time:
        5:24 AM
        I ran the same MP orange box on my cars since 2001 with an Accel super coil and it has never missed a beat pushing my car in the 10's. But I bought that box around 1998. I just got a new MSD digital box real cheap that fell into my lap so I installed it with the MSD blaster coil. No problems with the ign I was using but since I race my car sometimes and jet the secondaries for mph I figured the low rpm multi-spark MSD may keep my plugs even cleaner. And MSD is a good ign used by tons of racers and street cars. If you race a lot I would go with the MSD but any of the ignitions you listed should work fine for you. Ron

        • Agree Agree x 1
        • hunt2elk

          hunt2elk FBBO Gold Member FBBO Gold Member

          Messages:
          7,194
          Likes Received:
          6107
          Joined:
          Jul 15, 2009
          Location:
          WI
          Local Time:
          5:24 AM
          I have used the FBO box along with a Firecore distributor in 3 different cars now, and knock on wood haven't had any problems. I really like the FBO control and its rev limiter feature. On my last build, I was talked into using a MSD ready to run setup. I don't care for it and won't ever buy another one. The head does have to be clearanced, aluminum anyway, not sure if stock heads do. Also I think their bushing design is just plain stupid. Bushings can be changed with the unit in the car, but what a pain in the a$$. You are also limited on the sizes of bushings so you can't fine tune them perfectly. The Firecore distributor is so easy to make infinite adjustments to in comparison.

        • copper67sat

          copper67sat Well-Known Member

          Messages:
          260
          Likes Received:
          366
          Joined:
          Aug 24, 2015
          Location:
          West Palm Beach, FL
          Local Time:
          6:24 AM
          I replaced points with the Pertronix kit - I think It's the II - installed in the stock distributor and added their upgraded coil on my 67 383 several years ago and it works great. Engine starts faster and runs smoother than before and, other than an extra wire coming out of the distributor, looks stock. Easy to install and no box to mount.

          • Agree Agree x 1
          • mrhemi

            mrhemi Well-Known Member

            Messages:
            185
            Likes Received:
            221
            Joined:
            Jan 9, 2019
            Location:
            Ontario
            Local Time:
            6:24 AM
            I use the factory Prestolite dual point on my 426. However, I use it to trigger a hidden MSD 6A. Very reliable system while enjoying the benefits of the enhanced spark. You have to look very close to see that the system is not stock. All of the connections are made at the factory coil. Added benefit is, should the MSD box ever fail, it can all be restored at the coil and drive home on the stock system. The points last forever as they are not carrying any current. If you have access to any old articles or interviews with Tom Hoover, one of the fathers of the second gen Hemi, he always said an MSD ignition was one of the best mods to the engine.

          • GrabberOrange69

            GrabberOrange69 FBBO Gold Member FBBO Gold Member

            Messages:
            1,233
            Likes Received:
            1529
            Joined:
            Dec 5, 2010
            Location:
            Hops Capital USA
            Local Time:
            3:24 AM
            I’m looking for an ignition system for my project and got turned on to this solution in Mopar Action magazine: https://www.ebay.com/itm/ForMOPAR-3...641931?hash=item34297215cb:g:8Z4AAOSw9CNe1-RK

            The system is a quality repop of the distributor, plus an extended rpm range ECU. Looks like it’s Ehrenberg’s work. I’m buying it, but my engine is in the machine shop, so no feedback to give you at this time.

            Food for thought.
