    I took a 48" #6 line and formed it to fit from the drier, over the core support and toward the middle.

    CAA 1.jpg CAA 2.jpg

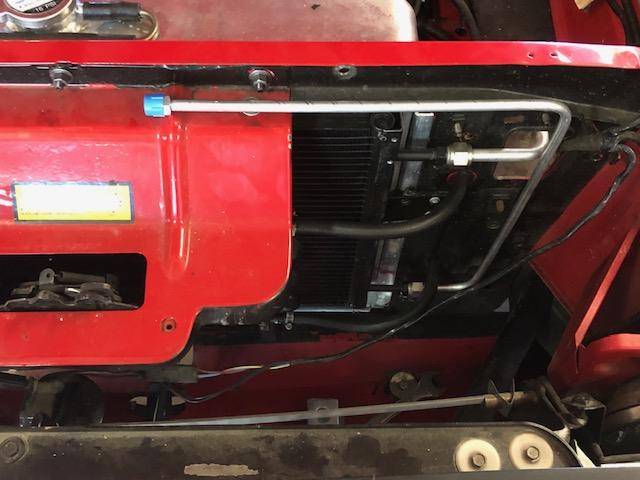

    I had a pair of 30" lines so I put 2 90 degree bends in it and slipped it on.

    CAA 4.jpg

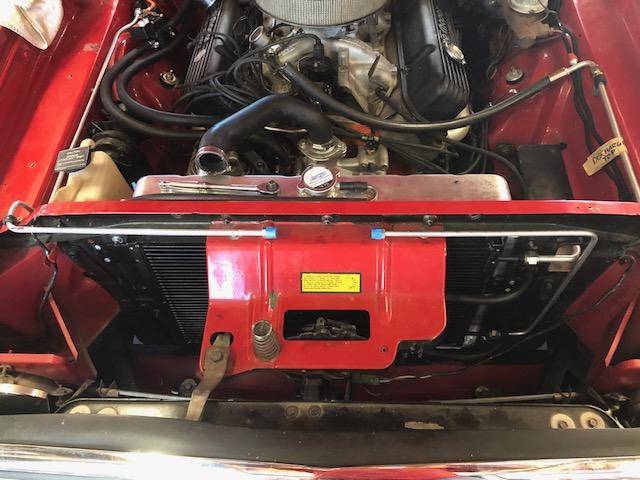

    If the line was 36", I could have connected the two lines together.

    CAA 3.jpg

    Now I have to decide if I should use a short section of rubber hose with the fittings or just call Summit for another section of hard line. I'm leaning toward the latter since it would look cleaner and eliminate one connection.

    • Like Like x 1
    • Kern Dog

      Kern Dog FBBO Gold Member FBBO Gold Member

      Messages:
      20,876
      Likes Received:
      54054
      Joined:
      Apr 13, 2012
      Location:
      Granite Bay CA
      Local Time:
      9:30 AM
      I cut the hoses and set them where they will likely stay. The discharge hose on the drivers side was routed to clear the valve cover. I have a solid lifter cam and I didn't want to deal with a hose over the valve cover area if/when I need to lash the valves.
      CAA 10.jpg
      The other side seems like it lays in a decent position.
      CAA 8.jpg CAA 9.jpg

      Let me know what you think. I was going for a less cluttered look than stock and even less than the way that this kit had detailed.

      • Like Like x 3
      • 1 Wild R/T

        1 Wild R/T FBBO Gold Member FBBO Gold Member

        Messages:
        3,617
        Likes Received:
        7024
        Joined:
        Jul 9, 2019
        Location:
        California
        Local Time:
        9:30 AM
        Looks like a very well thought out solution... Funny how when you know the valve covers have to come off a little adjustment makes it much easier.. OE’s won’t waste ten cents worth of hose to make something like that happen...

        I see a 36” line in your future...

        • Thanks! Thanks! x 1
        • Kern Dog

          Kern Dog FBBO Gold Member FBBO Gold Member

          Messages:
          20,876
          Likes Received:
          54054
          Joined:
          Apr 13, 2012
          Location:
          Granite Bay CA
          Local Time:
          9:30 AM
          Yeah...I JUST ordered the 36" line. If I get it tomorrow or Saturday, I'll get it fitted and post a picture. At least now I can do my crimping of the hose fittings and return the crimping tool to the guy that was kind enough to loan it out. THAT is a rare thing nowadays.

        • Kern Dog

          Kern Dog FBBO Gold Member FBBO Gold Member

          Messages:
          20,876
          Likes Received:
          54054
          Joined:
          Apr 13, 2012
          Location:
          Granite Bay CA
          Local Time:
          9:30 AM
          Someone on DodgeCharger.com mentioned a problem with their fan being too close to the compressor.
          W H A T ???
          I think that CoronetDarter did too.
          Not a problem though:
          HVAC fan.jpg

        • bearman

          bearman FBBO Gold Member FBBO Gold Member

          Messages:
          4,320
          Likes Received:
          4059
          Joined:
          Jan 9, 2018
          Location:
          Phoenix
          Local Time:
          9:30 AM
          Kd, is there a reason you didn't mount the dryer up by the condenser. Just curious

        • Kern Dog

          Kern Dog FBBO Gold Member FBBO Gold Member

          Messages:
          20,876
          Likes Received:
          54054
          Joined:
          Apr 13, 2012
          Location:
          Granite Bay CA
          Local Time:
          9:30 AM
          It is mounted where the instructions show it to be. There is a short line from the firewall to the drier that they call the "Switch Port Line". I have seen them mounted other places though. Where did the factory put them?

          I crimped the lines today but I don't think that they crimped properly. If they hold vacuum, I'll live with the less than perfect appearance. They didn't crimp evenly.

        • bearman

          bearman FBBO Gold Member FBBO Gold Member

          Messages:
          4,320
          Likes Received:
          4059
          Joined:
          Jan 9, 2018
          Location:
          Phoenix
          Local Time:
          9:30 AM
          Not sure just thinking out loud. That would be better up front away from heat and gives you more room in the engine bay. Just a thought. Your doing a great job and r/t 1 sure knows his stuff. That's what makes this forum great.

          • Thanks! Thanks! x 1
          • bearman

            bearman FBBO Gold Member FBBO Gold Member

            Messages:
            4,320
            Likes Received:
            4059
            Joined:
            Jan 9, 2018
            Location:
            Phoenix
            Local Time:
            9:30 AM
            Another question do you have a pressure switch in the back of the compressor or is your high and low cut somewhere else.

          • Kern Dog

            Kern Dog FBBO Gold Member FBBO Gold Member

            Messages:
            20,876
            Likes Received:
            54054
            Joined:
            Apr 13, 2012
            Location:
            Granite Bay CA
            Local Time:
            9:30 AM
            The pressure switch is on that short line between the firewall and the drier. I just have not screwed it in place yet.
            You can see it to the right of the drier, it has a red cap on it.
            HVAC S.jpg

          • 1 Wild R/T

            1 Wild R/T FBBO Gold Member FBBO Gold Member

            Messages:
            3,617
            Likes Received:
            7024
            Joined:
            Jul 9, 2019
            Location:
            California
            Local Time:
            9:30 AM
            The dryer sends liquid to the expansion valve, keeping the line short helps keeping the refrigerant in a liquid state..

            The big temperature change occurs when the refrigerant changes state from liquid to gas... So naturally you want that change of state to happen when the refrigerant hits the evaporator not in the engine compartment...

            • Thanks! Thanks! x 1
            • bearman

              bearman FBBO Gold Member FBBO Gold Member

              Messages:
              4,320
              Likes Received:
              4059
              Joined:
              Jan 9, 2018
              Location:
              Phoenix
              Local Time:
              9:30 AM
              I agree with you r/t that's why I was asking in alot of cases specially old street rods I see the dryer up under dash. That way it's hidden or up by the condenser away from engine heat. We all know how cool the engine bays are in the b bodies. Just a thought and is your switch for high pressure cut out or low pressure maybe it has both and is it adjustable. Trying to make notes for the future. Thanks for any help on this I don't want to run over kd thread just wondering.

              • Thanks! Thanks! x 1
              • Dennis H

                Dennis H FBBO Gold Member FBBO Gold Member

                Messages:
                14,867
                Likes Received:
                18534
                Joined:
                Jul 11, 2010
                Location:
                San Jose
                Local Time:
                11:30 AM

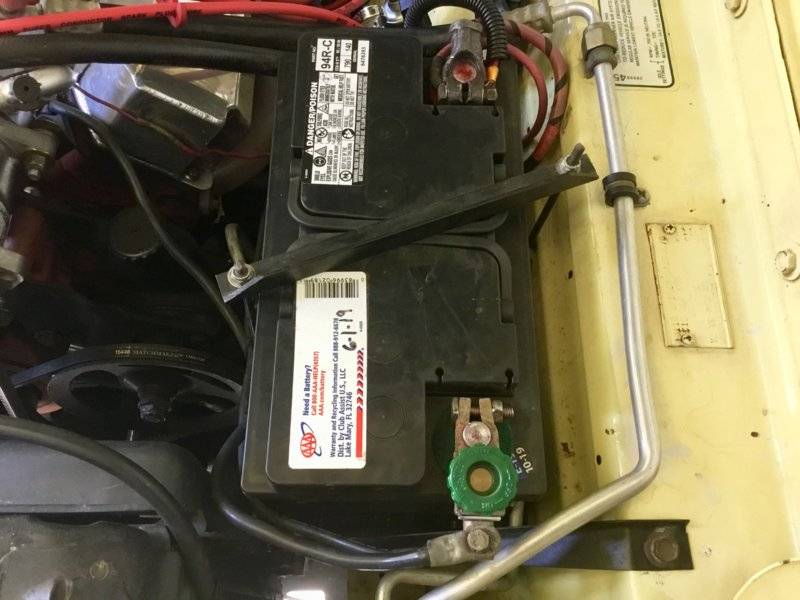

                6C70E2FA-782A-47C3-8AA4-CF9EF993EA46.jpeg D56B7E3D-DA45-4EEC-878B-97D20978B3DE.jpeg B7DE9548-3D79-45D9-AEBF-586D4A7CA14A.jpeg D4EC7B13-C95D-4095-96B8-6C8D9D5D7C29.jpeg F5918C2C-5971-4705-BB3D-6C3F0CFFB455.jpeg Pictures of a 10 year old install. No leaks or charges required. Not pretty, but cold. First picture, the controls are using the old cables. In order to prevent any hot water drifting in, you need to put a little nudge on the valve.

                • Like Like x 1
                • Thanks! Thanks! x 1
                • hsorman

                  hsorman FBBO Gold Member FBBO Gold Member

                  Messages:
                  4,190
                  Likes Received:
                  5312
                  Joined:
                  Aug 8, 2011
                  Location:
                  Lansdale, PA
                  Local Time:
                  12:30 PM
                  I tried to hide my A/C as much as possible, so I mounted the dryer behind the grill. I guess my line isn't short between the dryer and expansion valve as R/T stated, but mine has worked great for 4 years - hope it keeps going!

                  Dryer Mounting on my 70 Road Runnner:
                  https://www.forbbodiesonly.com/mopa...-the-restoration.65096/page-24#post-910196423

                  Kern: At this point it is probably easiest to keep your dryer where it is. You are trying to do a clean installation, not hide it, so I think it looks just fine as is!

                  Oh, and be sure your electrical system is up to snuff as this draws a good amount of current. I had a connector heat up due to a bad connector at my fuse panel.

                  Keep rocking, you are almost there!

                  Hawk

                  • Thanks! Thanks! x 1
                  • Kern Dog

                    Kern Dog FBBO Gold Member FBBO Gold Member

                    Messages:
                    20,876
                    Likes Received:
                    54054
                    Joined:
                    Apr 13, 2012
                    Location:
                    Granite Bay CA
                    Local Time:
                    9:30 AM
                    Thanks, Hawk!

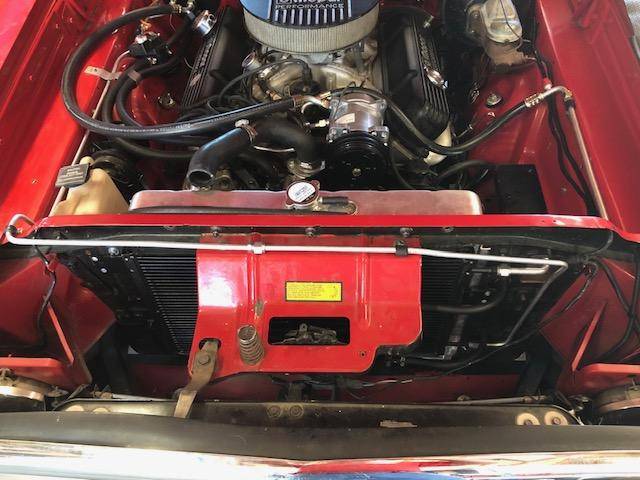

                    The 36" line arrived today.
                    HVAC 300.jpg

                    It fit in there nicely. The line is secured with a loop retainer on the hood latch support. The retainer on the top of the firewall will be secured once I replace the drier. I need the line loose to allow for some movement.
                    I had to replace the fuel line because the switch from NON A/C to A/C meant the alternator now blocked the original route at the lower end. I used aluminum tubing, 3/8". The inline filter is now down behind the alternator so that I have room to fit through this maze of heater hoses, A/C lines and spark plug wires.

                    Fuel line 5.jpg Fuel line 6.jpg

                    • Like Like x 1
                    • CoronetDarter

                      CoronetDarter Well-Known Member

                      Messages:
                      1,569
                      Likes Received:
                      1744
                      Joined:
                      Oct 13, 2013
                      Location:
                      Lincoln, CA
                      Local Time:
                      9:30 AM
                      You're install has given me some second thoughts to my own. My ac is installed and mocked up but not functional. I like the hardline running down the passenger side vs the hose that comes with the kit.
                      Did you get the lines from Summit?

                    • Kern Dog

                      Kern Dog FBBO Gold Member FBBO Gold Member

                      Messages:
                      20,876
                      Likes Received:
                      54054
                      Joined:
                      Apr 13, 2012
                      Location:
                      Granite Bay CA
                      Local Time:
                      9:30 AM
                      Yes, I did. One 48" and one 36" line. The 36" line needs to have a female fitting on both ends.
                      To me, this looks cleaner than the way that they called for in the kit. 1 Wild R/T suggested this reroute. I has planned on using a combination of hard lines and crimped hose fittings but this setup has less risk of leaks and to me, looks less cluttered.

                      • Agree Agree x 1
                      • bearman

                        bearman FBBO Gold Member FBBO Gold Member

                        Messages:
                        4,320
                        Likes Received:
                        4059
                        Joined:
                        Jan 9, 2018
                        Location:
                        Phoenix
                        Local Time:
                        9:30 AM
                        Kd, what type of expansion valve does the kit supply.

                      • Kern Dog

                        Kern Dog FBBO Gold Member FBBO Gold Member

                        Messages:
                        20,876
                        Likes Received:
                        54054
                        Joined:
                        Apr 13, 2012
                        Location:
                        Granite Bay CA
                        Local Time:
                        9:30 AM
                        I don't know. It was already installed on the evaporator unit.

                        • Thanks! Thanks! x 1
                        • rrTor-Red

                          rrTor-Red FBBO Gold Member FBBO Gold Member

                          Messages:
                          2,040
                          Likes Received:
                          713
                          Joined:
                          Sep 1, 2010
                          Location:
                          USA
                          Local Time:
                          11:30 AM
                          KD, that's looking good!
