Installing Hydroboost and bigger brakes in a 1970 Charger

Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
5:19 AM
Joined
Apr 13, 2012
Messages
30,410
Reaction score
99,759
Location
Granite Bay CA
I had the lines crimped today but......

698 R.JPG

When I got to the shop, I showed the man where the hoses needed to be cut. In the process, the hoses got crimped on the wrong ends....

The top hose should be the shorter one. The bottom one should be the longer one.
This is the line from the HB to the steering box. It is 2 inches too long. When it is finished, it will tuck in really nice.

699 R.JPG


The steel end will swing counter-clockwise and bring everything closer to the master cylinder.

700 R.JPG


Shortening that hose is easy. I'll just have them crimp on another fitting after cutting 2 inches off of the end.
The other one is 2 1/4" short. It would have worked if it was 2" longer but it will have a slight amount more slack with 2 1/4".
I usually luck out on matters like this but sometimes things do go wrong.


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
5:19 AM
Joined
Apr 13, 2012
Messages
30,410
Reaction score
99,759
Location
Granite Bay CA
Finally.....

The short hose is in and tucks in nicely.

701 R.JPG


702 R.JPG


The long hose fits too.

703 R.JPG


It is a little bit "busy" with all the hoses there. I still need to run the return line from the HB to the pump.

705 R.JPG


I just ordered some banjo fittings through Summit Racing. They will allow the two pressure lines to lay down closer to the HB unit. They should function the same but look neater.

706 R.JPG


The Power Steering pump belt is on and at the end of the adjustment range. The belt is sort of close to the 2 A/C-Alternator belts as if the pulley alignment is off a bit. It was 4 1/2 months ago that I took this apart so I am a little bit fuzzy on how it was before. I might be looking for a smaller diameter pulley for the P/S pump. My pump has the pulley held on with a nut like so:

421 R.JPG

707 R.JPG


themechanic

Oklahoma is OK
Local time
7:19 AM
Joined
Nov 11, 2012
Messages
16,415
Reaction score
19,109
Location
Moore, Oklahoma
Greg, did you install the recommended replacement MC cap seals or did you have the leaky caps everyone else has?


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
5:19 AM
Joined
Apr 13, 2012
Messages
30,410
Reaction score
99,759
Location
Granite Bay CA
Greg, did you install the recommended replacement MC cap seals or did you have the leaky caps everyone else has?
I heard about those. I'll have to get them. The MC is dry. I have yet to even bench bleed it.
I forgot to mention....
Total for these custom hydraulic lines is $68 including the replacement "fix" today. I really expected this to cost more.

Last edited:

Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
5:19 AM
Joined
Apr 13, 2012
Messages
30,410
Reaction score
99,759
Location
Granite Bay CA
Sometimes I log onto RockAuto.com when I have a part and I don't know the year or model that it came from.
For example, the power steering pump. I checked and found that my 1970 model did use the type with the nut.
Saginaw pumps have been around for years and have had many small changes.
The one from my car is an early 70s vintage with the nut to retain the pulley. Later ones had a press on style while still using a V belt. Even later ones used a press on serpentine belt design.

401 R.JPG


402 R.JPG


I have something like 8-10 Saginaw pumps out in the shed. Most of them have the press on design.
I have been thinking that with the pump now doing double duty, maybe I need a smaller pulley to increase the pump speed to keep up with the demand. Going from a 6" to a 5" is an increase of about 16.5%.
I can either use a the pump I have that has the 5" pulley on it OR
use a 5" pulley that fits my current pump.
I placed a WTB ad:

WTB - Saginaw power steering pump pulley 5" diameter

Either way would be fine with me. I don't know how common the 5" pulley is. It could be pretty rare because I don't recall seeing one before.


1 Wild R/T

Well-Known Member
Local time
5:19 AM
Joined
Jul 9, 2019
Messages
7,771
Reaction score
20,073
Location
California
I wonder if there's more than one displacement of pump.... Same pulley, different fluid volume..

Another option, use one of the V belt press fit pulleys, if you wanted to, honing the bore and broaching a keyway would make it work with the early pump..


wagonman

Well-Known Member
Local time
7:19 AM
Joined
Aug 1, 2015
Messages
2,049
Reaction score
1,691
Location
Deming New Mexico
Great writeup and food for thought. Having just added PS with the Saginaw pump makes me want PB also. I have the smaller pin type calipers and rotors from a 72 or 73 B wagon and while they stop OK they are not to my liking. On changing the pedal ratio where did you drill for the MC rod? Further up makes sense to me but how much further up? I have also tried a few MC combos with no noticeable difference. This also has the 11 inch rear drums. Will follow to see your outcome and Thanks for posting.


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
5:19 AM
Joined
Apr 13, 2012
Messages
30,410
Reaction score
99,759
Location
Granite Bay CA
Great writeup and food for thought. On changing the pedal ratio where did you drill for the MC rod? Further up makes sense to me but how much further up?
Thanks for the kind words.
The pedal pushrod hole was simply drilled right above the stock hole. I welded a washer over the new hole just to reinforce it since 2 holes close together seemed like it would weaken the lever.


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
5:19 AM
Joined
Apr 13, 2012
Messages
30,410
Reaction score
99,759
Location
Granite Bay CA
The master cylinder for this application is the following:

RAYBESTOS MC39178 Specifications
Number of Ports2
Primary Port Thread A1/2"-20
Secondary Port Thread A9/16"-20

It is OEM for a 1985 Dodge D-150.


themechanic

Oklahoma is OK
Local time
7:19 AM
Joined
Nov 11, 2012
Messages
16,415
Reaction score
19,109
Location
Moore, Oklahoma
The master cylinder for this application is the following:

RAYBESTOS MC39178 Specifications
Number of Ports2
Primary Port Thread A1/2"-20
Secondary Port Thread A9/16"-20

It is OEM for a 1985 Dodge D-150.
I'm assuming it's 1 1/8" bore since it's for power brakes.


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
5:19 AM
Joined
Apr 13, 2012
Messages
30,410
Reaction score
99,759
Location
Granite Bay CA
You are correct.
1 1/8” bore.

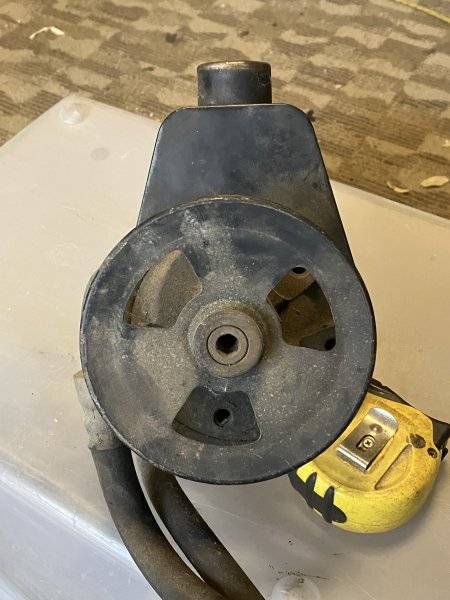

I removed the 5” pulley from the pump it was on.






The shaft size:



The pulley is actually 5 1/8”.

I decided to buy a rebuilt pump from the local NAPA store.

708 R.JPG


I'll just have to swap reservoirs again.

709 R.JPG


This pulley will get sandblasted and painted, then installed this weekend.

Since this will require a new, shorter belt that is not a factory length, I'll probably get two belts to have a spare.

Last edited:

Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
5:19 AM
Joined
Apr 13, 2012
Messages
30,410
Reaction score
99,759
Location
Granite Bay CA
When I work on a project like this one, I often make mistakes like anyone else. I am man enough to admit them and even post about them.
This is one of those times.
I spent 5 hours today to basically end up where I started.

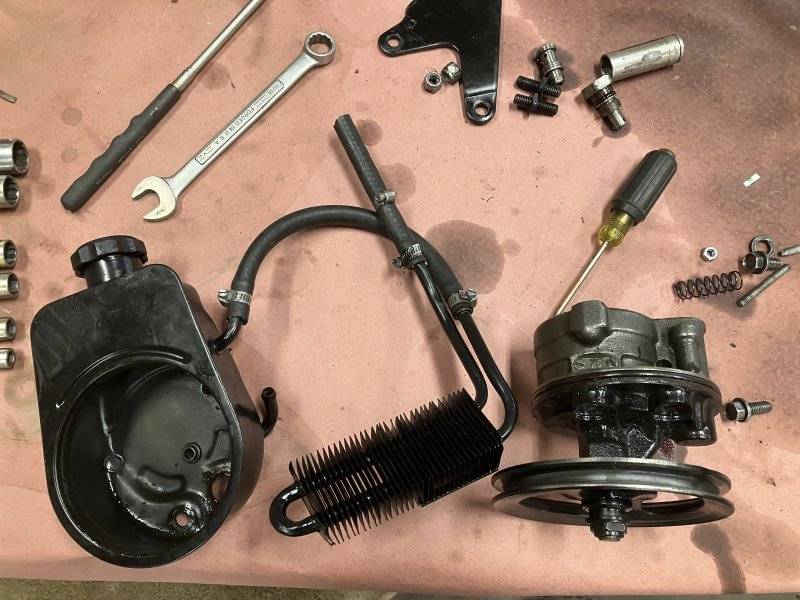

The goal was to swap the new pump into the dual nipple reservoir, press on the 5" pulley and install it all.

711 R.JPG


712 R.JPG


The new pump has the same size shaft as the pulley but the threads in the pump (at the back) are metric and had these weird "shoulders" to them...

714 R.JPG

I mounted the pump but the weird shoulders seemed to push the pump forward. Of the 12 Saginaw pumps I had in the shed, NONE had metric threaded bolts. Every one of them was SAE and had no shoulder to them.
Since these shoulders put the brackets out of alignment, I took a grinder and shaved off the weird raised area. and trial fitted the pump again.

715 R.JPG


This allowed the rear bracket to sit in tight like before.
The front bracket has a 1/2" square hole to use a 1/2" drive ratchet to twist the pump to tighten the drive belt. The hole was deformed from years of use...

716 R.JPG


It allowed the breaker bar to flop around too much so I fixed it.

717 R.JPG


718 R.JPG


I dressed the welds with a file until the 1/2" extension fit....

719 R.JPG

Last edited:

Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
5:19 AM
Joined
Apr 13, 2012
Messages
30,410
Reaction score
99,759
Location
Granite Bay CA
With the pump in place, the P/S pulley lined up perfectly with the outer groove of the crank. The problem was, the outer groove is for the fan belt. I pulled the pump and drove the pulley on a little more. The other pumps I had out back were not consistent with how far the pulleys were pressed on. I tweaked the brackets a little and with the pulley in about another 3/16", I hoped it would line up.
It did not line up.
I was pissed and having trouble figuring out what I did wrong....THEN I measured things. The old setup:

721 R.JPG


That is the old pump in the NAPA reservoir. This measured 2 1/4" from the face of the reservoir to the center of the groove. The new setup was 2 3/4".
I was sticking out a full half inch too far. It turns out that this 5" pulley had more offset than the other pulleys. I was so caught up in the diameter, I never thought of the offset. I had to go out and pull a pulley from another pump to use here. It lines up at the same position as the old setup.

720 R.JPG


The setup now is a 5 7/8" size but this one is solid, not a 3 spoke style. It is straight as can be, unlike the 3 spoke that had a bend to it that I never got out completely.

722 R.JPG


This doesn't happen often but it does happen. I cussed and complained but I got it back together. I didn't need the new pump but in the end, I got a slightly smaller pulley that is more sturdy and straight.

Here is a parting shot for the night.....

Two B.JPG


Another angle with a Halloween theme....

Two A.JPG


ckessel

Well-Known Member
Local time
5:19 AM
Joined
Apr 23, 2015
Messages
4,030
Reaction score
4,549
Location
Los Osos Ca.
Dontcha just love "fixing" an issue just to have it backwards? Been there too. This kind of stuff adds to our knowledge base and wisdom.


Kern Dog

Life is full of turns. Build your car to handle.
FBBO Gold Member
Local time
5:19 AM
Joined
Apr 13, 2012
Messages
30,410
Reaction score
99,759
Location
Granite Bay CA
The banjo fittings arrived today.



The two pressure fittings screwed in just fine.


The small one though…



The threaded shank is too long. It bottomed out in the hole before the fitting was tight. I might shorten the bolt but I need a die or a nut to make sure the threads are ok before I try to thread it into the HB unit. The fitting does sit close to the housing, maybe too close.
For now, I just used the straight fitting. I do think it will look better with the banjo setup.
