Intake Residue Question

Engine, Trans & Driveline

  1. Road Grabber

    Road Grabber Well-Known Member

    Messages:
    119
    Likes Received:
    15
    Joined:
    Apr 14, 2020
    Location:
    Sarasota Florida
    Local Time:
    10:02 AM
    I am in the process of some engine changes/tune-up. As I was cleaning the gasket material off the intake gasket surface I looked inside and noticed that there is an oily sticky residue coating the intake runners.

    It looks like an oily tarnish. Almost wet but sticky. Not dark. Light brown. It would be difficult to photograph. Not sure you would see it.

    Gasket leak?

    PCV problem?

  2. 1 Wild R/T

    1 Wild R/T FBBO Gold Member FBBO Gold Member

    Messages:
    4,794
    Likes Received:
    10449
    Joined:
    Jul 9, 2019
    Location:
    California
    Local Time:
    7:02 AM
    • Like Like x 1
    • Road Grabber

      Road Grabber Well-Known Member

      Messages:
      119
      Likes Received:
      15
      Joined:
      Apr 14, 2020
      Location:
      Sarasota Florida
      Local Time:
      10:02 AM

    • Road Grabber

      Road Grabber Well-Known Member

      Messages:
      119
      Likes Received:
      15
      Joined:
      Apr 14, 2020
      Location:
      Sarasota Florida
      Local Time:
      10:02 AM
      Thanks for the intel. I hear “the right stuff “ is good too. Any experience with that product?

      • Like Like x 1
      • oldkimmer

        oldkimmer FBBO Gold Member FBBO Gold Member

        Messages:
        1,647
        Likes Received:
        777
        Joined:
        Oct 18, 2008
        Location:
        Kindersley,Saskatchewan, Canada
        Local Time:
        9:02 AM
        It’s great. Kim

        • Like Like x 1
        • Agree Agree x 1
        • khryslerkid

          khryslerkid FBBO Gold Member FBBO Gold Member

          Messages:
          24,361
          Likes Received:
          38187
          Joined:
          Mar 10, 2010
          Location:
          Hanover, Pennslyvania
          Local Time:
          10:02 AM
          Reminds me of the Permatex Gasket Maker which suppose to take 24 hrs to cure before exposure to oil. The Right Stuff is assemble and go. Sure beats that snotty silicone!

          • Like Like x 1
          • 1 Wild R/T

            1 Wild R/T FBBO Gold Member FBBO Gold Member

            Messages:
            4,794
            Likes Received:
            10449
            Joined:
            Jul 9, 2019
            Location:
            California
            Local Time:
            7:02 AM
            I don't use "The Right Stuff" on the ports, it's great for the ends of the manifold but it is not intended for applications were gasoline can come in contact with it... IE Intake Ports..... Here's a link to the Data Sheet... Check page two...

            https://441py33rout1ptjxn2lupv31-wpengine.netdna-ssl.com/wp-content/uploads/tech_docs/tds/25229.pdf

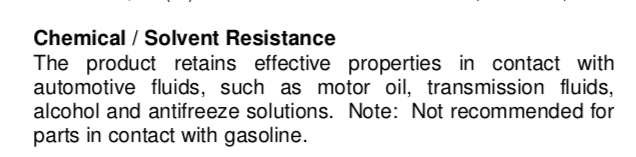

            Or, here's a screen shot... Read the last line...

            Screen Shot 2021-07-31 at 8.42.19 PM.png

            The product I linked in my first post is rated for fuel, I've used it with 100% success for over thirty years...

            • Like Like x 2
            • Thanks! Thanks! x 2
            • oldkimmer

              oldkimmer FBBO Gold Member FBBO Gold Member

              Messages:
              1,647
              Likes Received:
              777
              Joined:
              Oct 18, 2008
              Location:
              Kindersley,Saskatchewan, Canada
              Local Time:
              9:02 AM
              I have never had to use sealer of any kind around intake ports. If u have to u have some other problem that needs addressing. Kim

              • Like Like x 1
              • Agree Agree x 1
              • 1 Wild R/T

                1 Wild R/T FBBO Gold Member FBBO Gold Member

                Messages:
                4,794
                Likes Received:
                10449
                Joined:
                Jul 9, 2019
                Location:
                California
                Local Time:
                7:02 AM
                Though the years I've seen dozens of big block Mopars that sucked oil into the intake ports... They run fine, they just use a little oil... Three bond solves it... Period... Your welcome to thrown hundreds if not thousands of dollars at a machinist to try to correct it but a stamped steel bathtub isn't the best way to seal an intake.... And yes some folks use paper gaskets & other folks use a valley pan & separate gaskets... Well I use three bond.. Been doing it a very long time & it works... I won't be changing... And I'll continue to recommend it to others... I've never had someone actually try it & come back & tell me it didn't cure their problem...

                • Like Like x 1
                • Thanks! Thanks! x 1
                • oldkimmer

                  oldkimmer FBBO Gold Member FBBO Gold Member

                  Messages:
                  1,647
                  Likes Received:
                  777
                  Joined:
                  Oct 18, 2008
                  Location:
                  Kindersley,Saskatchewan, Canada
                  Local Time:
                  9:02 AM
                  This goes to show that it can assambled together with good intentions and may or may not work or fixed the right way. That’s what hot rodding is. I have only had 1 intake milled as it was way off when new. And yes I’ve been working on these since the late 70s. Kim

                  • Like Like x 2
                  • Road Grabber

                    Road Grabber Well-Known Member

                    Messages:
                    119
                    Likes Received:
                    15
                    Joined:
                    Apr 14, 2020
                    Location:
                    Sarasota Florida
                    Local Time:
                    10:02 AM
                    Appreciate all the input. The last time it ran I had 15 for vacuum with a magnum cam. I believe that should be more like 20 so I suspect it had an intake leak after seeing the residue.

                    • Like Like x 1
                    • oldkimmer

                      oldkimmer FBBO Gold Member FBBO Gold Member

                      Messages:
                      1,647
                      Likes Received:
                      777
                      Joined:
                      Oct 18, 2008
                      Location:
                      Kindersley,Saskatchewan, Canada
                      Local Time:
                      9:02 AM
                      15 is about right for a magnum cam. Kim

                    • Road Grabber

                      Road Grabber Well-Known Member

                      Messages:
                      119
                      Likes Received:
                      15
                      Joined:
                      Apr 14, 2020
                      Location:
                      Sarasota Florida
                      Local Time:
                      10:02 AM
                      thank you

                    • Road Grabber

                      Road Grabber Well-Known Member

                      Messages:
                      119
                      Likes Received:
                      15
                      Joined:
                      Apr 14, 2020
                      Location:
                      Sarasota Florida
                      Local Time:
                      10:02 AM
                    • hangn0ut

                      hangn0ut Well-Known Member

                      Messages:
                      601
                      Likes Received:
                      344
                      Joined:
                      Nov 16, 2015
                      Location:
                      Alta Loma Ca.
                      Local Time:
                      7:02 AM
                      I will say, blocks get decked, heads get surfaced. Rarely is the intake side of a head cut. Just because it bolts up does not mean it fits. I take gasket material and bolt the manifold on. Torque to spec and remove. Then check the impressions to see how it really fits. Adjust from there.

                      • Like Like x 1
                      • Road Grabber

                        Road Grabber Well-Known Member

                        Messages:
                        119
                        Likes Received:
                        15
                        Joined:
                        Apr 14, 2020
                        Location:
                        Sarasota Florida
                        Local Time:
                        10:02 AM
                        That is a very good point. I remember the heads were surfaced but I don’t know if the shop removed material on the intake side when they did that.
                        I am changing heads and that could resolve the problem.
                        How would you “adjust” from there? Add gaskets?
                        Do you use paper intake gasket material for this test?

                      • oldkimmer

                        oldkimmer FBBO Gold Member FBBO Gold Member

                        Messages:
                        1,647
                        Likes Received:
                        777
                        Joined:
                        Oct 18, 2008
                        Location:
                        Kindersley,Saskatchewan, Canada
                        Local Time:
                        9:02 AM
                        Mill the intake is the proper way. Kim

                      • 1 Wild R/T

                        1 Wild R/T FBBO Gold Member FBBO Gold Member

                        Messages:
                        4,794
                        Likes Received:
                        10449
                        Joined:
                        Jul 9, 2019
                        Location:
                        California
                        Local Time:
                        7:02 AM
                        No, it isn't.... Milling the intake surface of the heads is the proper way.... When you mill the intake to fit the intake becomes dedicated to those heads... When you mill the intake surface of the heads the heads & intake can be used with every other set of heads & intake....

                        • Agree Agree x 3
                        • oldkimmer

                          oldkimmer FBBO Gold Member FBBO Gold Member

                          Messages:
                          1,647
                          Likes Received:
                          777
                          Joined:
                          Oct 18, 2008
                          Location:
                          Kindersley,Saskatchewan, Canada
                          Local Time:
                          9:02 AM
                          Talk to any machinest and see what they say. Of course we each have our own ways of doing things. Kim

                        • Road Grabber

                          Road Grabber Well-Known Member

                          Messages:
                          119
                          Likes Received:
                          15
                          Joined:
                          Apr 14, 2020
                          Location:
                          Sarasota Florida
                          Local Time:
                          10:02 AM
                          My instinct tells me the engine shop didn't mill the intake surface as well when they milled the head. I know there is a formula for that.

                          I suspect I have had this problem from the get go. I switched the intake years ago too when I had problems with the original cast intake now that I think about it. This gets back to Kim pointing out there is most likely a bigger reason for the problem.

                          I was planning to change the heads anyway but I will try to check the fit as suggested above. When I removed the intake there was impression on the gaskets but there was also a wet oil film on the bottom edge. The gasket was easier to remove along the bottom. My guess is that it was not sealing and was drawing up the oil. I can't see why else it would be there.

                          Using the gasket sealer as suggested seems like added cheap insurance. Can't hurt....
