Is this 66 Charger only?

1966-1967 Dodge Charger Forum

  1. QuickBpBp

    QuickBpBp Well-Known Member

    Messages:
    1,043
    Likes Received:
    752
    Joined:
    Oct 14, 2010
    Location:
    SE PA
    Local Time:
    12:20 AM

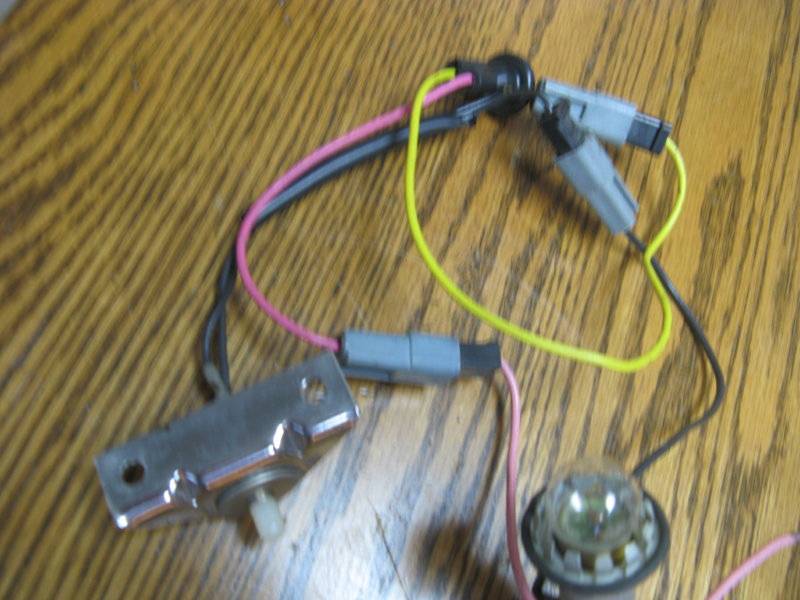

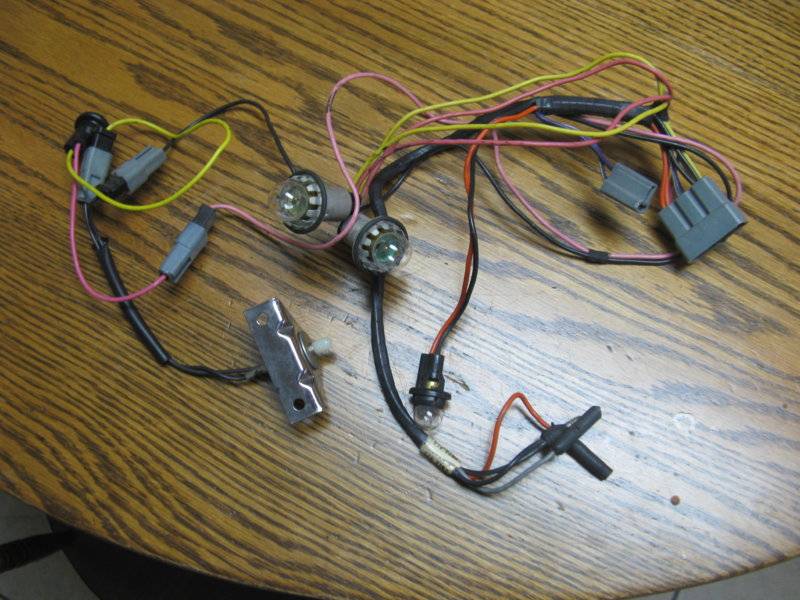

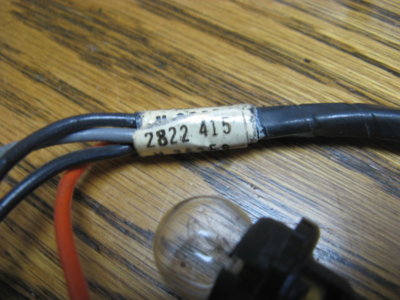

    Is this console harness 66 Charger only or 67 short console with the armrest? Has a newer part # and the switch for the inner glove box lamp. I also have the lamp lens but not pictured.. Has part #2822415. Thanks in advance!

    IMG_9663.JPG IMG_9664.JPG IMG_9668.JPG

  2. ODZKing

    ODZKing Well-Known Member

    My Photo Garage
    Messages:
    1,318
    Likes Received:
    387
    Joined:
    Sep 2, 2013
    Location:
    Liverpool, NY
    Local Time:
    12:20 AM
    That is a 67 harness. Does not have the EL which would be a white wire and red connector.
    1966
    1967

  3. QuickBpBp

    QuickBpBp Well-Known Member

    Messages:
    1,043
    Likes Received:
    752
    Joined:
    Oct 14, 2010
    Location:
    SE PA
    Local Time:
    12:20 AM
    EL as in Electroluminescence? Thanks for the info!!

  4. ODZKing

    ODZKing Well-Known Member

    My Photo Garage
    Messages:
    1,318
    Likes Received:
    387
    Joined:
    Sep 2, 2013
    Location:
    Liverpool, NY
    Local Time:
    12:20 AM
    Yes, 66 shifters were EL, 67 were bulb

    • Thanks! Thanks! x 1
