Lift points on a 426 Max Wedge w/cross rams

Engine, Trans & Driveline

  1. andyf

    andyf Well-Known Member

    Messages:
    698
    Likes Received:
    1073
    Joined:
    Jul 21, 2012
    Location:
    Oregon
    Local Time:
    4:25 PM

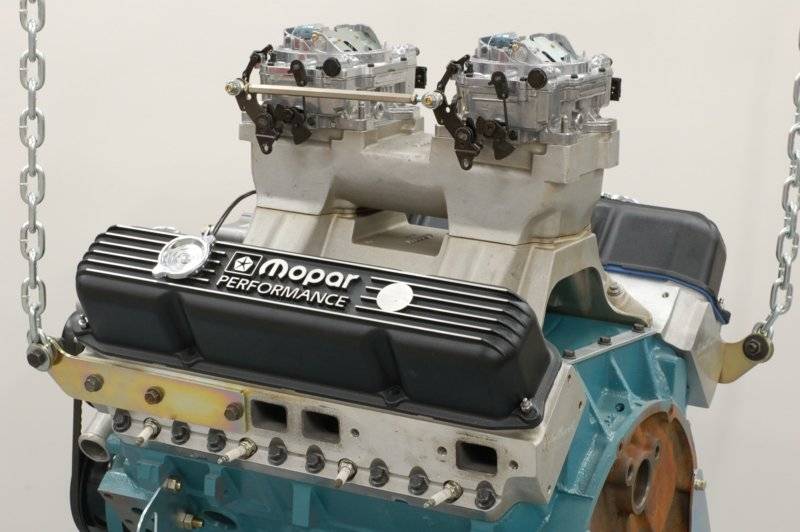

    I used to make them for people but sales were so low that I eventually stop making them. Shouldn't be too hard to fabricate something similar. Home built tabs won't look as nice but they should work okay.

  2. waedison

    waedison Member

    Messages:
    10
    Likes Received:
    1
    Joined:
    Dec 18, 2015
    Location:
    Ferndale WA
    Local Time:
    6:25 PM
    Okay...thanks! /Butch

  3. Ski 61701

    Ski 61701 Well-Known Member

    Messages:
    734
    Likes Received:
    587
    Joined:
    Nov 21, 2016
    Location:
    Bloomington Illinois
    Local Time:
    6:25 PM
    You are most welcome. Good luck with your project.

  4. waedison

    waedison Member

    Messages:
    10
    Likes Received:
    1
    Joined:
    Dec 18, 2015
    Location:
    Ferndale WA
    Local Time:
    6:25 PM

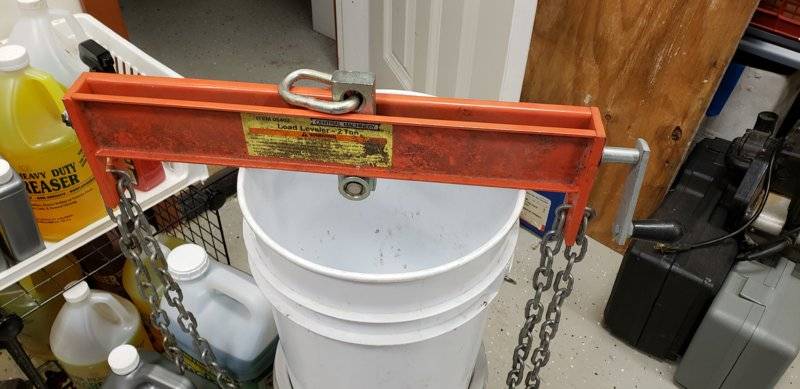

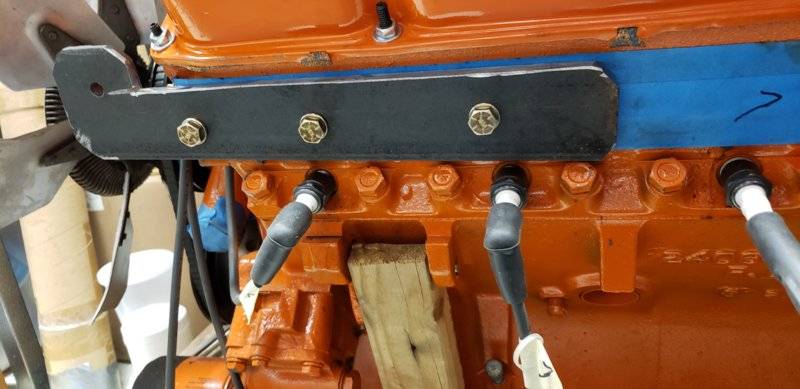

    Andy, I did my best to copy your lift plates. Now, I'm stuck again. My engine lift bar is about 21". It looks like the diagonal measurement across the motor is over 30". I'm obviously missing something. Any advice you can offer, greatly appreciated. /Butch 20200130_153225.jpg 20200130_153328.jpg

  5. Ski 61701

    Ski 61701 Well-Known Member

    Messages:
    734
    Likes Received:
    587
    Joined:
    Nov 21, 2016
    Location:
    Bloomington Illinois
    Local Time:
    6:25 PM
    I made a spreader bar that I hooked to my tilter. Then had a chain at either end drop straight down to motor lift points.

  6. waedison

    waedison Member

    Messages:
    10
    Likes Received:
    1
    Joined:
    Dec 18, 2015
    Location:
    Ferndale WA
    Local Time:
    6:25 PM
    Do recall if you used round or square stock and what thickness?

  7. Ski 61701

    Ski 61701 Well-Known Member

    Messages:
    734
    Likes Received:
    587
    Joined:
    Nov 21, 2016
    Location:
    Bloomington Illinois
    Local Time:
    6:25 PM
    I used flat stock 1/4 thick.about 4in wide I welded extra pieces to make a T . If you dont the flat stock will bend. I will pull it out and take some pics for you. If you were closer I'd loan it to you.

  8. waedison

    waedison Member

    Messages:
    10
    Likes Received:
    1
    Joined:
    Dec 18, 2015
    Location:
    Ferndale WA
    Local Time:
    6:25 PM
    That would be very much appreciated! Thanks in advance./Butch
