New Passenger Mirror install

1971 - 1974 Mopars

  1. Doug Larsson

    Doug Larsson Well-Known Member

    Messages:
    409
    Likes Received:
    385
    Joined:
    Apr 18, 2016
    Local Time:
    10:45 AM

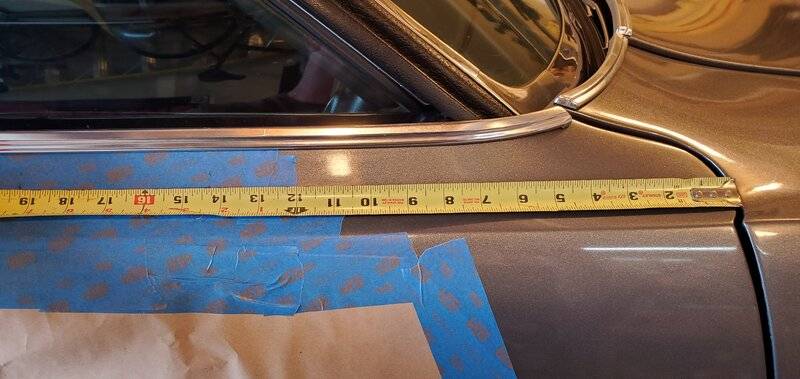

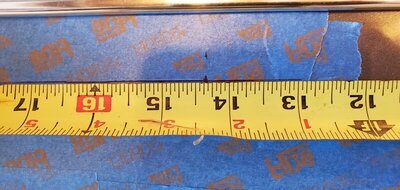

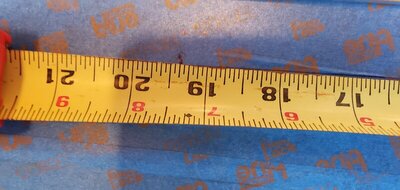

    Drilling holes in a perfectly good passenger door is a little unnerving the stress level was way up there but I took all the precautions and it came out sweet. You CAN'T see much out of it but it's more of a confidence thing when you change lanes or are backing out lol. To help other members out who have thought of doing this I decided to do a how to picture show. But always check your dimensions versus what I have and double check every thing during each step of the process.
    I used a 1/8" drill as a pilot hole then used a J drill the rivnet OD was .272 the J drill is .277.

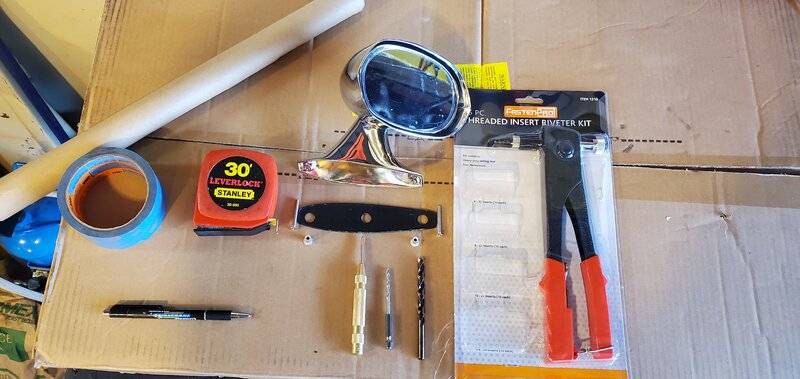

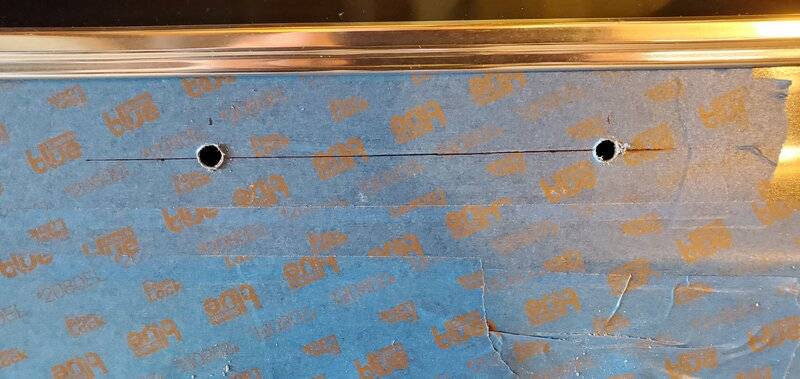

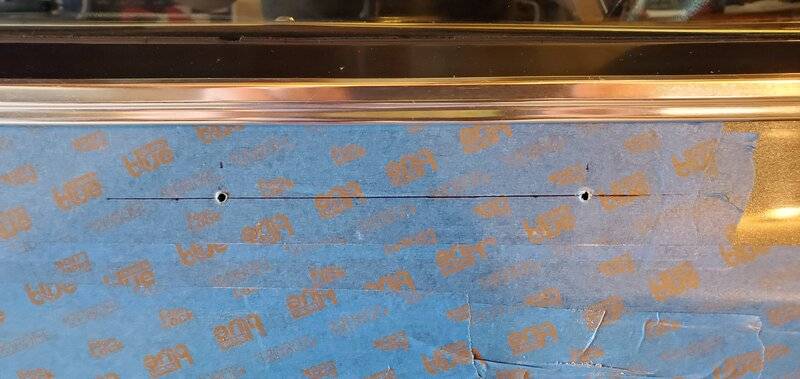

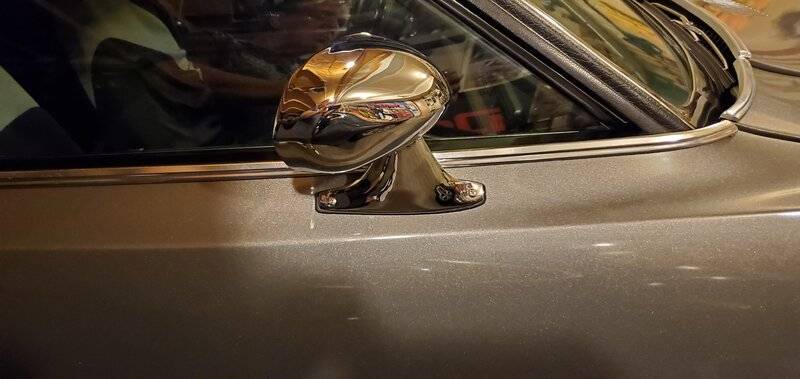

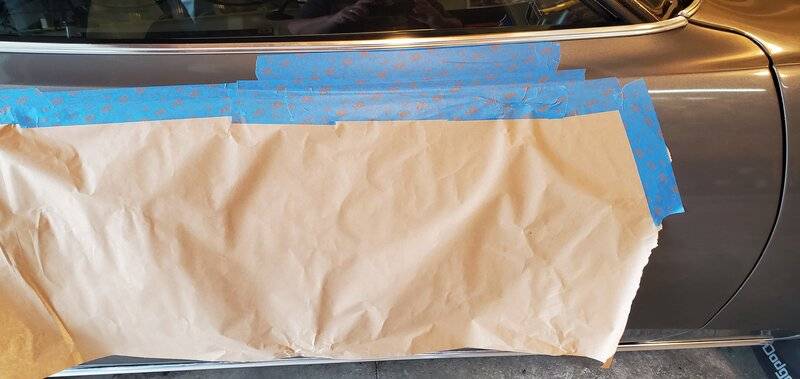

    20200612_175728.jpg 20200612_174005.jpg 20200612_174748.jpg 20200612_174756.jpg 20200612_174802.jpg 20200612_174833.jpg 20200612_180824.jpg 20200612_181730.jpg 20200612_190139.jpg

    • Like Like x 3
    • Thanks! Thanks! x 2
    • Paul_G

      Paul_G Well-Known Member

      Messages:
      1,687
      Likes Received:
      2676
      Joined:
      Dec 24, 2013
      Location:
      Surprise, Arizona
      Local Time:
      10:45 AM
      Good job!

      • Thanks! Thanks! x 1
      • Nacho-RT74

        Nacho-RT74 FBBO Gold Member FBBO Gold Member

        Messages:
        4,579
        Likes Received:
        1553
        Joined:
        Oct 8, 2012
        Location:
        Valencia, España
        Local Time:
        7:45 PM
        • Like Like x 1
        • 493 Mike

          493 Mike FBBO Gold Member FBBO Gold Member

          Messages:
          3,228
          Likes Received:
          3545
          Joined:
          Dec 25, 2011
          Location:
          White Cloud, MI
          Local Time:
          1:45 PM
          • Agree Agree x 1
          • Nacho-RT74

            Nacho-RT74 FBBO Gold Member FBBO Gold Member

            Messages:
            4,579
            Likes Received:
            1553
            Joined:
            Oct 8, 2012
            Location:
            Valencia, España
            Local Time:
            7:45 PM
            Well, just the upper panel remove is enough and the plate gets a stronger support to the mirror ( hence the reason the nutserts weren’t used anymore )

            anyway, was just a suggestion. :)

            • Agree Agree x 1
            • Nacho-RT74

              Nacho-RT74 FBBO Gold Member FBBO Gold Member

              Messages:
              4,579
              Likes Received:
              1553
              Joined:
              Oct 8, 2012
              Location:
              Valencia, España
              Local Time:
              7:45 PM
              The same holes can be comfortably reused and just add couple more inwards ( smaller ) for the pine tree fasteners

              • Like Like x 1
              • YY1

                YY1 Well-Known Member

                Messages:
                17,312
                Likes Received:
                9358
                Joined:
                Jun 26, 2010
                Location:
                FL
                Local Time:
                1:45 PM
                IIRC E body cars used the rivet inserts.

                I'm not a fan of those as I've had several spin and that is NOT fun to remedy.

                When I put mine on, I actually apologized to the car before drilling.

                It IS a functional addition, and these particular mirrors are not terribly small.

                I have considered a replacement "objects in mirror are closer..." lens.

              • Nacho-RT74

                Nacho-RT74 FBBO Gold Member FBBO Gold Member

                Messages:
                4,579
                Likes Received:
                1553
                Joined:
                Oct 8, 2012
                Location:
                Valencia, España
                Local Time:
                7:45 PM
                I had to apologize to install my mirror too. And also the fender top turn signals.

                I in fact opened the hole for a joystick system, because got a donor driver side door system... but then I got coward to open the hole on interior door panel LOL

                Yes E bodies used the nutserts ( not sure if all years or just 70s ?), but still better the backing plate which is in anycase correct for 73/74 B body ;)

              • 493 Mike

                493 Mike FBBO Gold Member FBBO Gold Member

                Messages:
                3,228
                Likes Received:
                3545
                Joined:
                Dec 25, 2011
                Location:
                White Cloud, MI
                Local Time:
                1:45 PM
                My 94 Dodge 2500 came with West Coast mirrors retained with nutserts.
                Mike

                • Like Like x 1
                • retractable

                  retractable FBBO Gold Member FBBO Gold Member

                  Messages:
                  309
                  Likes Received:
                  219
                  Joined:
                  Jan 11, 2016
                  Location:
                  New london MN
                  Local Time:
                  12:45 PM
                  I Had to apologize to my Daughters 67 Barracuda when I installed her rt mirror. I found if the rear hole was moved a small amount towards door glass she had better rear vision. The mirror is off being in a straight line a little. I thought that was better for rear sight.

                • Nacho-RT74

                  Nacho-RT74 FBBO Gold Member FBBO Gold Member

                  Messages:
                  4,579
                  Likes Received:
                  1553
                  Joined:
                  Oct 8, 2012
                  Location:
                  Valencia, España
                  Local Time:
                  7:45 PM
                  vent window doors got the rt mirror asimetric ( toward to rear ) to the lf side to sway the vent glass pillar

                • Doug Larsson

                  Doug Larsson Well-Known Member

                  Messages:
                  409
                  Likes Received:
                  385
                  Joined:
                  Apr 18, 2016
                  Local Time:
                  10:45 AM
                  I appreciate every one's opinion if they spin then it's my bad I'll fix the problem.

                • 493 Mike

                  493 Mike FBBO Gold Member FBBO Gold Member

                  Messages:
                  3,228
                  Likes Received:
                  3545
                  Joined:
                  Dec 25, 2011
                  Location:
                  White Cloud, MI
                  Local Time:
                  1:45 PM
                  Don't forget: anti seize is your friend!
                  Mike

                  • Agree Agree x 1
                  • 440 4 speed

                    440 4 speed Well-Known Member

                    Messages:
                    1,031
                    Likes Received:
                    411
                    Joined:
                    Oct 20, 2019
                    Location:
                    Saskatoon Saskatchewan Canada
                    Local Time:
                    11:45 AM
                    67 Chargers and maybe other B bodies did not have the driver’s and passenger mirrors equal distance from the door front edge.
                    I must admit that our car did not have a passenger mirror. I sat in my seat and had a helper move the passenger mirror until I could use it and it cleared the vent window.

                    • Like Like x 1
                    • Agree Agree x 1
                    • YY1

                      YY1 Well-Known Member

                      Messages:
                      17,312
                      Likes Received:
                      9358
                      Joined:
                      Jun 26, 2010
                      Location:
                      FL
                      Local Time:
                      1:45 PM
                      I have an unmolested 67 Belvedere wagon with it's original mandatory factory pass side mirror that disagrees with you.

                    • YY1

                      YY1 Well-Known Member

                      Messages:
                      17,312
                      Likes Received:
                      9358
                      Joined:
                      Jun 26, 2010
                      Location:
                      FL
                      Local Time:
                      1:45 PM
                      ...and if you look at E body mirrors, you'll see they are made different, to put the mirror more to the outside on the passenger's side.

                      You really don't want to see the quarter panel (although it's a comforting feeling) you want to see the blind spot, which is farther outboard.

                    • Doug Larsson

                      Doug Larsson Well-Known Member

                      Messages:
                      409
                      Likes Received:
                      385
                      Joined:
                      Apr 18, 2016
                      Local Time:
                      10:45 AM
                      On the 73's they were.
