No fire, ready to burn it!

Electrical & Ignition

  1. Bubba0

    Bubba0 Active Member

    Messages:
    26
    Likes Received:
    2
    Joined:
    Jun 11, 2018
    Location:
    Ohio
    Local Time:
    2:29 PM

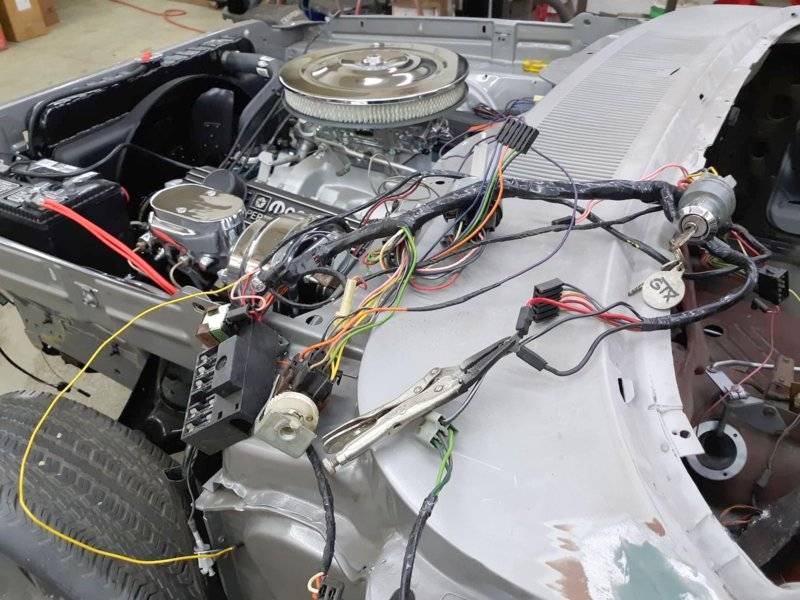

    I got the harness laid out and can't get it to fire, 67 GTX, I put a 70's style alternator and a MoPar electronic dizzy in it. I ordered the harness from Year One for those to be plug and play. I get 6.5-+ to the + side of the coil, get a spark when turning the key on and off. Have tried the old known good dizzy, known good old coil. The harness has wires for a 4 terminal ballast that reads ohms correct and a newer style voltage regulator. Should fire right? Do I have to move some wires in the block maybe? 91001836_1275809395951081_5093461403486912512_n.jpg 91006694_140252370762734_763342432984104960_n.jpg 91178343_200638881217293_7927214446668152832_n.jpg

  2. aeon280

    aeon280 FBBO Gold Member FBBO Gold Member

    Messages:
    574
    Likes Received:
    444
    Joined:
    Dec 9, 2015
    Location:
    Dfw
    Local Time:
    1:29 PM

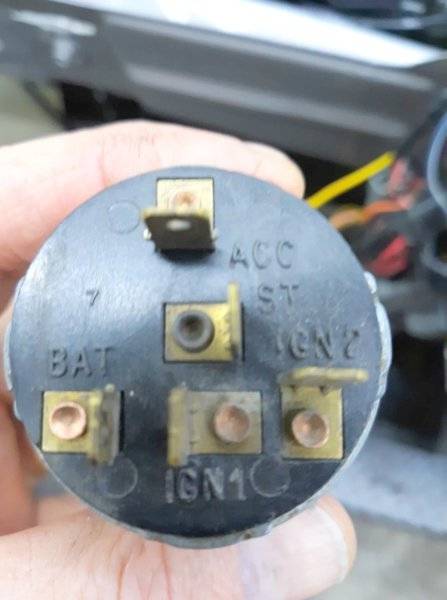

    Show a picture of the back of the ign. switch. Also is the manual or auto trans?

  3. dvw

    dvw Well-Known Member

    Messages:
    4,879
    Likes Received:
    6788
    Joined:
    Feb 16, 2010
    Location:
    waterford mi
    Local Time:
    2:29 PM

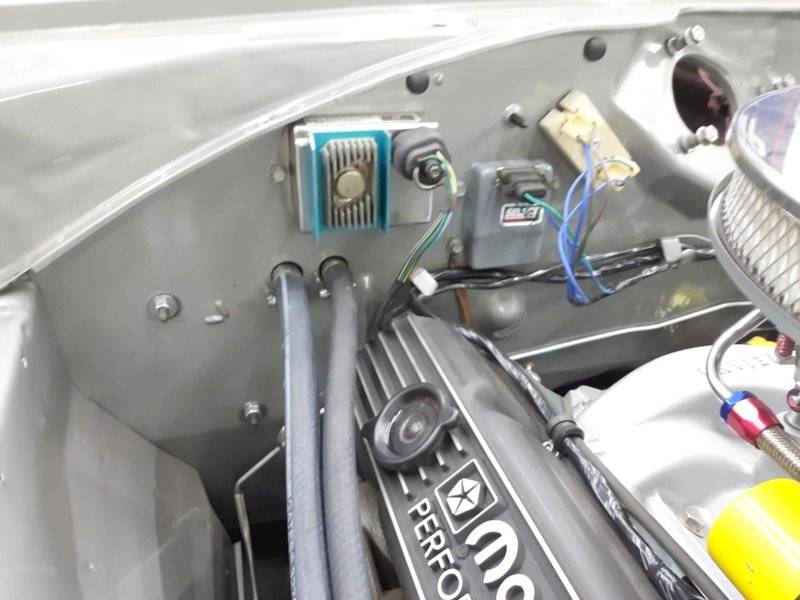

    pin 1 at the ignition box should be hot from the dark blue wire from the ballast resistor in run only. It should be hot from the brown wire at the ballast resistor in crank only. If it loses voltage in either key position repair that circuit. Read here
    https://www.allpar.com/fix/electronic-ignition.html

    • Agree Agree x 1
    • Don Frelier

      Don Frelier FBBO Gold Member FBBO Gold Member

      Messages:
      2,175
      Likes Received:
      2288
      Joined:
      Oct 11, 2016
      Location:
      Ionia, NY
      Local Time:
      2:29 PM
      Check the two as DVW suggested.
      And those vice grips look kinda sketchy.
      Maybe put a rubber mat or something below them, or just a bolt and nut through the two wires for now.
      Let's hope it's not another bad ECU there has been quite a run of crap lately.

    • Demonic

      Demonic Well-Known Member

      Messages:
      1,021
      Likes Received:
      842
      Joined:
      Jun 5, 2017
      Location:
      Maryland
      Local Time:
      2:29 PM
      New paint? Maybe a poor ground at the ign box? Check all the pins at the bulkhead. The new ones need a good push because of the new foam gasket.

      Do something with the vise grips before you burn it up.

    • 69Bee

      69Bee FBBO Gold Member FBBO Gold Member

      Messages:
      1,854
      Likes Received:
      1384
      Joined:
      Nov 17, 2009
      Location:
      Whetstone, AZ
      Local Time:
      11:29 AM
      You will need 10V or more for the ignition box to fire.

    • Ernie ingling

      Ernie ingling Well-Known Member

      Messages:
      298
      Likes Received:
      207
      Joined:
      Jun 8, 2019
      Location:
      Cocoa Fla
      Local Time:
      2:29 PM
      Now that predicament is a “dizzy”

    • Bubba0

      Bubba0 Active Member

      Messages:
      26
      Likes Received:
      2
      Joined:
      Jun 11, 2018
      Location:
      Ohio
      Local Time:
      2:29 PM
      It's an automatic


    • Bubba0

      Bubba0 Active Member

      Messages:
      26
      Likes Received:
      2
      Joined:
      Jun 11, 2018
      Location:
      Ohio
      Local Time:
      2:29 PM
      That's how it is wired, can I get by pass the ballast temporary to eliminate it? It test like it should.

    • Bubba0

      Bubba0 Active Member

      Messages:
      26
      Likes Received:
      2
      Joined:
      Jun 11, 2018
      Location:
      Ohio
      Local Time:
      2:29 PM
      Does it matter the coil, read something they are different for electronic ign and points. But I tried with the old coil and it was good before the car was disassembled. I have a yellow Blaster coil on it

    • Bubba0

      Bubba0 Active Member

      Messages:
      26
      Likes Received:
      2
      Joined:
      Jun 11, 2018
      Location:
      Ohio
      Local Time:
      2:29 PM
      Can I use a 4 pin ECH with a 4 terminal ballast?

    • Don Frelier

      Don Frelier FBBO Gold Member FBBO Gold Member

      Messages:
      2,175
      Likes Received:
      2288
      Joined:
      Oct 11, 2016
      Location:
      Ionia, NY
      Local Time:
      2:29 PM
      It should work with either coil.
      And yes you can use the 4 Pin ECU with the 4 terminal ballast, it's just that the one resistor in the ballast is unused.
      Try a temporary ground on the ECU, then a different ECU provided you have power during crank and run at the right pins.
      Let us know how you make out.

    • Durandal25

      Durandal25 FBBO Gold Member FBBO Gold Member

      Messages:
      1,425
      Likes Received:
      1054
      Joined:
      Aug 29, 2011
      Location:
      Texas
      Local Time:
      1:29 PM
      hehe.....I see some wires there.

    • PLMHEMI

      PLMHEMI FBBO Gold Member FBBO Gold Member

      Messages:
      274
      Likes Received:
      476
      Joined:
      Oct 31, 2019
      Location:
      Romeo, Michigan
      Local Time:
      2:29 PM
      Had this issue in the past after adding electronic ignition, problem was the plug for the distributor was not making a connection.

    • aeon280

      aeon280 FBBO Gold Member FBBO Gold Member

      Messages:
      574
      Likes Received:
      444
      Joined:
      Dec 9, 2015
      Location:
      Dfw
      Local Time:
      1:29 PM
      I had a similar issue but mine is a manual so ignition 2 is spliced I to ignition 1 in order to get full voltage to starter and the rest of ignition system. At first I only had ignition 1 hooked up and was only getting 6 volts at coil. On an auto I believe ignition 2 is part of the neutral safety switch circuit but not sure.

    • Bubba0

      Bubba0 Active Member

      Messages:
      26
      Likes Received:
      2
      Joined:
      Jun 11, 2018
      Location:
      Ohio
      Local Time:
      2:29 PM
      Got it figured out, my fault. Bought new bulkhead block, 2 brown wires one with a stripe , was backwards. Be glad when this money pit is done. :)
      Thanks for the help.

    • yella71

      yella71 Well-Known Member

      Messages:
      589
      Likes Received:
      811
      Joined:
      Dec 18, 2018
      Location:
      nj
      Local Time:
      2:29 PM
      Money pit????!!!! doh

    • superbeedave

      superbeedave Well-Known Member

      Messages:
      164
      Likes Received:
      33
      Joined:
      Jul 22, 2009
      Location:
      Cincinnati, Ohio
      Local Time:
      1:29 PM

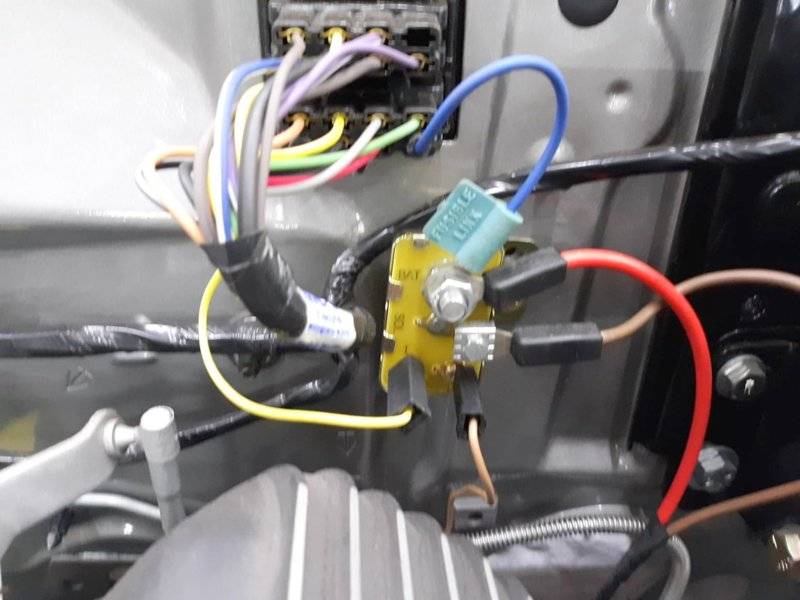

      I maybe wrong but if this is an automatic why is the starter relay for a manual with the yellow wire or am I loosing it?

      Last edited: Apr 4, 2020
    • 1 Wild R/T

      1 Wild R/T Well-Known Member

      Messages:
      1,869
      Likes Received:
      3035
      Joined:
      Jul 9, 2019
      Location:
      California
      Local Time:
      11:29 AM
      Not losing it... To late, already lost it...:poke::lol: The yellow wire is from the ignition switch... The brown wire goes to the neutral starter switch on an automatic, on manual starting I believe in 70 it goes to the clutch switch... The brown wire provides a path to ground for the control side of the starter relay...69 & earlier manual trans had a different design relay with no connection for the brown wire instead the control side of the relay was internally grounded... Picture below..

      Screen Shot 2020-04-04 at 10.56.48 PM.png

      • Thanks! Thanks! x 1
