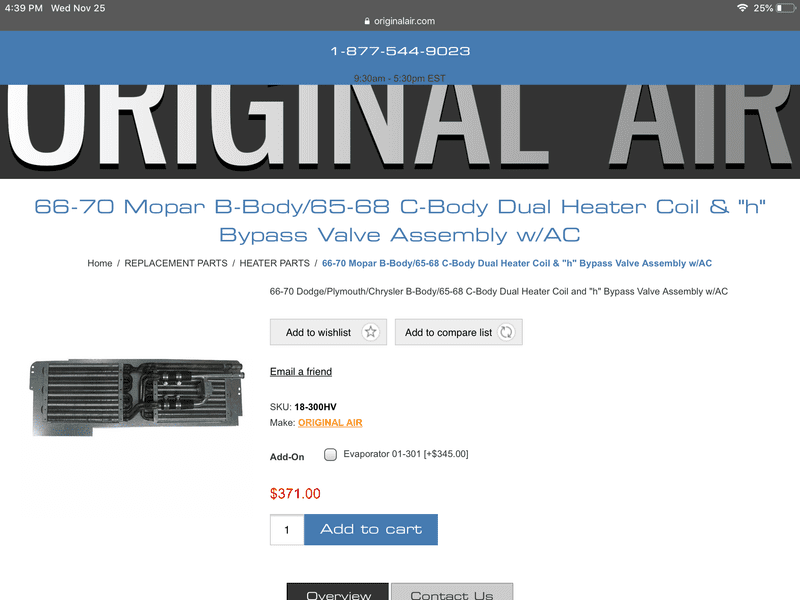

Original Air Heater core

Heating, Cooling & AC

  1. BMosely

    BMosely Well-Known Member

    Messages:
    71
    Likes Received:
    96
    Joined:
    Sep 16, 2020
    Location:
    Ga
    Local Time:
    1:49 PM
    Any input on these heaters cores? Now that I have dug into ours, I need the heater core rebuilt/replaced, the bypass valve shown rebuilt/replaced, and the heater control valve at the firewall rebuilt/replaced. For Gary to rebuild my core is $300. I can’t find rebuild kits for the bypass valve so $75 if you go new. I have not found a rebuild kit for the control valve either and haven’t priced new/rebuild kit. I would rather rebuild myself but if these are good quality it kills 2/3’s of my problems.


  2. rrTor-Red

    rrTor-Red FBBO Gold Member FBBO Gold Member

    Messages:
    2,040
    Likes Received:
    713
    Joined:
    Sep 1, 2010
    Location:
    USA
    Local Time:
    12:49 PM
    What are you working on? If you have the original heater core, have it rebuilt/tested/cleaned.

  3. LowBikeMike

    LowBikeMike Active Member

    Messages:
    37
    Likes Received:
    29
    Joined:
    Nov 28, 2020
    Location:
    St Louis, Mo
    Local Time:
    12:49 PM
    I recently had GlenRay rebuild my 69 AC car heater core. They did a great job. $265 plus shipping to get it to them. Work was quick and looks great. They tested my original H valve, determined it leaked internally, so I drop shipped them a Old Air H valve which they installed on the core before returning to me. Just sent my firewall temp control valve to Joe at HeaterValves.net after talking to him on the phone. Appeared to very experienced and nice to speak with, $85 will get it fully restored and shipped back to me. So, I would have the original parts rebuilt versus going to new aftermarket if possible.

    • Like Like x 2
    • Agree Agree x 1
    • pbiggs

      pbiggs Well-Known Member

      Messages:
      187
      Likes Received:
      110
      Joined:
      Jul 18, 2008
      Location:
      Front Royal, VA
      Local Time:
      1:49 PM
      Here's my heater core story....bought a new aftermarket core from a fellow FABO, installed it and found the hose connection tubes almost an 1" too short...Trash. Ordered one from Advance, same issue with the tubes, returned for money back. Ordered one from Autozone..came only in aluminum, refused to take it.
      Sent my core to Glen-Ray, paid for their good work work and finally I have heat.
      Don't waste time and money with aftermarket, go Glen-Ray.
      Now there is another option I considered...I could haven taken my original core to a radiator shop, have them unsolder/remove the tubes and transplant them into the aftermarket core. But, I didn't want to chance the shop resoldering the tubes out of alignment. Problem is you won't if the core fits correctly until it is reinstalled.

      • Agree Agree x 1
      • BMosely

        BMosely Well-Known Member

        Messages:
        71
        Likes Received:
        96
        Joined:
        Sep 16, 2020
        Location:
        Ga
        Local Time:
        1:49 PM
        Great info, thanks. Both my h valve and heater valve are trashed and will need rebuilding.

      • BMosely

        BMosely Well-Known Member

        Messages:
        71
        Likes Received:
        96
        Joined:
        Sep 16, 2020
        Location:
        Ga
        Local Time:
        1:49 PM
        Great info, thanks. Both my h valve and heater valve are trashed and will need rebuilding.

      • BMosely

        BMosely Well-Known Member

        Messages:
        71
        Likes Received:
        96
        Joined:
        Sep 16, 2020
        Location:
        Ga
        Local Time:
        1:49 PM
        Spoke with Joe at heatervalve.net. He can handle the heater valve but doesn’t rebuild the h valve. Any source out there for rebuild/parts of just buy new? Classic has them new for $75 which seems pretty steep.

      • joerachet

        joerachet Well-Known Member

        Messages:
        1,384
        Likes Received:
        97
        Joined:
        Feb 26, 2014
        Location:
        USA
        Local Time:
        12:49 PM

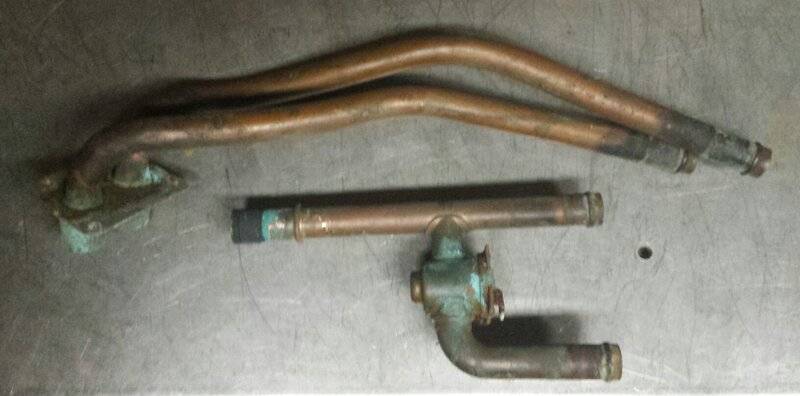

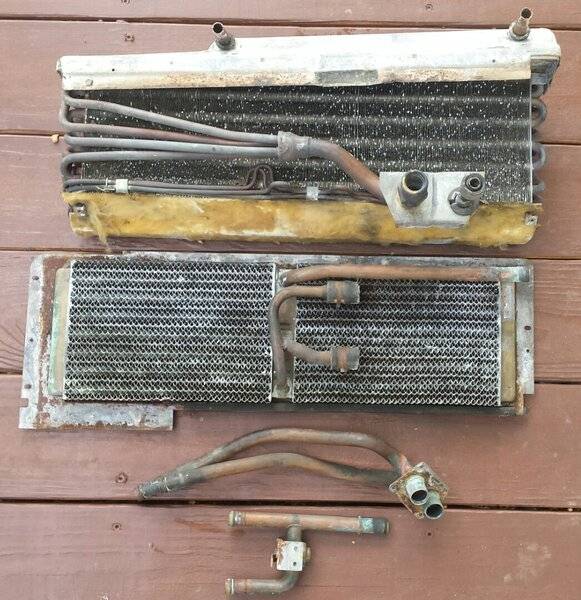

        I have these ac parts if you still need something

        20181024_080912.jpg 20181003_143849.jpg

      • gtx6970

        gtx6970 Well-Known Member

        Messages:
        330
        Likes Received:
        344
        Joined:
        Dec 29, 2015
        Location:
        Tucson AZ
        Local Time:
        10:49 AM
      • 67 joe dirt

        67 joe dirt Well-Known Member

        Messages:
        57
        Likes Received:
        28
        Joined:
        Jan 16, 2021
        Location:
        Oak Hill, WV
        Local Time:
        1:49 PM
        Do they sell a heater core that u don't have to use the h valve to get heat only not really worried about ac

      • rrTor-Red

        rrTor-Red FBBO Gold Member FBBO Gold Member

        Messages:
        2,040
        Likes Received:
        713
        Joined:
        Sep 1, 2010
        Location:
        USA
        Local Time:
        12:49 PM
        Bypass the valve if thats what you want.

      • LowBikeMike

        LowBikeMike Active Member

        Messages:
        37
        Likes Received:
        29
        Joined:
        Nov 28, 2020
        Location:
        St Louis, Mo
        Local Time:
        12:49 PM
        Not that I'm aware of. Because of how the system is plumbed with the copper outlet pipes you need the h valve for the hoses to hook up properly.

      • 67 joe dirt

        67 joe dirt Well-Known Member

        Messages:
        57
        Likes Received:
        28
        Joined:
        Jan 16, 2021
        Location:
        Oak Hill, WV
        Local Time:
        1:49 PM
        Has anyone used the original air core
