Starter heat shield ideas

Electrical & Ignition

  1. CoronetDarter

    CoronetDarter Well-Known Member

    Messages:
    1,394
    Likes Received:
    1452
    Joined:
    Oct 13, 2013
    Location:
    Lincoln, CA
    Local Time:
    12:24 PM
    That's a good idea too. The way the wire and cable are routed now it should be OK. Originally I had them running between the header pipes over to the inner fender and then to the firewall.

    • Thanks! Thanks! x 1
    • Kern Dog

      Kern Dog FBBO Gold Member FBBO Gold Member

      Messages:
      15,134
      Likes Received:
      33217
      Joined:
      Apr 13, 2012
      Location:
      Granite Bay CA
      Local Time:
      12:24 PM
      I like the sound of the new mini starters but when I hear a Mopar with the stock starter, I smile more.

      • Agree Agree x 5
      • CoronetDarter

        CoronetDarter Well-Known Member

        Messages:
        1,394
        Likes Received:
        1452
        Joined:
        Oct 13, 2013
        Location:
        Lincoln, CA
        Local Time:
        12:24 PM

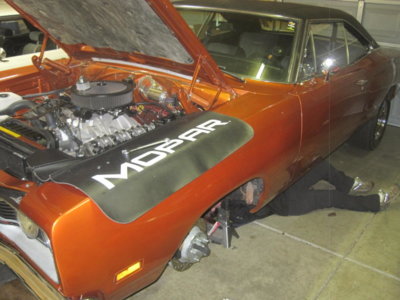

        Reinstalling the headers is a two person job. Maria was underneath holding up the collector end while I lined up the flange. When I was finally done I went inside for a celebratory beer and forgot to tell Maria; came back 20 minutes later and she was still holding up the collector. What a gal!


        • Like Like x 3
        • Kern Dog

          Kern Dog FBBO Gold Member FBBO Gold Member

          Messages:
          15,134
          Likes Received:
          33217
          Joined:
          Apr 13, 2012
          Location:
          Granite Bay CA
          Local Time:
          12:24 PM
          I have adopted a technique for that....
          I use a threaded dowel at the rearmost header bolt and then thread in the bolts in from the front to the rear.
          Maria is a cool chick, Rich. I like her.

          • Thanks! Thanks! x 1
          • CoronetDarter

            CoronetDarter Well-Known Member

            Messages:
            1,394
            Likes Received:
            1452
            Joined:
            Oct 13, 2013
            Location:
            Lincoln, CA
            Local Time:
            12:24 PM
            What makes it tricky is using the Remflex gaskets. They're the best header gaskets by far when installed, but fragile at the same time. They can bend and crease just staring at them too hard, rendering them useless. My install rate is 50%.
            After creasing the first one on the back edge of the head, I had my neighbor come over and guide the rear 2 tubes while i worked the front and Maria down at the collector. With three people it was a 5 minute job.

          • CoronetDarter

            CoronetDarter Well-Known Member

            Messages:
            1,394
            Likes Received:
            1452
            Joined:
            Oct 13, 2013
            Location:
            Lincoln, CA
            Local Time:
            12:24 PM
            Everything buttoned up, car still up on jack stands. Before putting the front tire back on I jump in, turn the key and the engine fires right up! Let it idle for 10 seconds and shut if off.
            Put the wheel back on, lower the car on the ground, put away all the tools and jump in to take a test drive. Nothing. Just that high-pitched scream of the starter solenoid. WTF?!? I am so done with this car.

          • Kern Dog

            Kern Dog FBBO Gold Member FBBO Gold Member

            Messages:
            15,134
            Likes Received:
            33217
            Joined:
            Apr 13, 2012
            Location:
            Granite Bay CA
            Local Time:
            12:24 PM
            Son of a bitch.

            • Agree Agree x 1
            • coloradodave

              coloradodave FBBO Gold Member FBBO Gold Member

              Messages:
              3,444
              Likes Received:
              2770
              Joined:
              Jun 1, 2011
              Location:
              Lincoln, CA
              Local Time:
              12:24 PM
              Rich, Are you saying that when you turn the key you hear the starter motor spin but it's not engaging the flywheel teeth?

            • Wietse

              Wietse Well-Known Member

              Messages:
              1,166
              Likes Received:
              434
              Joined:
              Apr 16, 2017
              Location:
              Netherlands
              Local Time:
              9:24 PM
              Low battery voltage? If it makes a difference?

            • Mick56

              Mick56 Active Member

              Messages:
              27
              Likes Received:
              20
              Joined:
              Nov 10, 2019
              Location:
              Wisconsin
              Local Time:
              2:24 PM
              Usually the loud screech means a bad Bendix.

            • hunt2elk

              hunt2elk FBBO Gold Member FBBO Gold Member

              Messages:
              5,669
              Likes Received:
              3926
              Joined:
              Jul 15, 2009
              Location:
              WI
              Local Time:
              2:24 PM
              Dang Rich, seems like some if my bad luck working on these old cars has made it all the way to CA and latched onto you. By the way, Maria is definitely a keeper. Had to chuckle when looking at the pic of her under the car and thinking that it is a good thing you have her around because I don't know if you would physically fit under there, lol.

            • CoronetDarter

              CoronetDarter Well-Known Member

              Messages:
              1,394
              Likes Received:
              1452
              Joined:
              Oct 13, 2013
              Location:
              Lincoln, CA
              Local Time:
              12:24 PM
              I believe so. The sound is like nails on a chalkboard.
              Do you think it's mechanical interference or electrical?

            • CoronetDarter

              CoronetDarter Well-Known Member

              Messages:
              1,394
              Likes Received:
              1452
              Joined:
              Oct 13, 2013
              Location:
              Lincoln, CA
              Local Time:
              12:24 PM
              I wondered that too. I jumped the battery and no change.

            • CoronetDarter

              CoronetDarter Well-Known Member

              Messages:
              1,394
              Likes Received:
              1452
              Joined:
              Oct 13, 2013
              Location:
              Lincoln, CA
              Local Time:
              12:24 PM
              Yeah Joel, it's a tight fit. My forearms and hands look like they went though a meat grinder.
              BTW, been following your build thread. Seems a lot of your roadblocks are vendor related, feels like mine are more self induced. I liked your post "I'm going to win".
              I'm really hoping this latest set back is an electrical connection because I dread having to pull the starter again. Once I get my head back into it I was going to pull the solenoid wire at the starter and test for 12V when keyed to Start.

            • CoronetDarter

              CoronetDarter Well-Known Member

              Messages:
              1,394
              Likes Received:
              1452
              Joined:
              Oct 13, 2013
              Location:
              Lincoln, CA
              Local Time:
              12:24 PM
              Please, anything but..

            • Wietse

              Wietse Well-Known Member

              Messages:
              1,166
              Likes Received:
              434
              Joined:
              Apr 16, 2017
              Location:
              Netherlands
              Local Time:
              9:24 PM
              I worked on my starter today as well, installing new wiring.
              The motor is out so i have plenty space to play around, what i did notice was there is some "play" on the bolt and stud that hold down the starter on mine. (440 source mini starter 123-1000)
              After seeing that it made me wonder as i remember your issue, i don't know what starter you are using but in the previous picture your old starter also looks like the 440 source starter.
              Could it be it shifted a bit after the first start which causes the starter pinion not to engage the ring gear?
              I know it's a pain in the ass, but could be worth a try to loosen the fasteners a bit and see if there is play.
              After pull outwards, away from the engine as far as it would go and retighten the bolts again to see if that helps.

              • Thanks! Thanks! x 1
              • coloradodave

                coloradodave FBBO Gold Member FBBO Gold Member

                Messages:
                3,444
                Likes Received:
                2770
                Joined:
                Jun 1, 2011
                Location:
                Lincoln, CA
                Local Time:
                12:24 PM
                Rich,
                If you want to, PM me your address and I'll take a ride by and have a listen at your convenience. Meanwhile, check your voltage at the starter relay larger terminal. If it's over 12 volts, try to jump terminals on the relay and see what happens. A/T or 4 speed? Sorry, I'm old and my memory is not to be relied on...

              • CoronetDarter

                CoronetDarter Well-Known Member

                Messages:
                1,394
                Likes Received:
                1452
                Joined:
                Oct 13, 2013
                Location:
                Lincoln, CA
                Local Time:
                12:24 PM
                It's been a few years since I put the car but I don't think it's a 440 Source - although I do have their Stealth heads. I think the starter came from Rock Auto.
                The new one is from Mancini Racing.
                And unbolting the starter from the trans isn't very difficult; actually removing it is the PITA. I'm gonna start small and poke around the starter relay and connections and work my way down. Thanks for the tip, I'll check it out if the problem doesn't surface in the connections.

              • CoronetDarter

                CoronetDarter Well-Known Member

                Messages:
                1,394
                Likes Received:
                1452
                Joined:
                Oct 13, 2013
                Location:
                Lincoln, CA
                Local Time:
                12:24 PM
                It's 12.1V at the starter relay. I jumpered to the solenoid terminal and the starter solenoid energized same as with the key.
                It's a 3 on the tree A/T. If jumpering the starter relay energizes the solenoid then doesn't that rule out the NSS connection?
                There's 12.1V at the relay and 12.45V at the battery (trunk mounted). Is it possible there's only enough voltage to engage the solenoid but not turn over the starter? Fully charged batt should be over 13V.

                Last edited: Feb 19, 2020
              • CoronetDarter

                CoronetDarter Well-Known Member

                Messages:
                1,394
                Likes Received:
                1452
                Joined:
                Oct 13, 2013
                Location:
                Lincoln, CA
                Local Time:
                12:24 PM
                Jumped the battery with my 4runner, still the grinding noise. Now I'm leaning towards a mechanical issue with the gears not meshing. Originally starter did turn over and the engine started while on the jack stands, but now I'm second guessing if the starter bolts were torqued adequately. At least the mounting bolts can be checked/tightened with the headers in place.
