Starter splash shield fasteners?

1968-1970 Dodge Charger Forum

  1. Tony Tee

    Tony Tee Well-Known Member

    Messages:
    348
    Likes Received:
    354
    Joined:
    Jun 4, 2018
    Location:
    ocala florida
    Local Time:
    1:27 AM
    I need a close up up picture of the starter splash shield fasteners that mount it to the frame rail. On a 69 charger. Thanks in advance, Tony Tee.

  2. Richard Cranium

    Richard Cranium FBBO Gold Member FBBO Gold Member

    Messages:
    32,864
    Likes Received:
    84753
    Joined:
    Feb 20, 2012
    Location:
    Maskachusetts
    Local Time:
    12:27 AM

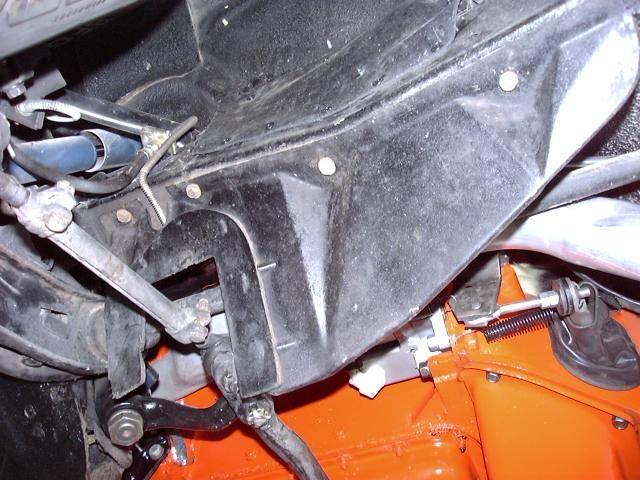

    Thy take a 3/8" socket and have a flanged bottom to them.



    • Agree Agree x 1
    • mopar4don

      mopar4don Well-Known Member

      Messages:
      897
      Likes Received:
      800
      Joined:
      Feb 4, 2012
      Location:
      Michigan
      Local Time:
      1:27 AM
      Is this splash shield on automatics or 4 speed cars? Or on all cars?

    • Tony Tee

      Tony Tee Well-Known Member

      Messages:
      348
      Likes Received:
      354
      Joined:
      Jun 4, 2018
      Location:
      ocala florida
      Local Time:
      1:27 AM
      Ok, 3/8" head with a captive washer and I'm guessing it has some sort of self threading tip? Thanks!

    • Tony Tee

      Tony Tee Well-Known Member

      Messages:
      348
      Likes Received:
      354
      Joined:
      Jun 4, 2018
      Location:
      ocala florida
      Local Time:
      1:27 AM
      Not sure! Richard craniums picture is a 4 speed and my car is a 4 speed. And all of my automatic 2nd generation Chargers in the past didn't have them . But a friend of mine with a 68 automatic 383 had one.

    • Richard Cranium

      Richard Cranium FBBO Gold Member FBBO Gold Member

      Messages:
      32,864
      Likes Received:
      84753
      Joined:
      Feb 20, 2012
      Location:
      Maskachusetts
      Local Time:
      12:27 AM
      In spite of that picture that I posted showing it on a 4-speed car, as I understand, the shield came on automatic cars only. The bolts do not have a captive washer, rather the bottom is flanged wider than the bolt head and I believe that they have knurls on the underside surface of them.

    • mopar4don

      mopar4don Well-Known Member

      Messages:
      897
      Likes Received:
      800
      Joined:
      Feb 4, 2012
      Location:
      Michigan
      Local Time:
      1:27 AM
      I had one on my automatic, but was not sure about a 4 speed car.
      Thank you

    • Tony Tee

      Tony Tee Well-Known Member

      Messages:
      348
      Likes Received:
      354
      Joined:
      Jun 4, 2018
      Location:
      ocala florida
      Local Time:
      1:27 AM
      Ok, great! I'll be looking through my large bucket of miscellaneous mopar fasteners tonight.

    • Tony Tee

      Tony Tee Well-Known Member

      Messages:
      348
      Likes Received:
      354
      Joined:
      Jun 4, 2018
      Location:
      ocala florida
      Local Time:
      1:27 AM
      I bet a lot these starter splash shields were left off after replacing the starter or when they had front end work done. So if the 4 mounting holes in the frame rails are threaded? Then it had one.

      • Agree Agree x 1
      • hunt2elk

        hunt2elk FBBO Gold Member FBBO Gold Member

        Messages:
        7,056
        Likes Received:
        5938
        Joined:
        Jul 15, 2009
        Location:
        WI
        Local Time:
        12:27 AM
        Automatic cars only as far as I have heard and seen.

        • Agree Agree x 1
        • Richard Cranium

          Richard Cranium FBBO Gold Member FBBO Gold Member

          Messages:
          32,864
          Likes Received:
          84753
          Joined:
          Feb 20, 2012
          Location:
          Maskachusetts
          Local Time:
          12:27 AM
          The 4 holes are in the frame rail whether they were auto or 4 speed. The threads on the bolts were coarse like a wood screw. I'll pull one out of mine & take a picture of it later on.

        • Sixpactogo

          Sixpactogo Well-Known Member

          Messages:
          1,387
          Likes Received:
          1180
          Joined:
          Feb 2, 2014
          Location:
          Eau Claire, WI
          Local Time:
          12:27 AM
          I would have thought the transmission would have nothing to do with whether it got a starter shield or not. I figured they all had them. I bought a 4 speed Charger R/T new in 68 but 52 years of brain fade has taken it's toll. I know it had a starter so I'm betting it had a shield.

        • toolmanmike

          toolmanmike Moderator Staff Member FBBO Gold Member

          Messages:
          5,133
          Likes Received:
          8529
          Joined:
          Aug 11, 2010
          Location:
          Iowa
          Local Time:
          12:27 AM
        • Tony Tee

          Tony Tee Well-Known Member

          Messages:
          348
          Likes Received:
          354
          Joined:
          Jun 4, 2018
          Location:
          ocala florida
          Local Time:
          1:27 AM
        • Tony Tee

          Tony Tee Well-Known Member

          Messages:
          348
          Likes Received:
          354
          Joined:
          Jun 4, 2018
          Location:
          ocala florida
          Local Time:
          1:27 AM
          OK, that would be great. Thanks!

        • toolmanmike

          toolmanmike Moderator Staff Member FBBO Gold Member

          Messages:
          5,133
          Likes Received:
          8529
          Joined:
          Aug 11, 2010
          Location:
          Iowa
          Local Time:
          12:27 AM
          Wrong splash shield. :BangHead::BangHead:

        • Sixpactogo

          Sixpactogo Well-Known Member

          Messages:
          1,387
          Likes Received:
          1180
          Joined:
          Feb 2, 2014
          Location:
          Eau Claire, WI
          Local Time:
          12:27 AM
        • Richard Cranium

          Richard Cranium FBBO Gold Member FBBO Gold Member

          Messages:
          32,864
          Likes Received:
          84753
          Joined:
          Feb 20, 2012
          Location:
          Maskachusetts
          Local Time:
          12:27 AM

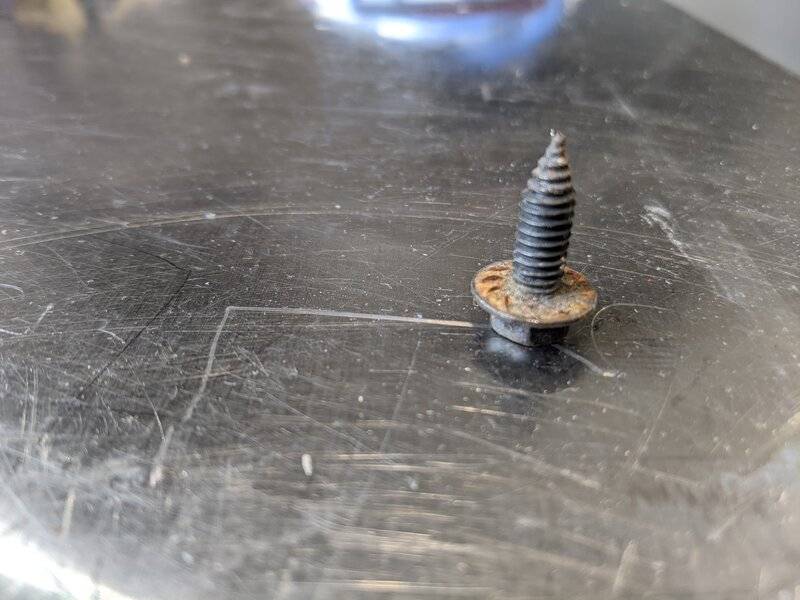

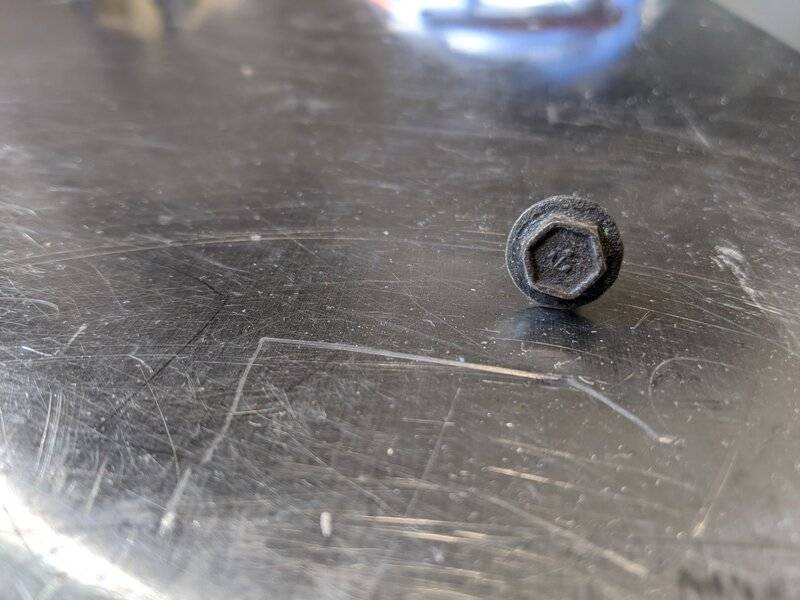

          Here's mine hot off the frame rail....




          • Agree Agree x 2
          • Like Like x 1
          • Tony Tee

            Tony Tee Well-Known Member

            Messages:
            348
            Likes Received:
            354
            Joined:
            Jun 4, 2018
            Location:
            ocala florida
            Local Time:
            1:27 AM

            • Thanks! Thanks! x 1
            • Moparparts

              Moparparts FBBO Gold Member FBBO Gold Member

              Messages:
              2,367
              Likes Received:
              287
              Joined:
              Nov 15, 2010
              Location:
              PA
              Local Time:
              12:27 AM
              If you can't find your original ones PM me i have those
