    I saw this video recently and find it surprising.




    Being a Carpenter, I have some basic engineering knowledge in terms of construction materials. I find it very strange that a hollow bar can provide greater strength than a solid bar. If this is actually true, why hasn't anyone made hollow torsion bars?

    I like the idea of weight savings. I'd consider one of these if I could hear from someone that could explain in basic terms why a hollow member is stronger than a solid one. Is it in the metallurgy?

  2. 1 Wild R/T

    1 Wild R/T FBBO Gold Member FBBO Gold Member

    Messages:
    2,987
    Likes Received:
    5303
    Joined:
    Jul 9, 2019
    Location:
    California
    Local Time:
    6:45 PM
    Well you missed the fact that the solid bar is 1 1/4" & the hollow bar is 1 3/8"....

    But it does weigh less & provides a stronger bar....

    Personally I run the Hellwig bars, they are also hollow, virtually the same design as the Hotchkis & less than half the price....

    • Agree Agree x 2
    • Thanks! Thanks! x 1
    • Kern Dog

      Kern Dog FBBO Gold Member FBBO Gold Member

      Messages:
      18,839
      Likes Received:
      46644
      Joined:
      Apr 13, 2012
      Location:
      Granite Bay CA
      Local Time:
      6:45 PM
      I did notice the difference in diameter but even if the sizes were the same, could a hollow bar still be stiffer? I've seen this topic discussed elsewhere and some think so. I just wish someone had a rationale explanation as to why.

    • 1 Wild R/T

      1 Wild R/T FBBO Gold Member FBBO Gold Member

      Messages:
      2,987
      Likes Received:
      5303
      Joined:
      Jul 9, 2019
      Location:
      California
      Local Time:
      6:45 PM
      Stronger? No... Virtually the same? Yes... The torsional strength of the inner area is minimal... Take a 5" long 1/2" steel rod, Bend each end 1' in at a 90 degree angle.. Mount three points solidly like in the sway bar test.. Now how much force would it take to deflect the free point 1"? I don't know but I'm willing to bet I could do it with one hand...... Now try doing the same thing with 5' length of 1" pipe with a 1/8" wall.... Bet it takes allot more effort...

      • Agree Agree x 1
      • Kern Dog

        Kern Dog FBBO Gold Member FBBO Gold Member

        Messages:
        18,839
        Likes Received:
        46644
        Joined:
        Apr 13, 2012
        Location:
        Granite Bay CA
        Local Time:
        6:45 PM
        The video above would be easier to believe if I knew it wasn't paid for by Hotchkis. I don't begrudge them or mean to bad mouth their stuff but just like when your Mom says that you are the best looking boy in the world, you have to question the whole deal.

        • Like Like x 1
        • Agree Agree x 1
        • Kern Dog

          Kern Dog FBBO Gold Member FBBO Gold Member

          Messages:
          18,839
          Likes Received:
          46644
          Joined:
          Apr 13, 2012
          Location:
          Granite Bay CA
          Local Time:
          6:45 PM
          I know that GM started using hollow bars in the 80s with the Camaro and Firebirds , maybe other models too. I'd like to know the wall thickness of these Hellwig and Hotchkis bars.

        • 66 Sat

          66 Sat Well-Known Member

          Messages:
          837
          Likes Received:
          1259
          Joined:
          Apr 26, 2015
          Location:
          Australia
          Local Time:
          8:45 PM

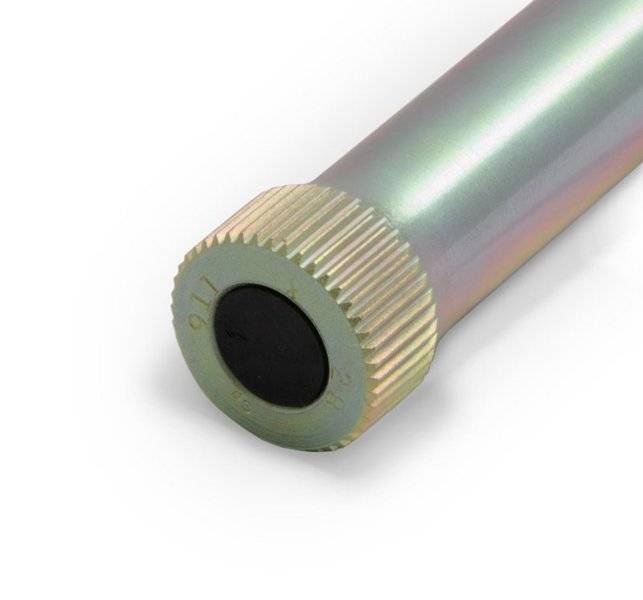

          [QUOTE. If this is actually true, why hasn't anyone made hollow torsion bars?

          [/QUOTE]
          Do a search online and you'll learn a lot. It's not the metallurgy, more the physics of stiffness with the hollow tube coming out on top (too complicated for me to explain, I sort of understood when I read it though and I'm sure you will too). It wouldn't work on torsion bars though as that's a different force, twisting and not bending. Another area the solid tube would win is in compression. I think it's only in bending stiffness the hollow tube comes out on top (and weight of course). Interesting stuff though, thanks for posting, I learned something new.

          • Like Like x 1
          • HT413

            HT413 Semi Pro Bowler

            Messages:
            5,317
            Likes Received:
            5329
            Joined:
            Jul 5, 2012
            Location:
            New Jersey
            Local Time:
            9:45 PM
            Kern, it’s simple as carpentry. A 2x12 joist is stiffer and stronger than 2) 2x6 next to each other despite the amount of wood being roughly the same.

            The strength of the beam increases as cube of the height. So a joist that is 2x taller (such as a 2x12) would be 2x2x2 = 8 times stiffer than a single 2x6.

            The other thing is I’d guess the solid one might be lower quality steel. Quality 4130 is way stiffer than most lower grade bar stock steel.

            • Like Like x 1
            • Thanks! Thanks! x 1
            • Stanton

              Stanton Well-Known Member

              Messages:
              2,696
              Likes Received:
              2550
              Joined:
              Aug 8, 2012
              Location:
              ON
              Local Time:
              9:45 PM
              Often times things are not made out of particular materials because they're stronger but because they're available. I build rotisseries and I use 3/16" wall material - not for its strength but because a smaller tubing fits inside better. We used to race go karts and the European karts were always lighter and allowed better tuning than American karts. Why? Because in the US chrome moly was produced in 1/8" increments Whereas in Europe its made in 2mm increments. So the karts could be built with a diameter that worked best as opposed to what was on the market. Also size and shape comes into play. Take bridge trusses for example. They build a truss out of multiple pieces of steel and the truss is 20' tall. If they just used a solid bar of the same weight, regardless of its dimension it wouldn't have anywhere near the strength of the truss. So while in itself a solid piece may be more rigid than a tube, you have to look at the intended purpose.

              • Thanks! Thanks! x 2
              • Dennis H

                Dennis H FBBO Gold Member FBBO Gold Member

                Messages:
                14,718
                Likes Received:
                18188
                Joined:
                Jul 11, 2010
                Location:
                San Jose
                Local Time:
                8:45 PM
                As a novice it sounds like the weight savings and improved stiffness exist, but are both so marginal as to barely be detectable when driving. That was a run-on sentence for the Kern.

                • Like Like x 2
                • LMSC33

                  LMSC33 Active Member

                  Messages:
                  34
                  Likes Received:
                  36
                  Joined:
                  Feb 5, 2019
                  Location:
                  Princeton, WV
                  Local Time:
                  9:45 PM
                  From my experience in circle track racing, spring rates on hollow bars are significantly higher than solid bars.

                  • Thanks! Thanks! x 1
                  • Kern Dog

                    Kern Dog FBBO Gold Member FBBO Gold Member

                    Messages:
                    18,839
                    Likes Received:
                    46644
                    Joined:
                    Apr 13, 2012
                    Location:
                    Granite Bay CA
                    Local Time:
                    6:45 PM
                    THanks for the responses but what I am not seeing anyone clearly explaining is WHY....At least in a manner that helps me understand.

                  • HT413

                    HT413 Semi Pro Bowler

                    Messages:
                    5,317
                    Likes Received:
                    5329
                    Joined:
                    Jul 5, 2012
                    Location:
                    New Jersey
                    Local Time:
                    9:45 PM
                    a solid bar would be stiffer than a tube of same material and dimension. The reason the hollow bar you posted was stiffer was the increased diameter and probably better steel.

                    But it’s true that a hollow tube can be really close in stiffness to its solid bar companion; but it can’t be as stiff and certainly not stiffer. Go back to the 2x12. As the 2x gets smaller in height, it’s stiffness decreases by a cube as I mentioned. Well as its thickness approaches zero, its stiffness also approaches zero.

                    Now if we imagine the solid bar as a series of tubes nested within each other, you can see that each smaller tube is successively less stuff, until the most inner tube’s stiffness approaches zero. It’s in this way that the inner material of solid bar stock is of less structural importance than the outer skin.

                    So well designed tube can be super stiff - so long as the wall is stiff enough to hold its form without kinking under load.

                    Last edited: Dec 8, 2019
                    • Thanks! Thanks! x 1
                    • Kern Dog

                      Kern Dog FBBO Gold Member FBBO Gold Member

                      Messages:
                      18,839
                      Likes Received:
                      46644
                      Joined:
                      Apr 13, 2012
                      Location:
                      Granite Bay CA
                      Local Time:
                      6:45 PM
                      I have read that the closer you get to the center of the bar, the less effective the metal is. Is that maybe also due to leverage? In other words, can that principle compare to a large versus small steering wheel? A long handle breaker bar versus a stubby handle ratchet?

                      The 66-69 models could use the 1 3/8" bar but the '70-'72 models had a tighter fit through the K member and it seems the biggest that anyone makes as a "Bolt in" is an 1 1/4" bar. The lever arms are shorter in the 70-72 so even without doing the math, I'm guessing that the later one while 1/8" smaller, is probably stiffer.

                    • HT413

                      HT413 Semi Pro Bowler

                      Messages:
                      5,317
                      Likes Received:
                      5329
                      Joined:
                      Jul 5, 2012
                      Location:
                      New Jersey
                      Local Time:
                      9:45 PM
                      the concepts are related, though leverage is a 1:1 with diameter / length while bending stiffness is diameter cubed. Incidentally, the torsional stiffness is diameter to the 4th power which really translates to a big improvement as you step up even the 1/8”

                      • Thanks! Thanks! x 1
                      • Agree Agree x 1
                      • DeltaV

                        DeltaV You are about to participate in a great adventure FBBO Gold Member

                        Messages:
                        9,443
                        Likes Received:
                        24981
                        Joined:
                        Jul 11, 2015
                        Location:
                        Milky Way
                        Local Time:
                        9:45 PM
                        • Thanks! Thanks! x 1
                        • biomedtechguy

                          biomedtechguy Accelerati Rapidus Maximus FBBO Gold Member

                          Messages:
                          23,749
                          Likes Received:
                          34074
                          Joined:
                          Mar 28, 2014
                          Location:
                          South Louisiana
                          Local Time:
                          8:45 PM
                          Well Dennis, obviously Kern Dog is "slacking" on his demand for precise language...:poke:
                          Otherwise the title would have been
                          "ANTI-sway bars"...:poke:
                          Unless you are inducing sway...lol:lol:

                          I think that the diameter is a bigger factor than "common sense" would suggest, and the best explanations are in Stanton and HT413's posts.
                          I'd be concerned about longevity of a hollow torsion bar vs anti-sway bar. Different physics at work.

                          • Thanks! Thanks! x 2
                          • Agree Agree x 1
                          • YY1

                            YY1 Well-Known Member

                            Messages:
                            16,549
                            Likes Received:
                            8591
                            Joined:
                            Jun 26, 2010
                            Location:
                            FL
                            Local Time:
                            9:45 PM
                            Agree (and thanks) on HT413's "center of bar/tube is less significant" explanation but believe the word "bar" in the last paragraph should be "tube".

                            • Thanks! Thanks! x 1
                            • HT413

                              HT413 Semi Pro Bowler

                              Messages:
                              5,317
                              Likes Received:
                              5329
                              Joined:
                              Jul 5, 2012
                              Location:
                              New Jersey
                              Local Time:
                              9:45 PM
                              fixed. Was on my second bourbon by then.

                              • Like Like x 1
                              • coloradodave

                                coloradodave FBBO Gold Member FBBO Gold Member

                                Messages:
                                3,645
                                Likes Received:
                                3005
                                Joined:
                                Jun 1, 2011
                                Location:
                                Lincoln, CA
                                Local Time:
                                6:45 PM
                                Math teacher?
