Just a different version of the Nylock nuts. Saves time st factory assembly using loctite or lock washers.


Fran Blacker

1 of 27
FBBO Gold Member
Local time
7:50 AM
Joined
Sep 23, 2016
Messages
13,212
Reaction score
13,580
Location
Connecticut
Factory nuts had a rectangle stamped in the side to deform nut to act as a locknut.


khryslerkid

FBBO Gold Member
FBBO Gold Member
Local time
7:50 AM
Joined
Mar 10, 2010
Messages
27,604
Reaction score
45,522
Location
Hanover, Pennslyvania
Finished up all the small parts, backing plate ect. Ready for assembly of the new axles from Doctor Diff.

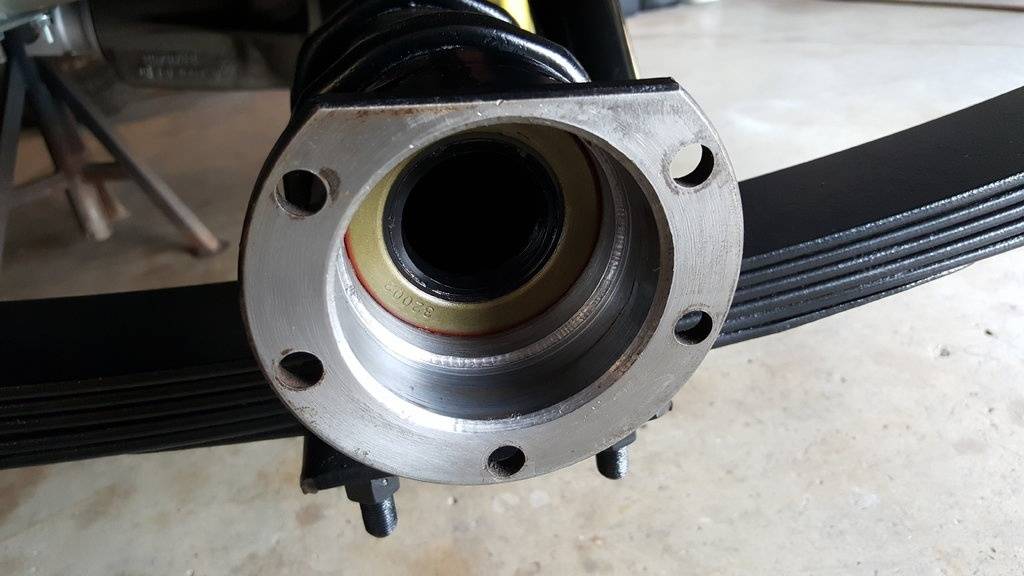

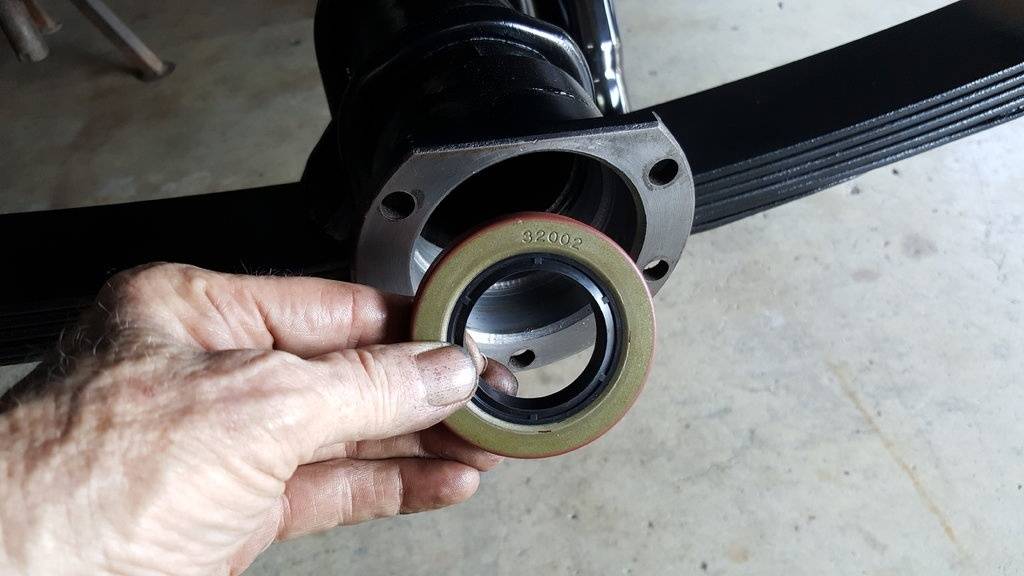

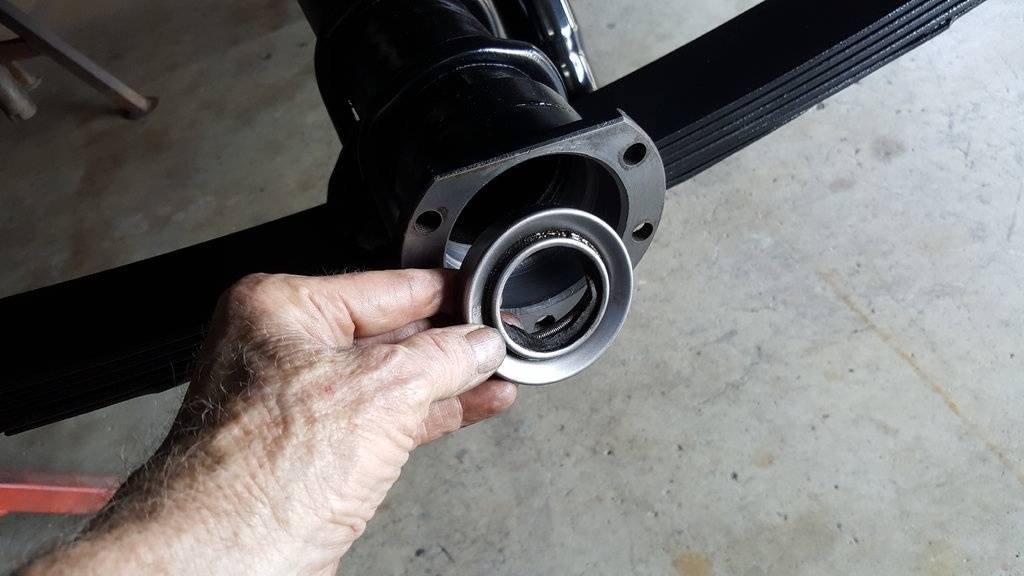

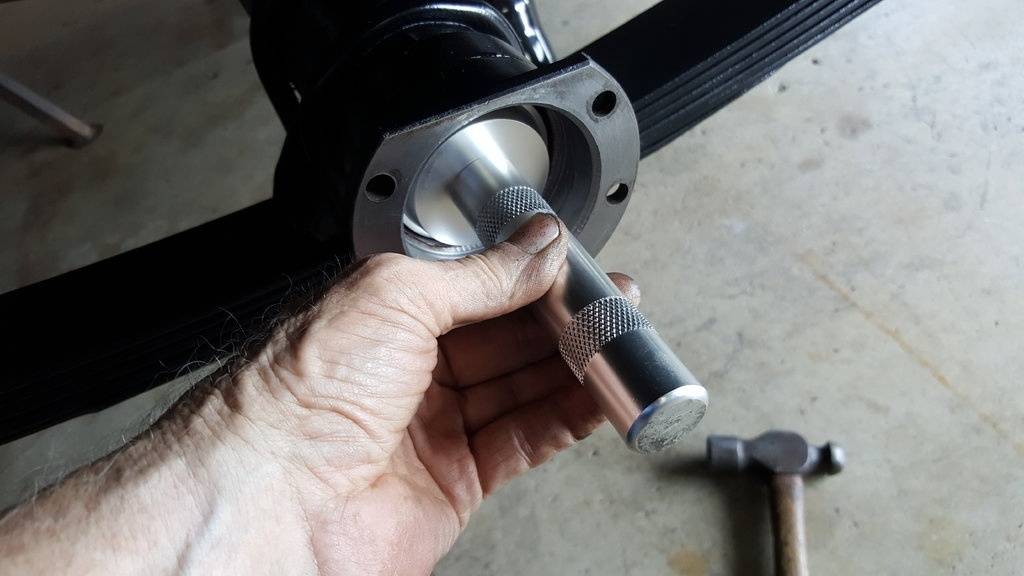

First thing you have to do after pulling out the original tapered axle is to remove the old inner seal and replace it with a new one supplied by Dr. Diff.

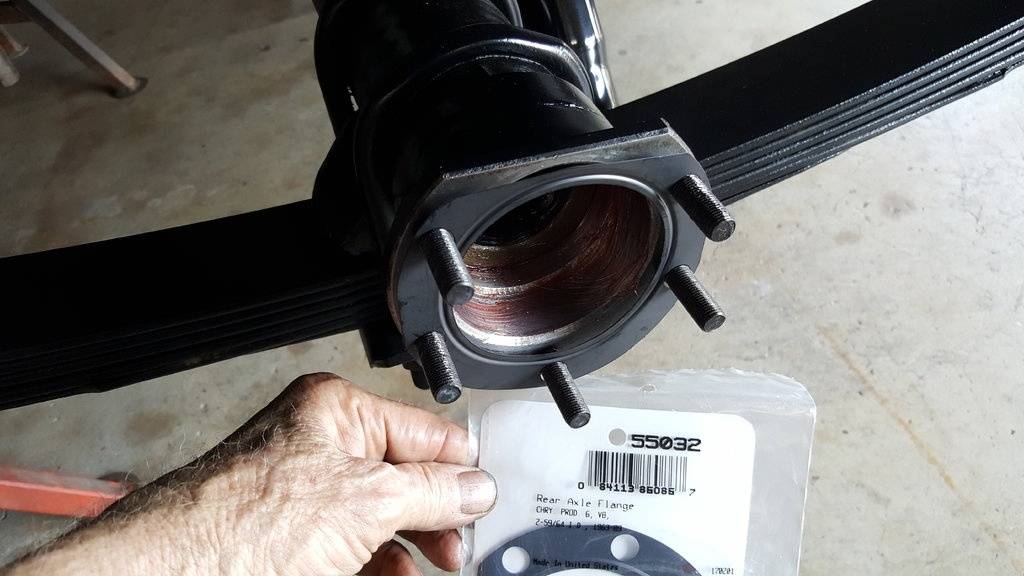

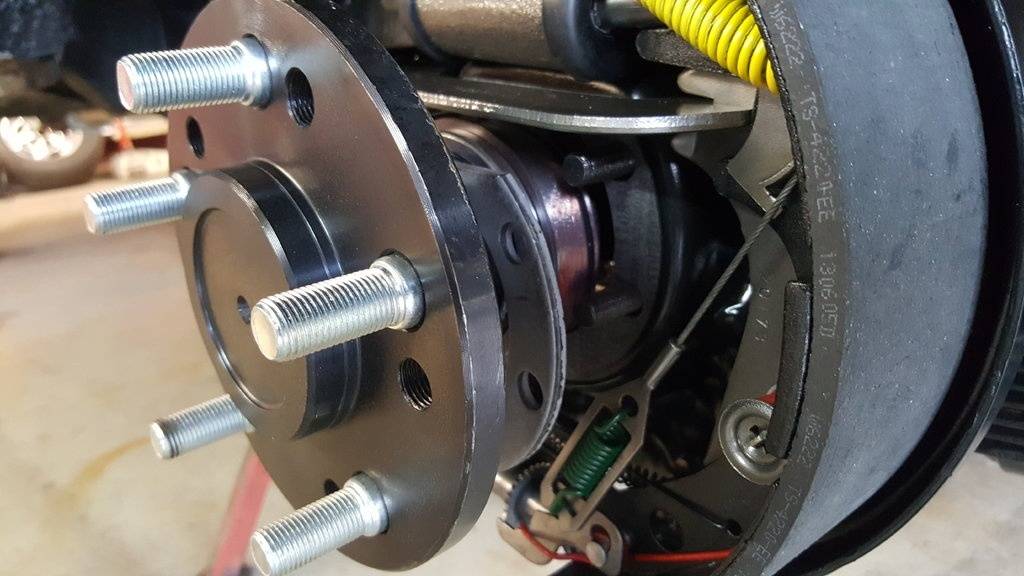

Then you have to replace the origanal studs with longer ones. Supplied by Dr. Diff.

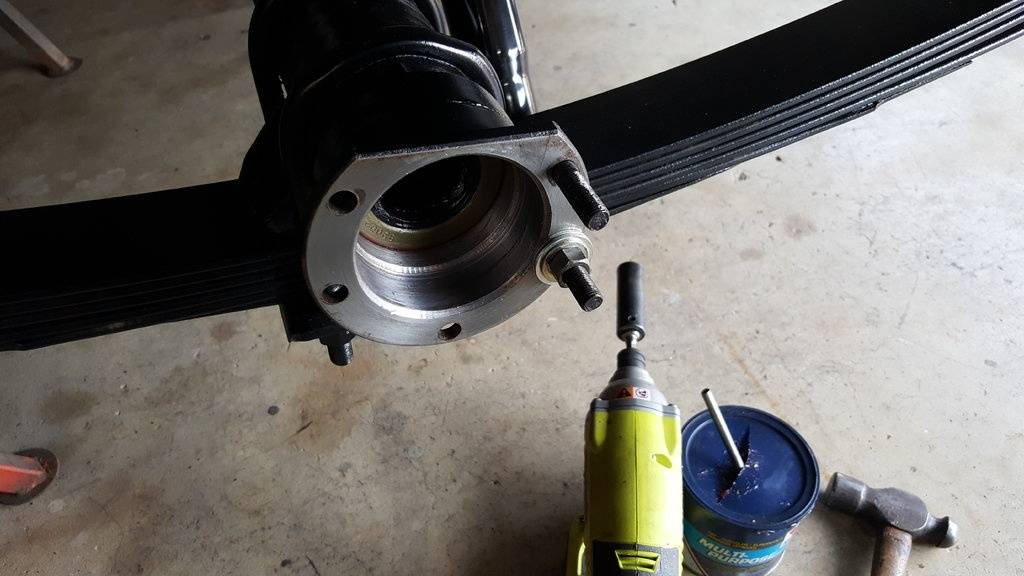

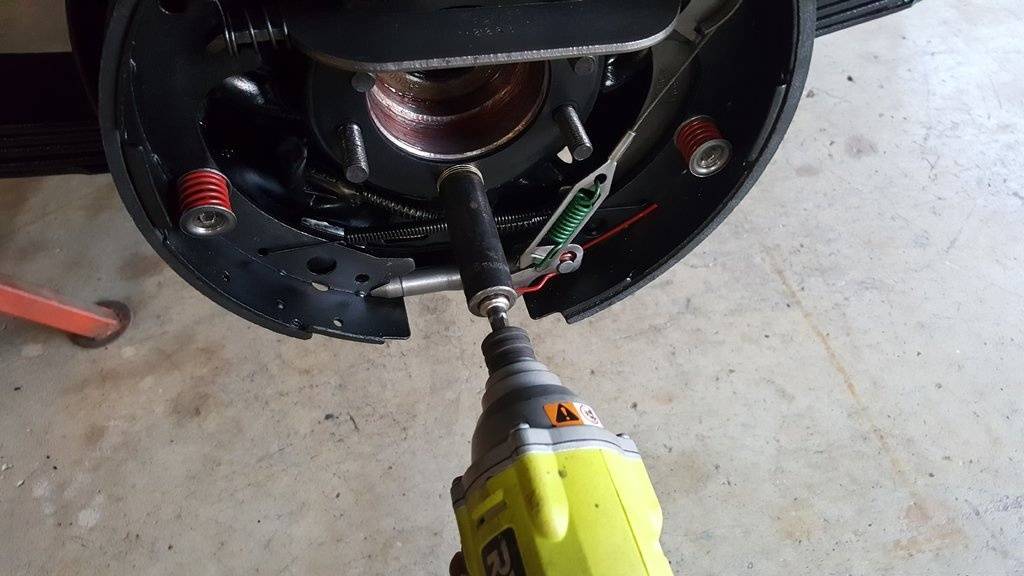

Line up the knurled studs with the ones left behind by the originals and a couple of washers, some grease, and run them home. I used a battery powered impact driver. A ratchet would have worked just fine. There wasn't that much resistance and these are a lot better than using loose bolts!


Useing the steel gasket behind the backing plate.

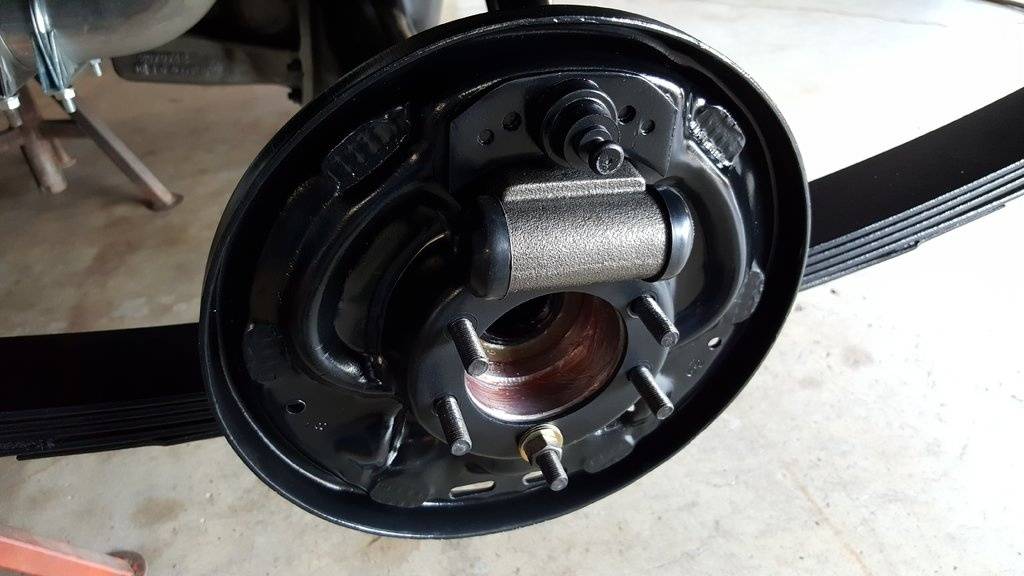

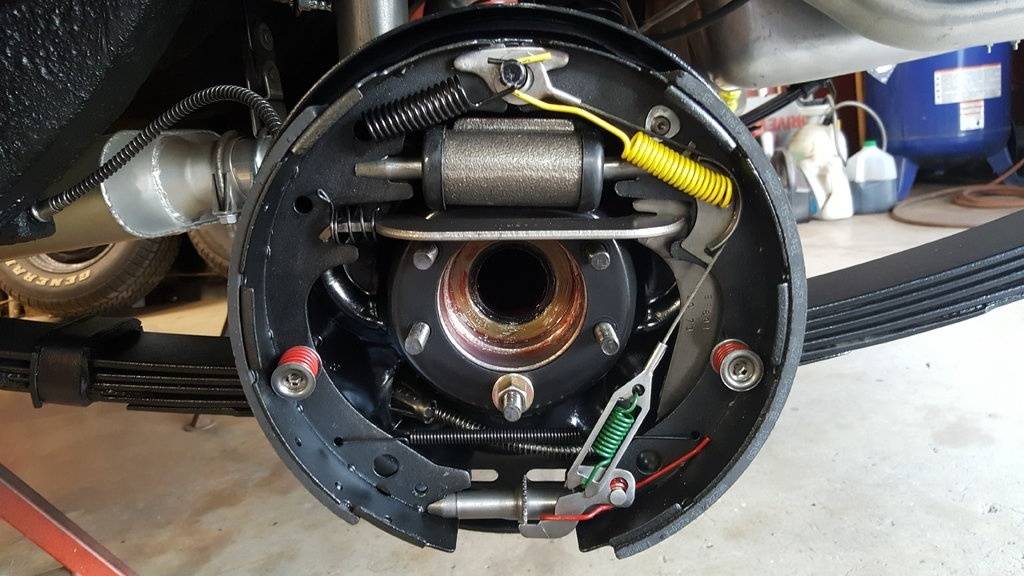

I used just one nut at the bottom to temporarily hold the backing plate while installing the brake hardware. It's a lot easier without the flanged axle in the way, so I took advantage.



khryslerkid

FBBO Gold Member
FBBO Gold Member
Local time
7:50 AM
Joined
Mar 10, 2010
Messages
27,604
Reaction score
45,522
Location
Hanover, Pennslyvania

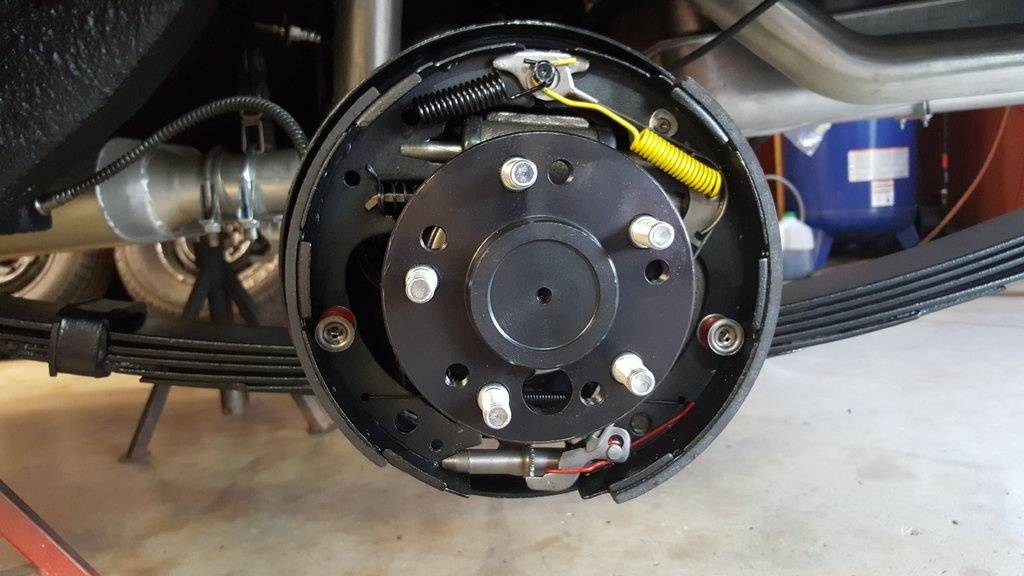

Remove the temporary nut and washers.

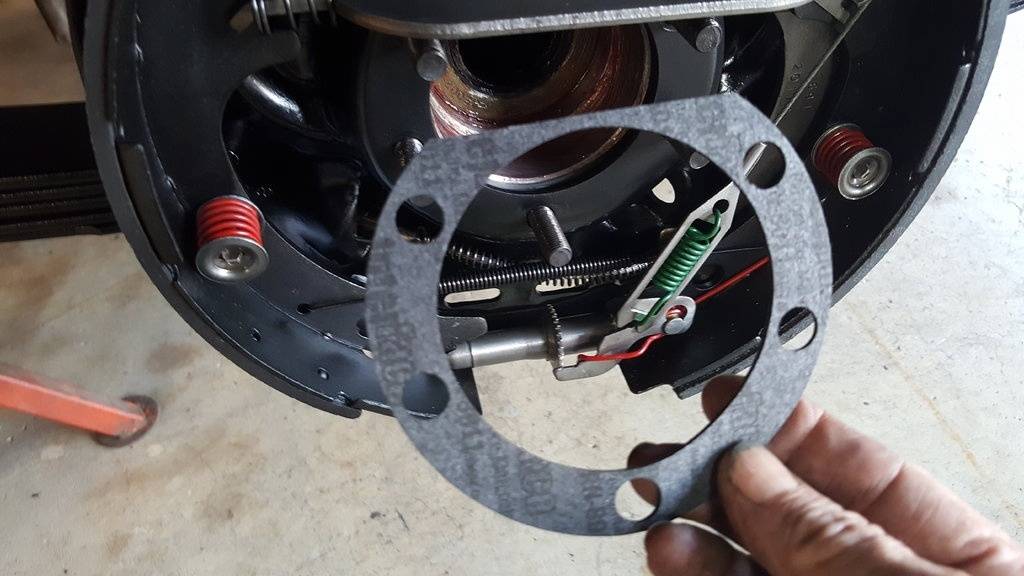

Useing a compressed foam gasket supplied by Dr. Diff. It's used as a spacer for the thickness of the snap ring on the Green bearing.

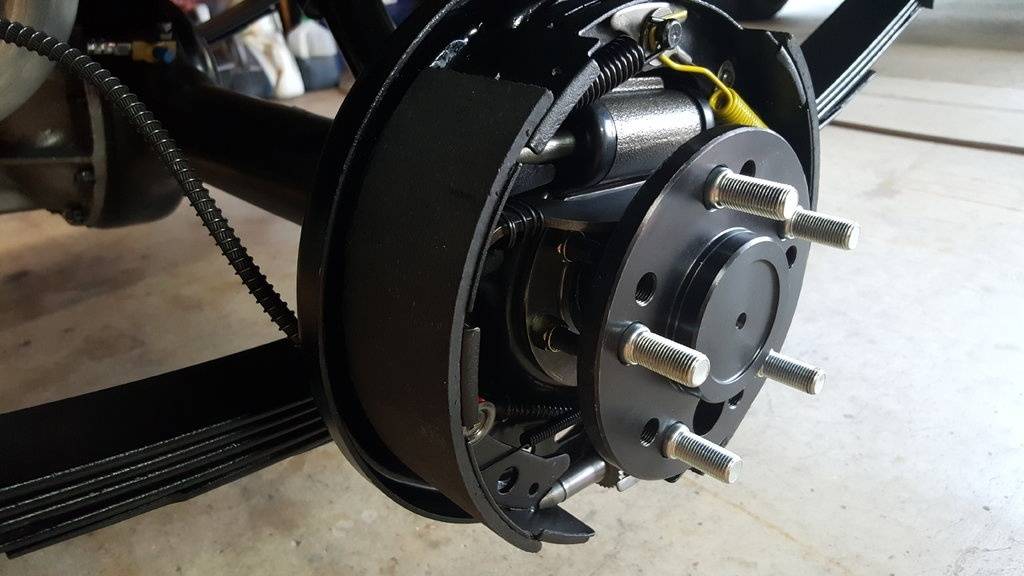

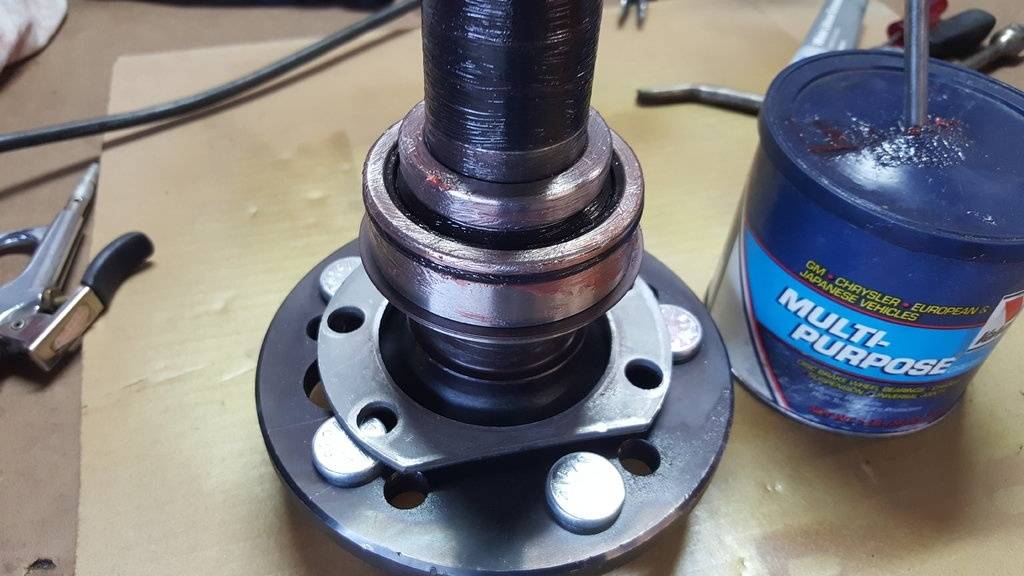

A little grease.

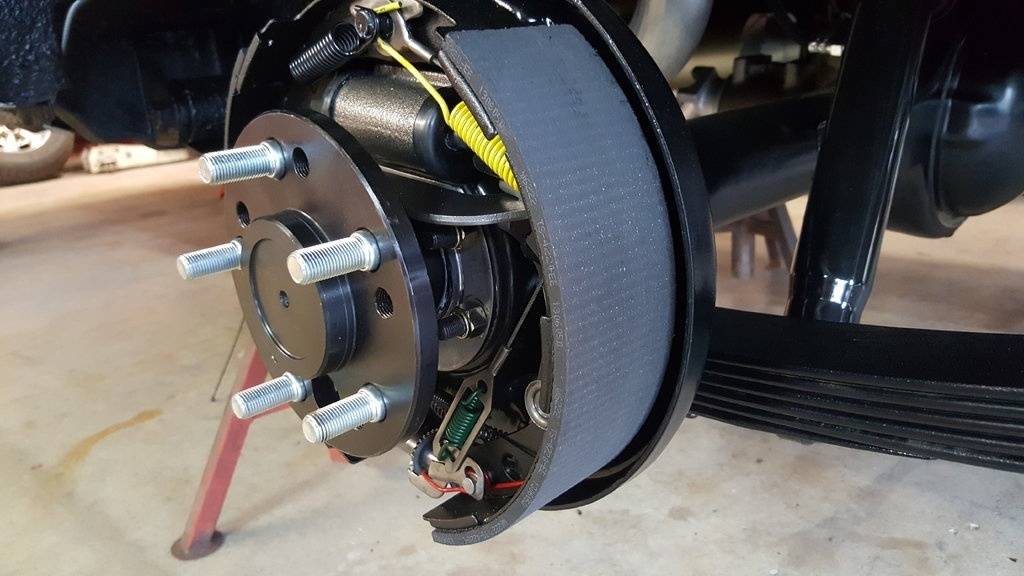

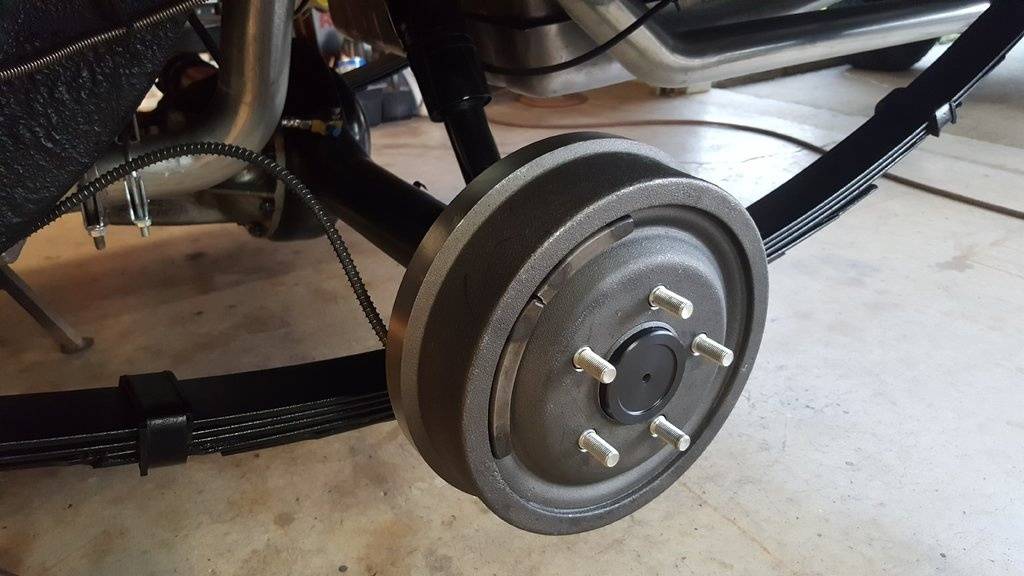

The new drums fit! No dragging on the backing plate.


khryslerkid

FBBO Gold Member
FBBO Gold Member
Local time
7:50 AM
Joined
Mar 10, 2010
Messages
27,604
Reaction score
45,522
Location
Hanover, Pennslyvania

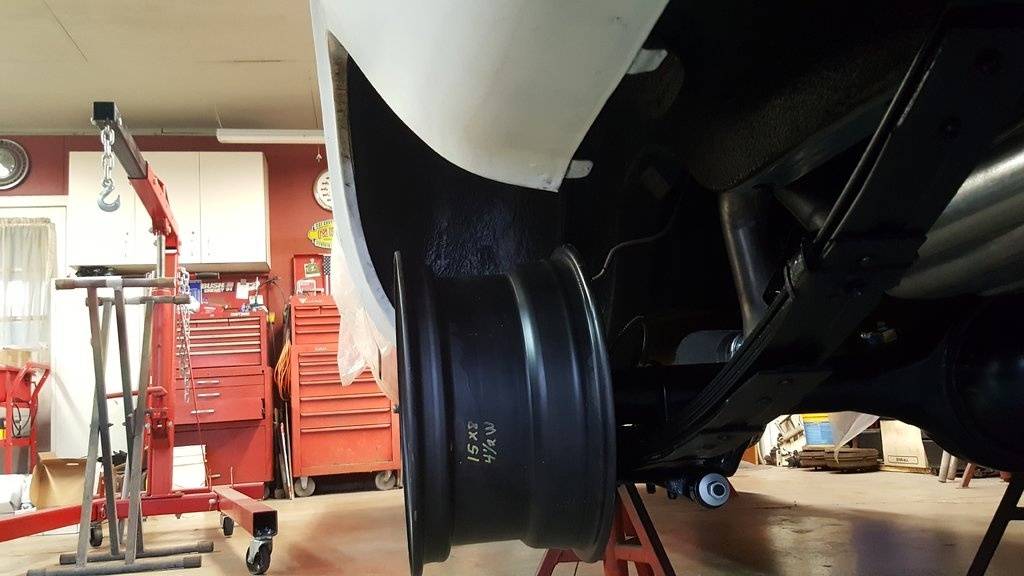

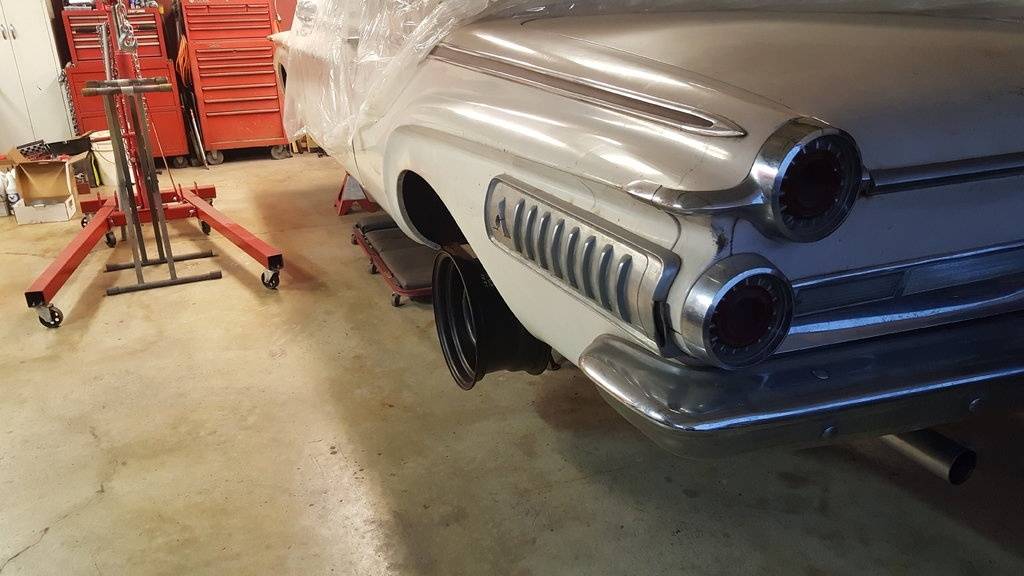

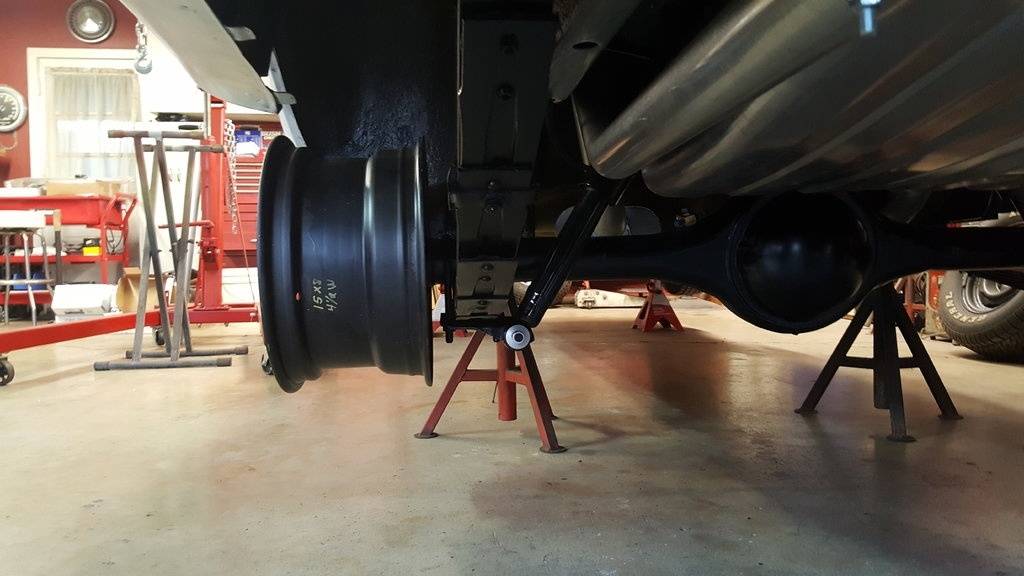

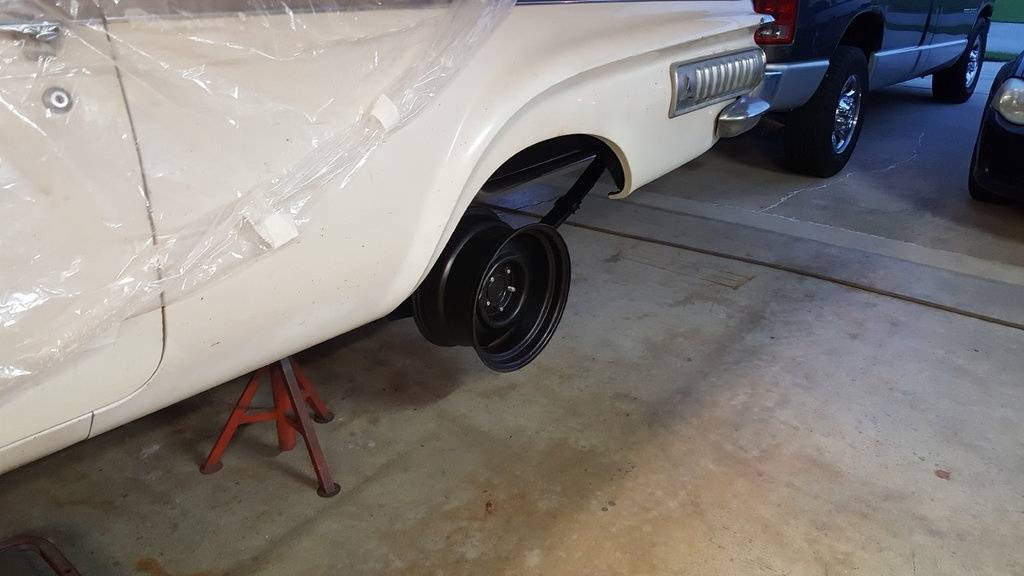

I've been researching tires a little. Wanting a 60 series but something nostalgic looking. 15x8 4 1/2" backspace.





Thunderlugs

FBBO Gold Member
FBBO Gold Member
Local time
6:50 AM
Joined
Sep 21, 2016
Messages
771
Reaction score
1,177
Location
Burlington, WI
Remove the temporary nut and washers.
View attachment 499356

Useing a compressed foam gasket supplied by Dr. Diff. It's used as a spacer for the thickness of the snap ring on the Green bearing.
View attachment 499357

A little grease.
View attachment 499358

View attachment 499359
View attachment 499364
View attachment 499361
View attachment 499362

The new drums fit! No dragging on the backing plate.
View attachment 499363
Kid, I noticed you changed up to a different self adjuster set up. Were you having problems getting the replacement spring kit from Napa? I cannot seem to get the same as what I removed!


khryslerkid

FBBO Gold Member
FBBO Gold Member
Local time
7:50 AM
Joined
Mar 10, 2010
Messages
27,604
Reaction score
45,522
Location
Hanover, Pennslyvania
Kid, I noticed you changed up to a different self adjuster set up. Were you having problems getting the replacement spring kit from Napa? I cannot seem to get the same as what I removed!

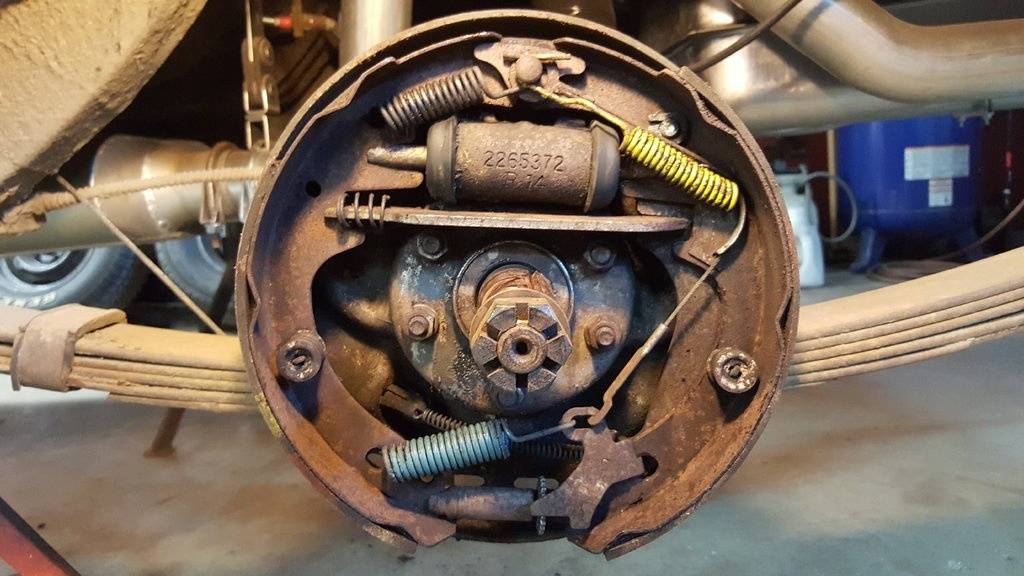

Useing a '70's backing plate and hardware. Found a 1973 date code on the cross bar. E body. Those adjuster setups changed like the weather through the years but they all work. Bought the backing plates complete with hardware.

Shoot me a pic of what you're looking for.


Thunderlugs

FBBO Gold Member
FBBO Gold Member
Local time
6:50 AM
Joined
Sep 21, 2016
Messages
771
Reaction score
1,177
Location
Burlington, WI
Useing a '70's backing plate and hardware. Found a 1973 date code on the cross bar. E body. Those adjuster setups changed like the weather through the years but they all work. Bought the backing plates complete with hardware.

Shoot me a pic of what you're looking for.
Mine is stock 10 inch, exactly the same as you took off in the video. No biggie, My napa guy should have something tomorrow.


oldbee

Well-Known Member
Local time
7:50 AM
Joined
Oct 15, 2011
Messages
10,514
Reaction score
10,692
Location
NE Ohio
KK & thunder- those look like forward adjusting adjusters, much easier than backing up & hitting them hard.


khryslerkid

FBBO Gold Member
FBBO Gold Member
Local time
7:50 AM
Joined
Mar 10, 2010
Messages
27,604
Reaction score
45,522
Location
Hanover, Pennslyvania

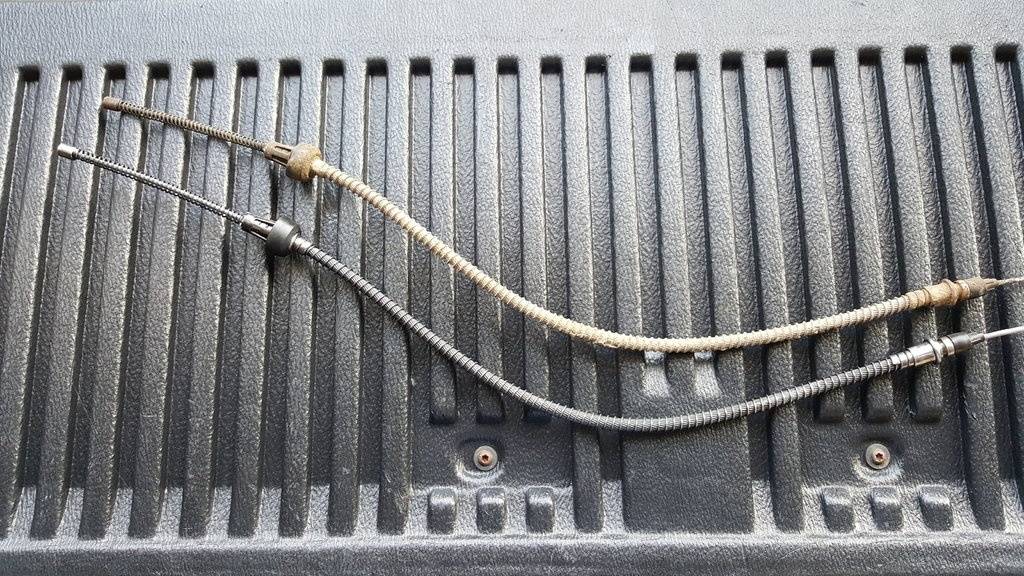

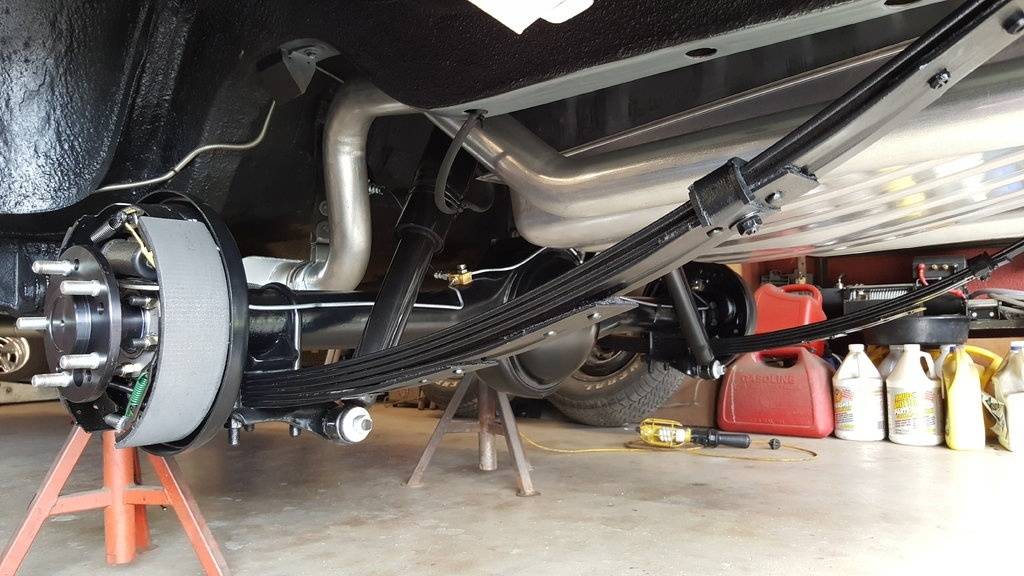

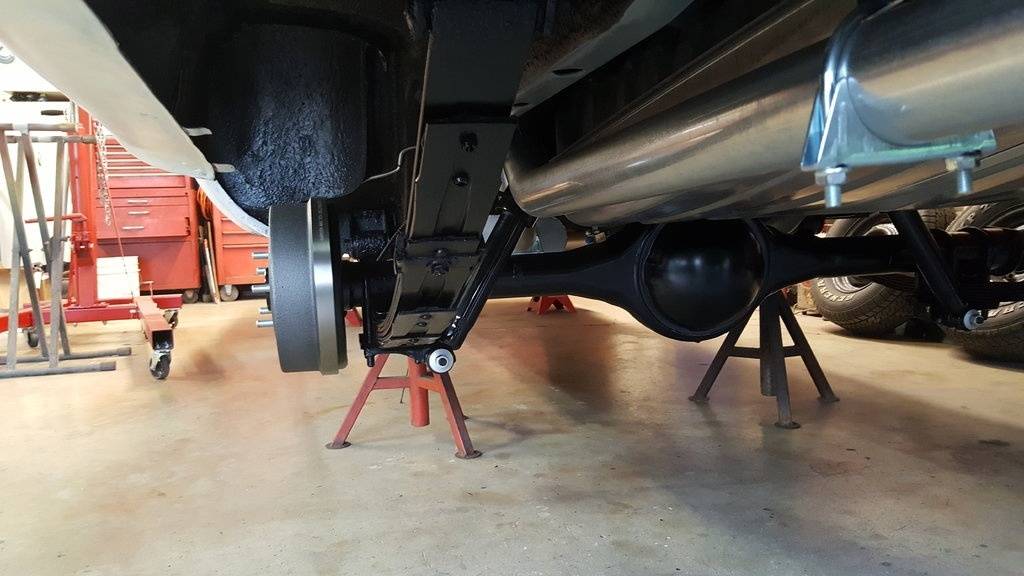

Finished the opposite side and installed the brake lines.


It amazing how these parts clean up the way that they do. Just useing a fine wire wheel on a bench grinder, then a coat of wd.


Painting the outside of the drums, then on to the front brakes.


khryslerkid

FBBO Gold Member
FBBO Gold Member
Local time
7:50 AM
Joined
Mar 10, 2010
Messages
27,604
Reaction score
45,522
Location
Hanover, Pennslyvania
Going over the front brakes, I discovered someone turned the right drum about .060 over specs. The adjuster was cranked out almost all the way out, (no good!)

So I'm needing another drum and I'm looking at the hub to drum swedged studs. Looking up new drums, the part number is the same front and back, just no hub. The shoes are the same front and back also. I decided to remove the swedged studs, go with new removable drums.

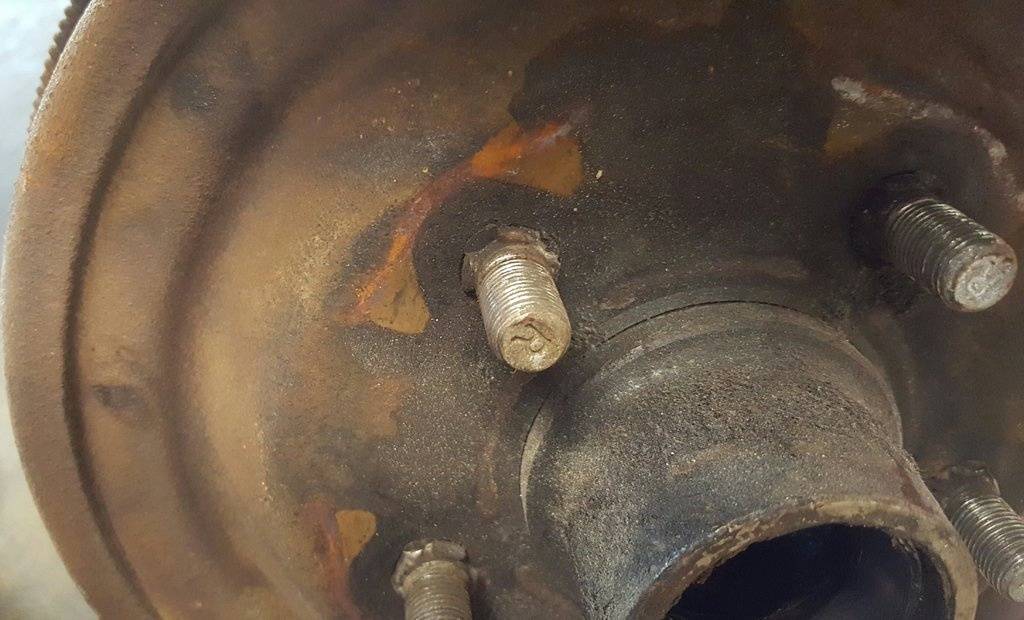

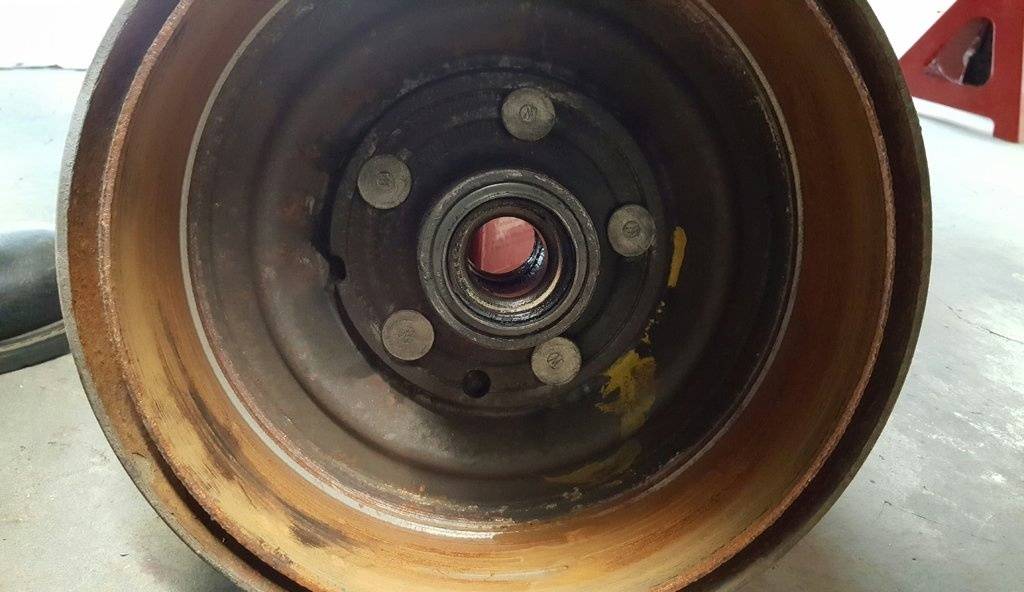

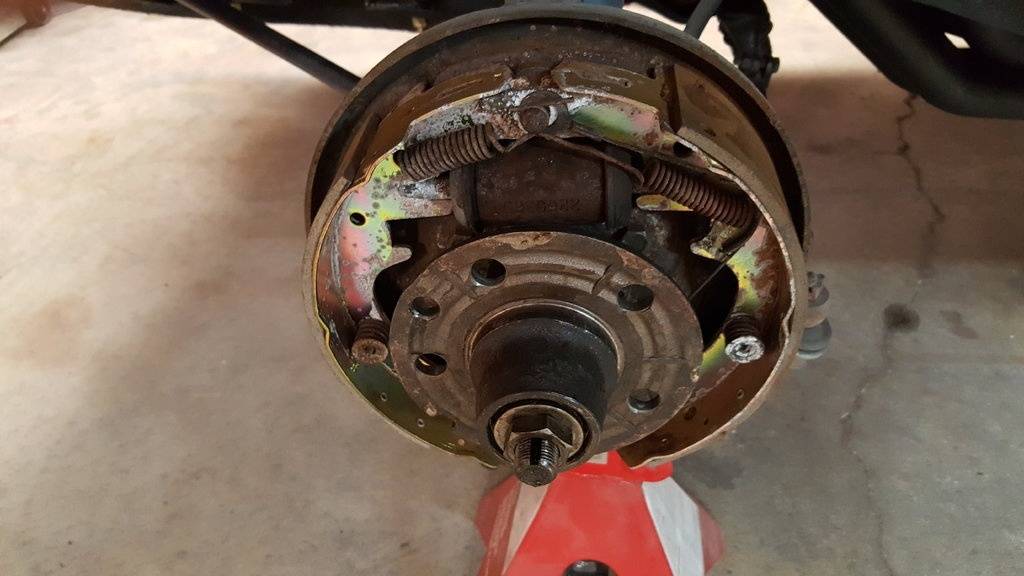

Here's what I'm dealing with.

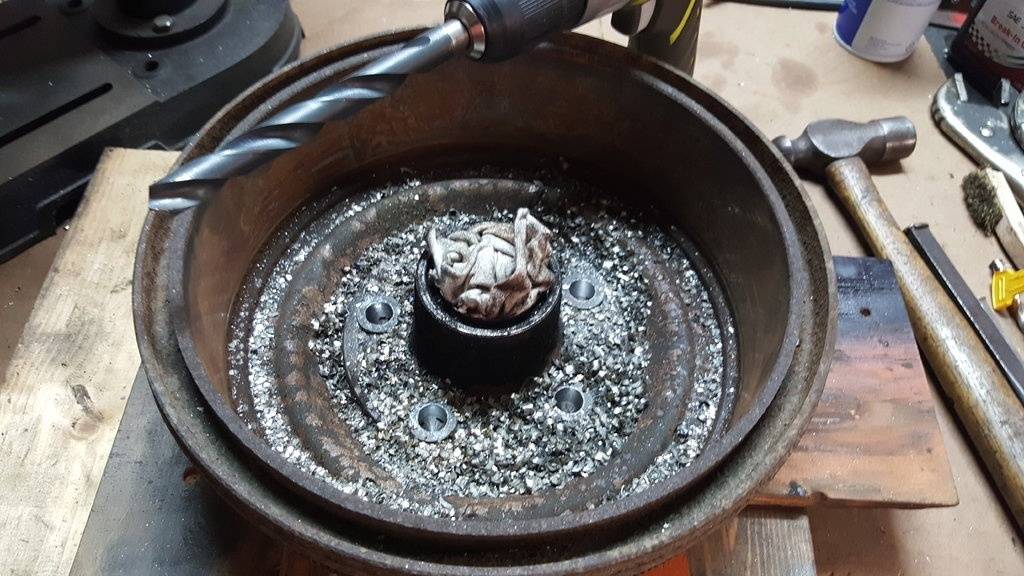

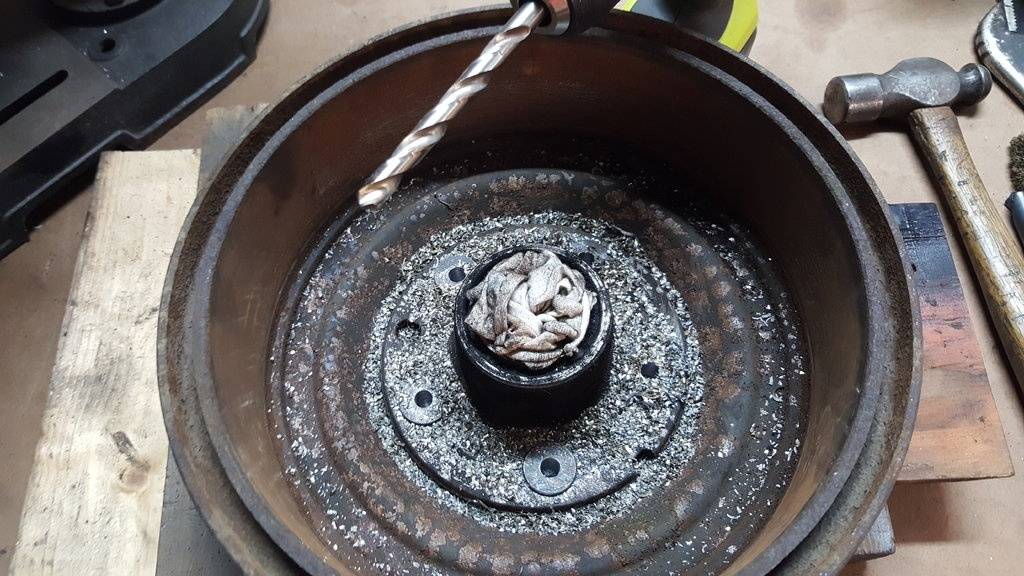

Center punch each stud on the back side. Then drill a pilot hole approximately 1/2" deep or even a little more. Then step up to about a 5/16" bit and finish with a 1/2" bit.

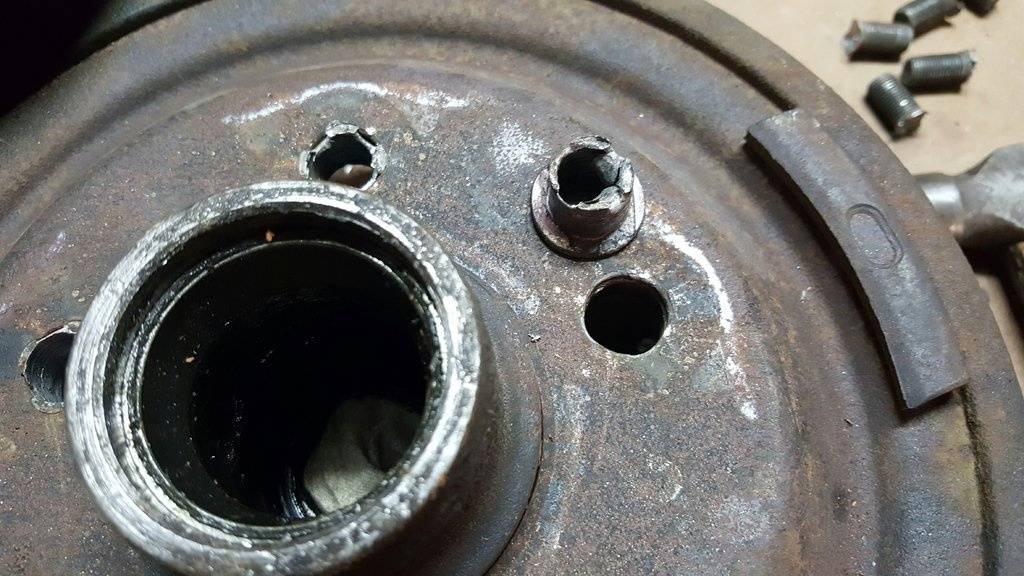

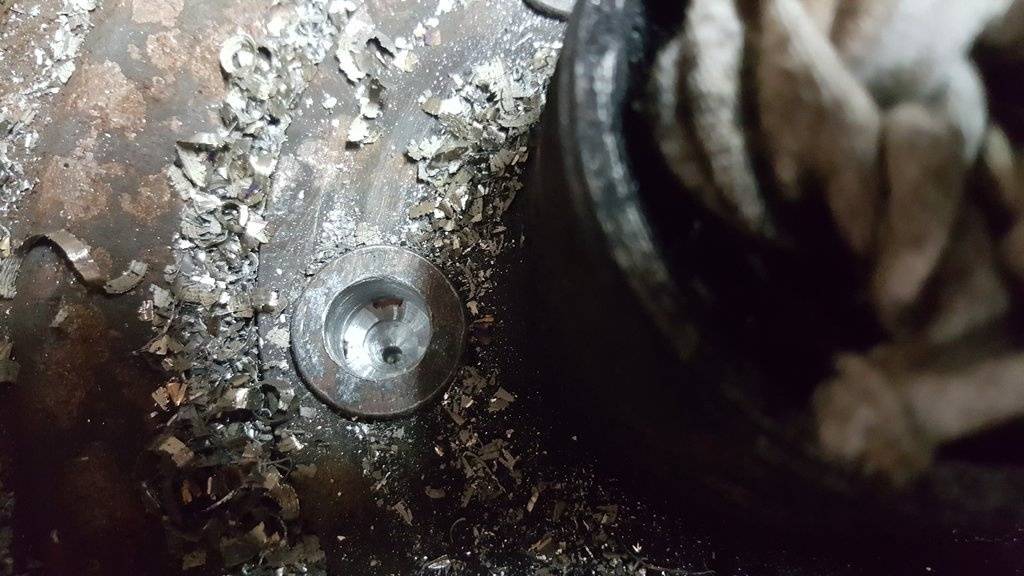

You can see the 1/2" bit breaking through the swedged area. You'll feel it when drilling. That's where you can stop.

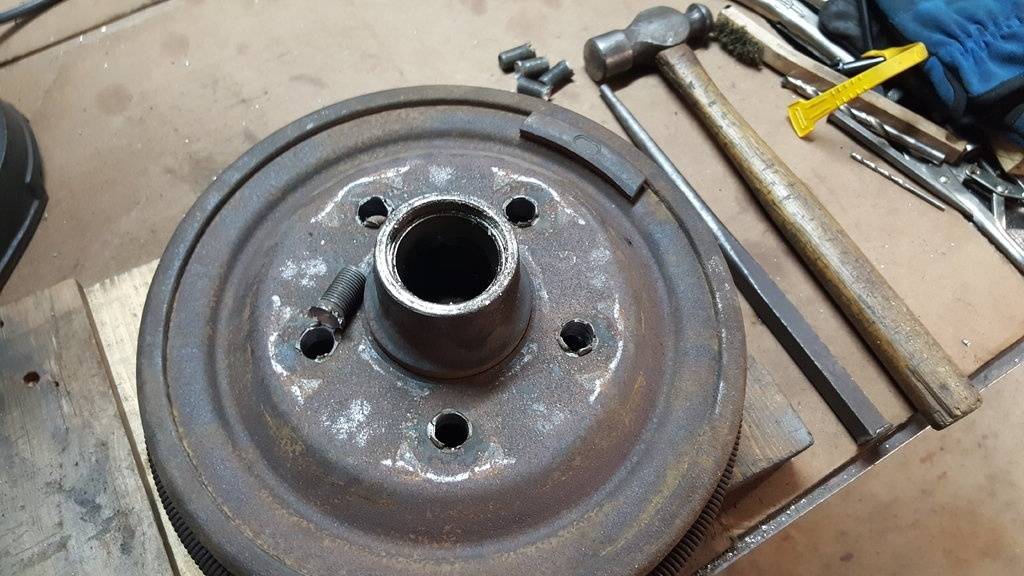

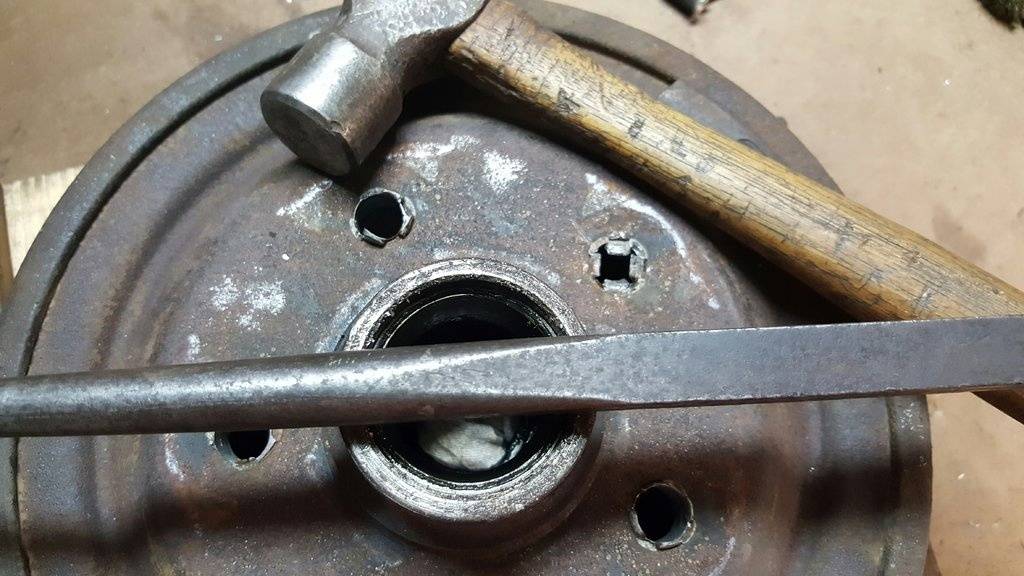

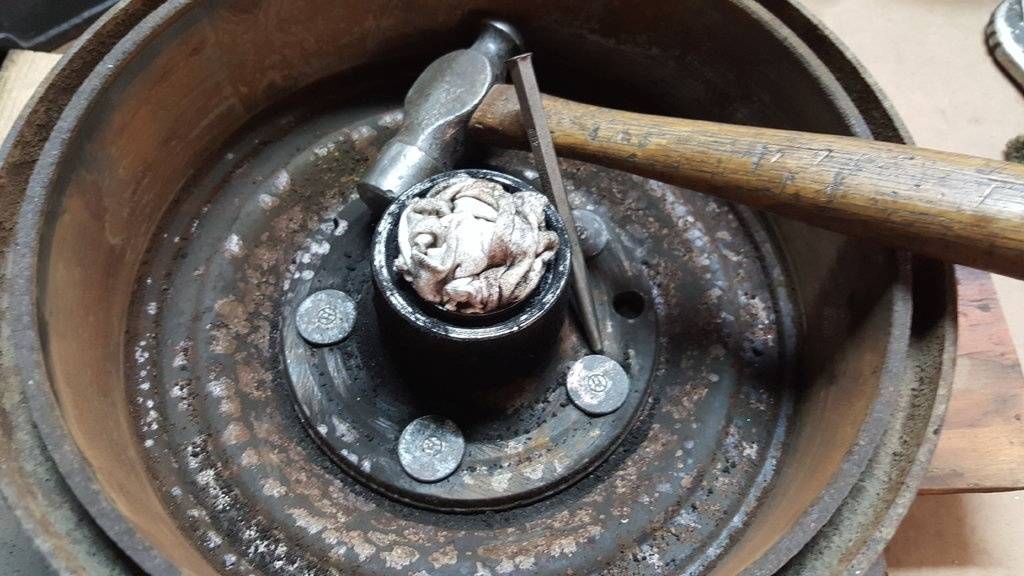

Useing a punch, you can drive the threaded part of the stud out through the drum.

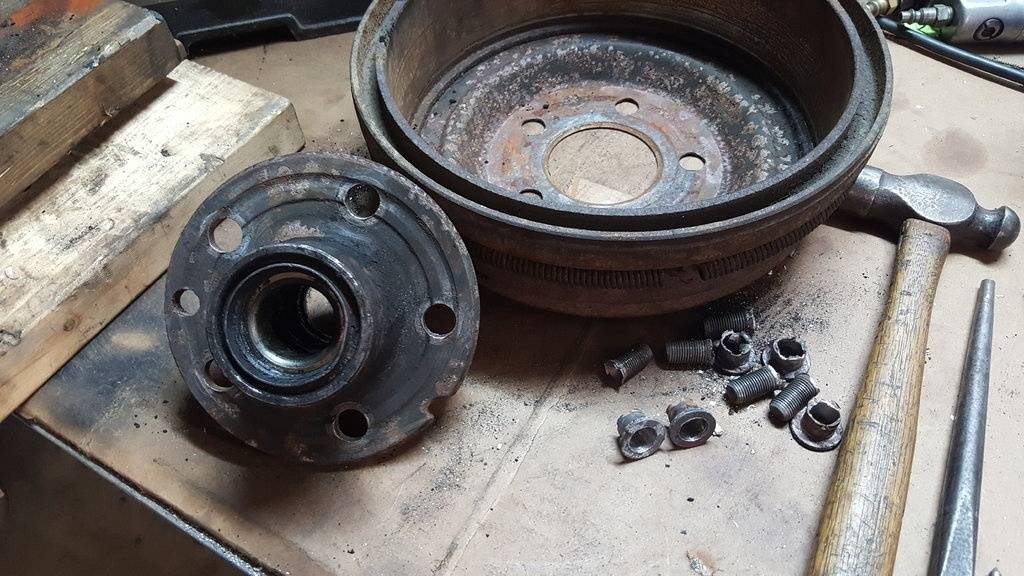

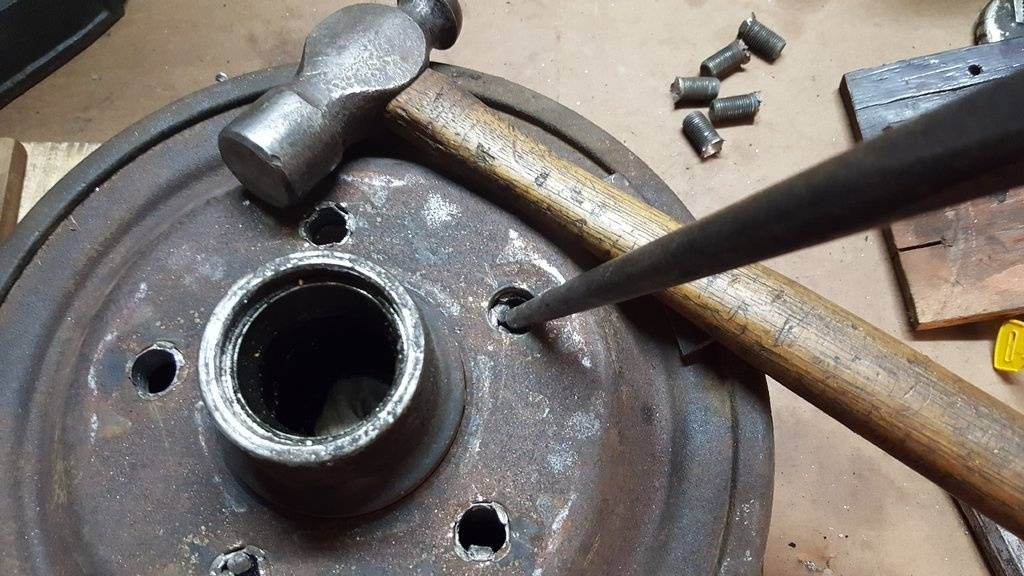

Now you need to fold the tabs inward and drive the remaining stud back through the hub.



khryslerkid

FBBO Gold Member
FBBO Gold Member
Local time
7:50 AM
Joined
Mar 10, 2010
Messages
27,604
Reaction score
45,522
Location
Hanover, Pennslyvania

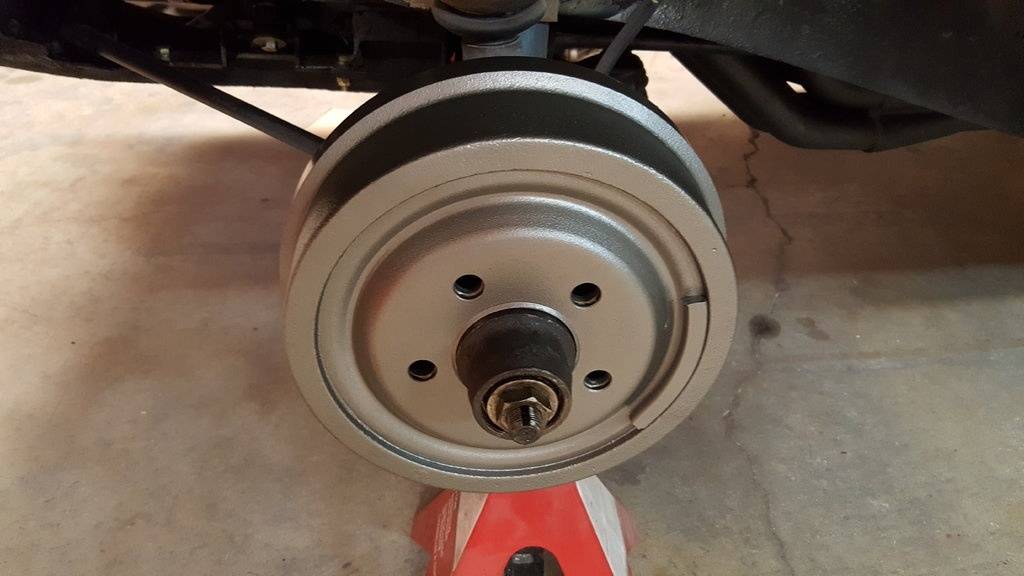

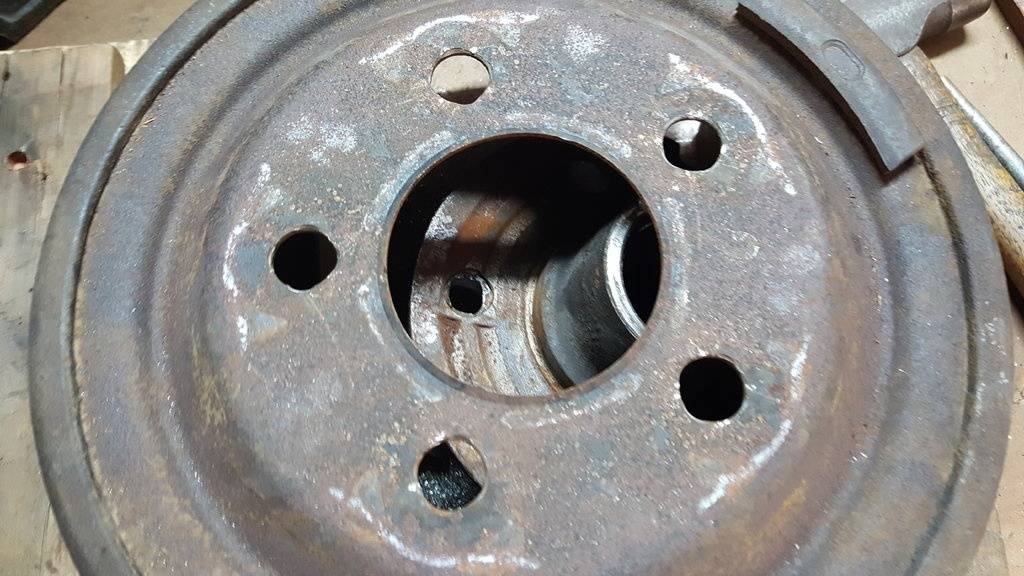

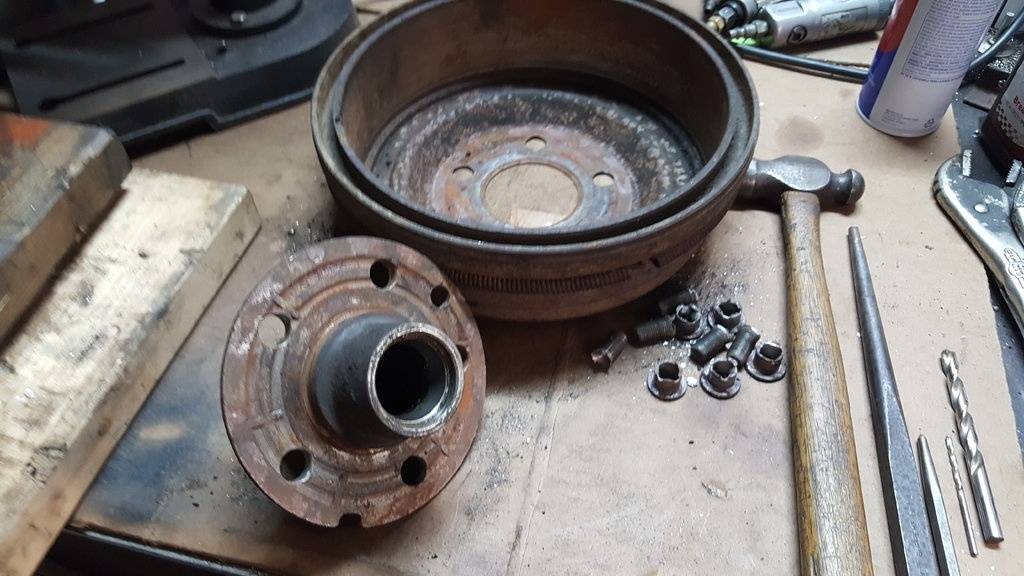

Didn't ruin the drum or hub doing it this way. Installed the hub on the spindle and set a new drum on there to see how it fits. (Borrowed the drum from the back) Looks good, I'll have to take the hub to NAPA to match up some new studs.


Last edited:

Fran Blacker

1 of 27
FBBO Gold Member
Local time
7:50 AM
Joined
Sep 23, 2016
Messages
13,212
Reaction score
13,580
Location
Connecticut
What size? Have 4- 11"x 3" front drums no hubs brand new. Had these 30 years one set is made in Canada other maybe USA. Set I don't know aren't Chinese.


Thunderlugs

FBBO Gold Member
FBBO Gold Member
Local time
6:50 AM
Joined
Sep 21, 2016
Messages
771
Reaction score
1,177
Location
Burlington, WI
View attachment 501162
View attachment 501163
View attachment 501164
View attachment 501165

Didn't ruin the drum or hub doing it this way. Installed the hub on the spindle and set a new drum on there to see how it fits. (Borrowed the drum from the back) Looks good, I'll have to take the hub to NAPA to match up some new studs.
View attachment 501166
View attachment 501167
Kid, I am surprised you are not moving up to Disc Brakes! You're Hard Core Old School !!


khryslerkid

FBBO Gold Member
FBBO Gold Member
Local time
7:50 AM
Joined
Mar 10, 2010
Messages
27,604
Reaction score
45,522
Location
Hanover, Pennslyvania
Kid, I am surprised you are not moving up to Disc Brakes! You're Hard Core Old School !!
Well I thought I would go this route first. I'm reminded of a friend back in the day running a '62 Savoy, built up 383 running in the tens. He would use up the whole shutdown area at one of the local tracks we ran at. He had drums all the way around. Also the '64 Polara 500 I once owned had standard brakes and a single master and I don't ever remember having problems stopping that tank. If I don't like the setup I'll go with disc.


oldbee

Well-Known Member
Local time
7:50 AM
Joined
Oct 15, 2011
Messages
10,514
Reaction score
10,692
Location
NE Ohio
The year is 2080 and the lecturer says " Here is an example of a drum brake in Pa. and another example with manual adjusters in Oh." Lol
