    Thanks man. I have the benefit of being able to take my time, and I’ve found that’s a powerful tool to have on hand.

    David

    • Agree Agree x 1
    • Ghostrider 67

      Ghostrider 67 FBBO Gold Member FBBO Gold Member

      Messages:
      16,616
      Likes Received:
      27797
      Joined:
      Oct 16, 2014
      Location:
      Salisbury, Vermont
      Local Time:
      5:36 PM
      Even m ore powerful is the ability to leverage that time with skill.

      • Agree Agree x 1
      • 1970RT

        1970RT FBBO Gold Member FBBO Gold Member

        Messages:
        311
        Likes Received:
        552
        Joined:
        Oct 28, 2014
        Location:
        Oak Cliff, TX
        Local Time:
        4:36 PM
        Charger-related video is live - have to practice before striking an arc on the car.


        David

        • Like Like x 2
        • Ghostrider 67

          Ghostrider 67 FBBO Gold Member FBBO Gold Member

          Messages:
          16,616
          Likes Received:
          27797
          Joined:
          Oct 16, 2014
          Location:
          Salisbury, Vermont
          Local Time:
          5:36 PM
          Thanks David, always enjoy seeing your vids..

          • Thanks! Thanks! x 1
          • Average Joe

            Average Joe FBBO Gold Member FBBO Gold Member

            Messages:
            348
            Likes Received:
            424
            Joined:
            Nov 26, 2014
            Location:
            Colorado Springs
            Local Time:
            3:36 PM
            Nice!

            • Thanks! Thanks! x 1
            • Agree Agree x 1
            • 1970RT

              1970RT FBBO Gold Member FBBO Gold Member

              Messages:
              311
              Likes Received:
              552
              Joined:
              Oct 28, 2014
              Location:
              Oak Cliff, TX
              Local Time:
              4:36 PM

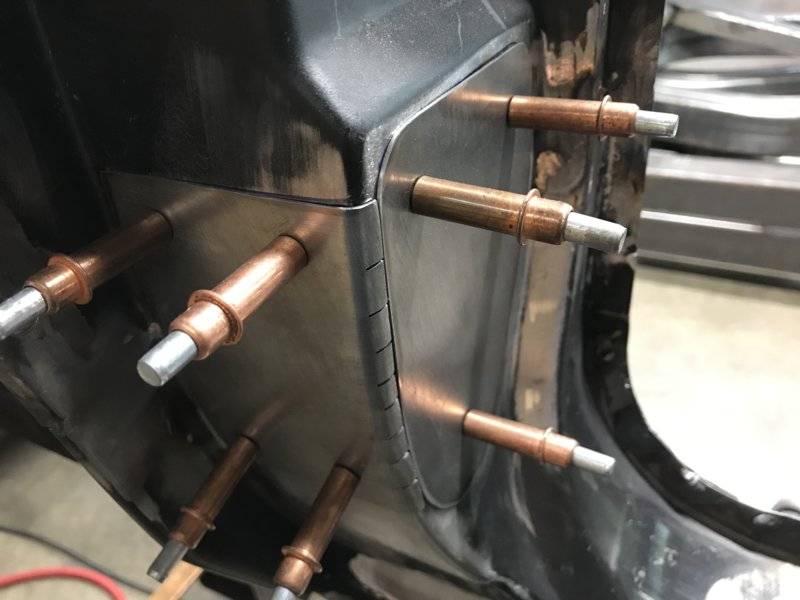

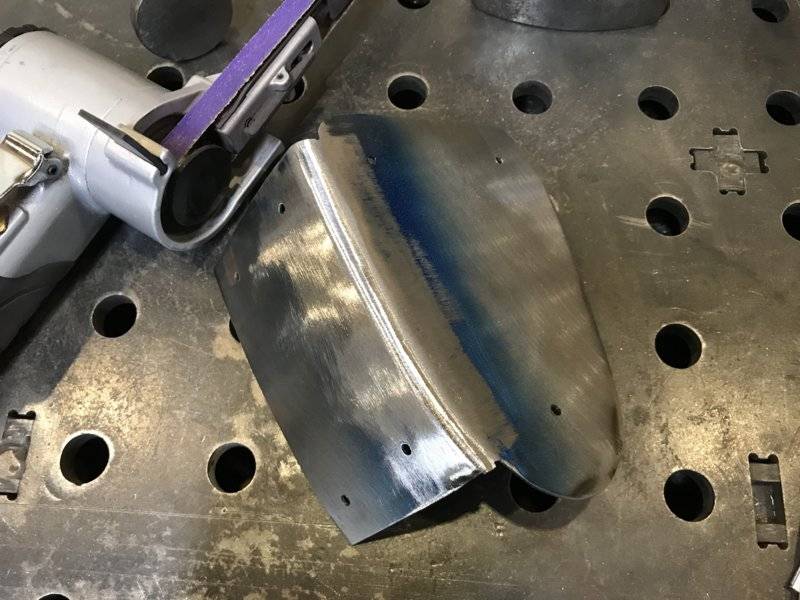

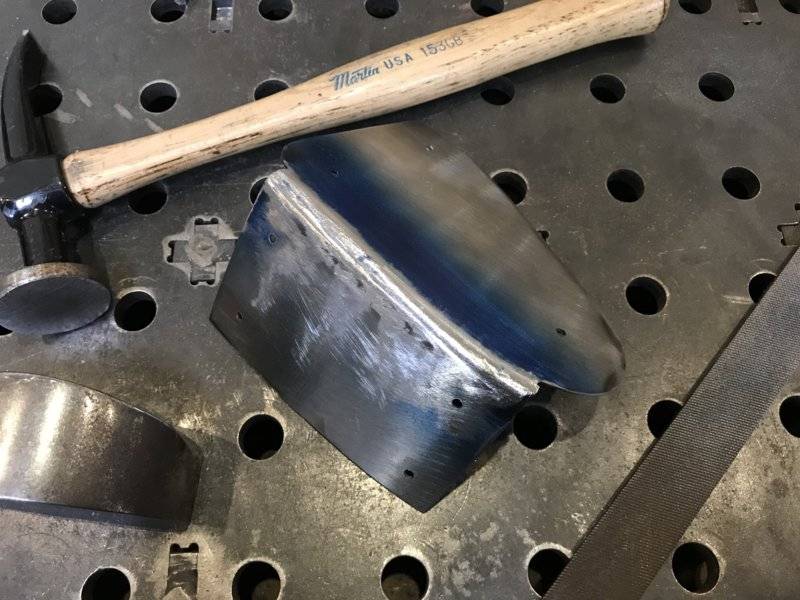

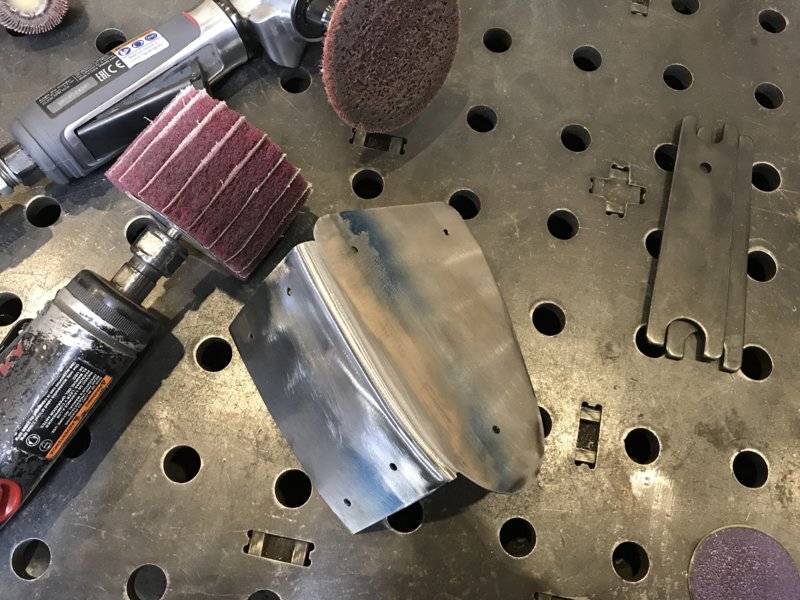

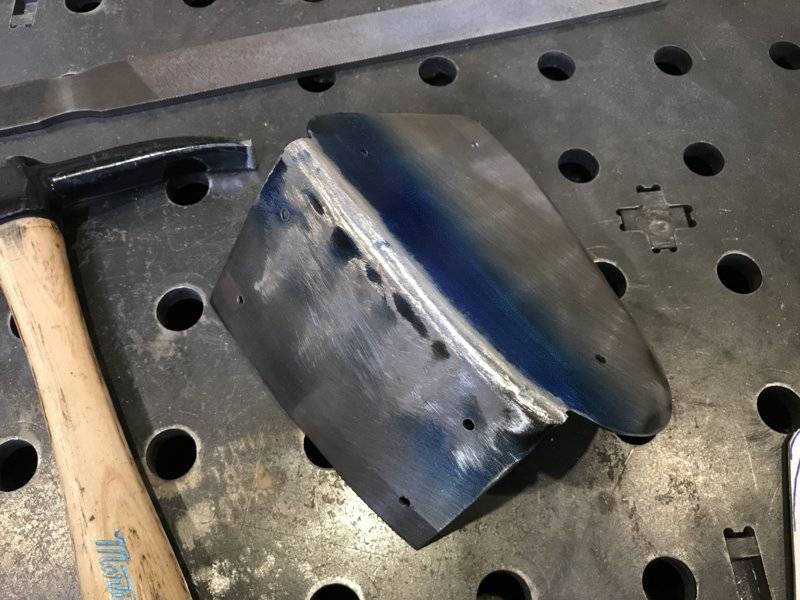

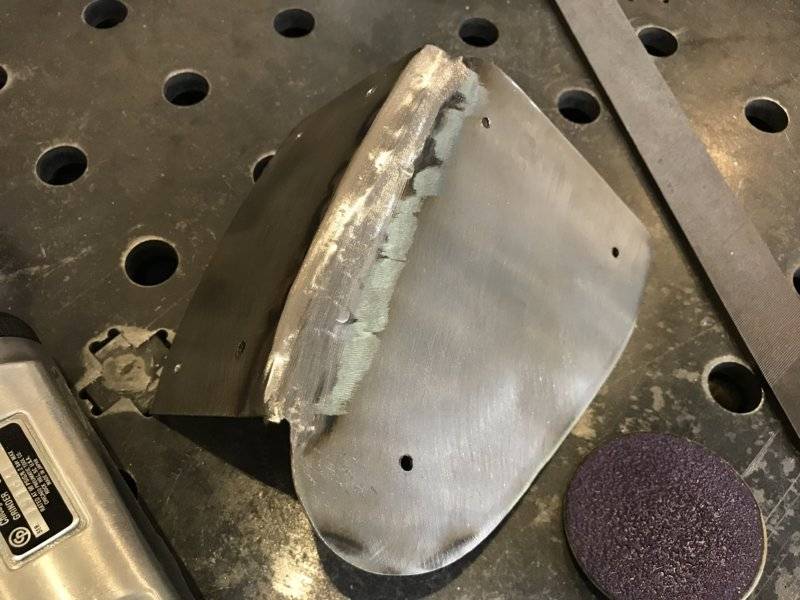

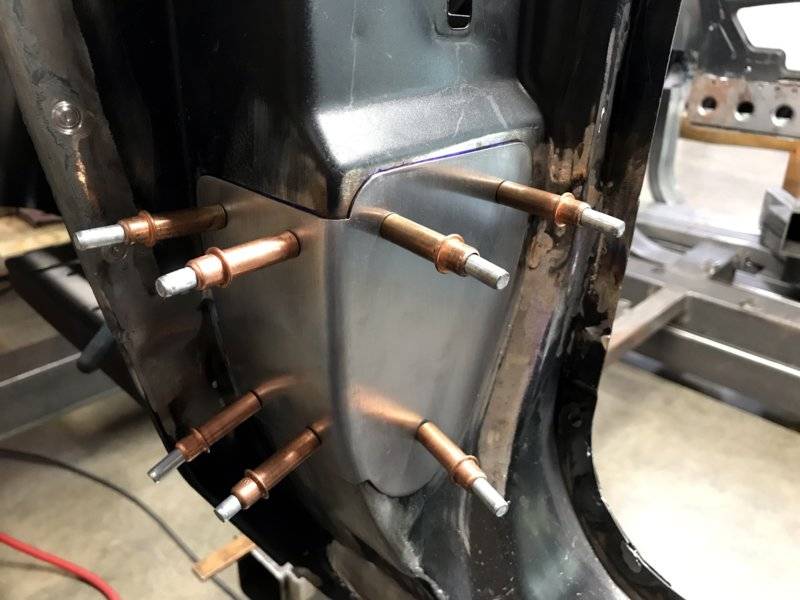

              One step back. I lost control of the heat in a panel, so I made a repair patch. Here’s the step by step.











              I’m going to make some new copper backers just for this patch, especially since I can’t planish after the weld. But first, I’m clearing my headspace and working on the rockers.

              David

              • Like Like x 4
              • Ghostrider 67

                Ghostrider 67 FBBO Gold Member FBBO Gold Member

                Messages:
                16,616
                Likes Received:
                27797
                Joined:
                Oct 16, 2014
                Location:
                Salisbury, Vermont
                Local Time:
                5:36 PM
                Real craftsman.

                • Thanks! Thanks! x 1
                • Agree Agree x 1
                • 1970RT

                  1970RT FBBO Gold Member FBBO Gold Member

                  Messages:
                  311
                  Likes Received:
                  552
                  Joined:
                  Oct 28, 2014
                  Location:
                  Oak Cliff, TX
                  Local Time:
                  4:36 PM
                  With the aid of YouTube and a couple of books, I’m trying to be.

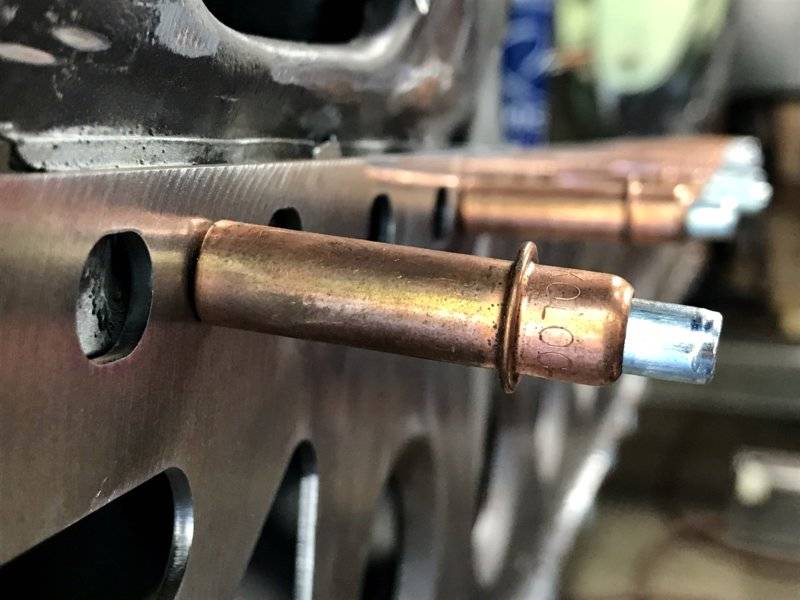

                  Meanwhile, rockers are roughed in. Lots of fine fitting to do.


                  I really like clecos.

                  David

                  • Like Like x 2
                  • Agree Agree x 1
                  • 1970RT

                    1970RT FBBO Gold Member FBBO Gold Member

                    Messages:
                    311
                    Likes Received:
                    552
                    Joined:
                    Oct 28, 2014
                    Location:
                    Oak Cliff, TX
                    Local Time:
                    4:36 PM

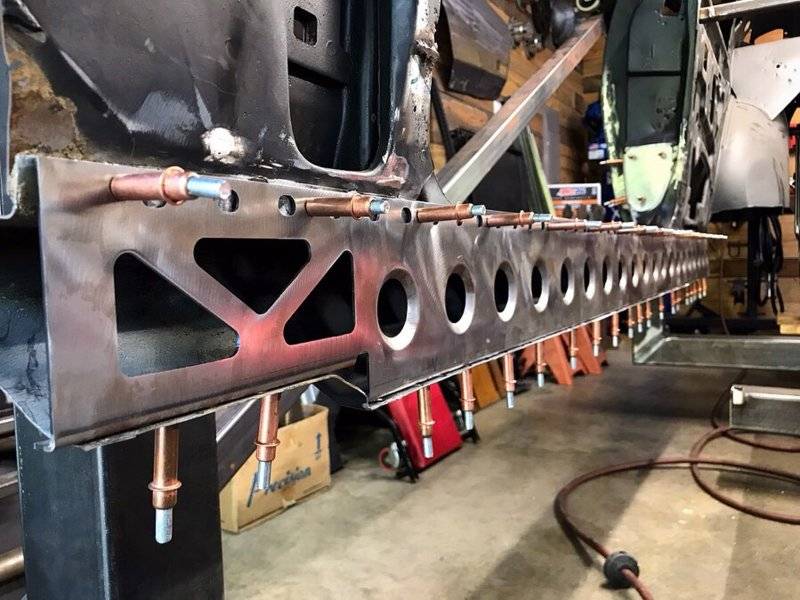

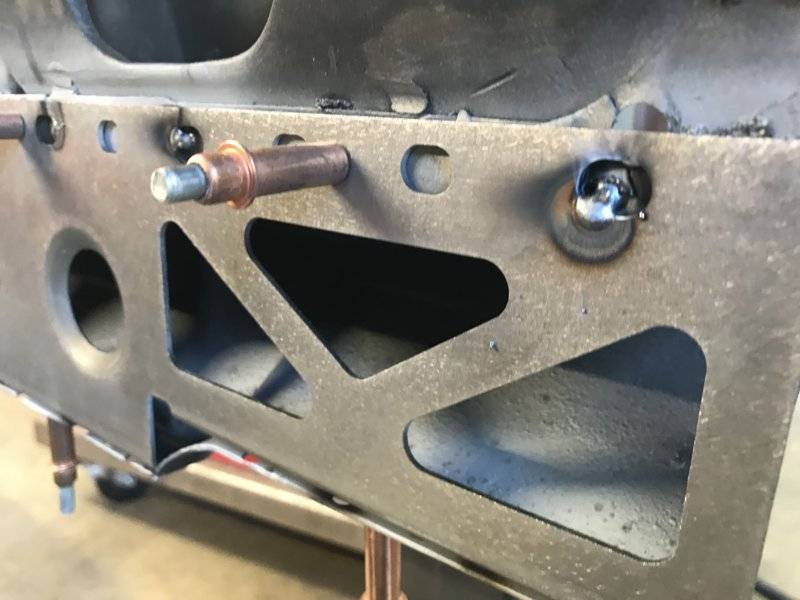

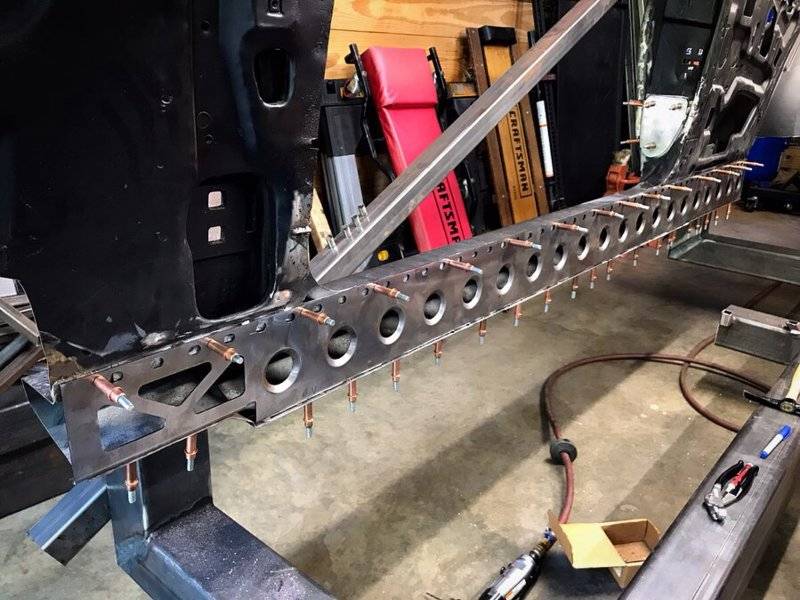

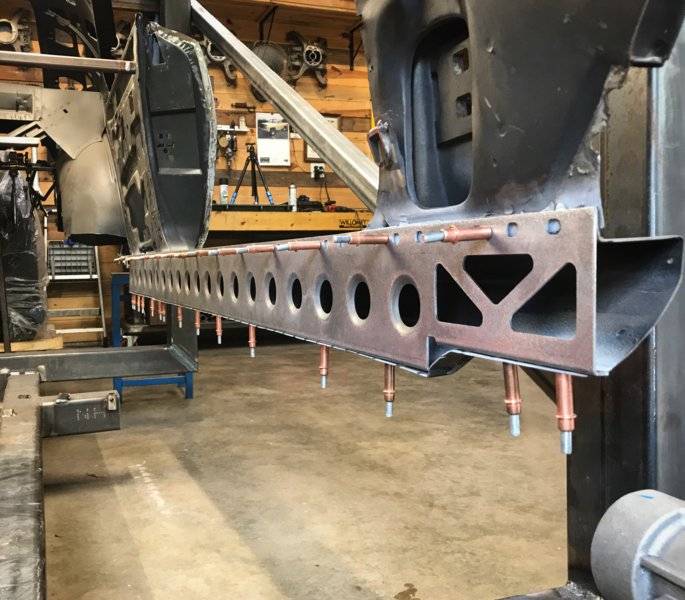

                    Both rockers are finely fit, cleco’d, and ready to get burned in. I ran out of weld thru primer, but got nearly everything else done.

                    The Rev2 rockers address the water that will inevitably will make its way into this part of the original structure, and so just like the factory did, I included two drain holes in the design. There may still be a third depending on how the rear quarter integrates.

                    The entire lower lip is now planished to the rocker plate, so the fit should be snug all the way. I was concerned about air gaps creating a home for rust.


                    Now for a crazy busy week of work.

                    David

                    • Like Like x 2
                    • Thanks! Thanks! x 1
                    • Ghostrider 67

                      Ghostrider 67 FBBO Gold Member FBBO Gold Member

                      Messages:
                      16,616
                      Likes Received:
                      27797
                      Joined:
                      Oct 16, 2014
                      Location:
                      Salisbury, Vermont
                      Local Time:
                      5:36 PM

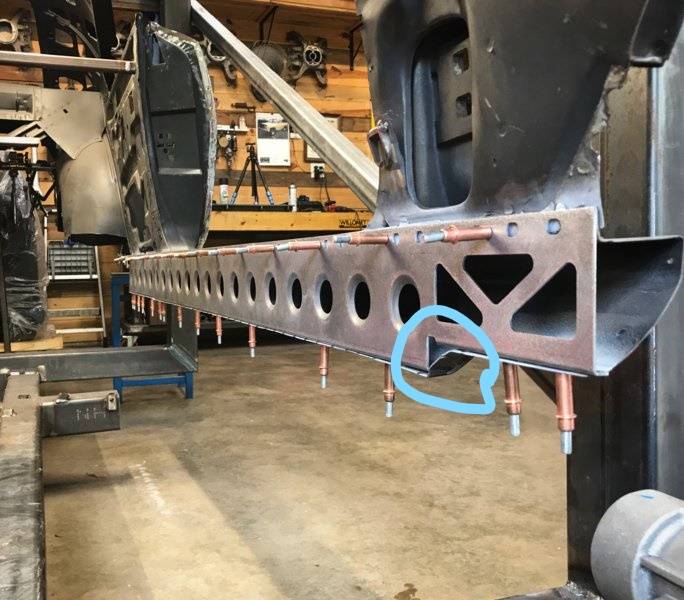

                      Excellent work David. Do you have a plan for the triangle shaped hole in the corner where the planished lip curves up against the 90* at the rear end?



                      • Like Like x 2
                      • 1970RT

                        1970RT FBBO Gold Member FBBO Gold Member

                        Messages:
                        311
                        Likes Received:
                        552
                        Joined:
                        Oct 28, 2014
                        Location:
                        Oak Cliff, TX
                        Local Time:
                        4:36 PM
                        Thanks dude. Both that gap and a smaller one 3/4 toward the rear will seal up against the 4x2 inner rocker. I actually have to slightly reshape that specific open triangle since it’s not actually flat to the bottom of the rocker - just a goofy part of the factory stamping.

                        David

                        • Like Like x 1
                        • Greg Ducato

                          Greg Ducato Workin' on it... FBBO Gold Member

                          Messages:
                          1,203
                          Likes Received:
                          698
                          Joined:
                          Mar 28, 2012
                          Location:
                          Weatherford Texas
                          Local Time:
                          4:36 PM
                          You continue to raise the bar in metal working skills, truly a pleasure to behold the handiwork!

                          • Thanks! Thanks! x 1
                          • Agree Agree x 1
                          • watermelon

                            watermelon FBBO Gold Member FBBO Gold Member

                            Messages:
                            877
                            Likes Received:
                            687
                            Joined:
                            Sep 7, 2010
                            Location:
                            main street, usa
                            Local Time:
                            2:36 PM
                            once i get finished with my ride im sending it straight over to you for a complete redo



                            watermelon

                            • Like Like x 2
                            • Ghostrider 67

                              Ghostrider 67 FBBO Gold Member FBBO Gold Member

                              Messages:
                              16,616
                              Likes Received:
                              27797
                              Joined:
                              Oct 16, 2014
                              Location:
                              Salisbury, Vermont
                              Local Time:
                              5:36 PM
                              Outstanding craftsmanship.

                              • Thanks! Thanks! x 1
                              • 1970RT

                                1970RT FBBO Gold Member FBBO Gold Member

                                Messages:
                                311
                                Likes Received:
                                552
                                Joined:
                                Oct 28, 2014
                                Location:
                                Oak Cliff, TX
                                Local Time:
                                4:36 PM

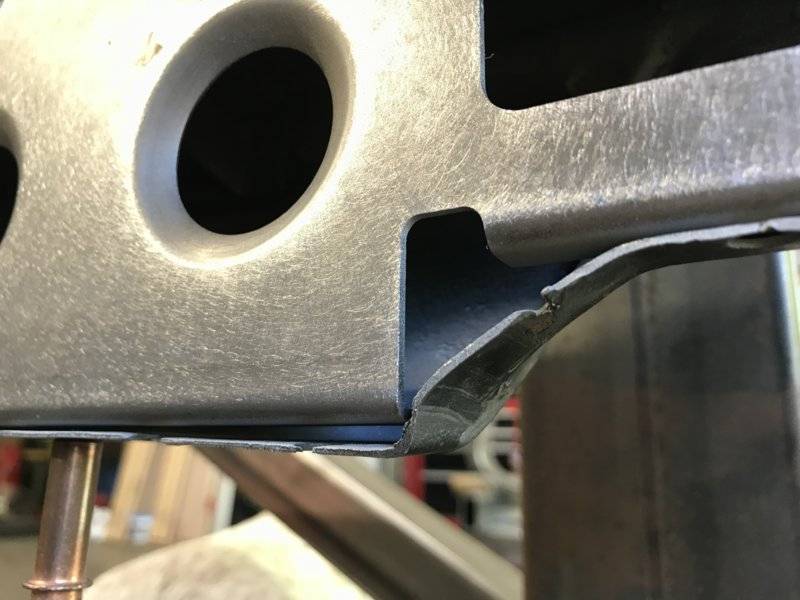

                                It’s a full weekend of fine fitting, welding, and blending.

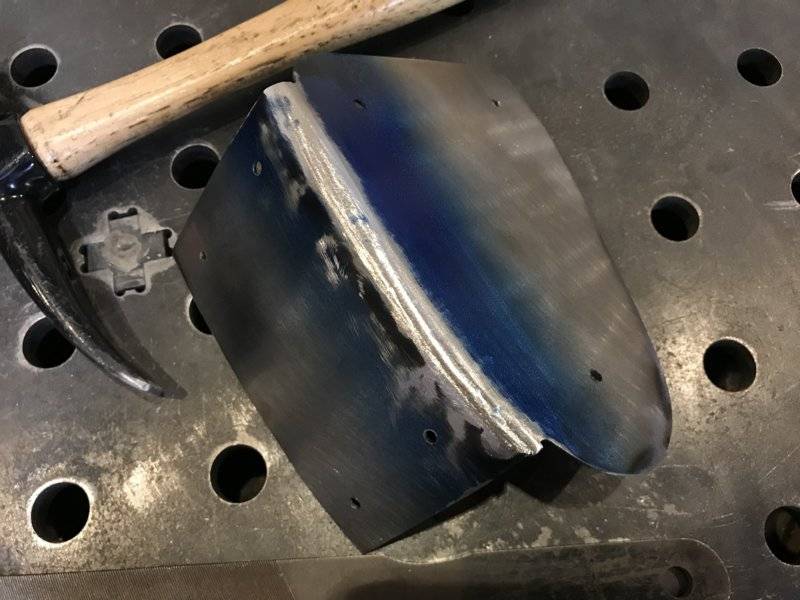

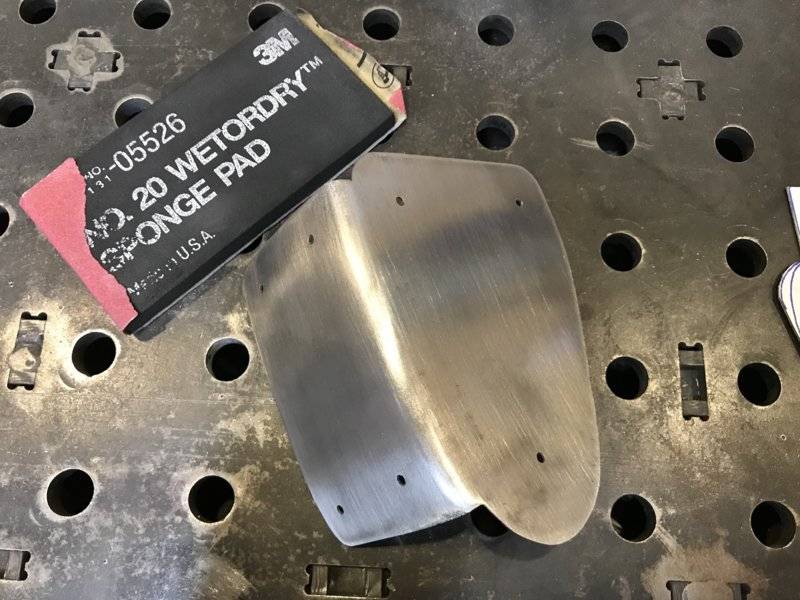

                                This is the last artifact of the old rocker shape, which (turns out) isn’t that flat to the rails. This is what @Ghostrider 67 was asking about earlier. Easy fix.


                                There are 200ish tack holes, 50 per flange per side.

                                Burned in and blended. Go slow and manage the heat. I did 3 tacks per side, air quenching each one.

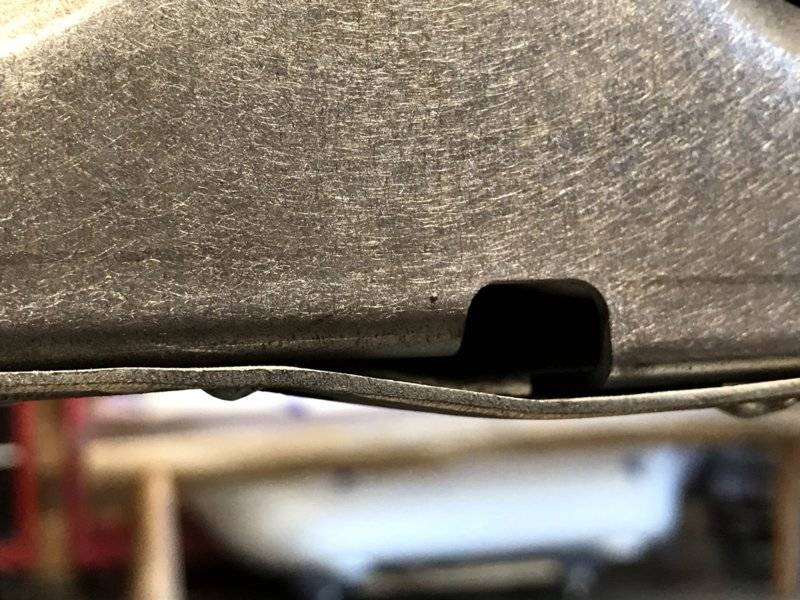

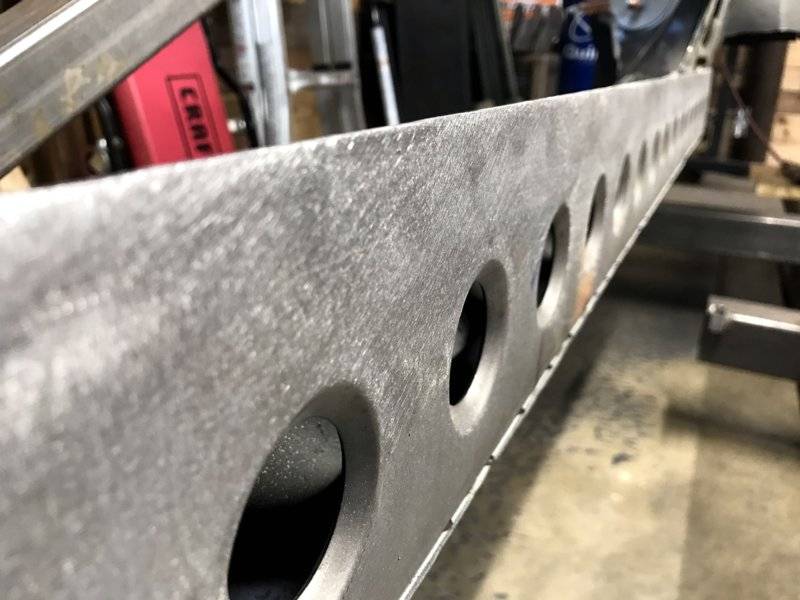

                                Super straight upper flange.

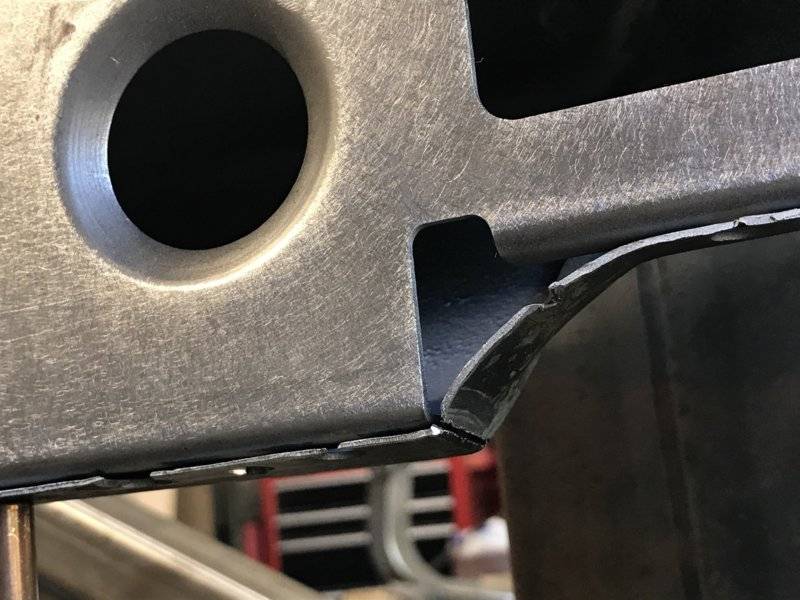

                                Detail shot of the 1/8” kickup for the quarter panel, fully planished for a tight fit to the inner plate.

                                Next up, burn in the lower plugs and prep for assembly of the rails.

                                David

                                • Like Like x 3
                                • Ghostrider 67

                                  Ghostrider 67 FBBO Gold Member FBBO Gold Member

                                  Messages:
                                  16,616
                                  Likes Received:
                                  27797
                                  Joined:
                                  Oct 16, 2014
                                  Location:
                                  Salisbury, Vermont
                                  Local Time:
                                  5:36 PM
                                  Yup, that was indeed the area I was referring to. Great job and super clean too. Your attention to detail is above par for sure!

                                  • Thanks! Thanks! x 1
                                  • 1970RT

                                    1970RT FBBO Gold Member FBBO Gold Member

                                    Messages:
                                    311
                                    Likes Received:
                                    552
                                    Joined:
                                    Oct 28, 2014
                                    Location:
                                    Oak Cliff, TX
                                    Local Time:
                                    4:36 PM
                                    I had a full week of travel, and lost a few days to the flu. I must have licked an armrest somewhere. Making the most of the downtime, I worked on drawings and video editing.

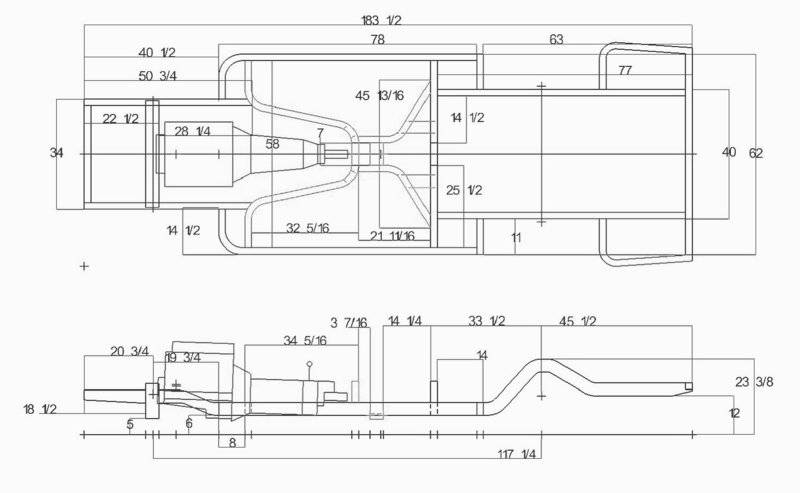

                                    Here’s the final frame drawing. There are minor tweaks to the front, mid, and rear widths. All this junk gets burned in starting Saturday, 10/26.


                                    David

                                    • Like Like x 1
                                    • Ghostrider 67

                                      Ghostrider 67 FBBO Gold Member FBBO Gold Member

                                      Messages:
                                      16,616
                                      Likes Received:
                                      27797
                                      Joined:
                                      Oct 16, 2014
                                      Location:
                                      Salisbury, Vermont
                                      Local Time:
                                      5:36 PM
                                      Glad your better. Looks great. Remember.....measure twice & cut once!!

                                      • Thanks! Thanks! x 1
                                      • 1970RT

                                        1970RT FBBO Gold Member FBBO Gold Member

                                        Messages:
                                        311
                                        Likes Received:
                                        552
                                        Joined:
                                        Oct 28, 2014
                                        Location:
                                        Oak Cliff, TX
                                        Local Time:
                                        4:36 PM

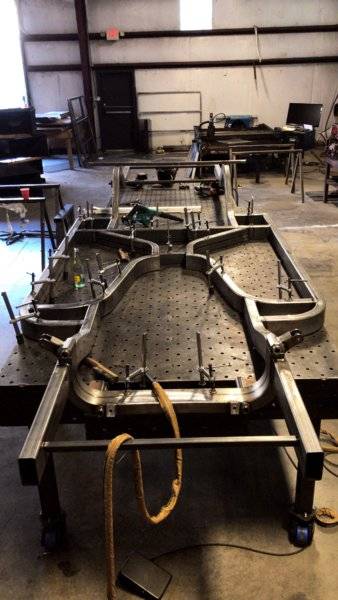

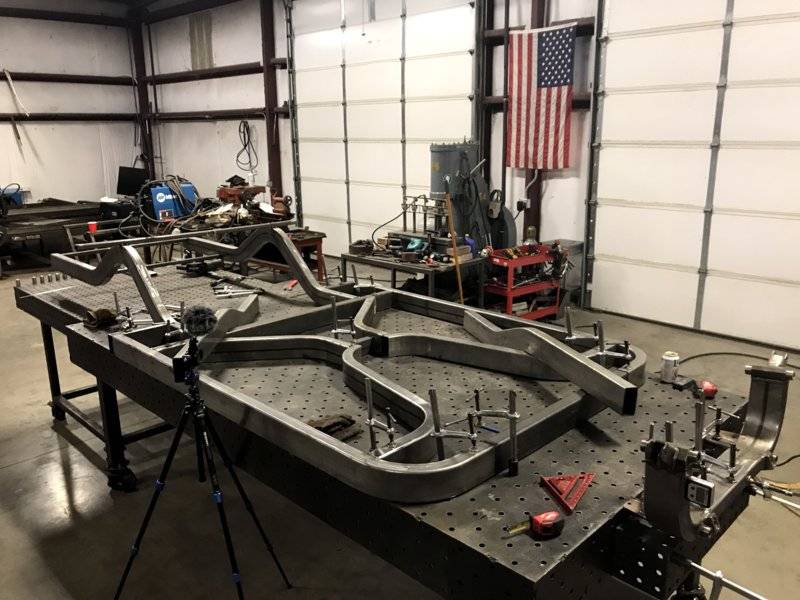

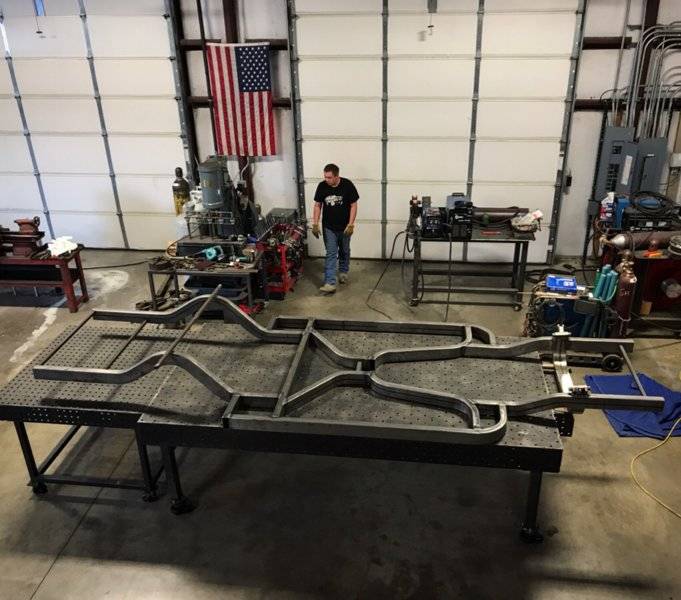

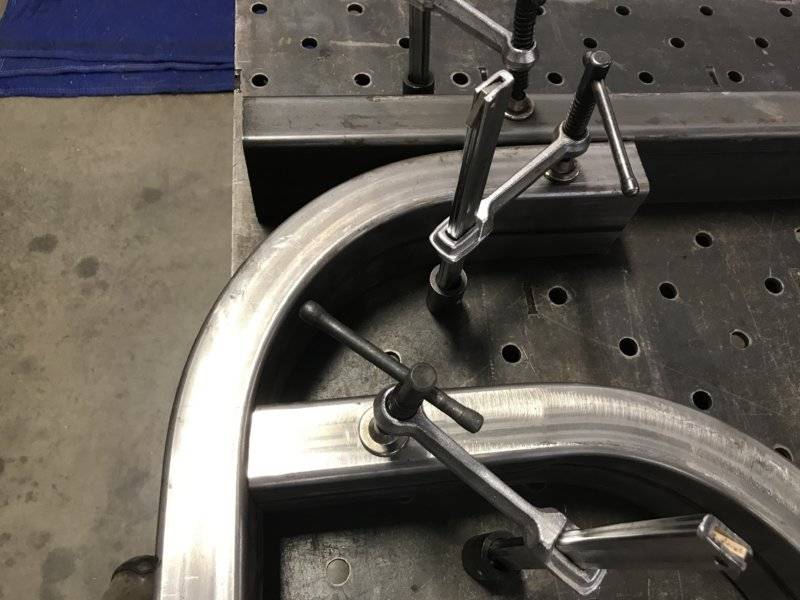

                                        It was a full weekend of chassis building.

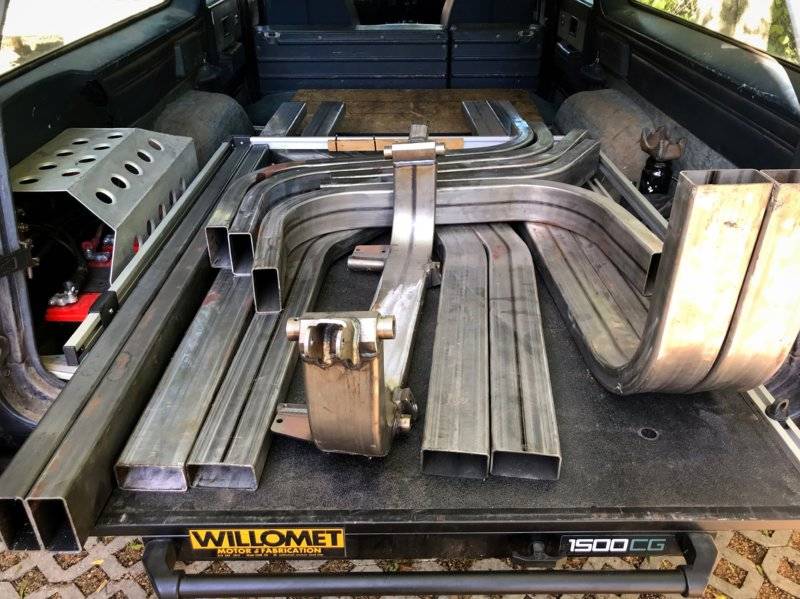

                                        The Charger will only fit in the suburban this one time.

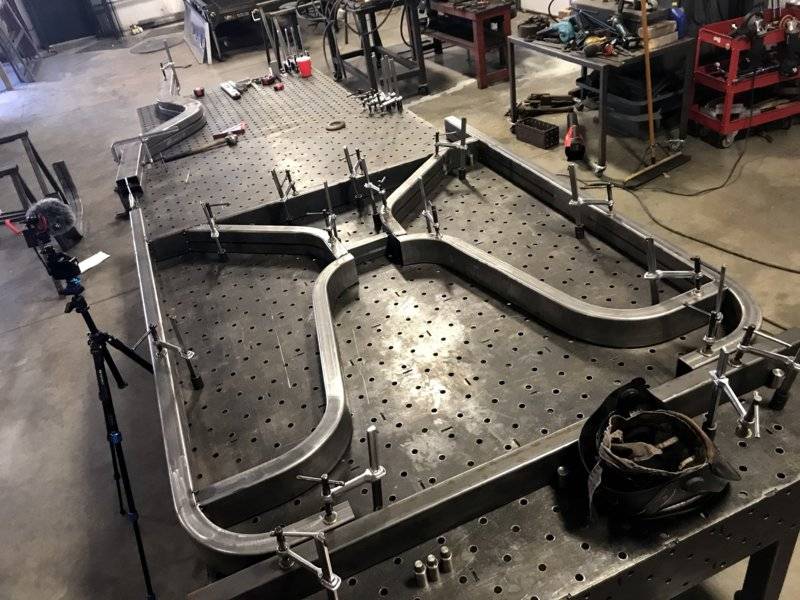

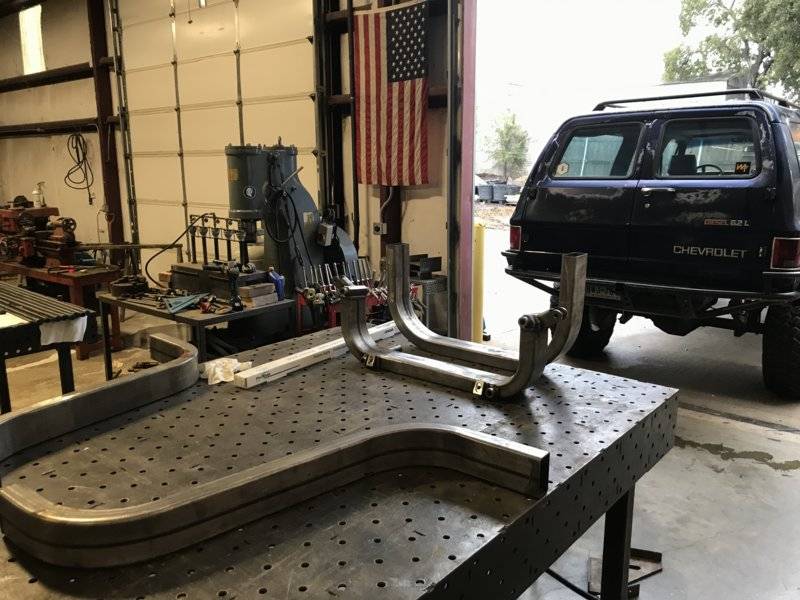

                                        Setting up at my friends shop...

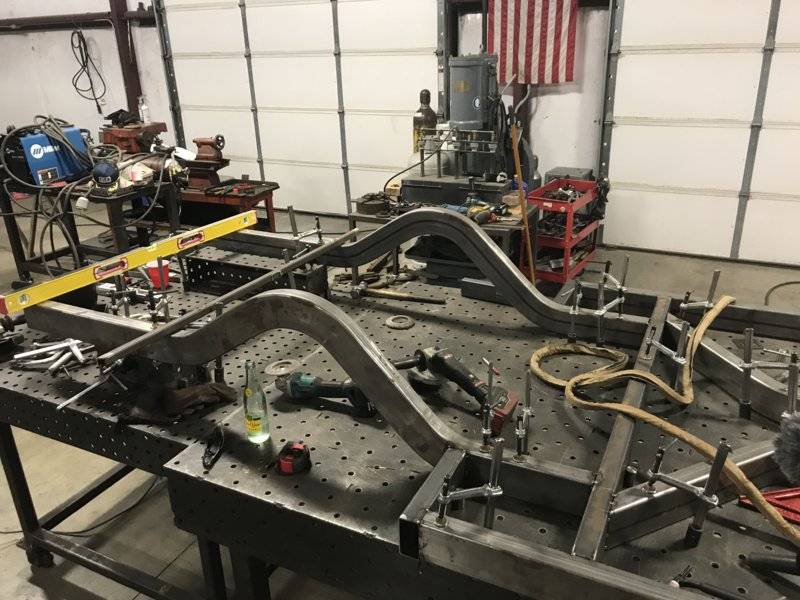

                                        ...he has two large fixture tables we made great use of.

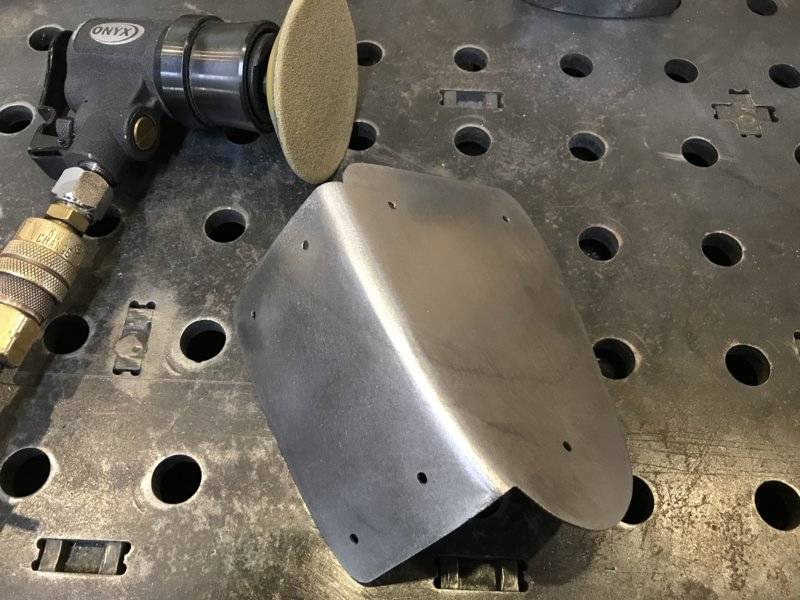

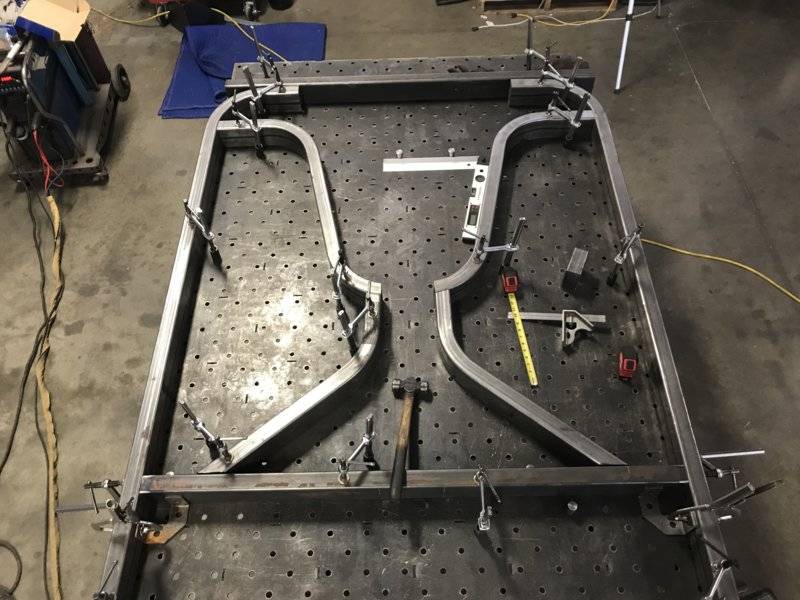

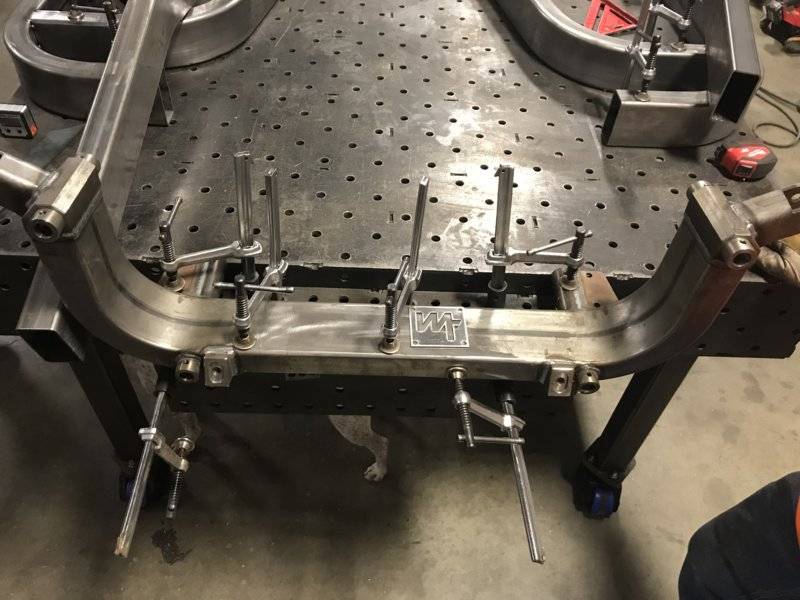

                                        Large rear torque boxes, and that crossbeam is placed at the same spot where the factory floor raises to the back seat - 33-1/2” forward of the axle centerline.


                                        ChassisWorks from crossmember

                                        Front torque box detail

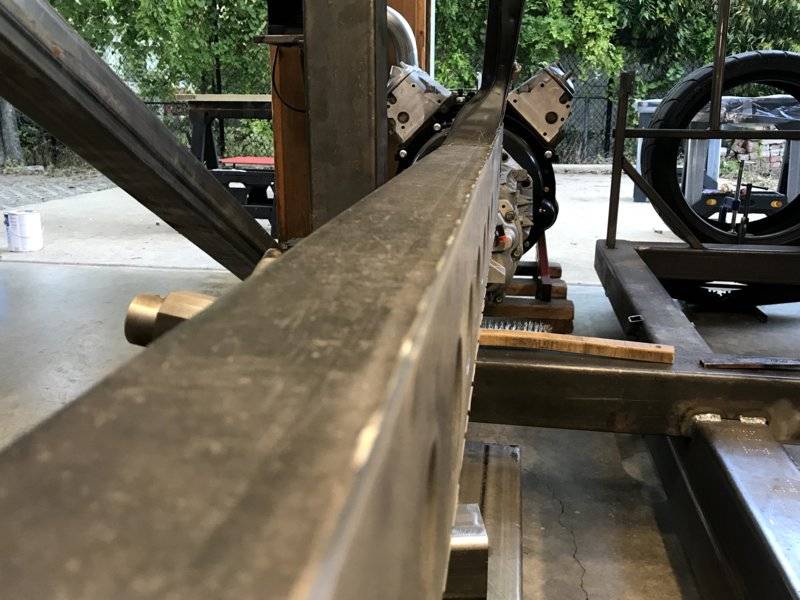

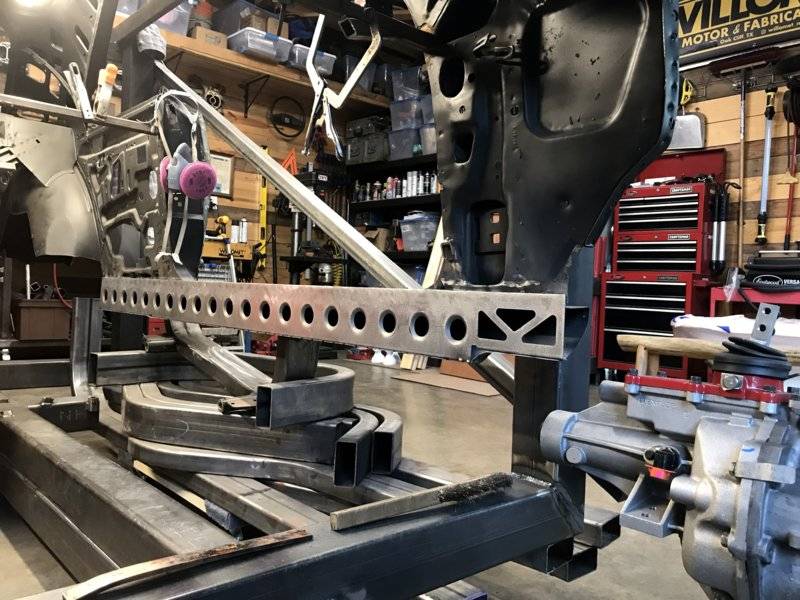

                                        The modified X, making room for the setback powertrain.

                                        A long and enjoyable day of welding.

                                        You can really get a sense of scale for just how big this car is.

                                        Everything is back at my shop, and there’s a load of detail pieces left to work - T plates, cap passes, driveshaft hoops, engine mounts, shear plates, and more stuff I’m forgetting.

                                        David

                                        • Like Like x 1
                                        • Average Joe

                                          Average Joe FBBO Gold Member FBBO Gold Member

                                          Messages:
                                          348
                                          Likes Received:
                                          424
                                          Joined:
                                          Nov 26, 2014
                                          Location:
                                          Colorado Springs
                                          Local Time:
                                          3:36 PM
                                          Nice!

                                          • Thanks! Thanks! x 1
